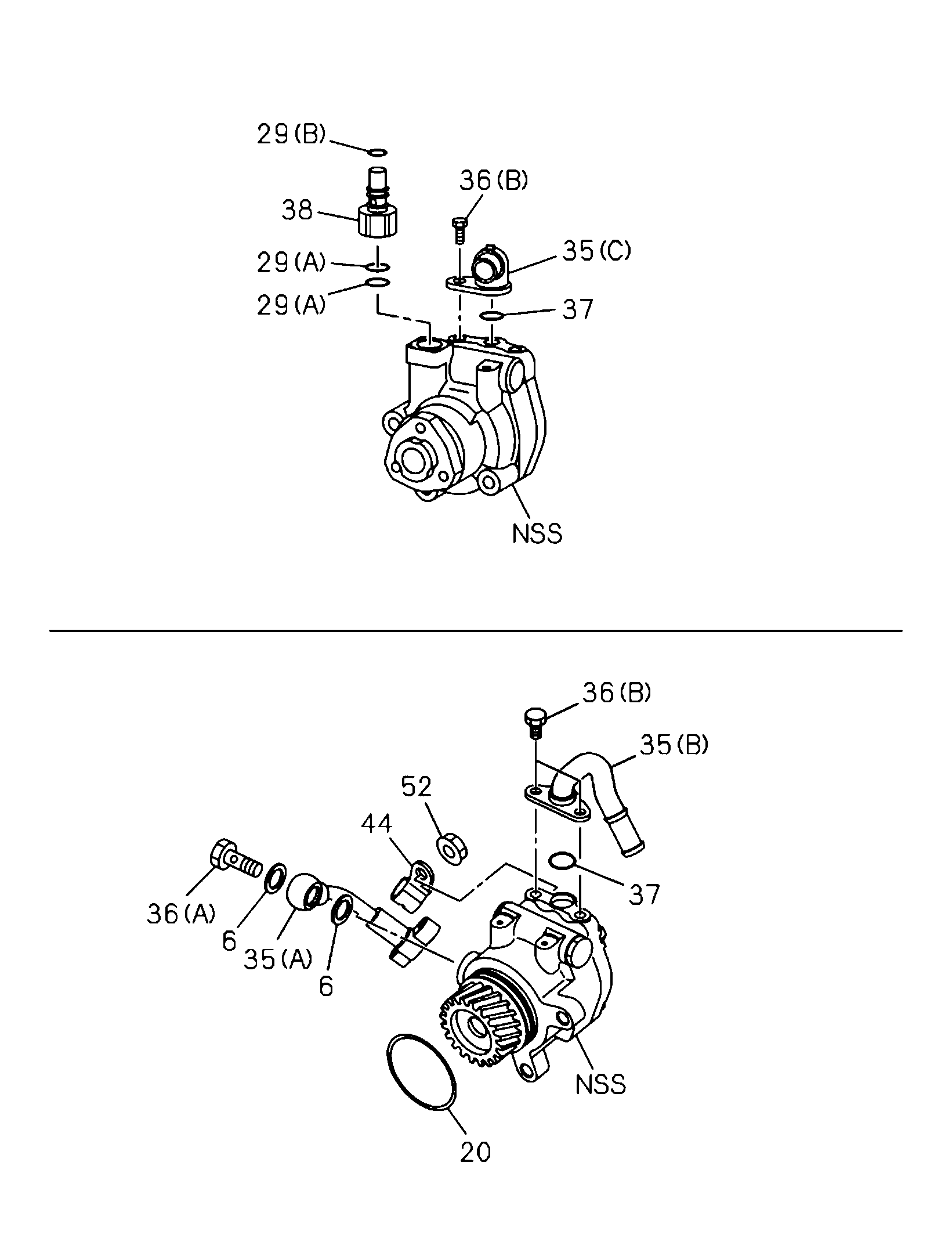

4-42 | 4-42 - POWER STEERING OIL PUMP
DMAX
D-MAX 2021
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 36 | I8-98166 386-0 | BOLT; CONN,PIPE | 1 | A | (B) ASM PART A=8-97556-972-0 | |||
| 38 | I8-98481 771-0 | CONNECTOR; OIL PUMP | 1 | A | ASM PART A=8-97556-972-0 | |||
| 29 | I8-98481 774-0 | GASKET; PLUGTOVLV | 1 | A | (B) ASM PART A=8-97556-972-0 | |||
| 35 | I8-98481 772-0 | PIPE; HOSE CONN.OIL PUMP | 1 | A | (C) ASM PART A=8-97556-972-0 | |||
| 29 | I8-98481 773-0 | GASKET; PLUGTOVLV | 2 | A | (A) ASM PART A=8-97556-972-0 | |||
| 36 | I8-98166 386-0 | BOLT; CONN,PIPE | 2 | B | (B) ASM PART B=8-98489-892-0 | |||
| 37 | I8-98166 384-0 | GASKET; PIPE CONN.OIL PUMP | 1 | AB | ASM PART A=8-97556-972-0 B=8-98489-892-0 |
