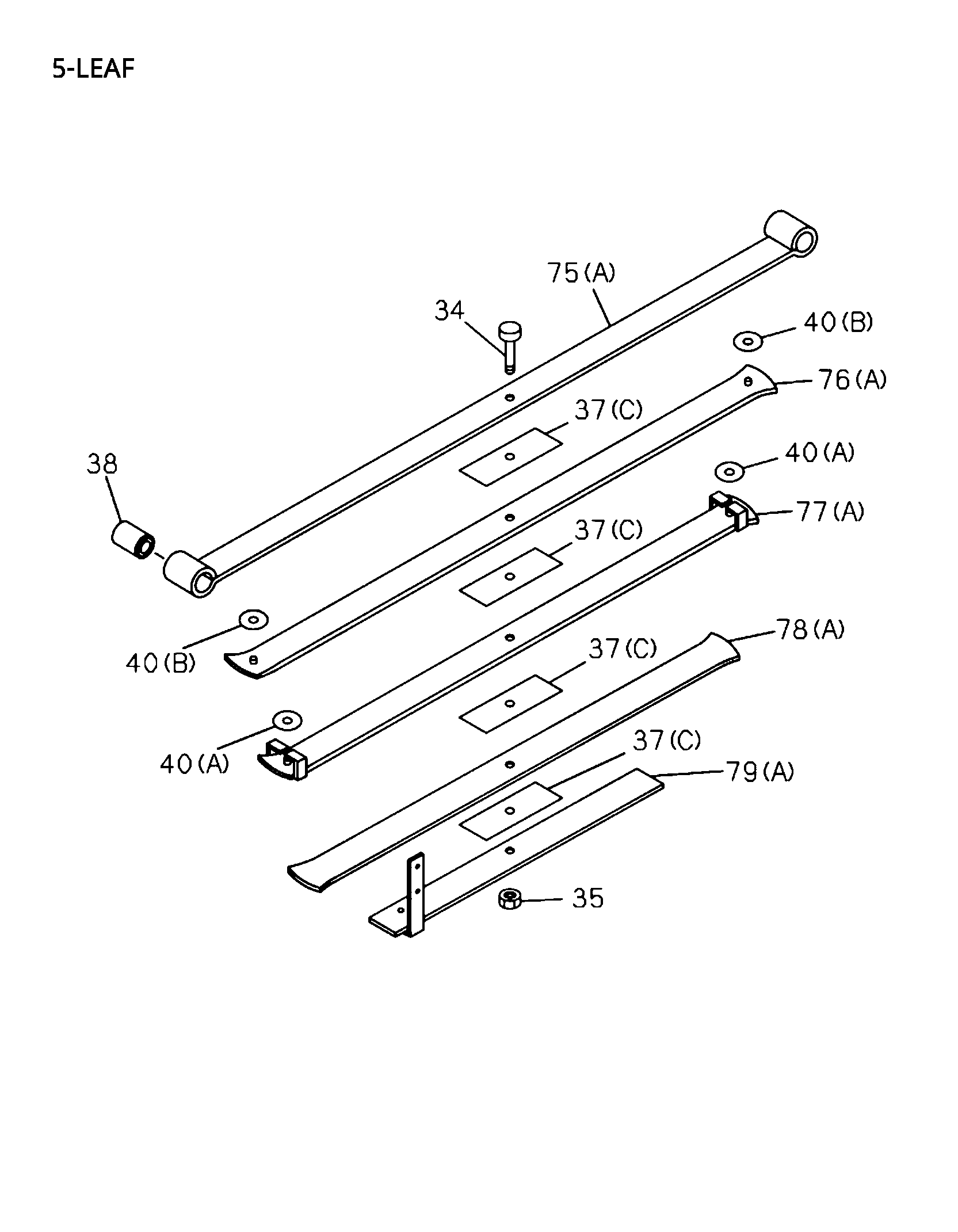

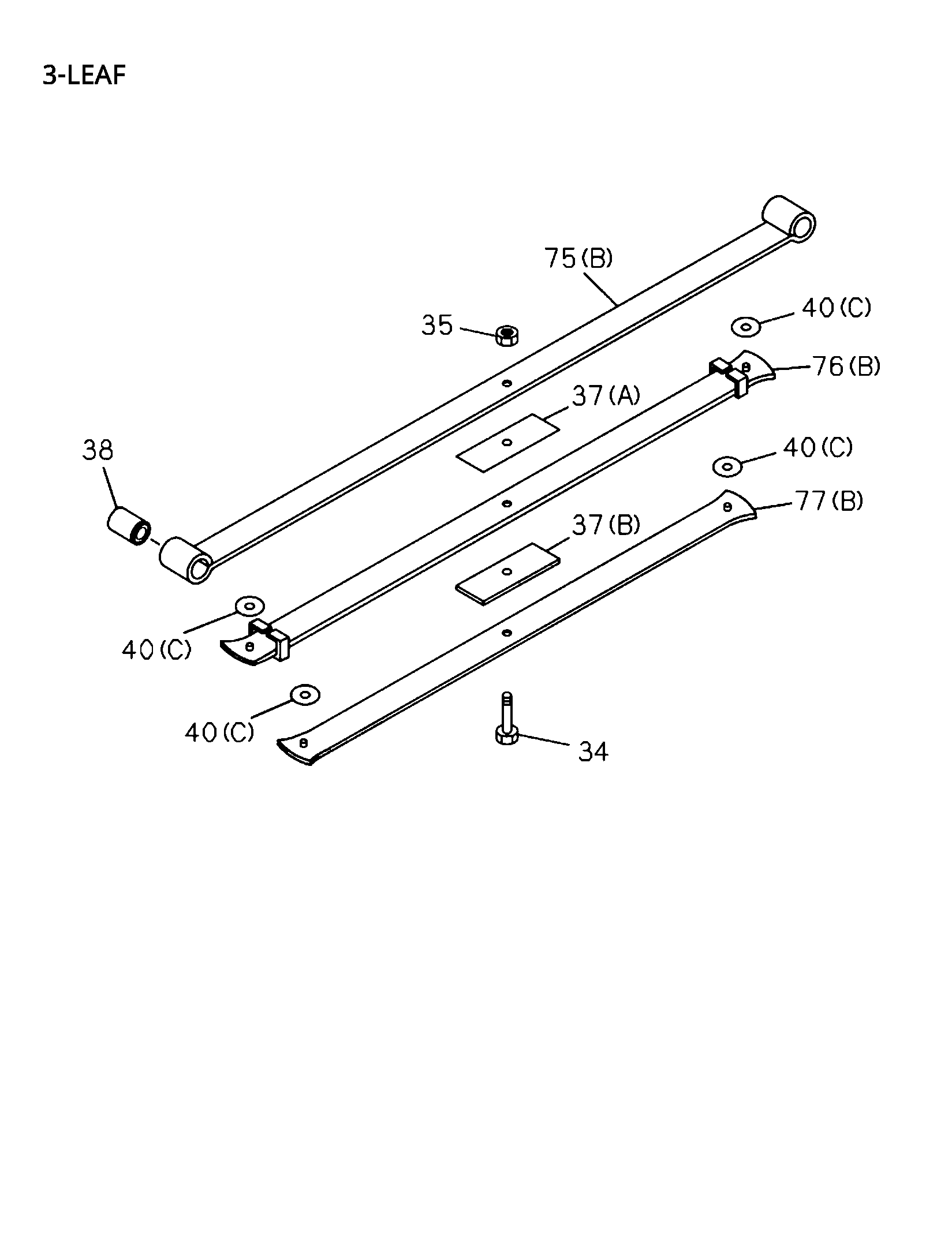

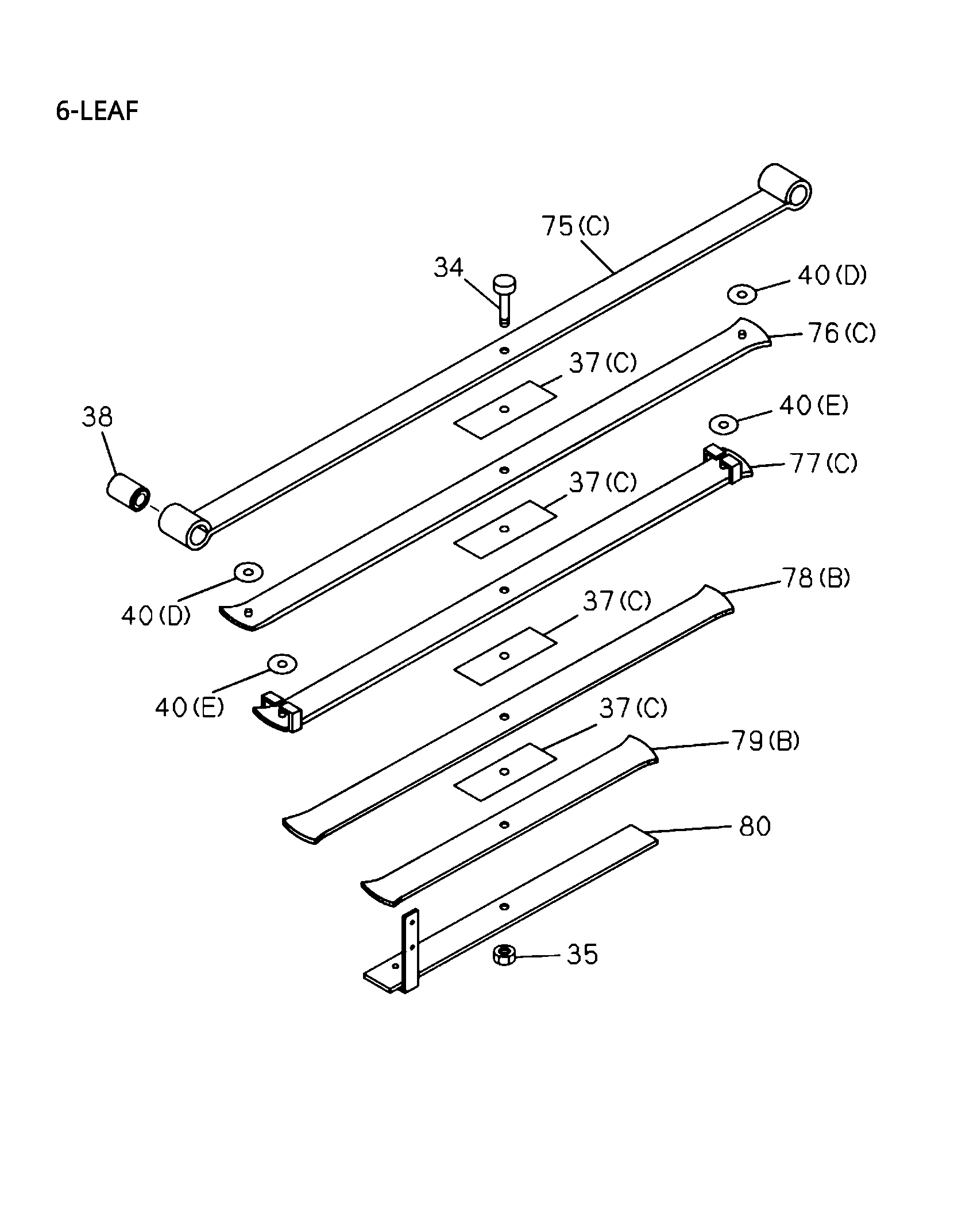

4-65 | 4-65 - REAR LEAF SPRING
DMAX
D-MAX 2021
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 38 | I8-97947 171-0 | BUSHING; LEAF SPR.RR | 1 | ABCD | ASM PART A=8-98392-231 -1 B=8-98392-232-0 C=8-98392-234-1 D=8-98392-236-0 | |||
| 35 | I1-09400 055-0 | NUT; CENTER BOLT,LEAF SPR.RR | 1 | CD | M10 ASM PART C=8-98392-234-1 D=8-98392-236-0 | |||
| 34 | I8-97527 433-0 | BOLT; CENTER.LEAF SPR.RR MAIN | 1 | C | M10X48 ASM PART C=8-98392-234-1 | |||
| 76 | I8-97527 430-0 | SPRING; LEAF.NO 2.RR | 1 | C | (B) ASM PART C=8-98392-234-1 | |||
| 35 | I1-09400 055-0 | NUT; CENTER BOLT,LEAF SPR.RR | 1 | CD | M10 ASM PART C=8-98392-234-1 D=8-98392-236-0 | |||
| 37 | I8-98296 472-0 | SPACER; CENTER.LEAF SPR.RR | 1 | CD | (A) ASM PART C=8-98392-234-1 D=8-98392-236-0 | |||
| 38 | I8-97947 171-0 | BUSHING; LEAF SPR.RR | 1 | ABCD | ASM PART A=8-98392-231 -1 B=8-98392-232-0 C=8-98392-234-1 D=8-98392-236-0 | |||
| 34 | I8-97527 433-0 | BOLT; CENTER.LEAF SPR.RR MAIN | 1 | C | M10X48 ASM PART C=8-98392-234-1 | |||
| 35 | I1-09400 055-0 | NUT; CENTER BOLT,LEAF SPR.RR | 1 | CD | M10 ASM PART C=8-98392-234-1 D=8-98392-236-0 | |||
| 38 | I8-97947 171-0 | BUSHING; LEAF SPR.RR | 1 | ABCD | ASM PART A=8-98392-231 -1 B=8-98392-232-0 C=8-98392-234-1 D=8-98392-236-0 | |||
| 34 | I8-97527 433-0 | BOLT; CENTER.LEAF SPR.RR MAIN | 1 | C | M10X48 ASM PART C=8-98392-234-1 | |||
| 37 | I8-98288 935-0 | SPACER; CENTER.LEAF SPR.RR | 1 | CD | (B) ASM PART C=8-98392-234-1 D=8-98392-236-0 | |||
| 40 | I8-98302 724-0 | LINER; LEAF SPR.RR | 4 | CD | (C) ASM PART C=8-98392-234-1 D=8-98392-236-0 | |||
| 75 | I8-97527 429-0 | SPRING; LEAF.NO 1,RR | 1 | C | (B) ASM PART C=8-98392-234-1 |
