5-01 | 5-01 - FRAME AND OTHER PARTS
DMAX
D-MAX 2021
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|

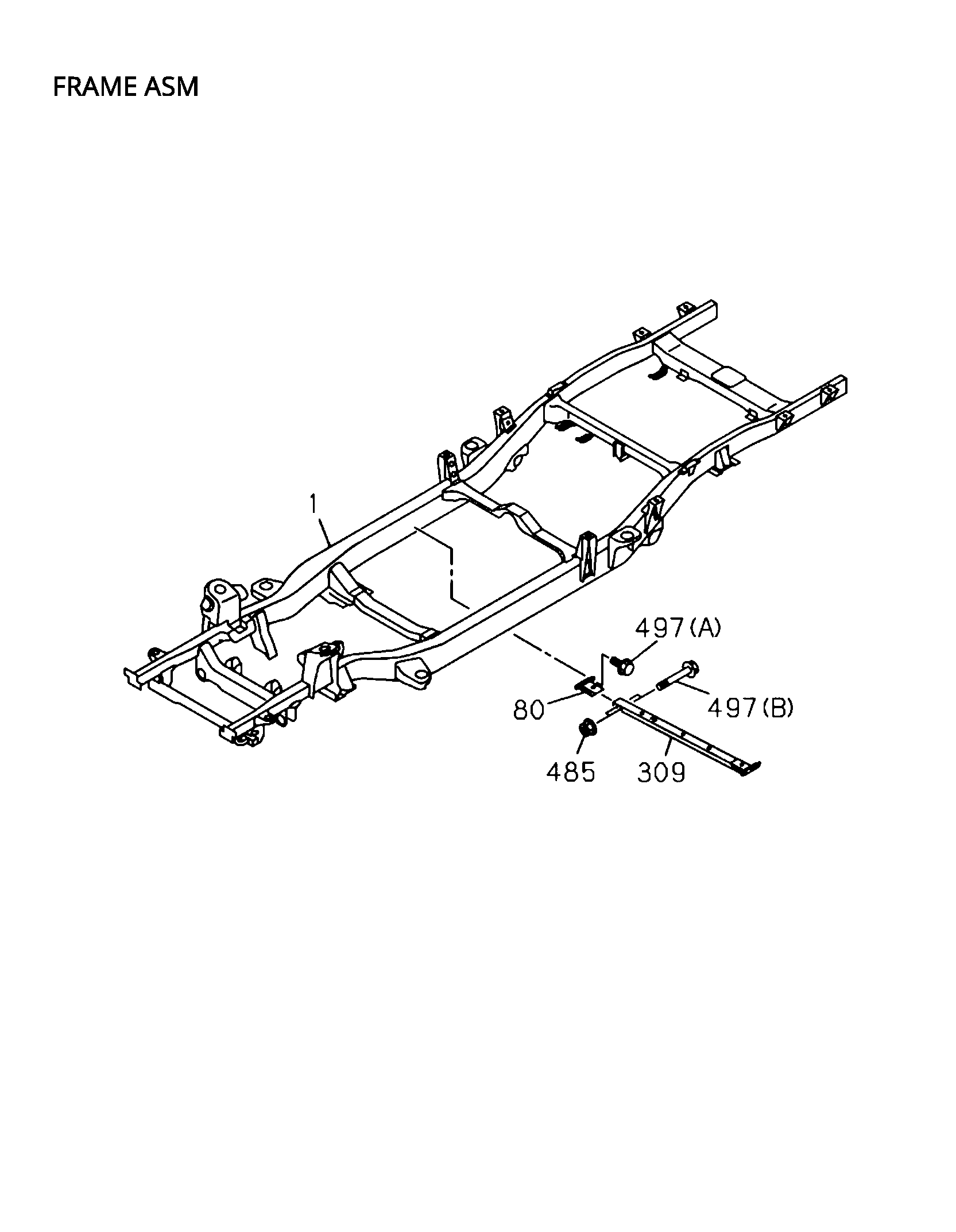

| 80 | I8-98394 492-1 | BRACKET; C/MBR | 1 | 2007- | ABCDE F | |||
| 497 | I0-28651 020-0 | BOLT; C/MBR | 4 | 2007- | A B C D E | |||
| 309 | I8-98394 497-2 | MEMBER; CROSS | 1 | 2010- | B D F | EUROO SPECIFICATI0N(K75),EUR02 SPECIFICATI0N(NT2),EUR04 SPECIFICATI0N(NT4),EUR05 SPECIFICATION(NTS) | ||
| -49 | I0-28061 080-0 | BOLT; C/MBR | 2 | 2007- | ABCDE F | (B) M10X80 FLANGE | ||
| 309 | I8-98394 497-2 | MEMBER; CROSS | 1 | 2007-2009 | ABCDE F | |||
| 309 | I8-98394 497-2 | MEMBER; CROSS | 1 | 2010- | ACE |
