6-10 | 6-10 - ENGINE HOOD AND LOCK
DMAX
D-MAX 2021
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 31 | I8-98363 571-1 | LOCK; ENG HOOD | 1 | 2007- | B E | EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>,IDLE STOP SYSTEM<8BM> | ||
| 18 | I8-98056 122-0 | BOLT; HINGE | 4 | 2007- | ABCDE F | (A) M8X16 | ||
| 44 | I8-97370 668-0 | BOLT; STAY.HOOD | 1 | 2007- | ABCDE F | (A) M6X20W/PL WASHER | ||
| 43 | I8-98370 366-1 | STAY; ENG HOOD.FRT END | 1 | 2007- | ABCDE F | |||
| 17 | I8-98386 268-1 | HINGE; ENG HOOD | 1 | 2007- | ABCDE F | |||
| 31 | I8-98363 569-1 | LOCK; ENG HOOD | 1 | 2007- | A CD F | REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,PASSIVE ENTRY & START SYSTEM W/REMOTE ENG<8SR> | ||
| 3 | I8-98312 732-0 | BUFFER; ENG HOOD.FRT | 4 | 2007- | ABCDE F | (A) | ||
| 31 | I8-98363 571-1 | LOCK; ENG HOOD | 1 | 2007- | A CD F | EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>,IDLE STOP SYSTEM<8BM>, PASSIVE ENTRY 8c START SYSTEM W/REMOTE ENG<8SR> | ||
| 3 | I8-98195 454-0 | BUFFER; ENG HOOD.FRT | 2 | 2007- | ABCDE F | (B) | ||

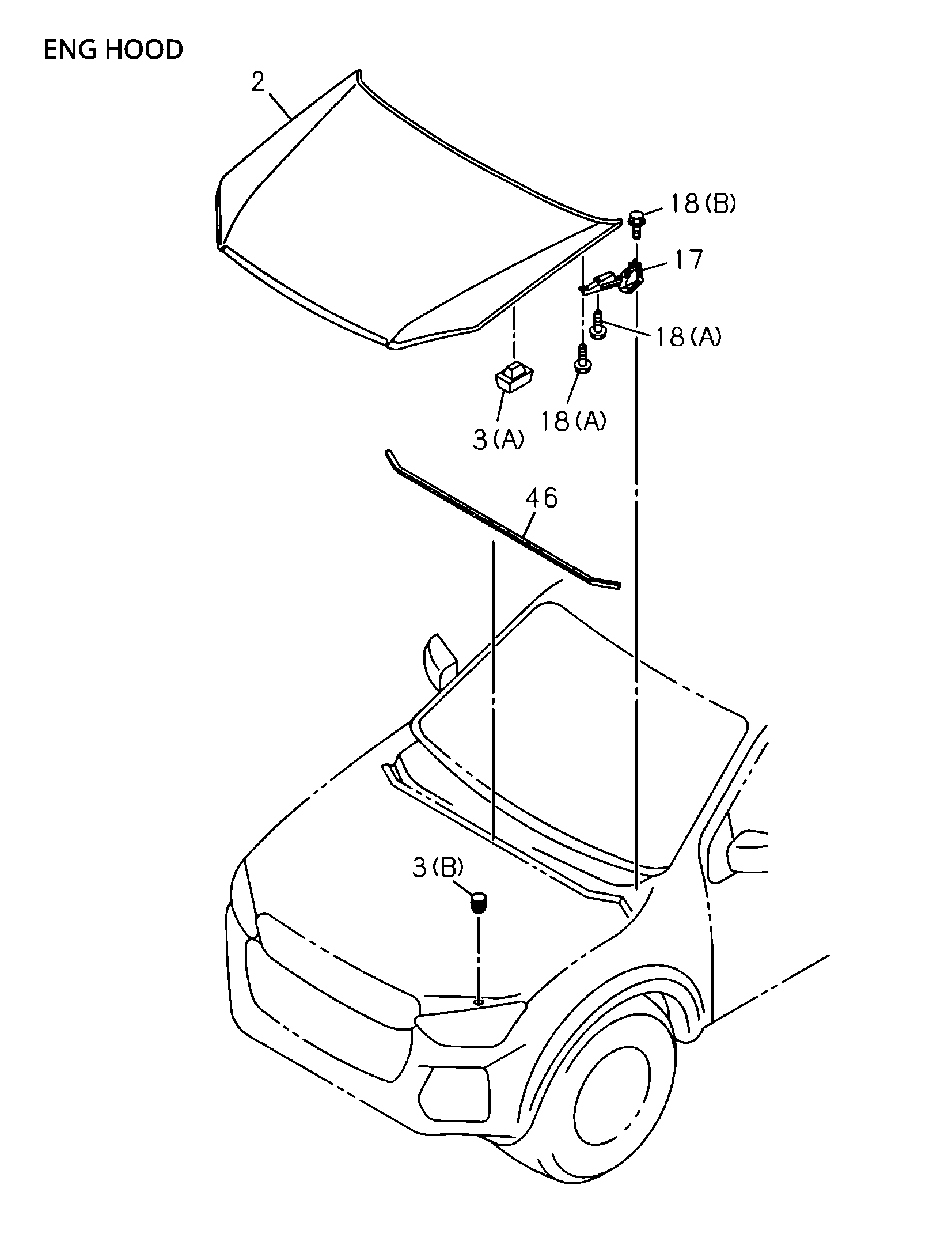

| 2 | I8-98386 208-4 | PANEL; ENG HOOD | 1 | 2007- | ABCDE F | |||
| 32 | I8-97370 668-0 | BOLT; HOOD LK | 2 | 2007- | ABCDE F | M6X20W/PL WASHER | ||
| 130 | I0-28650 616-0 | BOLT; SUPPORT ROD.HOOD | 1 | 2007- | ABCDE F | M6X16 FLANGE | ||
| 17 | I8-98386 276-1 | HINGE; ENG HOOD | 1 | 2007- | ABCDE F | |||
| 50 | I8-98391 469-1 | ROD; SUPPORT,ENG HOOD | 1 | 2007- | ABCDE F | |||

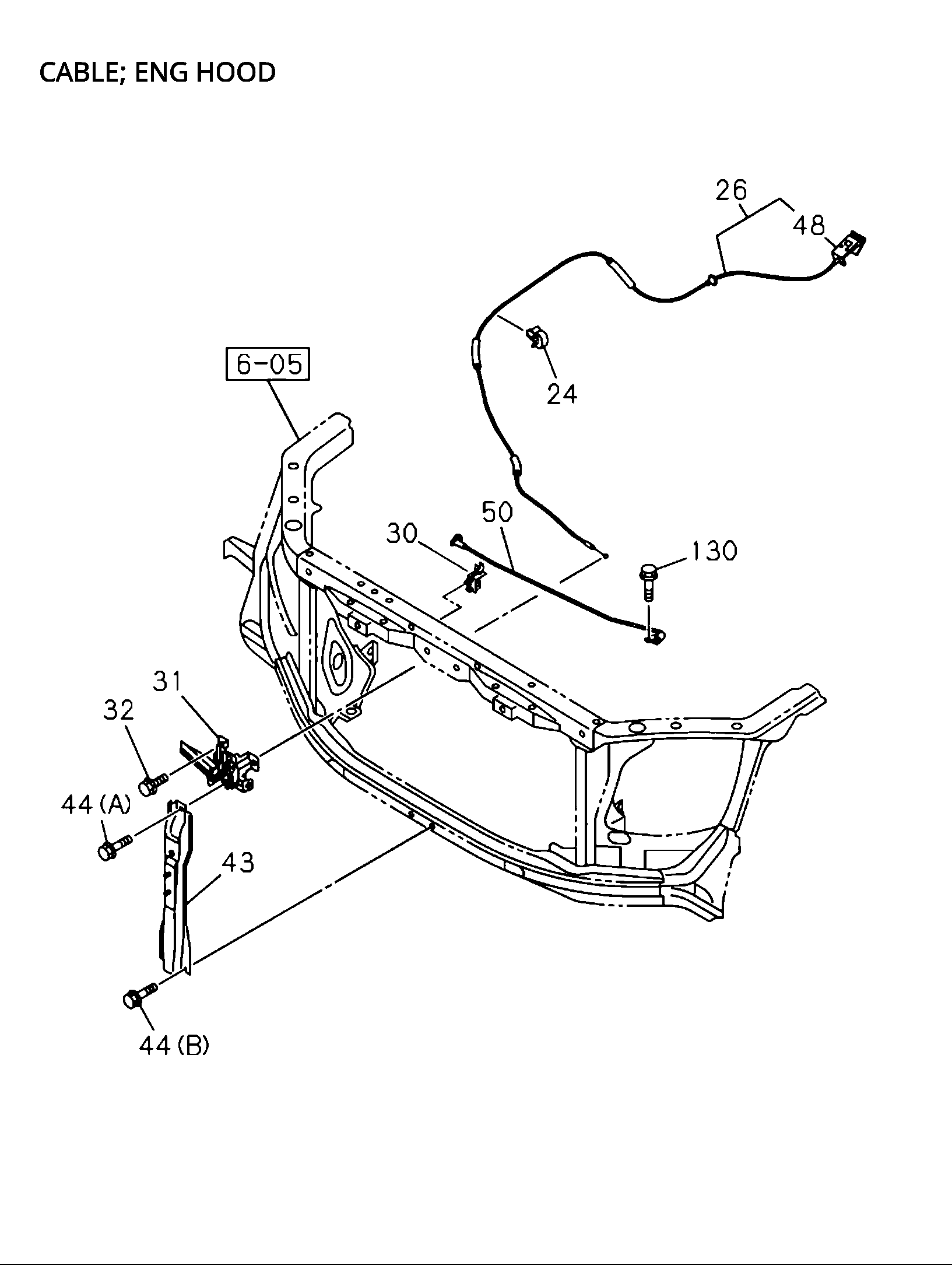

| 26 | I8-98393 091-0 | CABLE; ENG HOOD CONT | 1 | 2007- | ABCDE F | |||
| 48 | I8-97555 705-0 | LEVER; ENG HOOD | 1 | 2007- | ABCDE F | |||
| 31 | I8-98363 569-1 | LOCK; ENG HOOD | 1 | 2007- | A CD F | PASSIVE ENTRY AND START SYSTEM<AP3>,PASSIVE ENTRY & START SYSTEM W/REMOTE ENG<8SR> | ||
| 31 | I8-98363 569-1 | LOCK; ENG HOOD | 1 | 2007- | B | IDLE STOP SYSTEM<8BM> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> | ||
| 44 | I0-28660 820-0 | BOLT; STAY,HOOD | 2 | 2007- | ABCDE F | (B) M8X20 FLANGE | ||
| 18 | I8-98208 786-0 | BOLT; HINGE | 4 | 2007- | ABCDE F | (B) M8X27 | ||
| 31 | I8-98363 569-1 | LOCK; ENG HOOD | 1 | 2007- | D F | IDLE STOP SYSTEM<8BM> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>,PASSIVE ENTRY 8< START SYSTEM W/REMOTE ENG<8SR> | ||
| 46 | I8-98394 032-3 | SEAL; ENG HOOD | 1 | 2007- | ABCDE F | |||
| 24 | I8-97182 405-0 | CLIP; CONT CABLE | 4 | 2007- | ABCDE F | |||
| 31 | I8-98363 569-1 | LOCK; ENG HOOD | 1 | 2007- | B E | REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> |
