| 61 |
I8-97651 219-1 |
|
PANEL; SIDE OUTER |
1 |
2007- |
L |
B E |
(B) |
| 295 |
I8-94269 290-0 |
|
CLIP; BODY SIDE STEP |
8 |
2007- |
|
A CD F |
EXC. SIDE STEP<6TC> OD=18 |
| 430 |
I8-97125 519-0 |
|
NUT; PANEL |
6 |
2007- |
|
A C |
REAR BODY DBL WALL CTR PULL(E63) FORMED MUD FLAP FRT Bi RR<Q8H>,FORMED MUD FLAP EXTEND FRT & RR<Q8J> EXC. HIGH RIDE SUSPENSION(7YC) |
| 249 |
I8-98396 219-1 |
|
REINFORCEMENT; RR PILLAR |
1 |
2007- |
L |
B E |
|
| 639 |
I8-98386 111-0 |
|
REINFORCEMENT; COWL SIDE |
1 |
2007- |
R |
ACE |
|
| 161 |
I8-98054 289-0 |
|
BOLT; FIX |
1 |
2007- |
|
BC E F |
M6X12W/PL WASHER |
| 638 |
I8-98386 342-1 |
|
PANEL; DASH SIDE INNER |
1 |
2007- |
R |
ABCDE F |
|
| 61 |
I8-97649 797-0 |
|
PANEL; SIDE OUTER |
1 |
2010- |
R |
C |
HIGH RIDE SUSPENSION(7YC) (C) |
| 61 |
I8-97649 797-0 |
|
PANEL; SIDE OUTER |
1 |
2010- |
R |
C |
HIGH RIDE SUSPENSION(7YC) (C) |
| 664 |
I8-98386 627-1 |
|
SEAL; TAPE |
1 |
2007- |
|
ABCDE F |
|

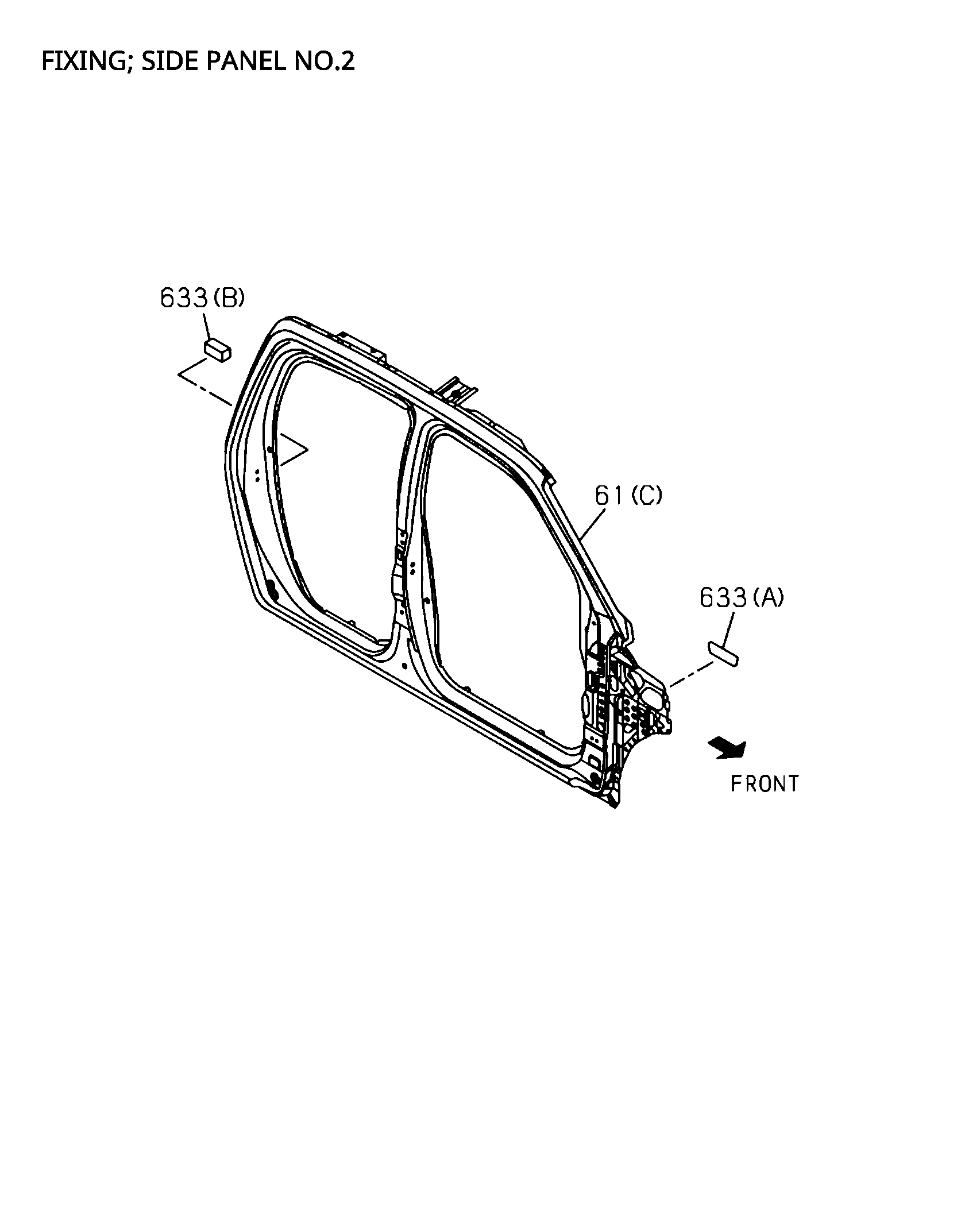

| 633 |
I8-97554 826-0 |
|
SEALER |
2 |
2007- |
|
C F |
(B) |
| 61 |
I8-97651 218-0 |
|
PANEL; SIDE OUTER |
1 |
2007-2009 |
R |
E |
(B) |
| 161 |
I8-98054 289-0 |
|
BOLT; FIX |
2 |
2007- |
|
A D |
M6X12W/PL WASHER |
| 636 |
I8-98386 141-2 |
|
PANEL; FRONT PILLAR INNER |
1 |
2007- |
R |
ABCDE F |
|
| 664 |
I8-98386 627-1 |
|
SEAL; TAPE |
1 |
2007- |
|
ABCDE F |
|
| 161 |
I8-98054 289-0 |
|
BOLT; FIX |
2 |
2007- |
|
|
M6X12W/PL WASHER |
| 639 |
I8-98386 111-0 |
|
REINFORCEMENT; COWL SIDE |
1 |
2007- |
R |
D |
EXC. JUMP SEAT<AJ2> |
| 639 |
I8-98386 111-0 |
|
REINFORCEMENT; COWL SIDE |
1 |
2007- |
R |
D |
JUMP SEAT<AJ2> EXC. EUR06D SPECIFICATION(8SJ) |
| 639 |
I8-98386 111-0 |
|
REINFORCEMENT; COWL SIDE |
1 |
2007- |
R |
ACE |
|
| 634 |
I8-98370 608-2 |
|
REINFORCEMENT; BODY SIDE INNER |
1 |
2007- |
R |
C F |
|
| 683 |
I8-98385 895-0 |
|
PANEL; HEADER |
1 |
2007- |
R |
C F |
|
| 635 |
I8-97553 207-0 |
|
REINFORCEMENT; ROCKER |
1 |
2007- |
L |
C F |
|
| 35 |
I8-98386 272-2 |
|
PANEL; CENTER PILLAR.INNER |
1 |
2007- |
R |
C |
HIGH RIDE SUSPENSION(7YC) (B) |

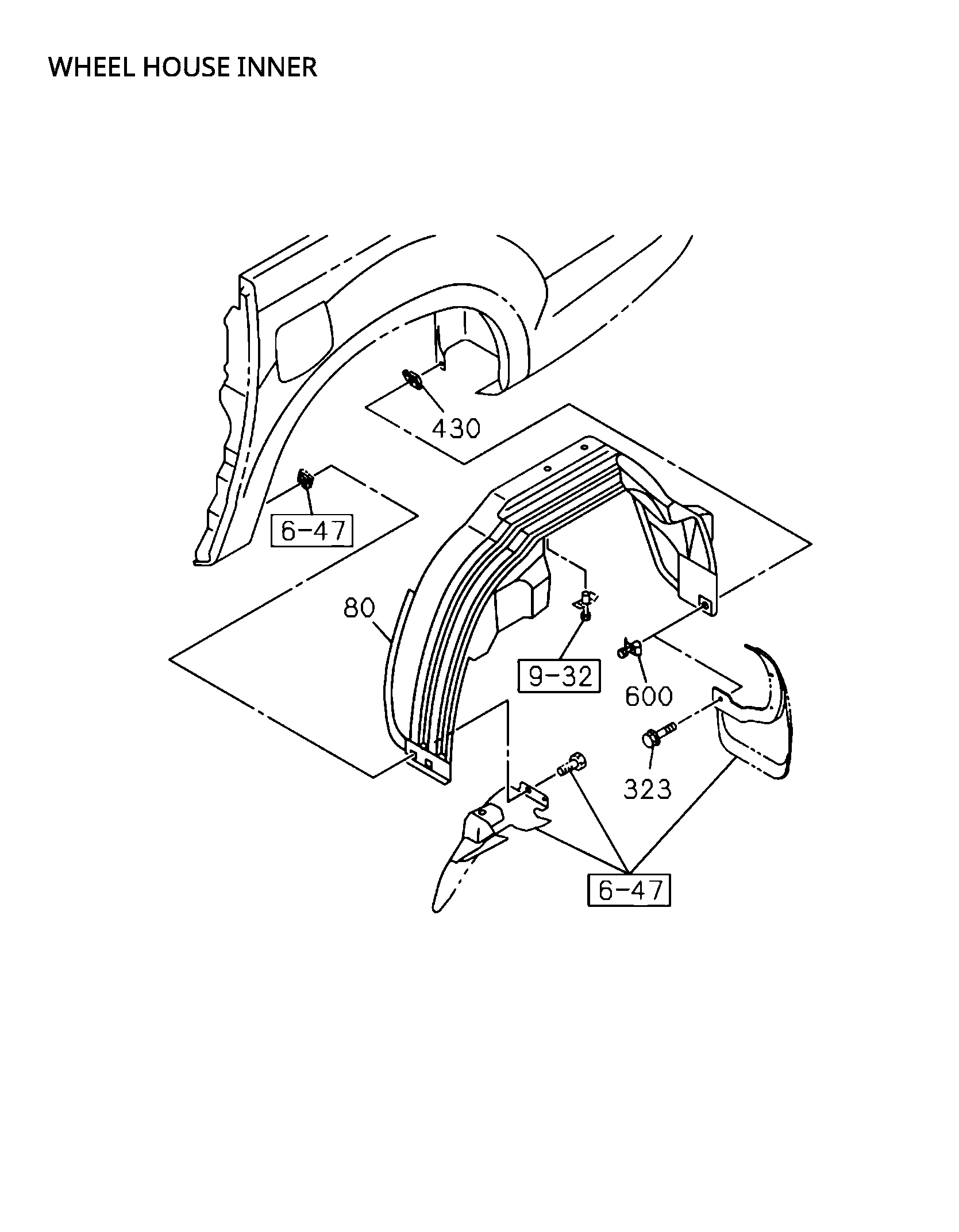

| 80 |
I8-98356 191-1 |
|
PANEL; WHEEL HOUSE.INNER |
1 |
2007- |
L |
A |
EXC. HIGH RIDE SUSPENSION(7YC) |
| 635 |
I8-97553 207-0 |
|
REINFORCEMENT; ROCKER |
1 |
2007- |
L |
C F |
|
| 80 |
I8-98356 190-1 |
|
PANEL; WHEEL HOUSE.INNER |
1 |
2007- |
R |
C |
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) |
| 430 |
I8-97125 519-0 |
|
NUT; PANEL |
6 |
2007- |
|
B E |
REAR BODY DBL WALL CTR PULL(E63) FORMED MUD FLAP FRT & RR<Q8H>,FORMED MUD FLAP EXTEND FRT & RR<Q8J> |
| 61 |
I8-97651 218-0 |
|
PANEL; SIDE OUTER |
1 |
2007-2009 |
R |
B |
EUROO SPECIF1CATI0N(K75),EUR02 SPECIFICATI0N(NT2),EUR04 SPECIFICATI0N(NT4),EUR05 SPECIFICATI0N(NT5),EUR06 SPECIFICATION(NT6) (B) |
| 288 |
I0-91180 106-0 |
|
NUT; STEP |
8 |
2007- |
|
A CD F |
SIDE STEP<6TC> (A) M6 FLANGE |
| 323 |
I8-98167 444-0 |
|
SCREW; SET |
8 |
2007- |
|
D F |
REAR BODY DBL WALL CTR PULL(E63) FORMED MUD FLAP FRT & RR<Q8H>,FORMED MUD FLAP EXTEND FRT & RR<Q8J> M6X20 TAPPING W/PL WASHER |
| 107 |
I8-98048 998-0 |
|
BOLT; SIDE STEP |
8 |
2007- |
|
A CD F |
SIDE STEP<6TC> (A) M8X25 FLANGE |
| 414 |
I8-98390 324-0 |
|
BRACKET; FENDER |
1 |
2007- |
|
ABCDE F |
|
| 638 |
I8-98386 215-2 |
|
PANEL; DASH SIDE INNER |
1 |
2007- |
L |
ABCDE F |
|
| 246 |
I8-98396 160-2 |
|
PANEL; RR PILLAR,INNER |
1 |
2007- |
L |
B E |
|
| 638 |
I8-98386 342-1 |
|
PANEL; DASH SIDE INNER |
1 |
2007- |
R |
ABCDE F |
|
| 639 |
I8-98386 111-0 |
|
REINFORCEMENT; COWL SIDE |
1 |
2007- |
R |
D |
EXC. JUMP SEAT<AJ2> |
| 664 |
I8-98386 627-1 |
|
SEAL; TAPE |
1 |
2007- |
|
ABCDE F |
|
| 61 |
I8-97651 218-0 |
|
PANEL; SIDE OUTER |
1 |
2010- |
R |
B E |
EUROO SPECIFICATI0N(K75),EUR02 SPECIFICATI0N(NT2),EUR04 SPECIFICATI0N(NT4),EUR05 SPECIFICATION(NT5) (B) |
| 164 |
I8-98385 927-0 |
|
PLATE; SIDE PNL OUTER |
2 |
2007- |
|
C F |
|
| 636 |
I8-98386 140-3 |
|
PANEL; FRONT PILLAR INNER |
1 |
2007- |
L |
ABCDE F |
|
| 635 |
I8-97553 206-0 |
|
REINFORCEMENT; ROCKER |
1 |
2007- |
R |
C F |
|
| 80 |
I8-98356 190-1 |
|
PANEL; WHEEL HOUSE.INNER |
1 |
2007- |
R |
A |
EXC. HIGH RIDE SUSPENSION(7YC) |
| 35 |
I8-98386 272-2 |
|
PANEL; CENTER PILLAR.INNER |
1 |
2007- |
R |
F |
(B) |
| 61 |
I8-97649 797-0 |
|
PANEL; SIDE OUTER |
1 |
2010- |
R |
F |
EUROO SPECIFICAn0N(K75),EUR02 SPECIFICATI0N(NT2),EUR04 SPECIFICATI0N(NT4),EUR05 SPECIFICATION(NT5) (C) |
| 418 |
I8-98483 659-0 |
|
RUBBER; STEP |
2 |
2007- |
|
C F |
SIDE STEP<6TC> |
| 67 |
I8-98385 925-0 |
|
PANEL; INNER.RR PILLAR LWR |
1 |
2007- |
R |
C F |
|
| 430 |
I8-97125 519-0 |
|
NUT; PANEL |
2 |
2007- |
|
ABCDE F |
REAR BODY DBL WALL CTR PULL(E63) |
| 422 |
I8-97479 674-0 |
|
COVER; SIDE STEP |
1 |
2007- |
R |
A CD F |
GRADE LUXURY(RBC),GRADE CUSTOM(RBD) SIDE STEP<6TC> (A) SILVER |
| 395 |
I8-98483 650-0 |
|
BRACKET; SIDE STEP |
4 |
2007- |
|
A CD F |
SIDE STEP<6TC> |
| 246 |
I8-98396 160-2 |
|
PANEL; RR PILLAR.INNER |
1 |
2007- |
L |
B E |
|
| 664 |
I8-98386 627-1 |
|
SEAL; TAPE |
1 |
2007- |
|
ABCDE F |
|
| 185 |
I8-98386 618-0 |
|
REINFORCEMENT; SIDE INNER LWR |
1 |
2007- |
R |
ABCDE F |
|
| 298 |
I8-98073 081-0 |
|
SCREW; SIDE STEP |
4 |
2007- |
|
A CD F |
SIDE STEP<6TC> MSX16 |
| 246 |
I8-98385 854-1 |
|
PANEL; RR PILLAR.INNER |
1 |
2007- |
R |
C F |
|
| 634 |
I8-98370 608-2 |
|
REINFORCEMENT; BODY SIDE INNER |
1 |
2007- |
R |
C F |
|
| 600 |
I8-94221 150-0 |
|
RIVET; EXTENSION |
6 |
2007- |
|
A C |
REAR BODY DBL WALL CTR PULL(E63) EXC. FORMED MUD FLAP FRT & RR<Q8H>,FORMED MUD FLAP EXTEND FRT 8, RR<Q8J>,HIGH RIDE SUSPENSION(7YC) |
| 249 |
I8-98396 220-1 |
|
REINFORCEMENT; RR PILLAR |
1 |
2007- |
R |
B E |
|
| 246 |
I8-98385 851-1 |
|
PANEL; RR PILLAR,INNER |
1 |
2007- |
L |
C F |
|
| 161 |
I8-98054 289-0 |
|
BOLT; FIX |
2 |
2007- |
|
|
M6X12 W/PL WASHER |
| 422 |
I8-97479 685-0 |
|
COVER; SIDE STEP |
1 |
2007- |
L |
A CD F |
GRADE LUXURY(RBC),GRADE CUSTOM(RBD) SIDE STEP<6TC> SILVER |
| 61 |
I8-97649 797-0 |
|
PANEL; SIDE OUTER |
1 |
2010- |
R |
F |
EUROO SPECIFICATI0N(K75),EUR02 SPECIFICATI0N(NT2),EUR04 SPECIFICATI0N(NT4),EUR05 SPECIFICATION(NT5) (C) |
| 246 |
I8-98396 160-2 |
|
PANEL; RR PILLAR.INNER |
1 |
2007- |
L |
B E |
|
| 80 |
I8-98356 193-1 |
|
PANEL; WHEEL HOUSE,INNER |
1 |
2007- |
L |
C |
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) |
| 414 |
I8-98390 324-0 |
|
BRACKET; FENDER |
1 |
2007- |
|
ABCDE F |
|
| 635 |
I8-98381 376-1 |
|
REINFORCEMENT; ROCKER |
1 |
2007- |
L |
B E |
|
| 639 |
I8-98487 321-0 |
|
REINFORCEMENT; COWL SIDE |
1 |
2007- |
L |
ABCDE F |
|
| 246 |
I8-98385 854-1 |
|
PANEL; RR PILLAR.INNER |
1 |
2007- |
R |
C F |
|
| 638 |
I8-98386 215-2 |
|
PANEL; DASH SIDE INNER |
1 |
2007- |
L |
ABCDE F |
|
| 102 |
I8-97472 454-1 |
|
STEP; BODY SIDE |
1 |
2007- |
L |
C F |
GRADE LUXURY(RBC),GRADE CUSTOM(RBD) SIDE STEP<6TC> SILVER |
| 61 |
I8-97649 797-0 |
|
PANEL; SIDE OUTER |
1 |
2007-2009 |
R |
F |
(C) |
| 323 |
I8-98167 444-0 |
|
SCREW; SET |
2 |
2007- |
|
ABCDE F |
REAR BODY DBL WALL CTR PULL(E63) M6X20 TAPPING W/PL WASHER |
| 61 |
I8-97649 797-0 |
|
PANEL; SIDE OUTER |
1 |
2007-2009 |
R |
C |
HIGH RIDE SUSPENSION(7YC) (C) |
| 635 |
I8-97553 206-0 |
|
REINFORCEMENT; ROCKER |
1 |
2007- |
R |
C F |
|
| 295 |
I8-94269 290-0 |
|
CLIP; BODY SIDE STEP |
6 |
2007- |
|
B E |
OD=18 |
| 639 |
I8-98487 321-0 |
|
REINFORCEMENT; COWL SIDE |
1 |
2007- |
L |
ABCDE F |
|
| 103 |
I8-98483 646-0 |
|
PLATE; STEP |
1 |
2007- |
R |
C F |
SIDE STEP<6TC> |
| 636 |
I8-98386 140-3 |
|
PANEL; FRONT PILLAR INNER |
1 |
2007- |
L |
ABCDE F |
|
| 634 |
I8-98379 370-0 |
|
REINFORCEMENT; BODY SIDE INNER |
1 |
2007- |
L |
B E |
|
| 61 |
I8-97651 218-0 |
|
PANEL; SIDE OUTER |
1 |
2007-2009 |
R |
B |
EUROO SPECIFICATI0N(K75).EUR02 SPECIFICATI0N(NT2),EUR04 SPECIFICATI0N(NT4),EUR05 SPECIFICATI0N(NT5),EUR06 SPECIFICATION(NT6) (B) |
| 61 |
I8-97651 218-0 |
|
PANEL; SIDE OUTER |
1 |
2010- |
R |
B E |
EUROO SPECIFICATI0N(K75),EUR02 SPECIFICATI0N(NT2),EUR04 SPECIFICATI0N(NT4),EUR05 SPECIFICATION(NT5) (B) |
| 61 |
I8-97651 218-0 |
|
PANEL; SIDE OUTER |
1 |
2007-2009 |
R |
E |
(B) |
| 600 |
I8-94221 150-0 |
|
RIVET; EXTENSION |
8 |
2007- |
|
A C |
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. FORMED MUD FLAP FRT & RR<Q8H>,FORMED MUD FLAP EXTEND FRT 8i RR<Q8J> |
| 246 |
I8-98385 851-1 |
|
PANEL; RR PILLAR,INNER |
1 |
2007- |
L |
C F |
|
| 323 |
I8-98167 444-0 |
|
SCREW; SET |
6 |
2007- |
|
A C |
REAR BODY DBL WALL CTR PULL(E63) FORMED MUD FLAP FRT 8i RR<Q8H>,FORMED MUD FLAP EXTEND FRT & RR<Q8J> EXC. HIGH RIDE SUSPENSION(7YC) M6X20 TAPPING W/PL WASHER |
| 61 |
I8-97649 793-1 |
|
PANEL; SIDE OUTER |
1 |
2007- |
L |
C |
HIGH RIDE SUSPENSION(7YC) (C) |
| 430 |
I8-97125 519-0 |
|
NUT; PANEL |
8 |
2007- |
|
A C |
REAR BODY DBL WALL CTR PULL(E63) FORMED MUD FLAP FRT 8< RR<Q8H>,FORMED MUD FLAP EXTEND FRT 8. RR<Q8J> HIGH RIDE SUSPENSION(7YC) |
| 664 |
I8-98386 627-1 |
|
SEAL; TAPE |
1 |
2007- |
|
ABCDE F |
|
| 634 |
I8-98379 369-0 |
|
REINFORCEMENT; BODY SIDE INNER |
1 |
2007- |
R |
B E |
|
| 80 |
I8-98356 192-1 |
|
PANEL; WHEEL HOUSE.INNER |
1 |
2007- |
R |
A |
HIGH RIDE SUSPENSION(7YC) |
| 634 |
I8-98370 607-2 |
|
REINFORCEMENT; BODY SIDE INNER |
1 |
2007- |
L |
C F |
|
| 80 |
I8-98356 192-1 |
|
PANEL; WHEEL HOUSE.INNER |
1 |
2007- |
R |
C |
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) |
| 80 |
I8-98356 192-1 |
|
PANEL; WHEEL HOUSE.INNER |
1 |
2007- |
R |
D F |
REAR BODY DBL WALL CTR PULL(E63) |
| 422 |
I8-97479 689-0 |
|
COVER; SIDE STEP |
1 |
2007- |
R |
C F |
GRADE LUXURY(RBC),GRADE CUSTOM(RBD) SIDE STEP<6TC> (B) SILVER |
| 249 |
I8-98396 219-1 |
|
REINFORCEMENT; RR PILLAR |
1 |
2007- |
L |
B E |
|
| 600 |
I8-94221 150-0 |
|
RIVET; EXTENSION |
8 |
2007- |
|
D F |
REAR BODY DBL WALL CTR PULL(E63) EXC. FORMED MUD FLAP FRT & RR<Q8H>,FORMED MUD FLAP EXTEND FRT 8c RR<Q8J> |
| 639 |
I8-98386 111-0 |
|
REINFORCEMENT; COWL SIDE |
1 |
2007- |
R |
ACE |
|
| 61 |
I8-97649 797-0 |
|
PANEL; SIDE OUTER |
1 |
2007-2009 |
R |
F |
(C) |
| 683 |
I8-98385 894-0 |
|
PANEL; HEADER |
1 |
2007- |
L |
C F |
|
| 246 |
I8-98396 162-2 |
|
PANEL; RR PILLAR.INNER |
1 |
2007- |
R |
B E |
|
| 683 |
I8-98385 894-0 |
|
PANEL; HEADER |
1 |
2007- |
L |
C F |
|
| 636 |
I8-98386 141-2 |
|
PANEL; FRONT PILLAR INNER |
1 |
2007- |
R |
ABCDE F |
|
| 634 |
I8-98370 607-2 |
|
REINFORCEMENT; BODY SIDE INNER |
1 |
2007- |
L |
C F |
|
| 639 |
I8-98386 111-0 |
|
REINFORCEMENT; COWL SIDE |
1 |
2007- |
R |
B F |
EXC. EUR06D SPECIFICATION(8SJ) |
| 161 |
I8-98054 289-0 |
|
BOLT; FIX |
1 |
2007- |
|
BC E F |
M6X12 W/PL WASHER |
| 639 |
I8-98386 111-0 |
|
REINFORCEMENT; COWL SIDE |
1 |
2007- |
R |
D |
JUMP SEAT<A)2> EXC. EUR06D SPECIFICATION(8SJ) |
| 288 |
I8-98483 661-0 |
|
NUT; STEP |
20 |
2007- |
|
A C D F |
SIDE STEP<6TC> (C) M6 |
| 246 |
I8-98385 851-1 |
|
PANEL; RR PILLAR.INNER |
1 |
2007- |
L |
C F |
|
| 636 |
I8-98386 140-3 |
|
PANEL; FRONT PILLAR INNER |
1 |
2007- |
L |
ABCDE F |
|
| 246 |
I8-98396 162-2 |
|
PANEL; RR PILLAR.INNER |
1 |
2007- |
R |
B E |
|
| 80 |
I8-98356 191-1 |
|
PANEL; WHEEL HOUSE.INNER |
1 |
2007- |
L |
B E |
REAR BODY DBL WALL CTR PULL(E63) |
| 61 |
I8-97649 793-1 |
|
PANEL; SIDE OUTER |
1 |
2007- |
L |
F |
(C) |
| 161 |
I8-98054 289-0 |
|
BOLT; FIX |
2 |
2007- |
|
A D |
M6X12W/PL WASHER |
| 639 |
I8-98386 111-0 |
|
REINFORCEMENT; COWL SIDE |
1 |
2007- |
R |
B F |
EXC. EUR06D SPECIFICATION(8SJ) |
| 161 |
I8-98054 289-0 |
|
BOLT; FIX |
2 |
2007- |
|
A D |
M6X12W/PL WASHER |
| 102 |
I8-97472 451-1 |
|
STEP; BODY SIDE |
1 |
2007- |
R |
C F |
GRADE LUXURY(RBC),GRADE CUSTOM(RBD) SIDE STEP<6TC> SILVER |
| 634 |
I8-98379 369-0 |
|
REINFORCEMENT; BODY SIDE INNER |
1 |
2007- |
R |
B E |
|
| 638 |
I8-98386 342-1 |
|
PANEL; DASH SIDE INNER |
1 |
2007- |
R |
ABCDE F |
|
| 185 |
I8-98386 617-0 |
|
REINFORCEMENT; SIDE INNER LWR |
1 |
2007- |
L |
ABCDE F |
|
| 664 |
I8-98386 627-1 |
|
SEAL; TAPE |
1 |
2007- |
|
ABCDEF |
|
| 61 |
I8-97649 793-1 |
|
PANEL; SIDE OUTER |
1 |
2007- |
L |
C |
HIGH RIDE SUSPENSION(7YC) (C) |
| 246 |
I8-98396 162-2 |
|
PANEL; RR PILLAR.INNER |
1 |
2007- |
R |
B E |
|
| 638 |
I8-98386 215-2 |
|
PANEL; DASH SIDE INNER |
1 |
2007- |
L |
ABCDE F |
|
| 323 |
I8-98167 444-0 |
|
SCREW; SET |
6 |
2007- |
|
B E |
REAR BODY DBL WALL CTR PULL(E63) FORMED MUD FLAP FRT & RR<Q8H>,FORMED MUD FLAP EXTEND FRT & RR<Q8J> M6X20 TAPPING W/PL WASHER |
| 639 |
I8-98386 111-0 |
|
REINFORCEMENT; COWL SIDE |
1 |
2007- |
R |
B F |
EXC. EUR06D SPECIFlCATION(8SJ) |
| 634 |
I8-98379 370-0 |
|
REINFORCEMENT; BODY SIDE INNER |
1 |
2007- |
L |
B E |
|
| 635 |
I8-97553 206-0 |
|
REINFORCEMENT; ROCKER |
1 |
2007- |
R |
C F |
|
| 600 |
I8-94221 150-0 |
|
RIVET; EXTENSION |
6 |
2007- |
|
B E |
REAR BODY DBL WALL CTR PULL(E63) EXC. FORMED MUD FLAP FRT & RR<Q8H>,FORMED MUD FLAP EXTEND FRT 8i RR<Q8J> |
| 246 |
I8-98385 854-1 |
|
PANEL; RR PILLAR.INNER |
1 |
2007- |
R |
C F |
|
| 446 |
I8-97479 695-0 |
|
FINISHER; STEP |
2 |
2007- |
|
C F |
GRADE LUXURY(RBC),GRADE CUSTOM(RBD) SIDE STEP<6TC> SILVER |
| 35 |
I8-98386 270-2 |
|
PANEL; CENTER PILLAR.INNER |
1 |
2007- |
L |
C |
HIGH RIDE SUSPENSION(7YC) (B) |
| 414 |
I8-98390 324-0 |
|
BRACKET; FENDER |
1 |
2007- |
|
ABCDE F |
|
| 635 |
I8-98381 379-1 |
|
REINFORCEMENT; ROCKER |
1 |
2007- |
R |
B E |
|
| 185 |
I8-98386 617-0 |
|
REINFORCEMENT; SIDE INNER LWR |
1 |
2007- |
L |
ABCDE F |
|
| 414 |
I8-98390 324-0 |
|
BRACKET; FENDER |
1 |
2007- |
|
ABCDE F |
|
| 35 |
I8-98386 270-2 |
|
PANEL; CENTER PILLAR,INNER |
1 |
2007- |
L |
F |
(B) |
| 634 |
I8-98370 608-2 |
|
REINFORCEMENT; BODY SIDE INNER |
1 |
2007- |
R |
C F |
|
| 80 |
I8-98356 193-1 |
|
PANEL; WHEEL HOUSE,INNER |
1 |
2007- |
L |
A |
HIGH RIDE SUSPENSION(7YC) |
| 422 |
I8-97479 691-0 |
|
COVER; SIDE STEP |
1 |
2007- |
L |
C F |
GRADE LUXURY(RBC),GRADE CUSTOM(RBD) SIDE STEP<6TC> SILVER |
| 185 |
I8-98386 617-0 |
|
REINFORCEMENT; SIDE INNER LWR |
1 |
2007- |
L |
ABCDE F |
|
| 107 |
I8-98483 660-1 |
|
BOLT; SIDE STEP |
20 |
2007- |
|
A CD F |
SIDE STEP<6TC> (B) SCREW M6X16 |
| 61 |
I8-97649 793-1 |
|
PANEL; SIDE OUTER |
1 |
2007- |
L |
F |
(C) |
| 635 |
I8-98381 376-1 |
|
REINFORCEMENT; ROCKER |
1 |
2007- |
L |
B E |
|
| 80 |
I8-98356 191-1 |
|
PANEL; WHEEL HOUSE.INNER |
1 |
2007- |
L |
C |
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) |
| 161 |
I8-98054 289-0 |
|
BOLT; FIX |
1 |
2007- |
|
BC E F |
M6X12W/PL WASHER |
| 634 |
I8-98370 607-2 |
|
REINFORCEMENT; BODY SIDE INNER |
1 |
2007- |
L |
C F |
|
| 323 |
I8-98167 444-0 |
|
SCREW; SET |
8 |
2007- |
|
A C |
REAR BODY DBL WALL CTR PULL(E63) FORMED MUD FLAP FRT & RR<Q8H>,FORMED MUD FLAP EXTEND FRT & RR<Q8J> HIGH RIDE SUSPENSION(7YC) M6X20 TAPPING W/PL WASHER |
| 61 |
I8-97651 219-1 |
|
PANEL; SIDE OUTER |
1 |
2007- |
L |
B E |
(B) |
| 67 |
I8-98385 924-0 |
|
PANEL; INNER.RR PILLAR LWR |
1 |
2007- |
L |
C F |
|
| 633 |
I8-97554 134-0 |
|
SEALER |
AR |
2007- |
|
ABCDE F |
(A) |
| 414 |
I8-98390 324-0 |
|
BRACKET; FENDER |
1 |
2007- |
|
ABCDE F |
|
| 249 |
I8-98396 220-1 |
|
REINFORCEMENT; RR PILLAR |
1 |
2007- |
R |
B E |
|
| 161 |
I8-98054 289-0 |
|
BOLT; FIX |
1 |
2007- |
|
BC E F |
M6X12W/PL WASHER |
| 494 |
I8-98056 035-0 |
|
STUD; BRKT |
8 |
2007- |
|
A CD F |
SIDE STEP<6TC> |
| 35 |
I8-98386 099-3 |
|
PANEL; CENTER PILLAR.INNER |
1 |
2007- |
L |
C F |
(A) |
| 636 |
I8-98386 141-2 |
|
PANEL; FRONT PILLAR INNER |
1 |
2007- |
R |
ABCDE F |
|
| 683 |
I8-98385 895-0 |
|
PANEL; HEADER |
1 |
2007- |
R |
C F |
|
| 185 |
I8-98386 618-0 |
|
REINFORCEMENT; SIDE INNER LWR |
1 |
2007- |
R |
ABCDE F |
|
| 161 |
I8-98054 289-0 |
|
BOLT; FIX |
2 |
2007- |
|
A D |
M6X12W/PL WASHER |
| 633 |
I8-97554 134-0 |
|
SEALER |
AR |
2007- |
|
ABCDE F |
(A) |
| 161 |
I8-98054 289-0 |
|
BOLT; FIX |
1 |
2007- |
|
BC E F |
M6X12W/PL WASHER |
| 635 |
I8-98381 379-1 |
|
REINFORCEMENT; ROCKER |
1 |
2007- |
R |
B E |
|
| 634 |
I8-98379 370-0 |
|
REINFORCEMENT; BODY SIDE INNER |
1 |
2007- |
L |
B E |
|
| 103 |
I8-98483 645-0 |
|
PLATE; STEP |
1 |
2007- |
L |
C F |
SIDE STEP<6TC> |
| 635 |
I8-98381 379-1 |
|
REINFORCEMENT; ROCKER |
1 |
2007- |
R |
B E |
|
| 164 |
I8-98385 927-0 |
|
PLATE; SIDE PNL OUTER |
2 |
2007- |
|
C F |
|
| 414 |
I8-98390 324-0 |
|
BRACKET; FENDER |
1 |
2007- |
|
ABCDE F |
|
| 80 |
I8-98356 193-1 |
|
PANEL; WHEEL HOUSE.INNER |
1 |
2007- |
L |
D F |
REAR BODY DBL WALL CTR PULL(E63) |
| 80 |
I8-98356 190-1 |
|
PANEL; WHEEL HOUSE.INNER |
1 |
2007- |
R |
B E |
REAR BODY DBL WALL CTR PULL(E63) |
| 635 |
I8-97553 207-0 |
|
REINFORCEMENT; ROCKER |
1 |
2007- |
L |
C F |
|
| 288 |
I0-91180 208-0 |
|
NUT; STEP |
4 |
2007- |
|
A CD F |
SIDE STEP<6TC> (B) M8 FLANGE |
| 35 |
I8-98386 100-3 |
|
PANEL; CENTER PILLAR.INNER |
1 |
2007- |
R |
C F |
(A) |
| 634 |
I8-98379 369-0 |
|
REINFORCEMENT; BODY SIDE INNER |
1 |
2007- |
R |
B E |
|
| 61 |
I8-97649 797-0 |
|
PANEL; SIDE OUTER |
1 |
2007-2009 |
R |
C |
HIGH RIDE SUSPENSION(7YC) (C) |
| 185 |
I8-98386 618-0 |
|
REINFORCEMENT; SIDE INNER LWR |
1 |
2007- |
R |
ABCDE F |
|
| 161 |
I8-98054 289-0 |
|
BOLT; FIX |
1 |
2007- |
|
BC E F |
M6X12W/PL WASHER |
| 639 |
I8-98386 111-0 |
|
REINFORCEMENT; COWL SIDE |
1 |
2007- |
R |
D |
JUMP SEAT<AJ2> EXC. EUR06D SPECIFICATION(8SJ) |
| 635 |
I8-98381 376-1 |
|
REINFORCEMENT; ROCKER |
1 |
2007- |
L |
B E |
|
| 430 |
I8-97125 519-0 |
|
NUT; PANEL |
8 |
2007- |
|
D F |
REAR BODY DBL WALL CTR PULL(E63) FORMED MUD FLAP FRT 8> RR<Q8H>,FORMED MUD FLAP EXTEND FRT & RR<Q8J> |
| 639 |
I8-98386 111-0 |
|
REINFORCEMENT; COWL SIDE |
1 |
2007- |
R |
D |
EXC. JUMP SEAT<AJ2> |
| 639 |
I8-98487 321-0 |
|
REINFORCEMENT; COWL SIDE |
1 |
2007- |
L |
ABCDE F |
|
