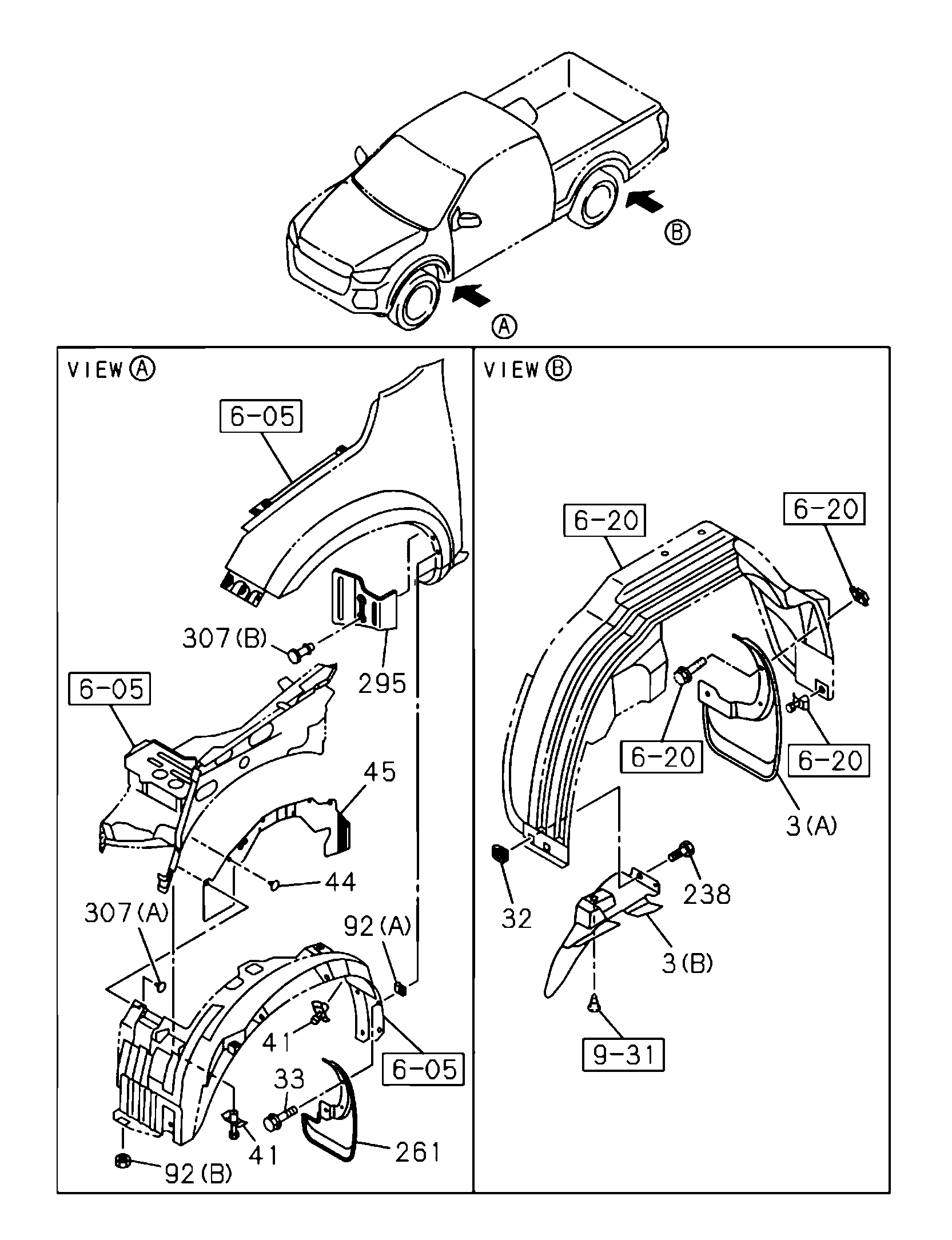

6-47 | 6-47 - MUD GUARD AND INSULATOR

Partial Engine

DMAX

D-MAX 2021

Key PART NO ITC DESCRIPTION QTY APP DATE LR MODEL REMARKS
41 I8-94221 150-0 RIVET; INNER LINER 6 2007- B E EXC. FORMED MUD FLAP FRT & RR<Q8H>,FORMED MUD FLAP EXTEND FRT & RR<Q8J>,OVER FENDER<6GH>
33 I8-98167 444-0 BOLT; MUD COVER 6 2007- A C FORMED MUD FLAP FRT & RR<Q8H>,FORMED MUD FLAP EXTEND FRT & RR<Q8J> EXC. HIGH RIDE SUSPENSION(7YC) SCREW M 6X20 TAPPING W/PL WASHER
92 I8-98049 368-0 NUT; MUD COVER 2 2007- ABCDE F (B) M6W/DISHED WASHER
261 I8-98356 198-0 RUBBER; FRT.MUD GUARD 1 2007- B FORMED MUD FLAP FRT 8> RR<Q8H> HIGH RIDE SUSPENSION(7YC) EXC. OVER FENDER<6GH>
261 I8-98356 197-0 RUBBER; FRT.MUD GUARD 1 2007- A C FORMED MUD FLAP FRT 8> RR<Q8H>,FORMED MUD FLAP EXTEND FRT 8. RR<Q8J> EXC. HIGH RIDE SUSPENSION(7YC)
45 I8-98393 944-1 COVER; MUD.FENDER SKIRT 1 2007- ABC HIGH RIDE SUSPENSION(7YC)
41 I8-94221 150-0 RIVET; INNER LINER 8 2007- A C HIGH RIDE SUSPENSION(7YC) EXC. FORMED MUD FLAP FRT 8. RR<Q8H>,FORMED MUD FLAP EXTEND FRT 8i RR<Q8J>
261 I8-98356 197-0 RUBBER; FRT.MUD GUARD 1 2007- B FORMED MUD FLAP FRT 8c RR<Q8H> HIGH RIDE SUSPENSION(7YC) EXC. OVER FENDER<6GH>
92 I8-97125 519-0 NUT; MUD COVER 6 2007- A C FORMED MUD FLAP FRT 8< RR<Q8H>,FORMED MUD FLAP EXTEND FRT 8c RR<Q8J> EXC. HIGH RIDE SUSPENSION(7YC) (A)
41 I8-94221 150-0 RIVET; INNER LINER 14 2007- D F
44 I8-94215 211-0 CLIP; ANCHOR 10 2007- A BC D E F OD=22 L=10.7
45 I8-98393 944-1 COVER; MUD.FENDER SKIRT 1 2007- D E F
261 I8-98356 198-0 RUBBER; FRT.MUD GUARD 1 2007- B FORMED MUD FLAP FRT 8. RR<Q8H>,FORMED MUD FLAP EXTEND FRT 8. RR<Q8J> EXC. OVER FENDER<6GH>,HIGH RIDE SUSPENSION(7YC)
33 I8-98167 444-0 BOLT; MUD COVER 6 2007- B E FORMED MUD FLAP FRT 8< RR<Q8H>,FORMED MUD FLAP EXTEND FRT 8t RR<Q8J> EXC. OVER FENDER<6GH> SCREW M6X20 TAPPING W/PL WASHER
3 I8-98393 939-0 GUARD; MUD.RR 1 2007- E REAR BODY DBL WALL CTR PULL(E63) FORMED MUD FLAP FRT 8> RR<Q8H> (A)
92 I8-97125 519-0 NUT; MUD COVER 8 2007- A C FORMED MUD FLAP FRT 8, RR<Q8H>,FORMED MUD FLAP EXTEND FRT 8. RR<Q8J> HIGH RIDE SUSPENSION(7YC) (A)
3 I8-98356 215-0 GUARD; MUD.RR 1 2007- D F REAR BODY DBL WALL CTR PULL(E63) FORMED MUD FLAP FRT 8< RR<Q8H> (A)
261 I8-98356 197-0 RUBBER; FRT.MUD GUARD 1 2007- B FORMED MUD FLAP FRT 8< RR<Q8H>,FORMED MUD FLAP EXTEND FRT 8. RR<Q8J> EXC. OVER FENDER<6GH>,HIGH RIDE SUSPENSION(7YC)
3 I8-98356 216-0 GUARD; MUD.RR 1 2007- D F REAR BODY DBL WALL CTR PULL(E63) FORMED MUD FLAP FRT 8> RR<Q8H> (A)
41 I8-94221 150-0 RIVET; INNER LINER 6 2007- A C EXC. FORMED MUD FLAP FRT & RR<Q8H>,FORMED MUD FLAP EXTEND FRT 8i RR<Q8J>,HIGH RIDE SUSPENSION(7YC)
3 I8-98356 215-0 GUARD; MUD.RR 1 2007- A C REAR BODY DBL WALL CTR PULL(E63) FORMED MUD FLAP FRT 8< RR<Q8H> HIGH RIDE SUSPENSION(7YC) (A)
92 I8-97125 519-0 NUT; MUD COVER 8 2007- B E OVER FENDER<6GH> (A)
261 I8-98356 195-0 RUBBER; FRT.MUD GUARD 1 2007- B E FORMED MUD FLAP FRT 8> RR<Q8H>,FORMED MUD FLAP EXTEND FRT 8, RR<Q8J> OVER FENDER<6GH>
32 I8-97125 519-0 NUT; MUD GUARD 4 2007- ABCDE F REAR BODY DBL WALL CTR PULL(E63)
33 I8-98167 444-0 BOLT; MUD COVER 8 2007- B E OVER FENDER<6GH> SCREW M6X20 TAPPING W/PL WASHER
307 I8-98050 462-0 RETAINER 6 2007- A B C D E
33 I8-98167 444-0 BOLT; MUD COVER 8 2007- A C FORMED MUD FLAP FRT 6. RR<Q8H>,FORMED MUD FLAP EXTEND FRT & RR<Q8J> HIGH RIDE SUSPENSION(7YC) SCREW M6X20 TAPPING W/PL WASHER
261 I8-98356 195-0 RUBBER; FRT.MUD GUARD 1 2007- A C FORMED MUD FLAP FRT 8< RR<Q8H>,FORMED MUD FLAP EXTEND FRT & RR<Q8J> HIGH RIDE SUSPENSION(7YC)
41 I8-94221 150-0 RIVET; INNER LINER 14 2007- A C HIGH RIDE SUSPENSION(7YC)
238 I8-98167 444-0 SCREW; MUD GUARD 4 2007- ABCDE F REAR BODY DBL WALL CTR PULL(E63) M6X20 TAPPING W/PL WASHER
33 I8-98167 444-0 BOLT; MUD COVER 8 2007- D F FORMED MUD FLAP FRT 8. RR<Q8H>,FORMED MUD FLAP EXTEND FRT Bt RR<Q8J> SCREW M6X20 TAPPING W/PL WASHER
261 I8-98356 195-0 RUBBER; FRT.MUD GUARD 1 2007- D F FORMED MUD FLAP FRT 8< RR<Q8H>,FORMED MUD FLAP EXTEND FRT 8c RR<Q8J>
261 I8-98356 196-0 RUBBER; FRT.MUD GUARD 1 2007- B E OVER FENDER<6GH>
3 I8-98356 216-0 GUARD; MUD.RR 1 2007- A C REAR BODY DBL WALL CTR PULL(E63) FORMED MUD FLAP FRT 8< RR<Q8H> HIGH RIDE SUSPENSION(7YC) (A)
41 I8-94221 150-0 RIVET; INNER LINER 16 2007- A C EXC. HIGH RIDE SUSPENSION(7YC)
261 I8-98356 198-0 RUBBER; FRT.MUD GUARD 1 2007- E FORMED MUD FLAP FRT 8c RR<Q8H>,FORMED MUD FLAP EXTEND FRT 8c RR<Q8J> EXC. OVER FENDER<6GH>
41 I8-94221 150-0 RIVET; INNER LINER 8 2007- D F EXC. FORMED MUD FLAP FRT & RR<Q8H>,FORMED MUD FLAP EXTEND FRT 8. RR<Q8J>
3 I8-98393 938-0 GUARD; MUD.RR 1 2007- B REAR BODY DBL WALL CTR PULL(E63) FORMED MUD FLAP FRT 8< RR<Q8H> HIGH RIDE SUSPENSION(7YC) (A)
92 I8-97125 519-0 NUT; MUD COVER 8 2007- D F FORMED MUD FLAP FRT 8> RR<Q8H>,FORMED MUD FLAP EXTEND FRT 8, RR<Q8J> (A)
261 I8-98356 197-0 RUBBER; FRT.MUD GUARD 1 2007- E FORMED MUD FLAP FRT 8. RR<Q8H>,FORMED MUD FLAP EXTEND FRT 8c RR<Q8J> EXC. OVER FENDER<6GH>
92 I8-97125 519-0 NUT; MUD COVER 6 2007- B E FORMED MUD FLAP FRT 8< RR<Q8H>,FORMED MUD FLAP EXTEND FRT 8. RR<Q8J> EXC. OVER FENDER<6GH> (A)
261 I8-98356 196-0 RUBBER; FRT.MUD GUARD 1 2007- D F FORMED MUD FLAP FRT 8. RR<Q8H>,FORMED MUD FLAP EXTEND FRT 8. RR<Q8J>
41 I8-94221 150-0 RIVET; INNER LINER 14 2007- B E OVER FENDER<6GH>
45 I8-98393 945-1 COVER; MUD,FENDER SKIRT 1 2007- D E F
3 I8-98393 938-0 GUARD; MUD.RR 1 2007- E REAR BODY DBL WALL CTR PULL(E63) FORMED MUD FLAP FRT 8> RR<Q8H> (A)
3 I8-98393 939-0 GUARD; MUD.RR 1 2007- B REAR BODY DBL WALL CTR PULL(E63) FORMED MUD FLAP FRT 8. RR<Q8H> HIGH RIDE SUSPENSION(7YC) (A)
261 I8-98356 196-0 RUBBER; FRT.MUD GUARD 1 2007- A C FORMED MUD FLAP FRT 8. RR<Q8H>,FORMED MUD FLAP EXTEND FRT 8, RR<Q8J> HIGH RIDE SUSPENSION(7YC)
41 I8-94221 150-0 RIVET; INNER LINER 16 2007- B E EXC. OVER FENDER<6GH>
