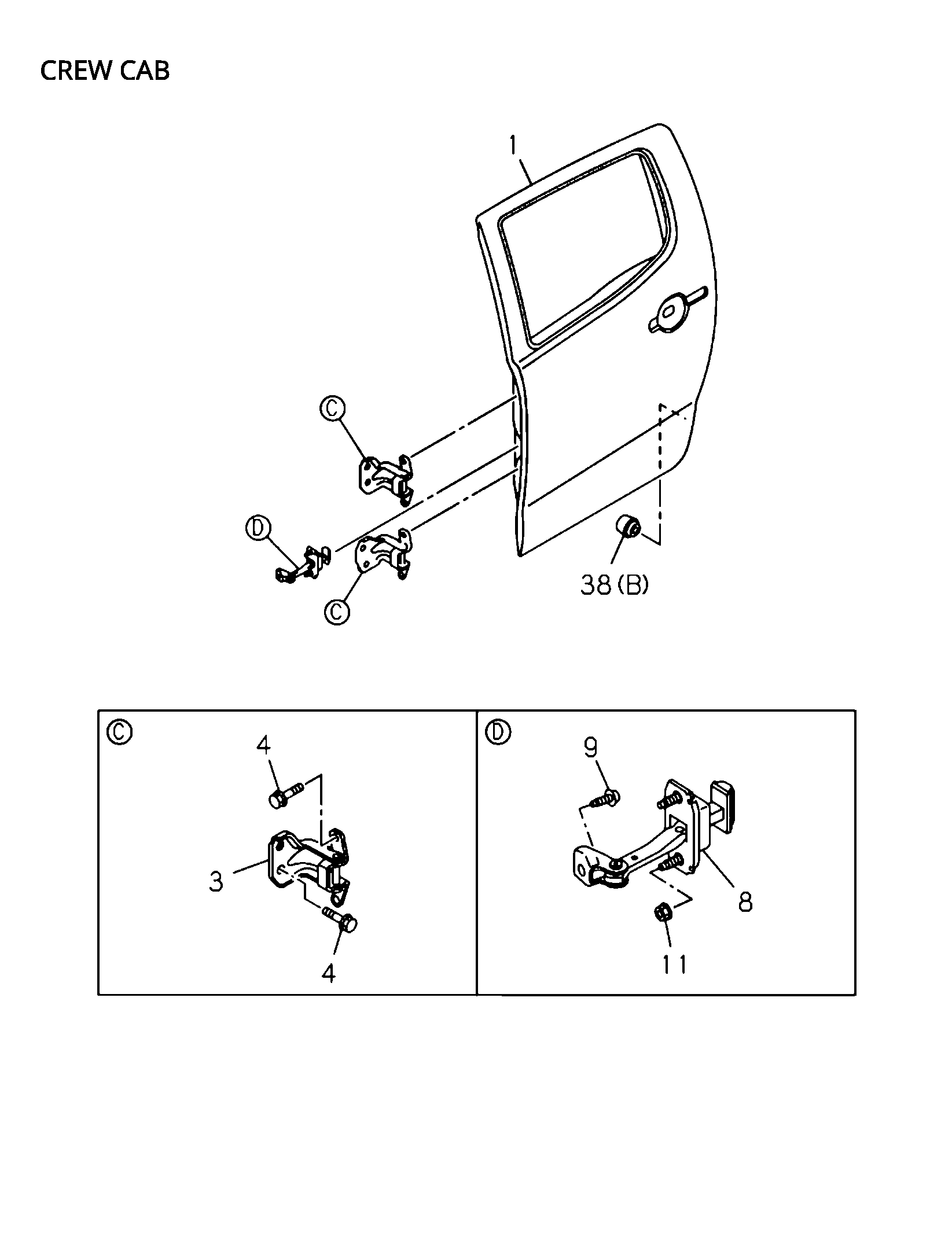

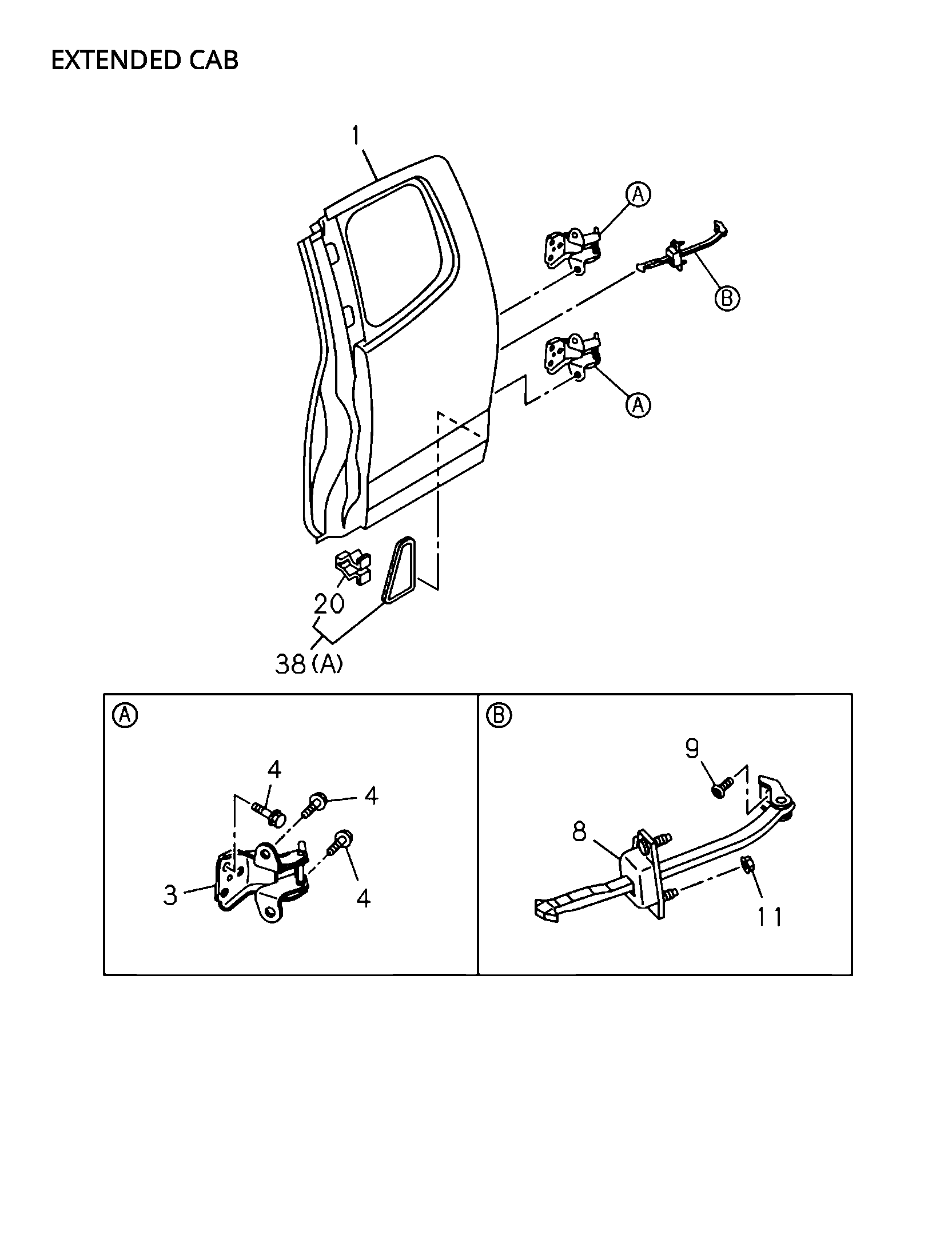

6-50 | 6-50 - REAR DOOR AND HINGE
DMAX
D-MAX 2021
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 11 | I8-98049 362-0 | NUT | 4 | 2007- | A CD F | M6 FLANGE | ||
| 3 | I8-98398 783-1 | HINGE; RR DOOR | 1 | 2007- | C F | UPPER | ||
| 9 | I8-98166 694-0 | BOLT; CHECK ARM | 2 | 2007- | A CD F | M8X23 | ||
| 1 | I8-97492 141-7 | DOOR ASM; REAR | 1 | 2007- | C F | |||
| 4 | I8-98005 842-0 | BOLT; HINGE | 18 | 2007- | A D | M8X23 FLANGE | ||
| 9 | I8-98166 694-0 | BOLT; CHECK ARM | 2 | 2007- | A CD F | M8X23 | ||
| 3 | I8-97490 841-1 | HINGE; RR DOOR | 1 | 2007- | C F | LOWER | ||
| 38 | I8-98202 864-0 | PROTECTOR; RR DOOR | 2 | 2007- | C F | (B) | ||
| 3 | I8-97490 840-1 | HINGE; RR DOOR | 1 | 2007- | C F | LOWER | ||
| 1 | I8-97492 142-7 | DOOR ASM; REAR | 1 | 2007- | C F | |||
| 4 | I8-98005 842-0 | BOLT; HINGE | 16 | 2007- | C F | M8X23 FLANGE | ||
| 3 | I8-97490 841-1 | HINGE; RR DOOR | 1 | 2007- | C F | LOWER | ||
| 3 | I8-98398 783-1 | HINGE; RR DOOR | 1 | 2007- | C F | UPPER | ||
| 1 | I8-97492 142-7 | DOOR ASM; REAR | 1 | 2007- | C F | |||
| 4 | I8-98005 842-0 | BOLT; HINGE | 18 | 2007- | A D | M8X23 FLANGE | ||
| 1 | I8-97492 141-7 | DOOR ASM; REAR | 1 | 2007- | C F | |||
| 3 | I8-98398 784-1 | HINGE; RR DOOR | 1 | 2007- | C F | UPPER | ||
| 3 | I8-97490 840-1 | HINGE; RR DOOR | 1 | 2007- | C F | LOWER | ||
| 4 | I8-98005 842-0 | BOLT; HINGE | 16 | 2007- | C F | M8X23 FLANGE | ||
| 8 | I8-98358 927-0 | ARM; CHECKER DOOR | 2 | 2007- | C F | |||
| 3 | I8-98398 784-1 | HINGE; RR DOOR | 1 | 2007- | C F | UPPER | ||
| 8 | I8-98358 927-0 | ARM; CHECKER DOOR | 2 | 2007- | C F | |||
| 11 | I8-98049 362-0 | NUT | 4 | 2007- | A CD F | M6 FLANGE |
