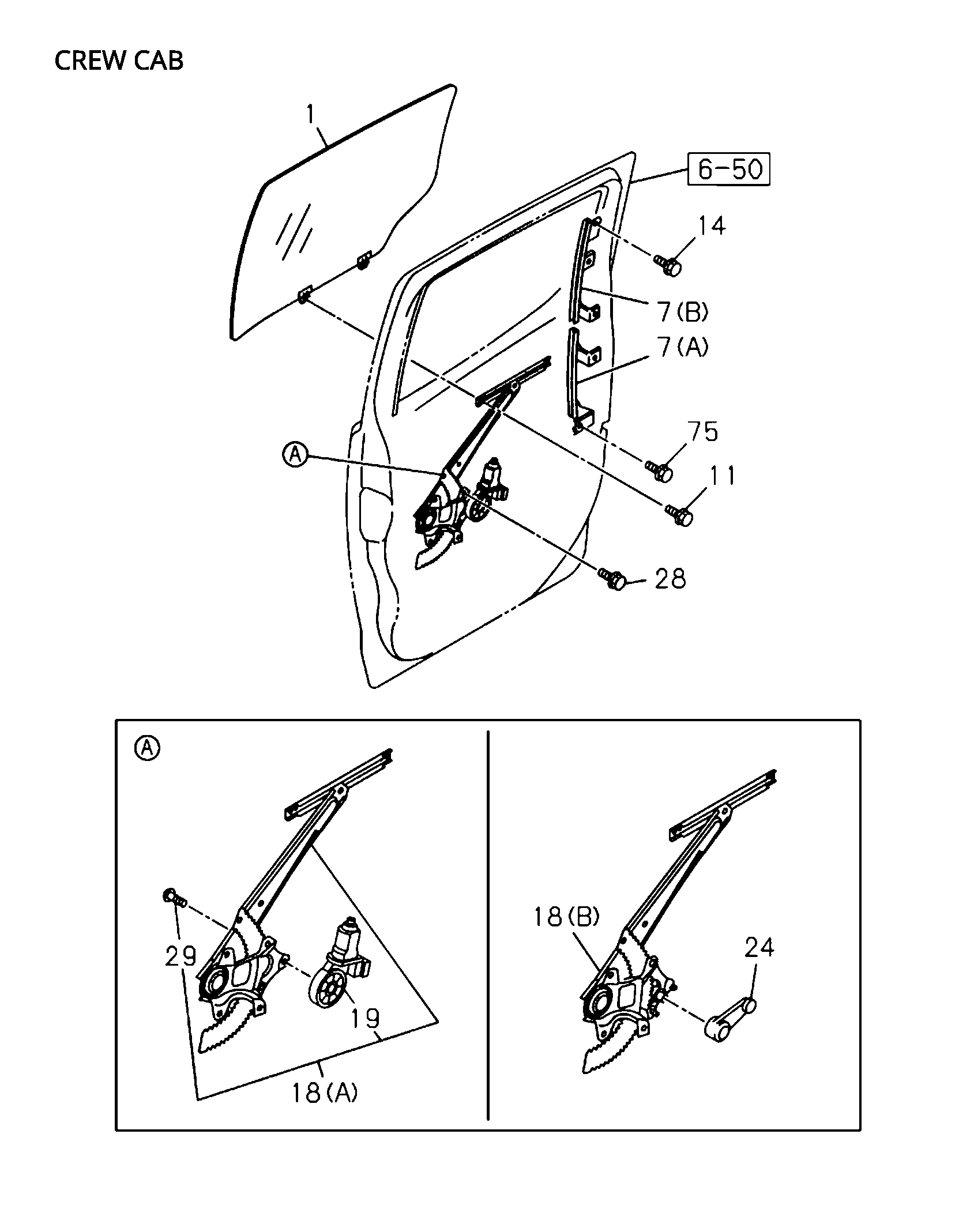

6-51 | 6-51 - REAR DOOR GLASS AND REGULATOR
DMAX
D-MAX 2021
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 18 | I8-98335 528-0 | REGULATOR; WINDOW,RR DOOR | 1 | 2007- | C F | DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> (A) | ||
| 19 | I8-98337 428-0 | MOTOR; POWER WINDOW REG,RR DOOR | 1 | 2007- | C F | DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> | ||
| 7 | I8-97492 411-0 | CHANNEL; GLASS RUN,RR DOOR | 1 | 2007- | C F | (B) | ||
| 0 | I8-97492 412-0 | CHANNEL; GLASS RUN,RR DOOR | 1 | 2007- | C F | (B) | ||
| 19 | I8-98337 429-0 | MOTOR; POWER WINDOW REG,RR DOOR | 1 | 2007- | C F | DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> | ||
| 1 | I8-98334 252-0 | GLASS; RR DOOR | 1 | 2007- | C F | |||
| 1 | I8-98334 251-0 | GLASS; RR DOOR | 1 | 2007- | C F | |||
| 14 | I8-98048 996-0 | BOLT; RR DOOR GLASS | 4 | 2007- | C F | M6X8 FLANGE | ||
| 29 | I8-98195 236-0 | SCREW; WINDOW REG | 6 | 2007- | C F | DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> | ||
| 11 | I8-98188 381-0 | BOLT; GLASS | 4 | 2007- | C F | M6X10 FLANGE | ||
| 18 | I8-98335 527-0 | REGULATOR; WINDOW,RR DOOR | 1 | 2007- | C F | DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> (A) | ||
| 1 | I8-98334 252-0 | GLASS; RR DOOR | 1 | 2007- | C F | |||
| 24 | I8-97416 724-0 | HANDLE; WINDOW REG,RR DOOR | 2 | 2007- | C F | INTERIOR COLOR UPR PALE GRAY LWR BLACK(162) EXC. DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> BLACK | ||
| 7 | I8-97492 409-0 | CHANNEL; GLASS RUN,RR DOOR | 1 | 2007- | C F | (A) | ||
| 75 | I8-98048 996-0 | BOLT; BRKT | 4 | 2007- | C F | M6X8 FLANGE | ||
| 28 | I8-98188 381-0 | BOLT; WINDOW REG | 6 | 2007- | C F | M6X10 FLANGE | ||
| 11 | I8-98188 381-0 | BOLT; GLASS | 4 | 2007- | C F | M6X10 FLANGE | ||
| 1 | I8-98334 251-0 | GLASS; RR DOOR | 1 | 2007- | C F | |||
| 7 | I8-97492 410-0 | CHANNEL; GLASS RUN,RR DOOR | 1 | 2007- | C F | (A) |
