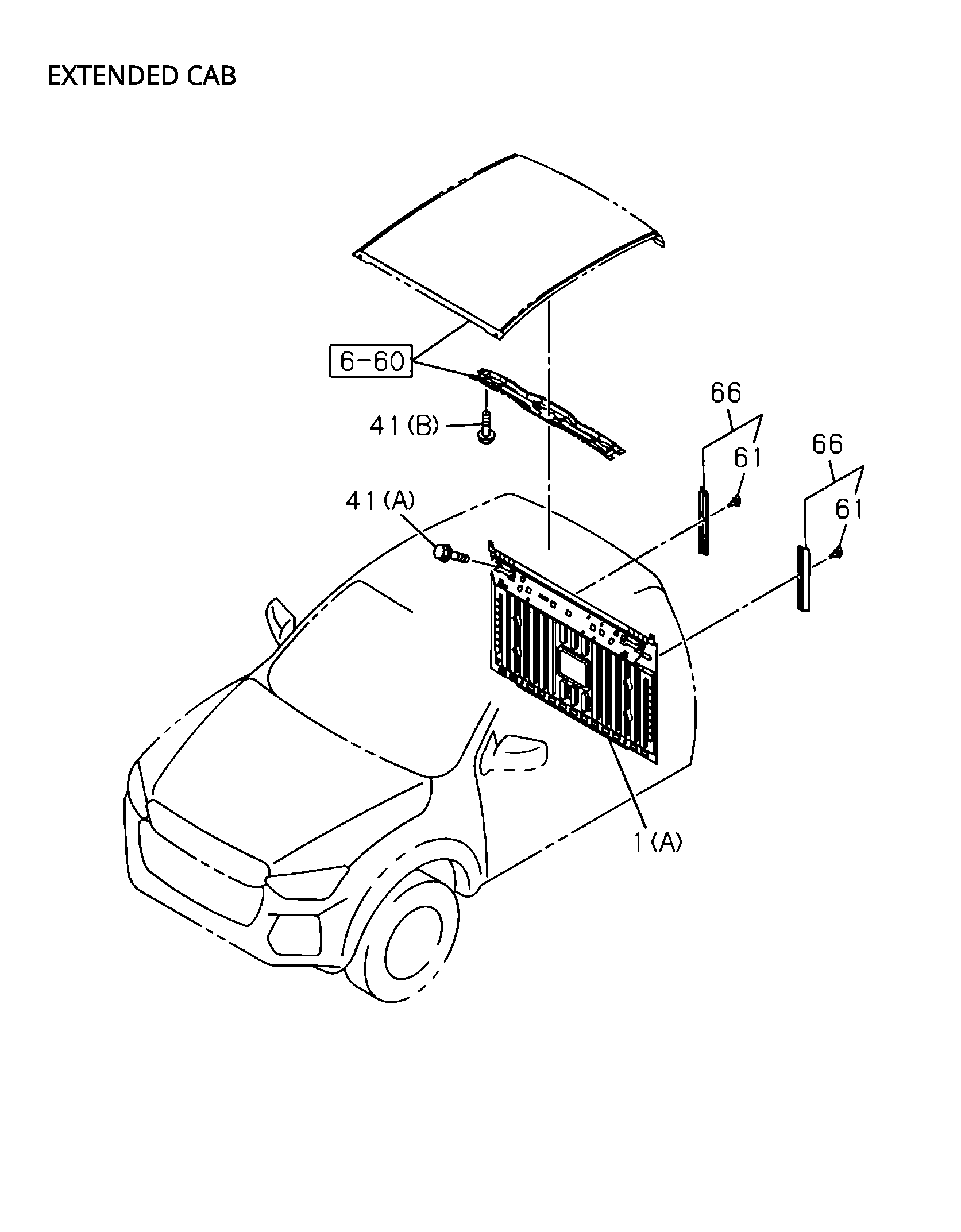

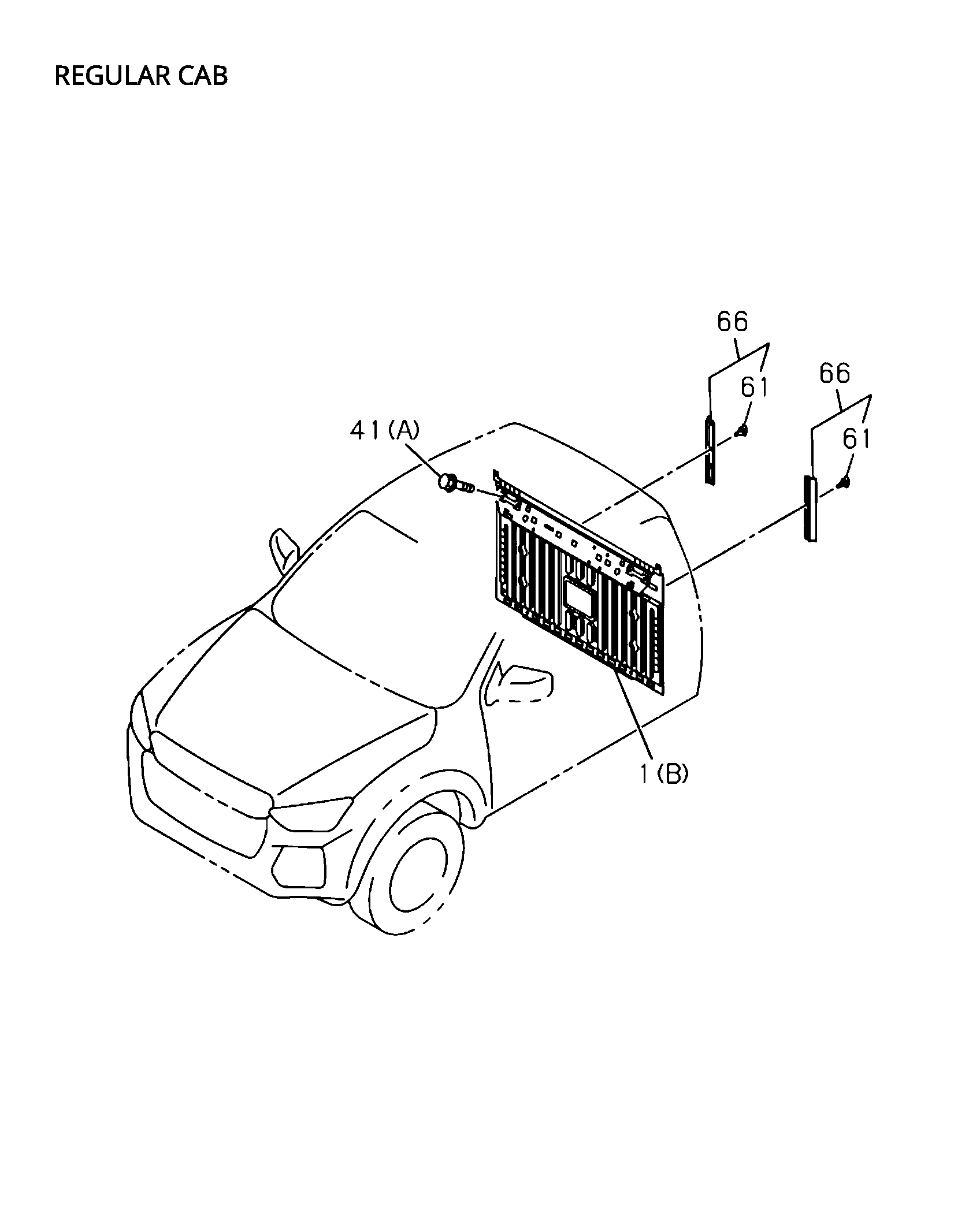

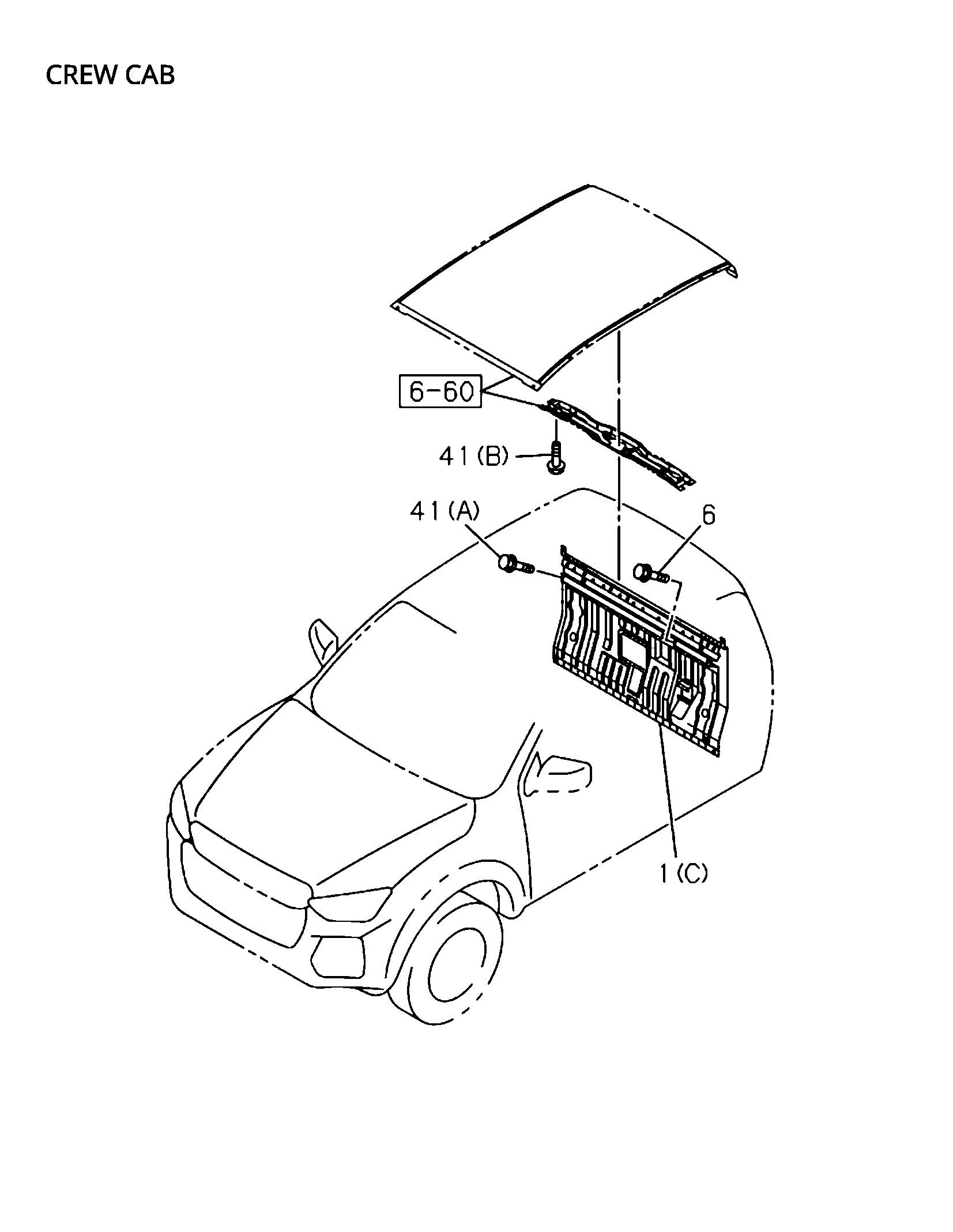

6-80 | 6-80 - BACK PANEL
DMAX
D-MAX 2021
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 66 | I8-97543 822-1 | SEAL; BACK PANEL | 1 | 2007- | R | AB DE | ||
| 41 | I8-98054 289-0 | BOLT | 6 | 2007- | A CD F | (B) M6X12W/PL WASHER | ||
| 41 | I8-97494 496-0 | BOLT | 6 | 2007- | AB DE | (A) M8X22.5 W/PL WASHER | ||
| 6 | I0-28050 820-0 | BOLT; BACK PANEL | 2 | 2007- | C F | M8X20 FLANGE | ||
| 1 | I8-98386 742-2 | PANEL; BACK OUTER | 1 | 2007- | B E | (B) | ||
| 41 | I8-97494 496-0 | BOLT | 6 | 2007- | AB DE | (A) M8X22.5W/PL WASHER | ||
| 41 | I8-97494 496-0 | BOLT | 2 | 2007- | C F | (A) M8X22.5 W/PL WASHER | ||
| 1 | I8-98394 790-3 | PANEL; BACK OUTER | 1 | 2007- | C F | EXC. INDICATOR SEAT BELT WARNING FR & RR<8TF> (C) | ||
| 41 | I8-97494 496-0 | BOLT | 2 | 2007- | C F | (A) M8X22.5 W/PL WASHER | ||
| 66 | I8-97540 804-1 | SEAL; BACK PANEL | 1 | 2007- | L | AB DE | ||
| 41 | I8-97494 496-0 | BOLT | 6 | 2007- | AB DE | (A) M8X22.5 W/PL WASHER | ||
| 41 | I8-98054 289-0 | BOLT | 6 | 2007- | A CD F | (B) M6X12W/PL WASHER | ||
| 61 | I8-97558 588-0 | CLIP; SEAL RUBBER | 1 | 2007- | R | AB DE | ||
| 61 | I8-97558 589-0 | CLIP; SEAL RUBBER | 1 | 2007- | L | AB DE | ||
| 61 | I8-97558 588-0 | CLIP; SEAL RUBBER | 1 | 2007- | R | AB DE | ||
| 66 | I8-97543 822-1 | SEAL; BACK PANEL | 1 | 2007- | R | AB DE | ||
| 41 | I8-97494 496-0 | BOLT | 2 | 2007- | C F | (A) M8X22.5W/PL WASHER | ||
| 61 | I8-97558 589-0 | CLIP; SEAL RUBBER | 1 | 2007- | L | AB DE | ||
| 66 | I8-97540 804-1 | SEAL; BACK PANEL | 1 | 2007- | L | AB DE |
