| 235 |
I8-97553 417-0 |
|
SCREW; GRILLE |
18 |
2007- |
|
C F |
GRADE LUXURY(RBC),GRADE CUSTOM(RBD),GRADE ROYAL(RBE) |
| 262 |
I8-97905 148-0 |
|
GRILLE; DEFROSTER |
1 |
2007- |
L |
ABCDE F |
BLACK |
| 136 |
I8-98164 677-0 |
|
CLIP; INST COVER |
6 |
2007- |
|
B E |
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER 8, PASSENGER DELETE(AK6) |
| 694 |
I8-98164 677-0 |
|
CLIP; INST PNL |
10 |
2007- |
|
C F |
GRADE LUXURY(RBC),GRADE CU5TOM(RBD),GRADE ROYAL(RBE) |
| 235 |
I8-97553 417-0 |
|
SCREW; GRILLE |
4 |
2007- |
|
AC F |
GRADE BASIC(RBA),GRADE DELUXE(RBB) AM/FM,CLOCK,BLUE TOOTH.CD PLAYER(UGQ),RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL),AM/FM, DVD.NAVI W/DISPLAY,SMART PHONE(8RW),AM/FM,MEMOLY NÄVI W/DISPLAY.SMART PHONE(8TG),SCREEN 9" WO/DVD(8TK) |

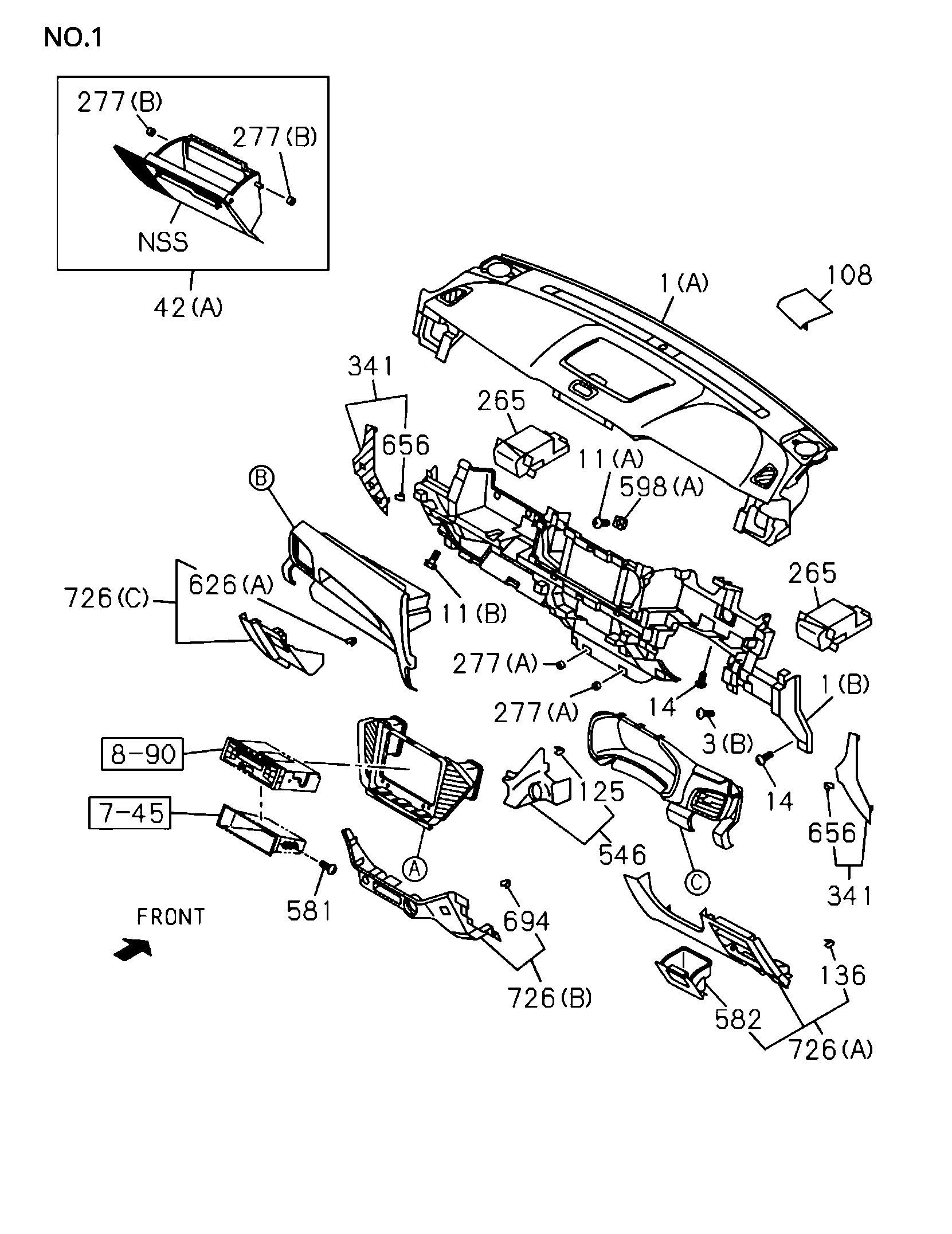

| 1 |
I8-97905 823-0 |
|
PANEL; INST |
1 |
2007- |
|
C F |
GRADE CUSTOM(RBD) AIR CONDITIONER AUTOMATIC CONT(C61) EXC. SOUTH AFRICA EQUIPMENT(B02),AUSTRALIA EQUIPMENTS3),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),ELECTRONIC TRACTION CONTROL<NW9> (A) BLACK |
| 235 |
I8-97553 417-0 |
|
SCREW; GRILLE |
4 |
2007- |
|
D |
GRADE DELUXE(RBB) AM/FM,CLOCK,BLUE TOOTH.CD PLAYER(UGQ),RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL),AM/FM, DVD.NAVI W/DISPLAY,SMART PHONE(8RW),AM/FM,MEMOLY NAVI W/DISPLAY.SMART PHONE(8TG),SCREEN 9" WO/DVD(8TK) |
| 1 |
I8-97905 823-0 |
|
PANEL; INST |
1 |
2007- |
|
C F |
GRADE CUSTOM(RBD),GRADE ROYAL(RBE) SOUTH AFRICA EQUIPMENT!B02),AUSTRALIA EQUIPMENT(B13), HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF) AIR CONDmONER AUTOMATIC CONT(C61) ELECTRONIC TRACTION CONTROL<NW9> EXC. SAFETY PACKAGE FT<8SW>,SAFETY PACKAGE FT 8i RR<8SY> (A) BLACK |
| 656 |
I8-98164 677-0 |
|
CLIP; TRIM |
6 |
2007- |
|
ABCDE F |
|
| 581 |
I8-98167 449-0 |
|
SCREW |
2 |
2007- |
|
ABCDE F |
RADIO DELETE(UL5) M5X16 TAPPING |
| 341 |
I8-97471 683-3 |
|
UD; FUSE BOX |
1 |
2007- |
R |
ABCDE F |
BLACK |
| 235 |
I8-98246 739-0 |
|
SCREW; GRILLE |
8 |
2007- |
|
C F |
GRADE CUSTOM(RBD),GRADE ROYAL(RBE) STEERING COLUMN TILT TELESCOPING<N37> MSX16 |
| 419 |
I8-97905 014-0 |
|
PANEL; SHELF,GLOVE BOX |
1 |
2007- |
|
A CD F |
GRADE LUXURY(RBC),GRADE CUSTOM(RBD) (B) DARK SILVER |
| 69 |
I8-97905 016-0 |
|
GRILLE; SIDE,AIR OUTLET |
1 |
2007- |
L |
A D |
GRADE CUSTOM(RBD) (B) SILVER |
| 694 |
I8-98164 677-0 |
|
CLIP; INST PNL |
6 |
2007- |
|
ABCDE F |
|
| 726 |
I8-97471 679-2 |
|
PANEL; INST LW |
1 |
2007- |
|
A BC D E F |
(C) BLACK |
| 3 |
I8-98246 739-0 |
|
SCREW; BINDER HD |
6 |
2007- |
|
ABCDE F |
INST PANEL FOR DIN E SIZE AUDIO(7QL) (D) M5X16 |
| 1 |
I8-97905 823-0 |
|
PANEL; INST |
1 |
2007- |
|
A D |
GRADE CUSTOM(RBD) AIR CONDITIONER AUTOMATIC CONT(C61) EXC. SAFETY PACKAGE FT & RR<8SY> (A) BLACK |
| 235 |
I8-98246 739-0 |
|
SCREW; GRILLE |
8 |
2007- |
|
A |
GRADE LUXURY(RBC),GRADE CUSTOM(RBD) M5X16 |
| 148 |
I8-98038 450-0 |
|
NUT; INST PANEL BRKT |
2 |
2007- |
|
BCDE F |
GRADE BASIC(RBA),GRADE DELUXE(RBB) AIR BAG DRIVER 8c PASSENGER DELETE(AK6) HEATER 8t DEFROSTER(C42),AIR CONDmONER MANUAL CONT(C60) EXC. ELECTRONIC TRACTION CONTROL<NW9> |
| 70 |
I8-97905 024-0 |
|
GRILLE; CENTER.AIR OUTLET |
1 |
2007- |
L |
B E |
GRADE BASIC(RBA),GRADE DELUXE(RBB) BLACK |
| 1 |
I8-97905 823-0 |
|
PANEL; INST |
1 |
2007- |
|
C F |
GRADE CUSTOM(RBD) AIR CONDmONER AUTOMATIC CONT(C61) ELECTRONIC TRACTION CONTROL<NW9> EXC. SOUTH AFRICA EQUIPMENT(B02),AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),SAFETY PACKAGE FT<8SW>,SAFETY PACKAGE FT 8> RR<8SY> (A) BLACK |
| 42 |
I8-97905 167-1 |
|
BOX; GLOVE,INST PNL |
1 |
2007- |
|
AC F |
GRADE BASIC(RBA),GRADE DELUXE(RBB) AM/FM.CLOCK.BLUE TOOTH.CD PLAYER(UGQ),RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL),AM/FM, DVD.NAVI W/DISPLAY,SMART PHONE(8RW),AM/FM,MEMOLY NÄVI W/DISPLAY.SMART PHONE(8TG),SCREEN 9" WO/DVD(8TK) (D) BLACK |

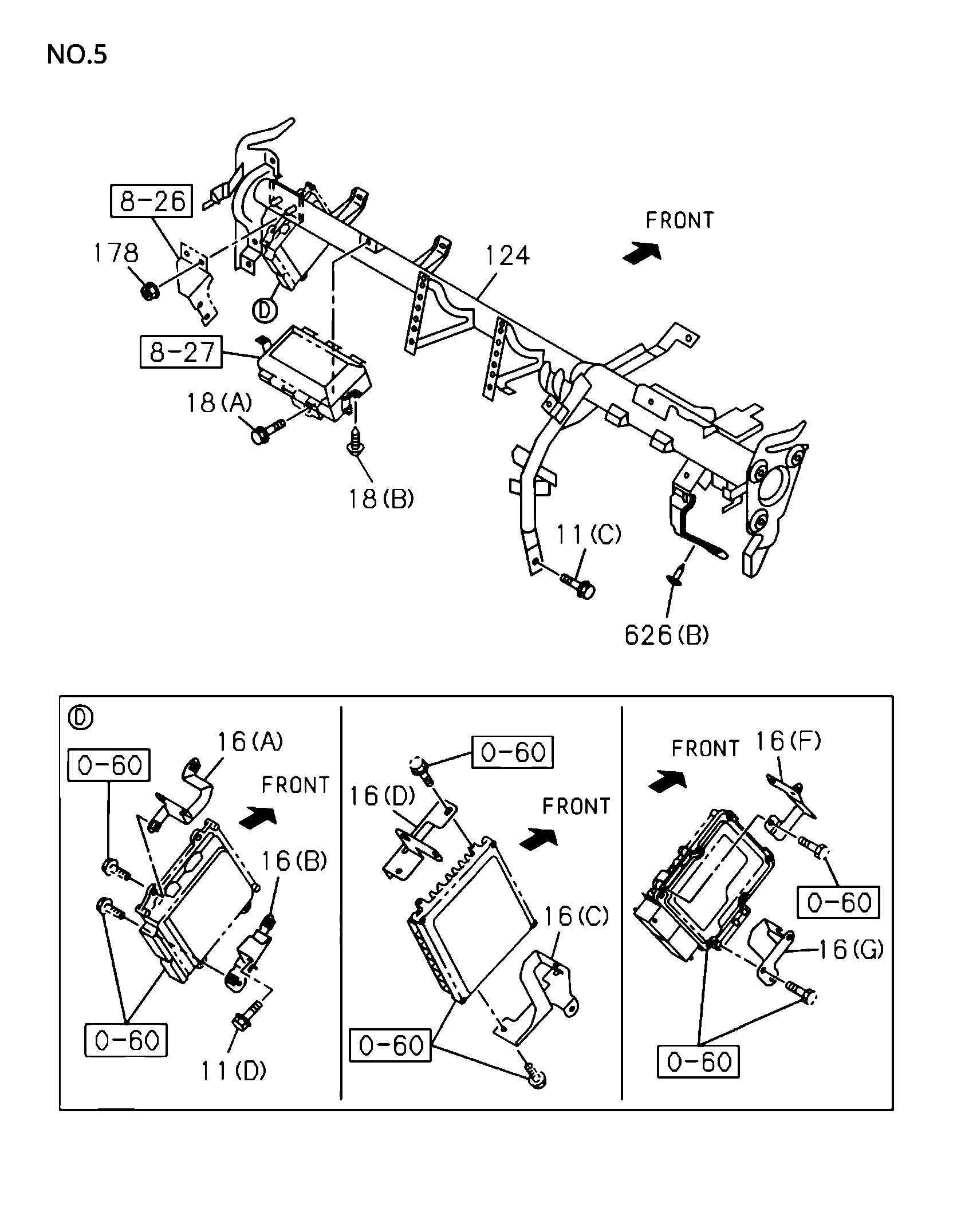

| 124 |
I8-98398 489-4 |
|
REINFORCEMENT; INST PNL.UPR |
1 |
2007- |
|
E |
AM/FM.CLOCK.BLUE TOOTH.CD PLAYER(UGQ),RADIO DELETE(UL5) A/BAG DR&DR KNEE&PASS&SIDE/FAR SIDE/ROOF(8TY) |
| 235 |
I8-97553 417-0 |
|
SCREW; GRILLE |
6 |
2007- |
|
D |
GRADE DELUXE(RBB) |
| 69 |
I8-97905 016-0 |
|
GRILLE; SIDE,AIR OUTLET |
1 |
2007- |
L |
C F |
GRADE CUSTOM(RBD),GRADE ROYAL(RBE) (B) SILVER |
| 457 |
I8-97905 170-0 |
|
PLATE; INST PANEL |
1 |
2007- |
|
ABC E F |
GRADE BASIC(RBA),GRADE DELUXE(RBB) RADIO DELETE(ULS) (A) BLACK |
| 125 |
I8-98164 677-0 |
|
CLIP; INST PANEL |
3 |
2007- |
|
ABCDE F |
|
| 14 |
I8-98167 449-0 |
|
SCREW; INST PNL |
14 |
2007- |
|
ABCDE F |
M5X16 TAPPING |
| 726 |
I8-97472 044-3 |
|
PANEL; INST LW |
1 |
2007- |
|
D F |
FLOOR CONSOLE W/LID 8< RR CUP HOLDER<DD7>,FLOOR CONSOLE W/LID<D55> (B) BLACK |
| 235 |
I8-97553 417-0 |
|
SCREW; GRILLE |
18 |
2007- |
|
A D |
GRADE LUXURY(RBC),GRADE CUSTOM(RBD) |
| 1 |
I8-97905 823-0 |
|
PANEL; INST |
1 |
2007- |
|
C F |
GRADE CUSTOM(RBD),GRADE ROYAL(RBE) SOUTH AFRICA EQUIPMENT(B02),AUSTRALIA EQUIPMENT(B13), HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF) AIR CONDmONER AUTOMATIC CONT(C61) EXC. ELECTRONIC TRACTION CONTROL<NW9> (A) BLACK |
| 3 |
I8-97553 417-0 |
|
SCREW; BINDER HD |
8 |
2007- |
|
AC F |
GRADE BASIC(RBA),GRADE DELUXE(RBB) (C) |
| 11 |
I8-98167 449-0 |
|
BOLT; INST PNL |
4 |
2007- |
|
ABCDE F |
(A) SCREW M5X16 TAPPING |
| 70 |
I8-97905 021-0 |
|
GRILLE; CENTER.AIR OUTLET |
1 |
2007- |
R |
A D |
GRADE CUSTOM(RBD) BLACK |
| 527 |
I8-98336 064-0 |
|
CLIP; INST CLUSTER |
4 |
2007- |
|
C F |
GRADE LUXURY(RBC),GRADE CUSTOM(RBD),GRADE ROYAL(RBE) |
| 136 |
I8-98164 677-0 |
|
CLIP; INST COVER |
6 |
2007- |
|
A |
AIR BAG DRIVER 8i PASSENGER(AK5),AIR BAG DRIVER 8. PASSENGER 8c SIDE 8< ROOF(AYO) |
| 1 |
I8-97905 823-0 |
|
PANEL; INST |
1 |
2007- |
|
C F |
GRADE CUSTOM(RBD),GRADE ROYAL(RBE) SOUTH AFRICA EQUIPMENT(B02),AUSTRALIA EQUIPMENT(B13), HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF) AIR CONDmONER AUTOMATIC CONT(C61) EXC. ELECTRONIC TRACTION CONTROL<NW9> (A) BLACK |
| 170 |
I8-97905 018-0 |
|
COVER; HOLE |
1 |
2007- |
|
A D |
GRADE LUXURY(RBC),GRADE CUSTOM(RBD) (A) BLACK |
| 69 |
I8-97905 003-0 |
|
GRILLE; SIDE,AIR OUTLET |
1 |
2007- |
R |
B E |
GRADE BASIC(RBA),GRADE DELUXE(RBB) (A) BLACK |
| 235 |
I8-97553 417-0 |
|
SCREW; GRILLE |
18 |
2007- |
|
C F |
GRADE LUXURY(RBC),GRADE CUSTOM(RBD),GRADE ROYAL(RBE) |

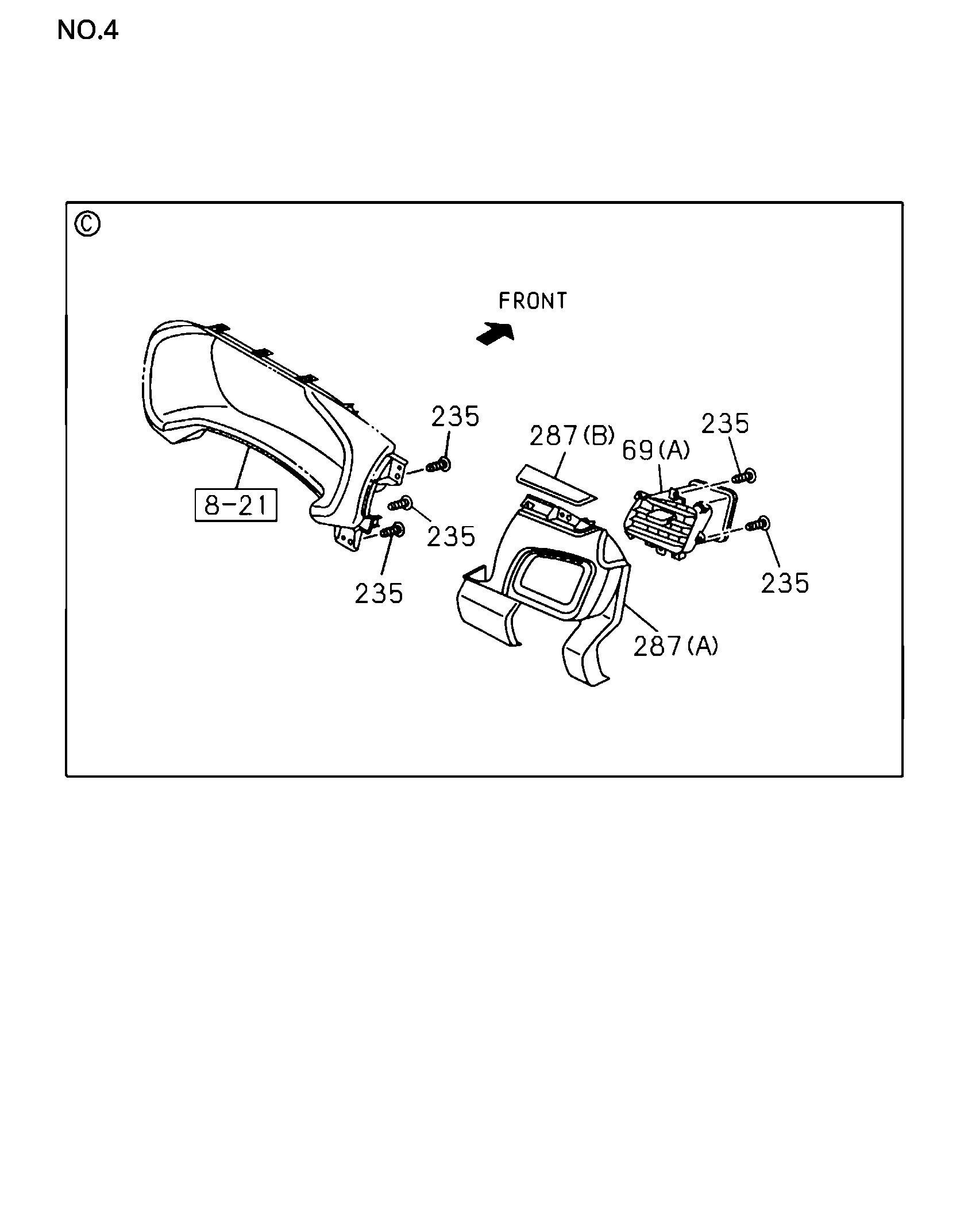

| 287 |
I8-97905 002-0 |
|
PANEL; CLUSTER SIDE |
1 |
2007- |
|
CD F |
GRADE CUSTOM(RBD) STEERING COLUMN TILT TELESCOPING<N37> (B) DARK SILVER |
| 70 |
I8-97905 023-0 |
|
GRILLE; CENTER.AIR OUTLET |
1 |
2007- |
R |
B E |
GRADE BASIC(RBA),GRADE DELUXE(RBB) BLACK |
| 287 |
I8-97905 006-1 |
|
PANEL; CLUSTER SIDE |
1 |
2007- |
|
A |
GRADE CUSTOM(RBD) (A) SILVER |
| 3 |
I8-98246 739-0 |
|
SCREW; BINDER HD |
4 |
2007- |
|
ABCDE F |
RADIO DELETE(UL5) (D) M5X16 |
| 530 |
I8-98336 064-0 |
|
CLIP; GLOVE BOX |
10 |
2007- |
|
A D |
GRADE LUXURY(RBC),GRADE CUSTOM(RBD) (A) |
| 530 |
I8-98164 677-0 |
|
CLIP; GLOVE BOX |
11 |
2007- |
|
B E |
GRADE BASIC(RBA),GRADE DELUXE(RBB) AM/FM.CLOCK.BLUE TOOTH.CD PLAYER(UGQ),RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL),AM/FM, DVD.NAVI W/DISPLAY,SMART PHONE(8RW) (B) |
| 546 |
I8-97464 418-2 |
|
PANEL; INST,SUB |
1 |
2007- |
|
B E |
GRADE BASIC(RBA),GRADE DELUXE(RBB) BLACK |
| 14 |
I8-98167 449-0 |
|
SCREW; INST PNL |
2 |
2007- |
|
C F |
GRADE LUXURY(RBC),GRADE CUSTOM(RBD),GRADE ROYAL(RBE) M5X16 TAPPING |
| 42 |
I8-97471 680-2 |
|
BOX; GLOVE.INST PNL |
1 |
2007- |
|
BCDE F |
LOCK GLOVE BOX<A99> BLACK |
| 598 |
I8-98164 685-0 |
|
GROMMET; SCREW |
16 |
2007- |
|
ABCDE F |
(A) |
| 694 |
I8-98164 677-0 |
|
CLIP; INST PNL |
6 |
2007- |
|
A BC D E F |
GRADE BASIC(RBA),GRADE DELUXE(RBB) |
| 108 |
I8-97471 686-1 |
|
GRILLE; INST PNL |
1 |
2007- |
L |
ABCDE F |
BLACK |
| 124 |
I8-98398 489-4 |
|
REINFORCEMENT; INST PNL.UPR |
1 |
2007- |
|
ABCD F |
AM/FM,CLOCK,BLUE TOOTH.CD PLAYER(UGQ),RADIO DELETE[UL5) AIR BAG DRIVER&DRIVER KNEE&PASS&SIDE&ROOF(8TX),A/BAG DR&DR KNEE&PASS&SIDE/FAR SIDE/ROOF(8TY) |
| 457 |
I8-97905 025-0 |
|
PLATE; INST PANEL |
1 |
2007- |
|
A D |
GRADE LUXURY(RBC),GRADE CUSTOM(RBD) RADIO DELETE(ULS) (B) BLACK |
| 3 |
I8-97553 417-0 |
|
SCREW; BINDER HD |
8 |
2007- |
|
B E |
AM/FM,CLOCK,BLUE TOOTH.CD PLAYER(UGQ),RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL),AM/FM, DVD.NAVI W/DISPLAY,SMART PHONE(8RW) (C) |
| 70 |
I8-97905 022-0 |
|
GRILLE; CENTER.AIR OUTLET |
1 |
2007- |
L |
C F |
GRADE CUSTOM(RBD),GRADE ROYAL(RBE) BLACK |
| 235 |
I8-97553 417-0 |
|
SCREW; GRILLE |
6 |
2007- |
|
D |
GRADE DELUXE(RBB) |
| 69 |
I8-97905 017-0 |
|
GRILLE; SIDE,AIR OUTLET |
1 |
2007- |
L |
D |
GRADE DELUXE(RBB),GRADE LUXURY(RBC) (B) BLACK |
| 69 |
I8-97905 004-0 |
|
GRILLE; SIDE,AIR OUTLET |
1 |
2007- |
R |
A |
GRADE CUSTOM(RBD) (A) SILVER |
| 726 |
I8-97471 678-4 |
|
PANEL; INST LW |
1 |
2007- |
|
A |
AIR BAG DRIVER 8c PASSENGER(AK5),AIR BAG DRIVER 8c PASSENGER 8. SIDE 8c ROOF(AYO) (A) BLACK |
| 701 |
I8-97905 139-0 |
|
TRAY; INST |
1 |
2007- |
|
A CD F |
GRADE LUXURY(RBC),GRADE CUSTOM(RBD) BLACK |

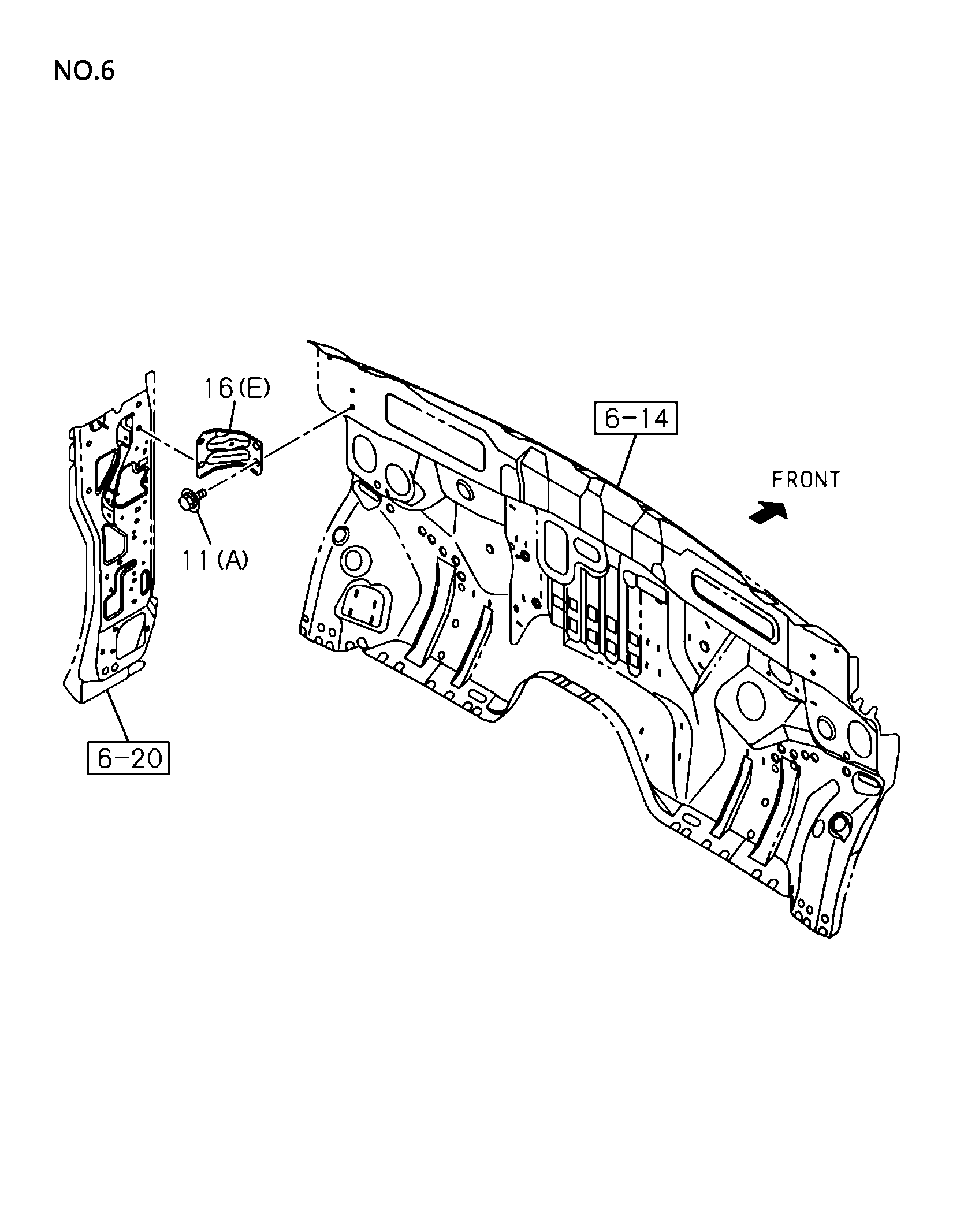

| 16 |
I8-98386 340-0 |
|
BRACKET; INST PNL |
1 |
2007- |
R |
ABCDE F |
(E) |
| 69 |
I8-97905 017-0 |
|
GRILLE; SIDE,AIR OUTLET |
1 |
2007- |
L |
A CD F |
GRADE LUXURY(RBC) (B) BLACK |
| 694 |
I8-98164 677-0 |
|
CLIP; INST PNL |
10 |
2007- |
|
C F |
GRADE LUXURY(RBC),GRADE CUSTOM(RBD),GRADE ROYAL(RBE) |
| 14 |
I8-98167 449-0 |
|
SCREW; INST PNL |
2 |
2007- |
|
A D |
GRADE LUXURY(RBC),GRADE CUSTOM(RBD) M5X16 TAPPING |
| 235 |
I8-97553 417-0 |
|
SCREW; GRILLE |
4 |
2007- |
|
B E |
GRADE BASIC(RBA),GRADE DELUXE(RBB) AM/FM,CLOCK,BLUE TOOTH.CD PLAYER(UGQ),RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL),AM/FM, DVD.NAVT W/DISPLAY,SMART PHONE(8RW) |
| 18 |
I0-28650 840-0 |
|
BOLT; BRKT |
1 |
2007- |
|
B |
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER&DRIVER KNEE&PASS&SIDE&ROOF(8TX),A/BAGDR&DR KNEE&PASS&SIDE/FAR SIDE/ROOF(8TY) (A) M8X40 FLANGE |
| 235 |
I8-98246 739-0 |
|
SCREW; GRILLE |
8 |
2007- |
|
A |
GRADE LUXURY(RBC),GRADE CUSTOM(RBD) M5X16 |
| 694 |
I8-98164 677-0 |
|
CLIP; INST PNL |
10 |
2007- |
|
C F |
GRADE LUXURY(RBC),GRADE CU5TOM(RBD),GRADE ROYAL(RBE) |
| 726 |
I8-97471 678-4 |
|
PANEL; INST LW |
1 |
2007- |
|
CD F |
AIR BAG DRIVER 8. PASSENGER(AK5),AIR BAG DRIVER 8c PASSENGER DELETE(AK6),AIR BAG DRIVER 8. PASSENGER 8, SIDE 8< ROOF(AYO) (A) BLACK |
| 69 |
I8-97905 003-0 |
|
GRILLE; SIDE.AIR OUTLET |
1 |
2007- |
R |
A CD F |
GRADE BASIC(RBA),GRADE DELUXE(RBB),GRADE LUXURY(RBC) (A) BLACK |
| 457 |
I8-97905 170-0 |
|
PLATE; INST PANEL |
1 |
2007- |
|
D |
GRADE DELUXE(RBB) RADIO DELETE(UL5) (A) BLACK |
| 235 |
I8-98246 739-0 |
|
SCREW; GRILLE |
8 |
2007- |
|
CD F |
GRADE LUXURY(RBC) M5X16 |
| 732 |
I8-97905 137-0 |
|
BEZEL |
1 |
2007- |
|
A D |
GRADE LUXURY(RBC),GRADE CUSTOM(RBD) BLACK |
| 3 |
I8-98246 739-0 |
|
SCREW; BINDER HD |
19 |
2007- |
|
A CD F |
GRADE BASIC(RBA),GRADE DELUXE(RBB) HEATER & DEFROSTER(C42),AIR CONDmONER MANUAL CONT(C60) (A) M5X16 |
| 70 |
I8-97905 021-0 |
|
GRILLE; CENTER.AIR OUTLET |
1 |
2007- |
R |
C F |
GRADE CUSTOM(RBD),GRADE ROYAL(RBE) BLACK |
| 265 |
I8-97477 995-0 |
|
HOLDER; CUP |
1 |
2007- |
L |
ABCDE F |
BLACK |
| 598 |
I8-98164 685-0 |
|
G ROM MET; SCREW |
6 |
2007- |
|
ABCDE F |
(B) |
| 42 |
I8-97905 167-1 |
|
BOX; GLOVE,INST PNL |
1 |
2007- |
|
D |
GRADE DELUXE(RBB) AM/FM.CLOCK.BLUE TOOTH.CD PLAYER(UGQ),RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL),AM/FM, DVD.NAVI W/DISPLAY.SMART PHONE(8RW),AM/FM,MEMOLY NÄVI W/DISPLAY.SMART PHONE(8TG),SCREEN 9" WO/DVD(8TK) (D) BLACK |
| 69 |
I8-97905 004-0 |
|
GRILLE; SIDE.AIR OUTLET |
1 |
2007- |
R |
CD F |
GRADE CUSTOM(RBD),GRADE ROYAL(RBE) STEERING COLUMN TILT TELESCOPING<N37> (A) SILVER |
| 70 |
I8-97905 023-0 |
|
GRILLE; CENTER.AIR OUTLET |
1 |
2007- |
R |
D |
GRADE DELUXE(RBB),GRADE LUXURY(RBC) BLACK |
| 576 |
I8-97553 498-0 |
|
CUSHION |
1 |
2007- |
|
ABCDE F |
|
| 70 |
I8-97905 024-0 |
|
GRILLE; CENTER.AIR OUTLET |
1 |
2007- |
L |
AC F |
GRADE BASIC(RBA),GRADE DELUXE(RBB),GRADE LUXURY(RBC) BLACK |
| 1 |
I8-97905 823-0 |
|
PANEL; INST |
1 |
2007- |
|
C F |
GRADE CUSTOM(RBD) AIR CONDITIONER AUTOMATIC CONT(C61) EXC. SOUTH AFRICA EQUIPMENT(B02),AUSTRALIA EQUIPMENTS3),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),ELECTRONIC TRACTION CONTROL<NW9> (A) BLACK |
| 70 |
I8-97905 023-0 |
|
GRILLE; CENTER.AIR OUTLET |
1 |
2007- |
R |
AC F |
GRADE BASIC(RBA),GRADE DELUXE(RBB),GRADE LUXURY(RBC) BLACK |

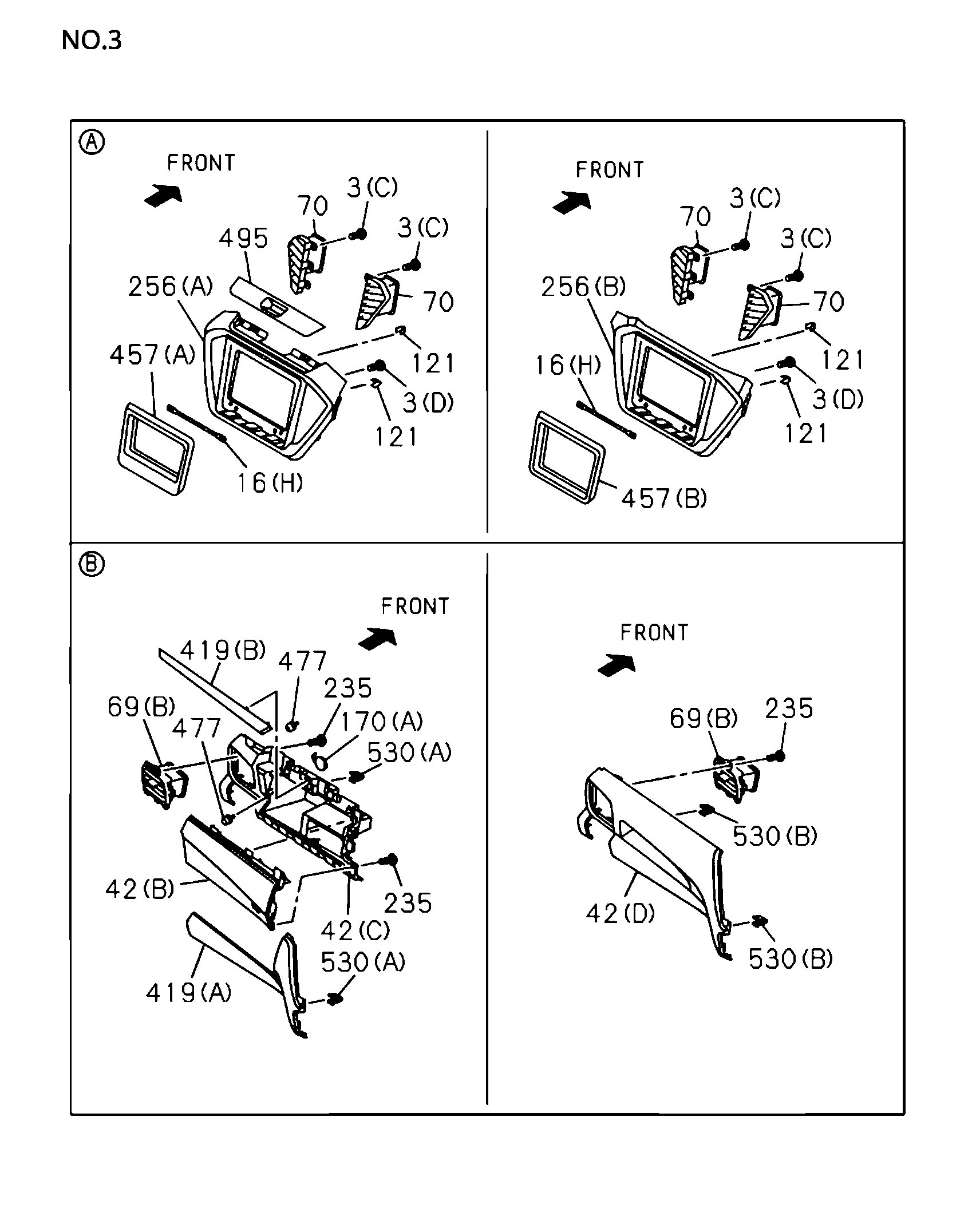

| 495 |
I8-97905 169-0 |
|
BEZEL; SW |
1 |
2007- |
|
AC F |
GRADE BASIC(RBA),GRADE DELUXE(RBB) BLACK |
| 16 |
I8-98386 338-0 |
|
BRACKET; INST PNL |
1 |
2007- |
L |
ABCDE F |
(E) |
| 732 |
I8-97905 137-0 |
|
BEZEL |
1 |
2007- |
|
C F |
GRADE LUXURY(RBC),GRADE CUSTOM(RBD),GRADE ROYAL(RBE) BLACK |
| 235 |
I8-98246 739-0 |
|
SCREW; GRILLE |
8 |
2007- |
|
D |
GRADE CUSTOM(RBD) STEERING COLUMN TILT TELESCOPING<N37> M5X16 |
| 70 |
I8-97905 022-0 |
|
GRILLE; CENTER.AIR OUTLET |
1 |
2007- |
L |
A D |
GRADE CUSTOM(RBD) BLACK |
| 527 |
I8-98336 064-0 |
|
CLIP; INST CLUSTER |
4 |
2007- |
|
A D |
GRADE LUXURY(RBC),GRADE CUSTOM(RBD) |
| 726 |
I8-97471 677-3 |
|
PANEL; INST LW |
1 |
2007- |
|
E |
A/BAG DR8.DR KNEE8.PASS&SIDE/FAR SIDE/ROOF(8TY) (A) BLACK |
| 477 |
I8-97553 912-0 |
|
RUBBER; CUSHION.COMPARTMENT PANEL |
2 |
2007- |
|
A D |
GRADE LUXURY(RBC),GRADE CUSTOM(RBD) |
| 582 |
I8-97477 997-0 |
|
UD; FUSE 8. RELAY |
1 |
2007- |
|
ABCDE F |
BLACK |
| 1 |
I8-97905 823-0 |
|
PANEL; INST |
1 |
2007- |
|
A D |
GRADE CUSTOM(RBD) AIR CONDITIONER AUTOMATIC CONT(C61) EXC. SAFETY PACKAGE FT & RR<8SY> (A) BLACK |
| 16 |
I8-98398 508-0 |
|
BRACKET; INST PNL |
1 |
2007- |
|
ABCDE F |
RZ4E-TC ENG(RDZ) (B) |
| 3 |
I8-98246 739-0 |
|
SCREW; BINDER HD |
27 |
2007- |
|
C F |
GRADE LUXURY(RBC),GRADE CUSTOM(RBD),GRADE ROYAL(RBE) (A) M5X16 |
| 726 |
I8-97471 677-3 |
|
PANEL; INST LW |
1 |
2007- |
|
ABCD F |
AIR BAG DRIVER8.DRIVER KNEE8cPASS8£IDE8.ROOF(8TX),A/BAG DR&DR KNEE8cPASS8cSIDE/FAR SIDE/ROOF(8TY) (A) BLACK |
| 546 |
I8-97472 041-2 |
|
PANEL; INST.SUB |
1 |
2007- |
|
A D |
GRADE LUXURY(RBC),GRADE CUSTOM(RBD) PASSIVE ENTRY AND START SYSTEM<AP3>,PASSIVE ENTRY 8> START SYSTEM W/REMOTE ENG<8SR> BLACK |
| 726 |
I8-97471 678-4 |
|
PANEL; INST LW |
1 |
2007- |
|
B E |
AIR BAG DRIVER 8, PASSENGER(AK5),AIR BAG DRIVER 8c PASSENGER DELETE(AK6) (A) BLACK |
| 477 |
I8-97553 912-0 |
|
RUBBER; CUSHION.COMPARTMENT PANEL |
2 |
2007- |
|
C F |
GRADE LUXURY(RBC),GRADE CUSTOM(RBD),GRADE ROYAL(RBE) |
| 726 |
I8-97464 417-4 |
|
PANEL; INST LW |
1 |
2007- |
|
A CD F |
EXC. FLOOR CONSOLE W/LID 8c RR CUP HOLDER<D07>,FLOOR CONSOLE W/LID<D55> (B) BLACK |
| 11 |
I8-97947 104-1 |
|
BOLT; INST PNL |
8 |
2007- |
|
ABCDE F |
(A) M8X22.5W/PL WASHER |
| 287 |
I8-97905 207-1 |
|
PANEL; CLUSTER SIDE |
1 |
2007- |
|
D |
GRADE DELUXE(RBB) (A) BLACK |
| 287 |
I8-97905 006-1 |
|
PANEL; CLUSTER SIDE |
1 |
2007- |
|
CD F |
GRADE CUSTOM(RBD),GRADE ROYAL(RBE) STEERING COLUMN TILT TELESCOPING<N37> (A) SILVER |
| 626 |
I8-98164 677-0 |
|
RETAINER |
4 |
2007- |
|
ABCDE F |
(A) |
| 546 |
I8-97472 041-2 |
|
PANEL; INST.SUB |
1 |
2007- |
|
C F |
GRADE LUXURY(RBC),GRADE CUSTOM(RBD),GRADE ROYAL(RBE) PASSIVE ENTRY AND START SYSTEM<AP3>,PASSIVE ENTRY & START SYSTEM W/REMOTE ENG<8SR> BLACK |
| 18 |
I0-28650 840-0 |
|
BOLT; BRKT |
1 |
2007- |
|
E |
AIR BAG DRIVER & PASSENG ER(AK5), A/BAG DR&DR KNEE&PASS&SIDE/FAR SIDE/ROOF(8TY) (A) M8X40 FLANGE |
| 626 |
I8-98164 677-0 |
|
RETAINER |
4 |
2007- |
|
ABCDE F |
(A) |
| 18 |
I0-28650 840-0 |
|
BOLT; BRKT |
1 |
2007- |
|
A CD F |
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AYO),AIR BAG DRIVER&DRIVER KNEE&PASS&SIDE&ROOF(8TX),A/BAG DR&DR KNEE&PASS&SIDE/FAR SIDE/ROOF(8TY) (A) M8X40 FLANGE |
| 124 |
I8-98337 943-4 |
|
REINFORCEMENT; INST PNL.UPR |
1 |
2007- |
|
B E |
AIR BAG DRIVER & PASSENGER(AK5) AM/FM,CLOCK,BLUE TOOTH.CD PLAYER(UGQ),RADIO DELETE(UL5) |
| 11 |
I8-98167 449-0 |
|
BOLT; INST PNL |
4 |
2007- |
|
ABCDE F |
(A) SCREW M5X16 TAPPING |
| 287 |
I8-97905 002-0 |
|
PANEL; CLUSTER SIDE |
1 |
2007- |
|
CD F |
GRADE LUXURY(RBC) (B) DARK SILVER |
| 546 |
I8-97464 418-2 |
|
PANEL; INST,SUB |
1 |
2007- |
|
A CD F |
GRADE BASIC(RBA),GRADE DELUXE(RBB) EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,PASSIVE ENTRY 8< START SYSTEM W/REMOTE ENG<8SR> BLACK |
| 694 |
I8-98164 677-0 |
|
CLIP; INST PNL |
6 |
2007- |
|
ABCDE F |
|
| 626 |
I8-97472 347-0 |
|
RETAINER |
1 |
2007- |
|
ABCD F |
AIR BAG DRIVER&DRIVER KNEE8iPASS8iSIDE8iROOF(8TX),A/BAG DR81DR KNEE8.PASS8.SIDE/FAR SIDE/ROOF(8TY) (B) BLACK |
| 530 |
I8-98164 677-0 |
|
CLIP; GLOVE BOX |
11 |
2007- |
|
AC F |
GRADE BASIC(RBA),GRADE DELUXE(RBB) AM/FM.CLOCK.BLUE TOOTH.CD PLAYER(UGQ),RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL),AM/FM, DVD.NAVI W/DISPLAY,SMART PHONE(8RW),AM/FM,MEMOLY NÄVI W/DISPLAY.SMART PHONE(8TG),SCREEN 9" WO/DVD(8TK) (B) |
| 11 |
I8-98136 167-0 |
|
BOLT; INST PNL |
1 |
2007- |
|
ABCDE F |
(D) M6X22W/PL WASHER |
| 726 |
I8-97471 678-4 |
|
PANEL; INST LW |
1 |
2007- |
|
A |
AIR BAG DRIVER 8c PASSENGER(AK5),AIR BAG DRIVER 8c PASSENGER 8. SIDE 8c ROOF(AYO) (A) BLACK |
| 11 |
I8-97947 104-1 |
|
BOLT; INST PNL |
8 |
2007- |
|
ABCDE F |
(A) M8X22.5 W/PL WASHER |
| 42 |
I8-97471 680-2 |
|
BOX; GLOVEJNST PNL |
1 |
2007- |
|
A |
(A) BLACK |
| 287 |
I8-97905 001-1 |
|
PANEL; CLUSTER SIDE |
1 |
2007- |
|
A CD F |
GRADE LUXURY(RBC) (A) SILVER |
| 18 |
I8-94358 694-0 |
|
BOLT; BRKT |
2 |
2007- |
|
A CD F |
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER 8. SIDE & ROOF(AYO),AIR BAG DRIVER&DRIVER KNEE&PASS&SIDE&ROOF(8TX),A/BAG DR&DR KNEE&PASS&SIDE/FAR SIDE/ROOF(8TY) (B) MSX16 |
| 136 |
I8-98164 677-0 |
|
CLIP; INST COVER |
3 |
2007- |
|
ABCD F |
AIR BAG DRIVER&DRIVER KNEE&PASS&SIDE&ROOF(8TX),A/BAG DR&DR KNEE&PA5S&SIDE/FAR SIDE/ROOF(8TY) |
| 3 |
I8-98246 739-0 |
|
SCREW; BINDER HD |
19 |
2007- |
|
B E |
HEATER & DEFROSTER(C42),AIR CONDmONER MANUAL CONT(C60) (A) M5X16 |
| 18 |
I8-94358 694-0 |
|
BOLT; BRKT |
2 |
2007- |
|
B |
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER&DRIVER KNEE&PASS&SIDE&ROOF(8TX),A/BAG DR&DR KNEE&PASS&SIDE/FAR SIDE/ROOF(8TY) (B) MSX16 |
| 726 |
I8-97471 679-2 |
|
PANEL; INST LW |
1 |
2007- |
|
A BC D E F |
(C) BLACK |
| 235 |
I8-97553 417-0 |
|
SCREW; GRILLE |
4 |
2007- |
|
AC F |
GRADE BASIC(RBA),GRADE DELUXE(RBB) AM/FM,CLOCK,BLUE TOOTH.CD PLAYER(UGQ),RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL),AM/FM, DVD.NAVI W/DISPLAY,SMART PHONE(8RW),AM/FM,MEMOLY NAVI W/DISPLAY.SMART PHONE(8TG),SCREEN 9" WO/DVD(8TK) |
| 495 |
I8-97905 169-0 |
|
BEZEL; SW |
1 |
2007- |
|
B E |
AM/FM.CLOCK.BLUE TOOTH.CD PLAYER(UGQ),RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL),AM/FM, DVD.NAVI W/DISPLAY,SMART PHONE(8RW) BLACK |
| 11 |
I0-28450 825-0 |
|
BOLT; INST PNL |
6 |
2007- |
|
ABCDE F |
(B) M8X25 FLANGE |
| 42 |
I8-97905 167-1 |
|
BOX; GLOVE.INST PNL |
1 |
2007- |
|
B E |
GRADE BASIC(RBA),GRADE DELUXE(RBB) AM/FM.CLOCK.BLUE TOOTH.CD PLAYER(UGQ),RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL),AM/FM, DVD.NAVI W/DISPLAY,SMART PHONE(8RW) (D) BLACK |
| 581 |
I8-98167 449-0 |
|
SCREW |
2 |
2007- |
|
ABCDE F |
RADIO DELETE(UL5) M5X16 TAPPING |
| 701 |
I8-97905 139-0 |
|
TRAY; INST |
1 |
2007- |
|
C F |
GRADE ROYAL(RBE) SOUTH AFRICA EQUIPMENT(B02),AUSTRALIA EQUIPMENT(B13), HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF) BLACK |
| 262 |
I8-97905 147-0 |
|
GRILLE; DEFROSTER |
1 |
2007- |
R |
ABCDE F |
BLACK |
| 69 |
I8-97905 017-0 |
|
GRILLE; SIDE,AIR OUTLET |
1 |
2007- |
L |
AC F |
GRADE BASIC(RBA),GRADE DELUXE(RBB),GRADE LUXURY(RBC) (B) BLACK |
| 256 |
I8-97905 465-0 |
|
BEZEL ASM; CENTER |
1 |
2007- |
|
A CD F |
GRADE LUXURY(RBC) RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL) (B) BLACK |
| 256 |
I8-97905 168-0 |
|
BEZEL ASM; CENTER |
1 |
2007- |
|
D |
GRADE DELUXE(RBB) RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL) (A) BLACK |
| 124 |
I8-98337 943-4 |
|
REINFORCEMENT; INST PNL.UPR |
1 |
2007- |
|
A CD F |
AIR BAG DRIVER & PASSENGER(AKS),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AYO) AM/FM,CLOCK,BLUE TOOTH.CD PLAYER(UGQ),RADIO DELETE(UL5) |
| 546 |
I8-97472 042-2 |
|
PANEL; INST.SUB |
1 |
2007- |
|
C F |
GRADE LUXURY(RBC),GRADE CU5TOM(RBD),GRADE ROYAL(RBE) EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,PASSIVE ENTRY 8. START SYSTEM W/REMOTE ENG<8SR> BLACK |
| 69 |
I8-97905 017-0 |
|
GRILLE; SIDE.AIR OUTLET |
1 |
2007- |
L |
B E |
GRADE BASIC(RBA),GRADE DELUXE(RBB) (B) BLACK |
| 277 |
I8-97553 901-0 |
|
RUBBER; STOPPER GLOVE UD |
2 |
2007- |
|
ABCDE F |
(B) |
| 626 |
I8-97472 347-0 |
|
RETAINER |
1 |
2007- |
|
E |
A/BAG DR&DR KNEE&PASS&SIDE/FAR SIDE/ROOF(8TY) (B) BLACK |
| 341 |
I8-97471 684-3 |
|
UD; FUSE BOX |
1 |
2007- |
L |
ABCDE F |
BLACK |
| 726 |
I8-97464 417-4 |
|
PANEL; INST LW |
1 |
2007- |
|
B E |
EXC. FLOOR CONSOLE W/LID<D55> BLACK |
| 11 |
I8-98057 964-0 |
|
BOLT; INST PNL |
1 |
2007- |
|
ABCDE F |
(C) M8X30 W/LK&PL WASHER |
| 726 |
I8-97471 678-4 |
|
PANEL; INST LW |
1 |
2007- |
|
CD F |
AIR BAG DRIVER 8. PASSENGER(AK5),AIR BAG DRIVER 8c PASSENGER DELETE(AK6),AIR BAG DRIVER 8. PASSENGER 8, SIDE 8< ROOF(AYO) (A) BLACK |
| 42 |
I8-97905 011-1 |
|
BOX; GLOVE.INST PNL |
1 |
2007- |
|
A D |
GRADE CUSTOM(RBD) AM/FM.CLOCK.BLUE TOOTH.CD PLAYER(UGQ),RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL),AM/FM, DVD.NAVI W/DISPLAY,SMART PHONE(8RW),AM/FM,MEMOLY NÄVI W/DISPLAY.SMART PHONE(8TG),SCREEN 9" WO/DVD(8TK) (C) BLACK |
| 235 |
I8-97553 417-0 |
|
SCREW; GRILLE |
6 |
2007- |
|
ABC E F |
GRADE BASIC(RBA),GRADE DELUXE(RBB) |
| 14 |
I8-98167 220-0 |
|
SCREW; INST PNL |
1 |
2007- |
|
ABCDE F |
M5X16 |
| 530 |
I8-98336 064-0 |
|
CLIP; GLOVE BOX |
10 |
2007- |
|
C F |
GRADE LUXURY(RBC),GRADE CUSTOM(RBD),GRADE ROYAL(RBE) (A) |
| 235 |
I8-97553 417-0 |
|
SCREW; GRILLE |
4 |
2007- |
|
D |
GRADE DELUXE(RBB) AM/FM.CLOCK.BLUE TOOTH.CD PLAYER(UGQ),RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL),AM/FM, DVD.NAVI W/DISPLAY.SMART PHONE(8RW),AM/FM,MEMOLY NÄVI W/DISPLAY.SMART PHONE(8TG),SCREEN 9" WO/DVD(8TK) |
| 42 |
I8-97905 011-1 |
|
BOX; GLOVE.INST PNL |
1 |
2007- |
|
C F |
GRADE CUSTOM(RBD),GRADE ROYAL(RBE) AM/FM.CLOCK.BLUE TOOTH.CD PLAYER(UGQ),RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL),AM/FM, DVD.NAVI W/DISPLAY,SMART PHONE(8RW),AM/FM,MEMOLY NÄVI W/DISPLAY.SMART PHONE(8TG),SCREEN 9" WO/DVD(8TK) (C) BLACK |
| 694 |
I8-98164 677-0 |
|
CLIP; INST PNL |
6 |
2007- |
|
A BC D E F |
GRADE BASIC(RBA),GRADE DELUXE(RBB) |
| 235 |
I8-97553 417-0 |
|
SCREW; GRILLE |
4 |
2007- |
|
B E |
GRADE BASIC(RBA),GRADE DELUXE(RBB) AM/FM.CLOCK.BLUE TOOTH.CD PLAYER(UGQ),RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL),AM/FM, DVD.NAVI W/DISPLAY.SMART PHONE(8RW) |
| 726 |
I8-97472 044-3 |
|
PANEL; INST LW |
1 |
2007- |
|
E |
FLOOR CONSOLE W/LID<D55> (B) BLACK |
| 726 |
I8-97471 677-3 |
|
PANEL; INST LW |
1 |
2007- |
|
ABCD F |
AIR BAG DRIVER8.DRIVER KNEE8cPASS8£IDE8.ROOF(8TX),A/BAG DR&DR KNEE8cPASS8cSIDE/FAR SIDE/ROOF(8TY) (A) BLACK |
| 235 |
I8-97553 417-0 |
|
SCREW; GRILLE |
18 |
2007- |
|
A D |
GRADE LUXURY(RBC),GRADE CUSTOM(RBD) |
| 136 |
I8-98164 677-0 |
|
CLIP; INST COVER |
6 |
2007- |
|
CD F |
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER 8i PASSENGER DELETE(AK6),AIR BAG DRIVER & PASSENGER 8< SIDE 8, ROOF(AYO) |
| 235 |
I8-98246 739-0 |
|
SCREW; GRILLE |
8 |
2007- |
|
C F |
GRADE CUSTOM(RBD),GRADE ROYAL(RBE) STEERING COLUMN TILT TELESCOPING<N37> M5X16 |
| 235 |
I8-98246 739-0 |
|
SCREW; GRILLE |
8 |
2007- |
|
D |
GRADE CUSTOM(RBD) STEERING COLUMN TILT TELESCOPING<N37> M5X16 |
| 265 |
I8-97477 994-0 |
|
HOLDER; CUP |
1 |
2007- |
R |
ABCDE F |
BLACK |
| 530 |
I8-98164 677-0 |
|
CLIP; GLOVE BOX |
11 |
2007- |
|
D |
GRADE DELUXE(RBB) AM/FM.CLOCK.BLUE TOOTH.CD PLAYER(UGQ),RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL),AM/FM, DVD.NAVI W/DISPLAY,SMART PHONE(8RW),AM/FM,MEMOLY NÄVI W/DISPLAY.SMART PHONE(8TG),SCREEN 9" WO/DVD(8TK) (B) |
| 3 |
I8-97553 417-0 |
|
SCREW; BINDER HD |
6 |
2007- |
|
A D |
GRADE LUXURY(RBC),GRADE CUSTOM(RBD) (O |
| 726 |
I8-97471 678-4 |
|
PANEL; INST LW |
1 |
2007- |
|
B E |
AIR BAG DRIVER 8, PASSENGER(AK5),AIR BAG DRIVER 8c PASSENGER DELETE(AK6) (A) BLACK |
| 42 |
I8-97471 681-2 |
|
BOX; GLOVE,INST PNL |
1 |
2007- |
|
BCDE F |
EXC. LOCK GLOVE BOX<A99> BLACK |
| 457 |
I8-97905 025-0 |
|
PLATE; INST PANEL |
1 |
2007- |
|
C F |
GRADE LUXURY(RBC),GRADE CUSTOM(RBD),GRADE ROYAL(RBE) RADIO DELETE(UL5) (B) BLACK |
| 136 |
I8-98164 677-0 |
|
CLIP; INST COVER |
3 |
2007- |
|
E |
A/BAG DR8.DR KNEE&PASS&SIDE/FAR SIDE/ROOF(8TY) |
| 170 |
I8-97905 018-0 |
|
COVER; HOLE |
1 |
2007- |
|
C F |
GRADE LUXURY(RBC),GRADE CUSTOM(RBD),GRADE ROYAL(RBE) (A) BLACK |
| 235 |
I8-97553 417-0 |
|
SCREW; GRILLE |
6 |
2007- |
|
ABC E F |
GRADE BASIC(RBA),GRADE DELUXE(RBB) |
| 18 |
I8-94358 694-0 |
|
BOLT; BRKT |
2 |
2007- |
|
E |
AIR BAG DRIVER & PASSENGER(AK5),A/BAG DR&DR KNEE&PASS&SIDE/FAR SIDE/ROOF(8TY) (B) MSX16 |
| 287 |
I8-97905 002-0 |
|
PANEL; CLUSTER SIDE |
1 |
2007- |
|
A |
GRADE LUXURY(RBC),GRADE CUSTOM(RBD) (B) DARK SILVER |
| 546 |
I8-97472 042-2 |
|
PANEL; INST.SUB |
1 |
2007- |
|
A D |
GRADE LUXURY(RBC),GRADE CUSTOM(RBD) EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,PASSIVE ENTRY 8. START SYSTEM W/REMOTE ENG<8SR> BLACK |
| 1 |
I8-97905 823-0 |
|
PANEL; INST |
1 |
2007- |
|
C F |
GRADE CUSTOM(RBD),GRADE ROYAL(RBE) SOUTH AFRICA EQUIPMENT!B02),AUSTRALIA EQUIPMENT(B13), HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF) AIR CONDmONER AUTOMATIC CONT(C61) ELECTRONIC TRACTION CONTROL<NW9> EXC. SAFETY PACKAGE FT<8SW>,SAFETY PACKAGE FT 8i RR<8SY> (A) BLACK |
| 235 |
I8-98246 739-0 |
|
SCREW; GRILLE |
8 |
2007- |
|
CD F |
GRADE LUXURY(RBC) M5X16 |
| 1 |
I8-97905 823-0 |
|
PANEL; INST |
1 |
2007- |
|
C F |
GRADE CUSTOM(RBD) AIR CONDmONER AUTOMATIC CONT(C61) ELECTRONIC TRACTION CONTROL<NW9> EXC. SOUTH AFRICA EQUIPMENT(B02),AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),SAFETY PACKAGE FT<8SW>,SAFETY PACKAGE FT 8> RR<8SY> (A) BLACK |
| 598 |
I8-98164 685-0 |
|
GROMMET; SCREW |
16 |
2007- |
|
ABCDE F |
(A) |
| 3 |
I8-97553 417-0 |
|
SCREW; BINDER HD |
6 |
2007- |
|
C F |
GRADE LUXURY(RBC),GRADE CUSTOM(RBD),GRADE ROYAL(RBE) (C) |
| 694 |
I8-98164 677-0 |
|
CLIP; INST PNL |
6 |
2007- |
|
ABCDE F |
|
| 277 |
I8-97553 227-0 |
|
RUBBER; STOPPER GLOVE UD |
2 |
2007- |
|
ABCDE F |
(A) |
| 419 |
I8-97905 012-0 |
|
PANEL; SHELF.GLOVE BOX |
1 |
2007- |
|
C F |
GRADE LUXURY(RBC),GRADE CUSTOM(RBD),GRADE ROYAL(RBE) (A) BLACK |
| 694 |
I8-98164 677-0 |
|
CLIP; INST PNL |
6 |
2007- |
|
ABCDE F |
GRADE BASIC(RBA),GRADE DELUXE(RBB) |
| 3 |
I8-98246 739-0 |
|
SCREW; BINDER HD |
8 |
2007- |
|
ABCDE F |
(B) M5X16 |
| 694 |
I8-98164 677-0 |
|
CLIP; INST PNL |
10 |
2007- |
|
A D |
GRADE LUXURY(RBC),GRADE CUSTOM(RBD) |
| 419 |
I8-97905 012-0 |
|
PANEL; SHELF,GLOVE BOX |
1 |
2007- |
|
A D |
GRADE LUXURY(RBC),GRADE CUSTOM(RBD) (A) BLACK |
| 108 |
I8-97471 685-1 |
|
GRILLE; INST PNL |
1 |
2007- |
R |
ABCDE F |
BLACK |
| 582 |
I8-97477 997-0 |
|
UD; FUSE 8. RELAY |
1 |
2007- |
|
ABCDE F |
BLACK |
| 121 |
I8-98336 064-0 |
|
CLIP; RADIO,INST PNL |
9 |
2007- |
|
ABCDE F |
|
| 178 |
I0-91180 106-0 |
|
NUT; INST PANEL |
2 |
2007- |
|
ABCDE F |
M6 FLANGE |
| 287 |
I8-97905 207-1 |
|
PANEL; CLUSTER SIDE |
1 |
2007- |
|
ABC E F |
GRADE BASIC(RBA),GRADE DELUXE(RBB) (A) BLACK |
| 656 |
I8-98164 677-0 |
|
CLIP; TRIM |
6 |
2007- |
|
ABCDE F |
|
| 3 |
I8-98246 739-0 |
|
SCREW; BINDER HD |
27 |
2007- |
|
A D |
GRADE LUXURY(RBC),GRADE CUSTOM(RBD) (A) M5X16 |
| 148 |
I8-98038 450-0 |
|
NUT; INST PANEL BRKT |
4 |
2007- |
|
ABCDE F |
GRADE BASIC(RBA),GRADE DELUXE(RBB) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AYO),AIR BAG DRIVER&DRIVER KNEE&PASS&SIDE&ROOF(8TX)A/BAG DR&DR KNEE8tPASS8tSIDE/FAR SIDE/ROOF(8TY) HEATER & DEFROSTER(C42),AIR CONDmONER MANUAL CONT(C60) |
| 42 |
I8-97905 463-1 |
|
BOX; GLOVE,INST PNL |
1 |
2007- |
|
A CD F |
GRADE LUXURY(RBC) AM/FM,CLOCK,BLUE TOOTH.CD PLAYER(UGQ),RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL),AM/FM, DVD.NAVI W/DISPLAY,SMART PHONE(8RW),AM/FM,MEMOLY NÄVI W/DISPLAY.SMART PHONE(8TG),SCREEN 9" WO/DVD(8TK) (C) SILVER |
| 256 |
I8-97905 019-0 |
|
BEZEL ASM; CENTER |
1 |
2007- |
|
A CD F |
GRADE CUSTOM(RBD) RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL) (B) DARK SILVER |
| 70 |
I8-97905 024-0 |
|
GRILLE; CENTER.AIR OUTLET |
1 |
2007- |
L |
D |
GRADE DELUXE(RBB),GRADE LUXURY(RBC) BLACK |
| 581 |
I8-98167 449-0 |
|
SCREW |
2 |
2007- |
|
ABCDE F |
RADIO DELETE(UL5) M5X16 TAPPING |
| 256 |
I8-97905 168-0 |
|
BEZEL ASM; CENTER |
1 |
2007- |
|
ABC E F |
GRADE BASIC(RBA),GRADE DELUXE(RBB) RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL) (A) BLACK |
| 726 |
I8-97471 677-3 |
|
PANEL; INST LW |
1 |
2007- |
|
E |
A/BAG DR8.DR KNEE8.PASS&SIDE/FAR SIDE/ROOF(8TY) (A) BLACK |
| 1 |
I8-97477 993-1 |
|
PANEL; INST |
1 |
2007- |
|
ABCDE F |
(B) BLACK |
