8-10 | 810 - WIRING HARNESS AND FUSE
DMAX
D-MAX 2021
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 2 | I8-94381 730-0 | DIODE; CABLE HARNESS | AR | 2007- | (C) BLACK 4P-1.5A | |||

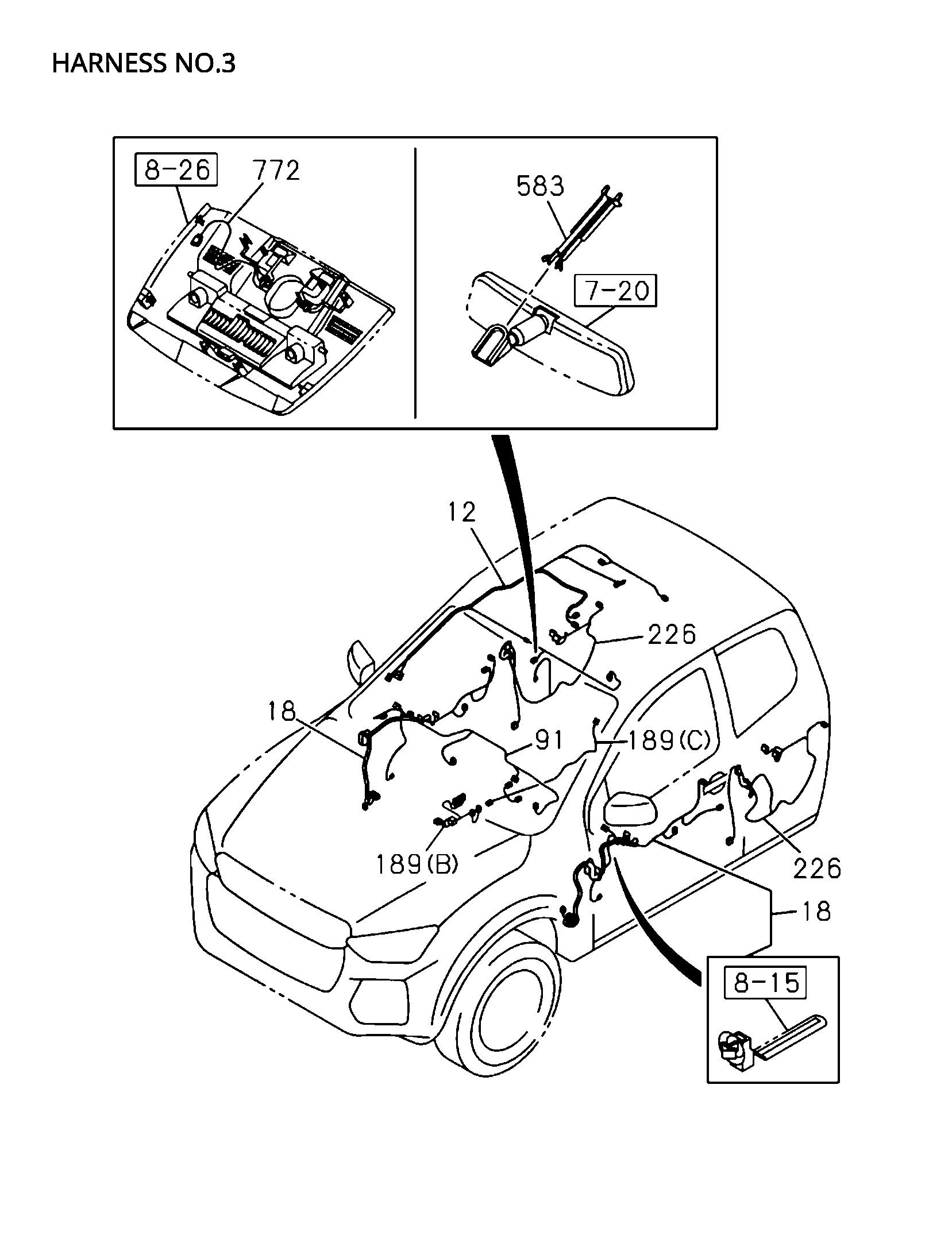

| 12 | I8-97658 155-0 | HARNESS; ROOF | 1 | 2007- | ||||

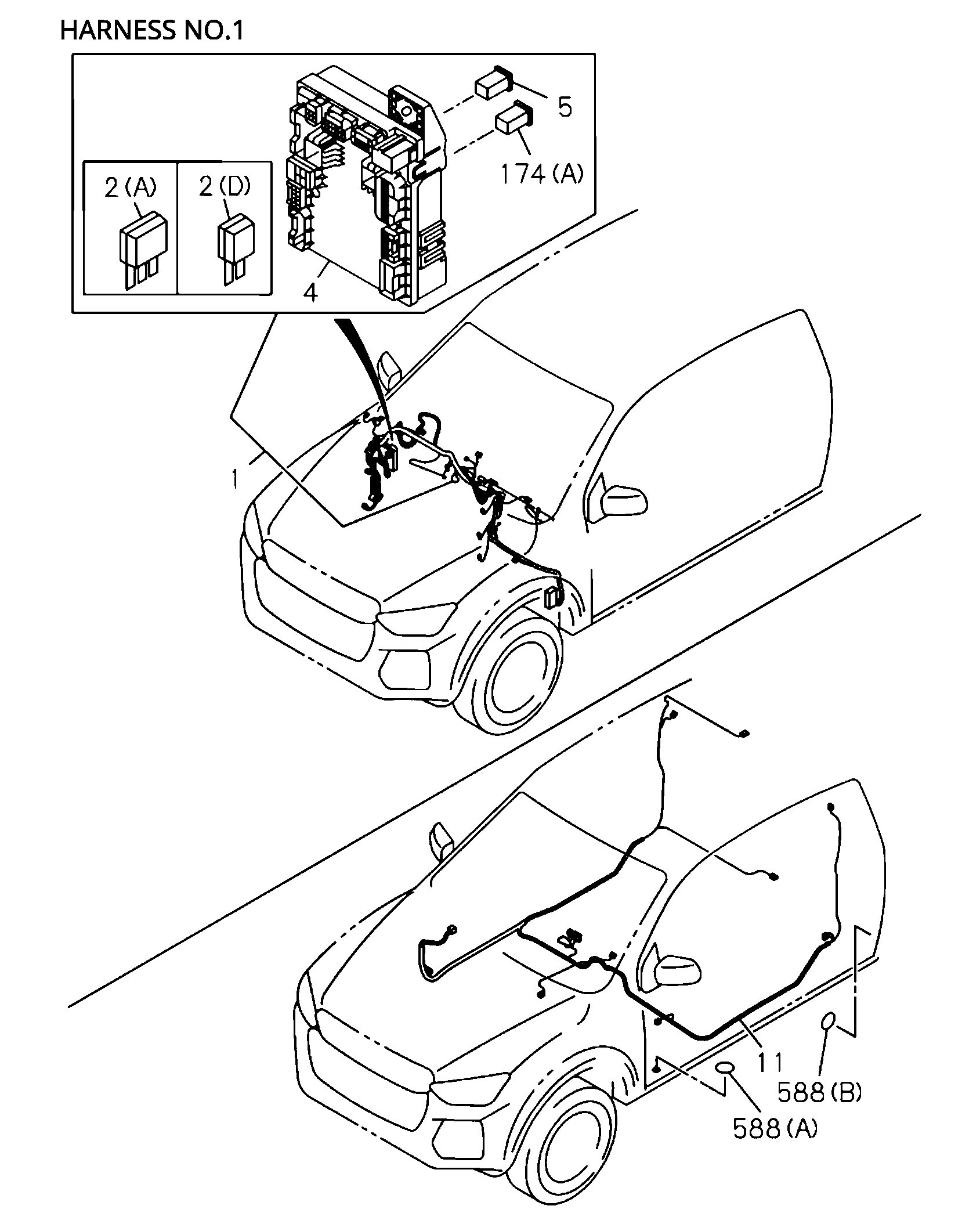

| 1 | I8-97543 164-2 | HARNESS; CAB | 1 | 2007- | 4x4 Reg 1.9L 6MT RBAÂ Euro 2 | |||
| 547 | I8-97492 244-4 | HARNESS; CABLE,SRS | 1 | 2007- | ||||
| 38 | I8-97652 609-1 | HARNESS; CHAS | 1 | 2007- | ||||
| 533 | I8-97648 477-0 | CLIP | 1 | 2007- | ( C ) | |||
| 18 | I8-97491 756-2 | HARNESS; DOOR | 1 | 2007- | ||||

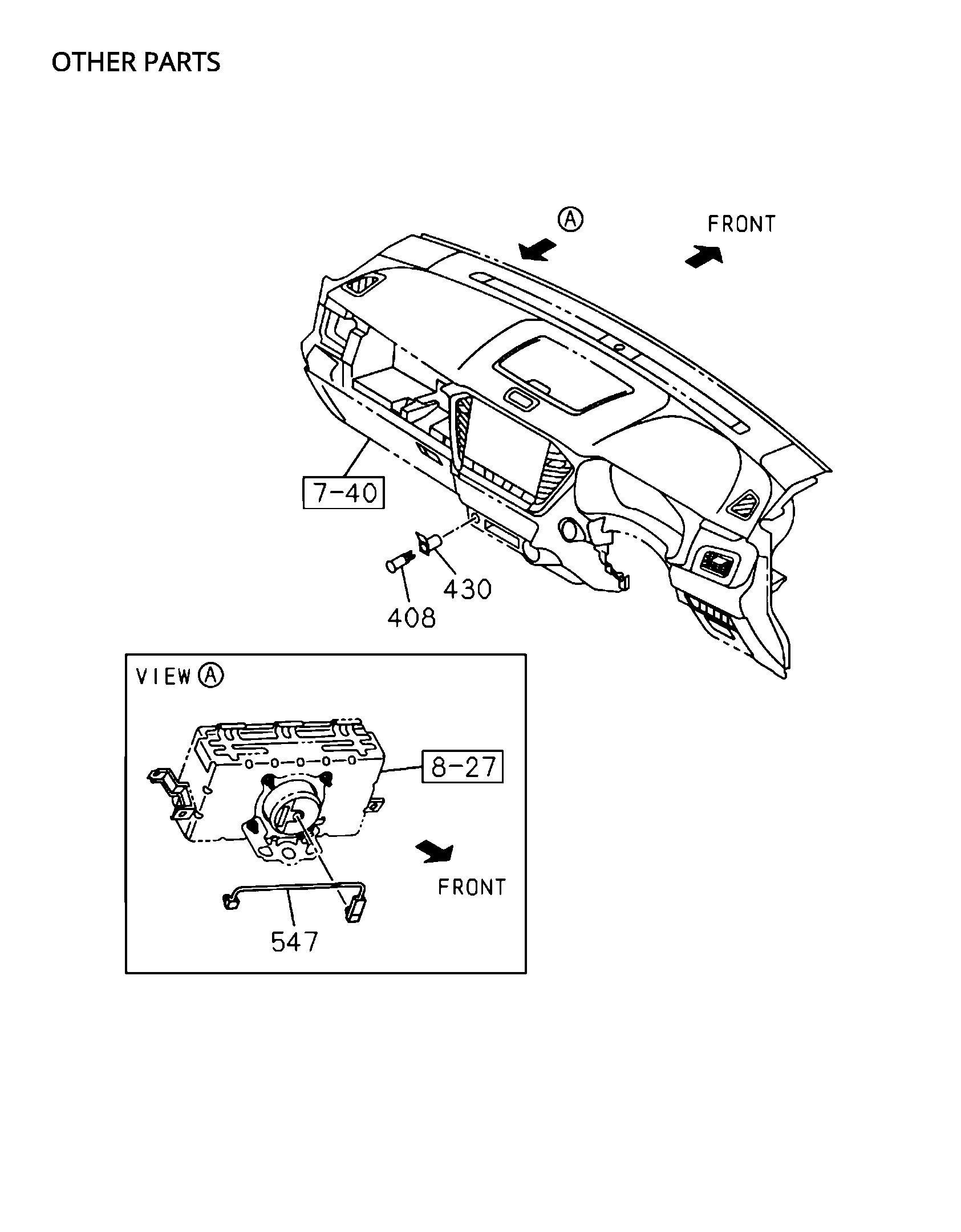

| 430 | I8-98396 149-1 | COVER ASM; SOCKET,ACCESSORY | 1 | 2007- | ||||
| 18 | I8-97491 774-2 | HARNESS; DOOR | 1 | 2007- | ||||
| 5 | I8-97556 558-0 | FUSE; FACIA HARNESS | AR | 2007- | 10A RED | |||
| 174 | I8-98487 978-0 | FUSE; SLOW BLOW | AR | 2007- | (B) 40A GREEN | |||
| 12 | I8-97658 165-0 | HARNESS; ROOF | 1 | 2007- | ||||

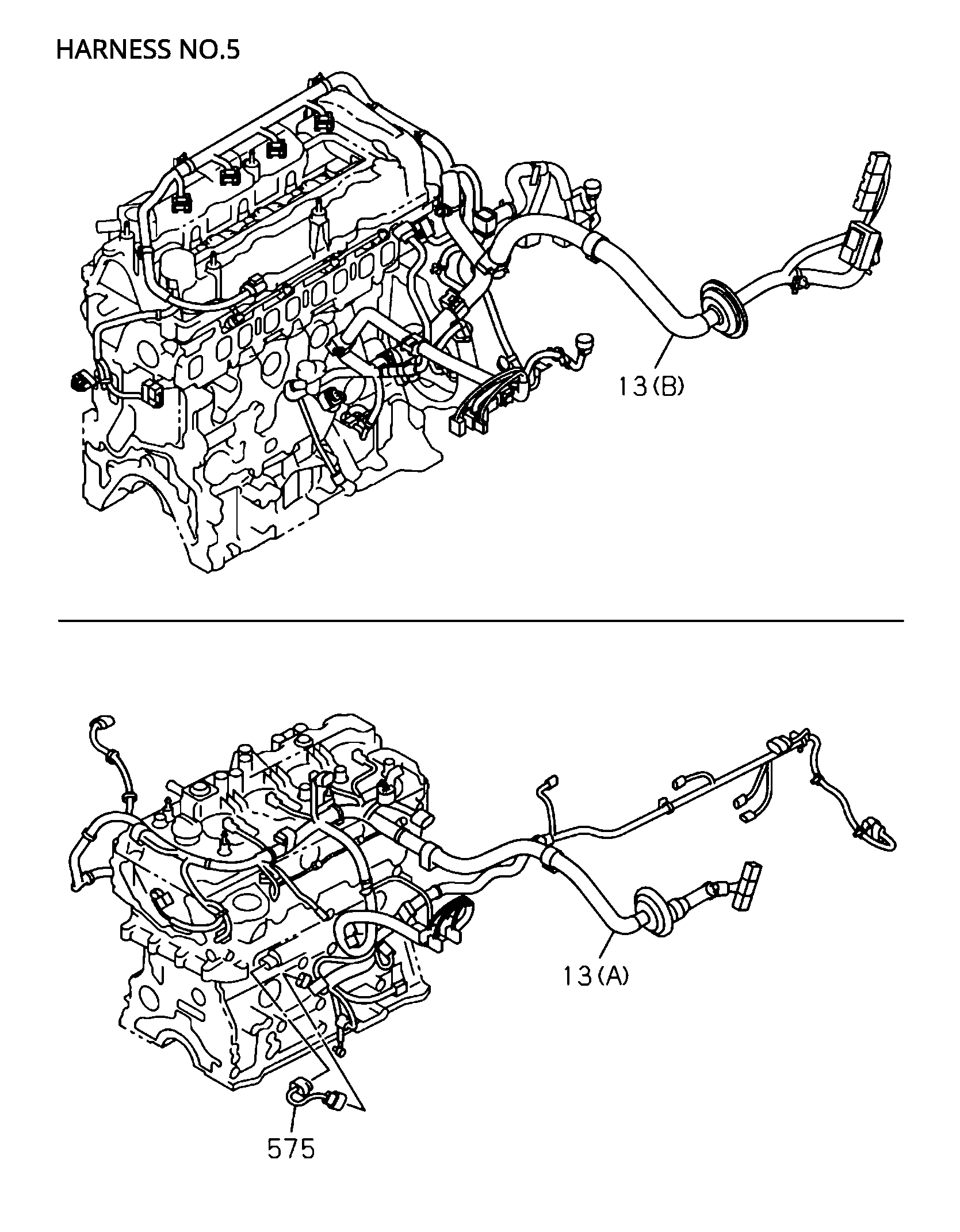

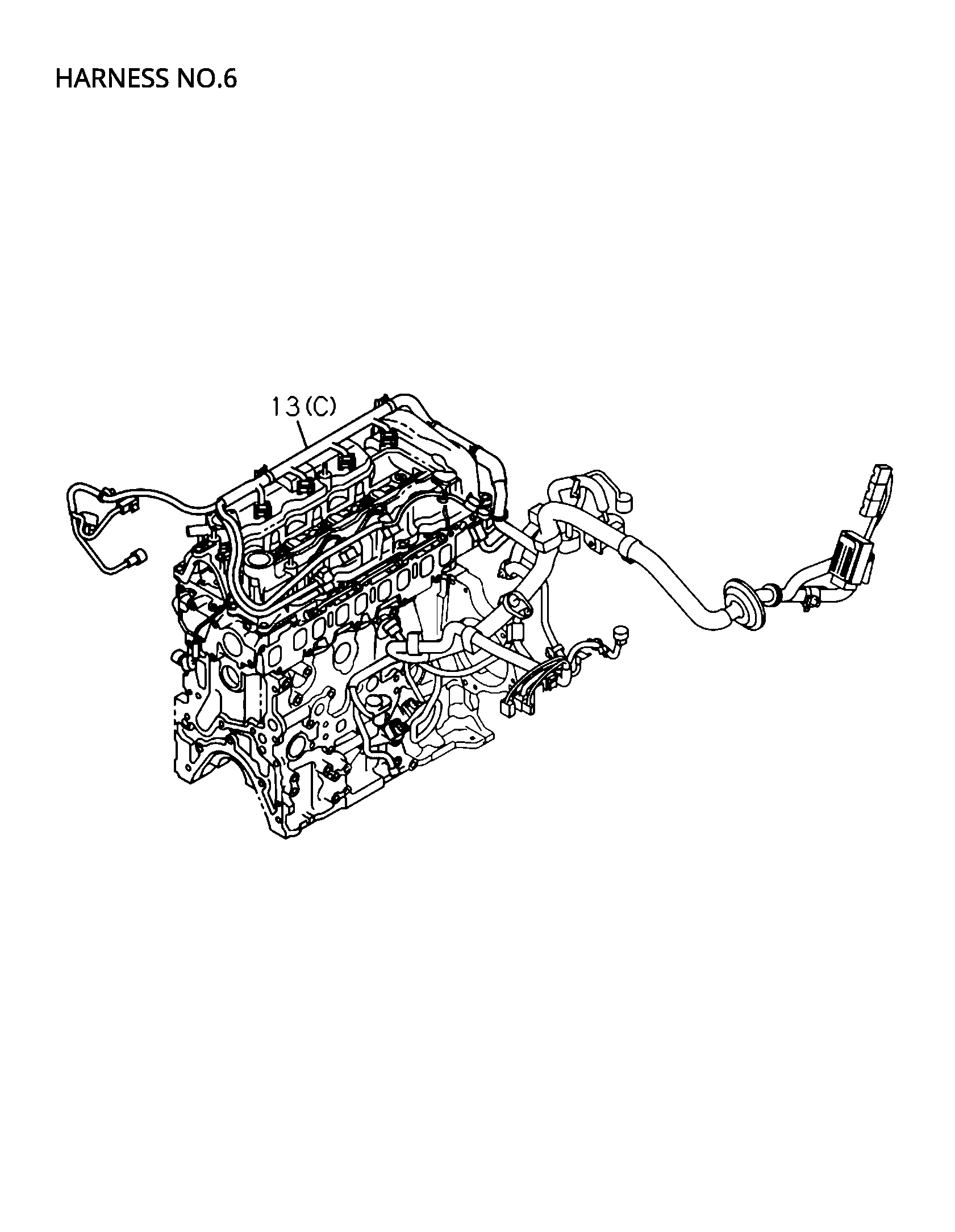

| 13 | I8-97498 124-1 | HARNESS; ENG | 1 | 2007- | ||||
| 5 | I8-97556 559-0 | FUSE; FACIA HARNESS | AR | 2007- | 15A BLUE | |||
| 18 | I8-97491 772-2 | HARNESS; DOOR | 1 | 2007- | ||||
| 189 | I8-97492 441-1 | HARNESS; EXT | 1 | 2007- | ||||
| 18 | I8-97491 760-1 | HARNESS; DOOR | 1 | 2007- | ||||
| 366 | I8-97510 720-3 | HARNESS; CABLE,ENG ROOM | 1 | 2007- | ||||
| 189 | I8-97492 061-1 | HARNESS; EXT | 1 | 2007- | ||||
| 226 | I8-97491 799-3 | HARNESS; RR DOOR | 1 | 2007- | ||||
| 11 | I8-97656 301-1 | HARNESS; BODY | 1 | 2007- | ||||
| 18 | I8-97491 755-2 | HARNESS; DOOR | 1 | 2007- | ||||
| 27 | I8-98487 973-0 | FUSE UNIT | AR | 2007- | 5A LIGHT BROWN | |||
| 27 | I8-98487 975-0 | FUSE UNIT | AR | 2007- | 15A BLUE | |||
| 174 | I8-97497 198-0 | FUSE; SLOW BLOW | AR | 2007- | (B) 20A BLUE | |||
| 11 | I8-97656 285-0 | HARNESS; BODY | 1 | 2007- | ||||
| 91 | I8-97649 486-0 | HARNESS; INST | 1 | 2007- | ||||
| 366 | I8-97510 744-3 | HARNESS; CABLE,ENG ROOM | 1 | 2007- | ||||
| 174 | I8-98487 980-0 | FUSE; SLOW BLOW | AR | 2007- | (B) 60A YELLOW | |||
| 466 | I8-97526 522-0 | HARNESS; BUMPER | 1 | 2007- | ||||

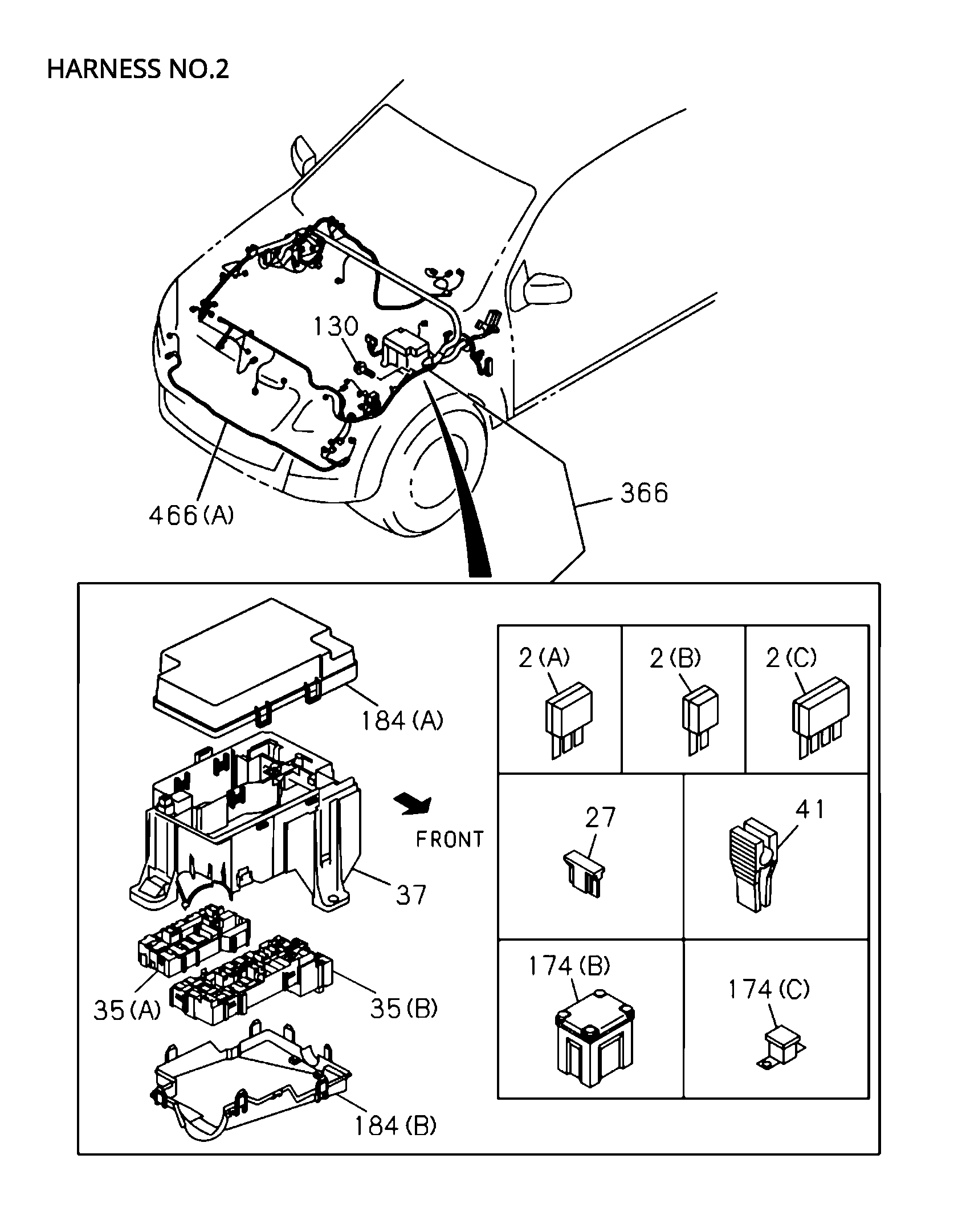

| 35 | I8-97511 978-0 | BOX; RELAY & FUSE | 1 | 2007- | (B) | |||
| 11 | I8-97543 323-2 | HARNESS; BODY | 1 | 2007- | ||||
| 18 | I8-97491 773-2 | HARNESS; DOOR | 1 | 2007- | ||||
| 533 | I8-94232 620-0 | CLIP | 1 | 2007- | B | (A) L=172 | ||
| 91 | I8-97549 484-0 | HARNESS; INST | 1 | 2007- | ||||
| 91 | I8-97649 484-0 | HARNESS; INST | 1 | 2007- | ||||
| 37 | I8-97511 975-0 | COVER; FUSE,RELAY & FUSE BOX | 1 | 2007- | ||||
| 764 | I8-97309 292-0 | RELAY; FRT WIPER | 1 | 2007- | ||||
| 189 | I8-97492 064-0 | HARNESS; EXT | 1 | 2007- | ||||
| 1 | I8-97543 161-2 | HARNESS; CAB | 1 | 2105- | 4x4 Crew 1.9L 6MT RBAÂ Euro 2 M/T | |||
| 2 | I8-97556 567-0 | DIODE; CABLE HARNESS | AR | 2007- | (D) 2P-3.0A | |||
| 366 | I8-97510 712-3 | HARNESS; CABLE,ENG ROOM | 1 | 2007- | ||||
| 18 | I8-97491 778-1 | HARNESS; DOOR | 1 | 2007- | ||||
| 38 | I8-97652 608-1 | HARNESS; CHAS | 1 | 2007- | ||||
| 184 | I8-97511 980-0 | COVER; RELAY & FUSE BOX | 1 | 2007- | ||||
| 408 | I8-98396 145-0 | SOCKET ASM; ACCESSORY | 1 | 2007- | ||||
| 466 | I8-97527 043-0 | HARNESS; BUMPER | 1 | 2007- | ||||
| 5 | I8-97556 557-0 | FUSE; FACIA HARNESS | AR | 2007- | 7.5A BROWN | |||
| 466 | I8-97492 449-2 | HARNESS; BUMPER | 1 | 2007- | ||||
| 5 | I8-97556 556-0 | FUSE; FACIA HARNESS | AR | 2007- | 5A LIGHT BROWN | |||
| 5 | I8-97556 560-0 | FUSE; FACIA HARNESS | AR | 2007- | 20A YELLOW | |||
| 189 | I8-97510 589-1 | HARNESS; EXT | 1 | 2007- | ||||
| 1 | I8-97543 105-2 | HARNESS; CAB | 1 | 2105- | DRIVER POWER WINDOW W/AUTO DOOR | |||
| 189 | I8-97492 060-1 | HARNESS; EXT | 1 | 2007- | ||||
| 466 | I8-97492 444-0 | HARNESS; BUMPER | 1 | 2007- | (A) | |||
| 189 | I8-97492 135-1 | HARNESS; EXT | 1 | 2007- | ||||
| 35 | I8-97511 976-0 | BOX; RELAY & FUSE | 1 | 2007- | (A) | |||
| 533 | I8-97811 150-1 | CLIP | 1 | 2007- | (B) L=150 | |||
| 13 | I8-97498 122-1 | HARNESS; ENG | 1 | 2007- | (B) | |||
| 18 | I8-97491 754-2 | HARNESS; DOOR | 1 | 2007- | ||||
| 11 | I8-97656 298-1 | HARNESS; BODY | 1 | 2007- | ||||
| 763 | I8-97481 470-0 | RELAY; IG1 | 1 | 2007- | ||||

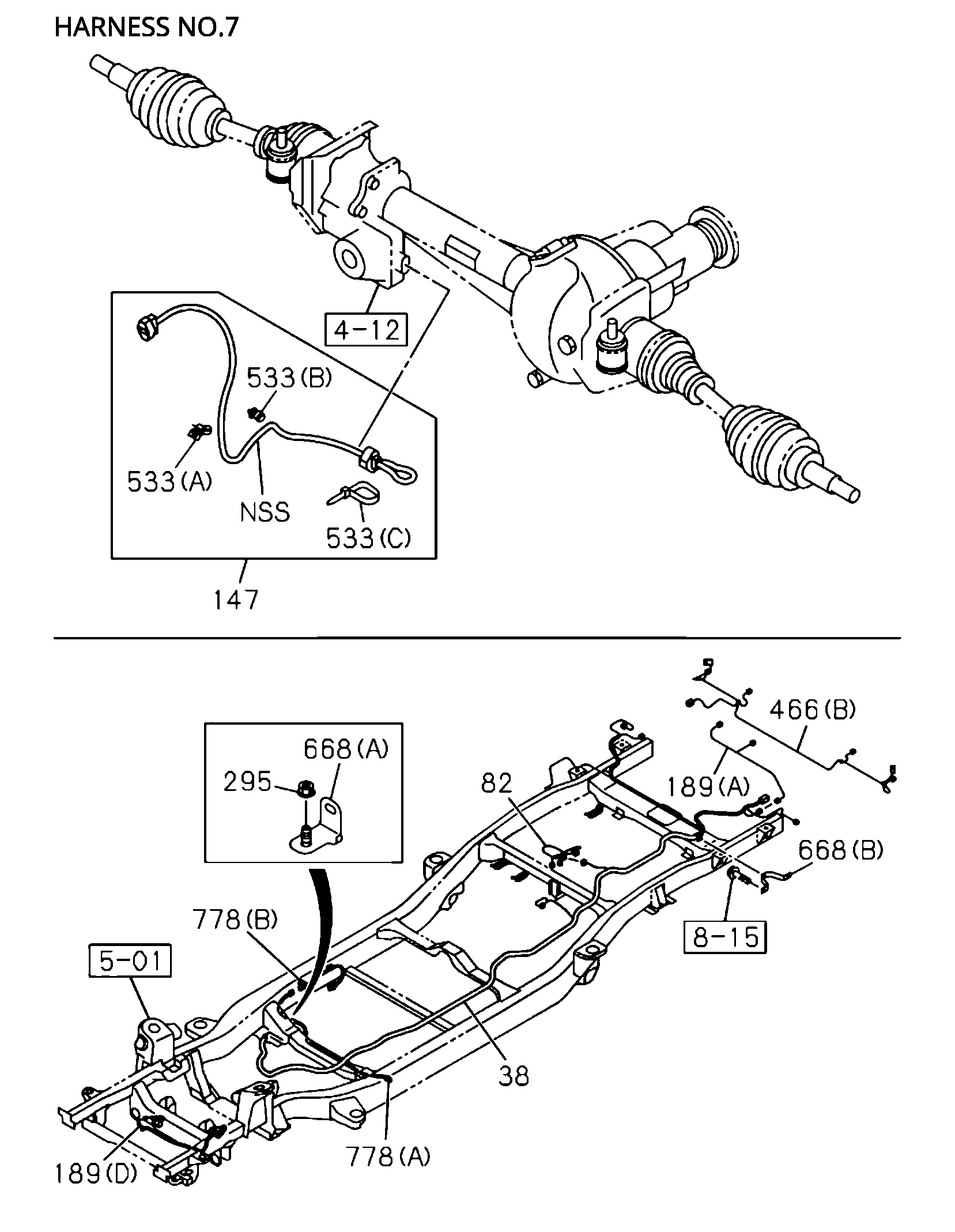

| 147 | I8-97492 299-2 | HARNESS; ACCEL SW | 1 | 2007- | ||||
| 668 | I8-97492 691-0 | BRACKET; HARNESS | 1 | 2007- | ||||
| 5 | I8-97556 561-0 | FUSE; FACIA HARNESS | AR | 2007- | 25A WHITE | |||
| 82 | I8-97492 696-3 | HARNESS; DIFF LOCK | 1 | 2007- | ||||
| 2 | I8-94422 640-1 | DIODE; CABLE HARNESS | AR | 2007- | (A) BLACK 3P-1.5A | |||
| 226 | I8-97491 805-3 | HARNESS; RR DOOR | 1 | 2007- | ||||
| 27 | I8-98487 976-0 | FUSE UNIT | AR | 2007- | 20A YELLOW | |||
| 2 | I8-94422 639-1 | DIODE; CABLE HARNESS | AR | 2007- | (B) BLACK 2P-1.5A | |||
| 41 | I8-98054 260-0 | PULLER; FUSE | 1 | 2007- | ||||
| 174 | I8-97556 563-0 | FUSE; SLOW BLOW | AR | 2007- | (A) 30A PINK | |||
| 38 | I8-97652 610-1 | HARNESS; CHAS | 1 | 2007- | ||||
| 747 | I8-97512 894-0 | RELAY; GLOW | 1 | 2007- | ||||
| 174 | I8-97556 562-0 | FUSE; SLOW BLOW | AR | 2007- | (A) 20A LIGHT BLUE | |||
| 12 | I8-97658 163-0 | HARNESS; ROOF | 1 | 2007- | ||||
| 184 | I8-97511 973-4 | COVER; RELAY & FUSE BOX | 1 | 2007- | ||||
| 4 | I8-97555 090-0 | BOX ASM; FUSE,HARNESS | 1 | 2007- | ||||
| 38 | I8-97652 611-1 | HARNESS; CHAS | 1 | 2007- | ||||
| 174 | I8-98487 979-0 | FUSE; SLOW BLOW | AR | 2007- | (B) 50A RED | |||
| 466 | I8-97492 443-1 | HARNESS; BUMPER | 1 | 2007- | ||||
| 4 | I8-97555 089-0 | BOX ASM; FUSE,HARNESS | 1 | 2007- | ||||
| 174 | I8-98487 977-0 | FUSE; SLOW BLOW | AR | 2007- | (B) 30A PINK | |||
| 174 | I8-94388 306-1 | FUSE; SLOW BLOW | AR | 2007- | ( C ) 100A BLUE | |||
| 12 | I8-97658 146-0 | HARNESS; ROOF | 1 | 2007- | ||||
| 27 | I8-98487 974-0 | FUSE UNIT | AR | 2007- | 10A RED |
