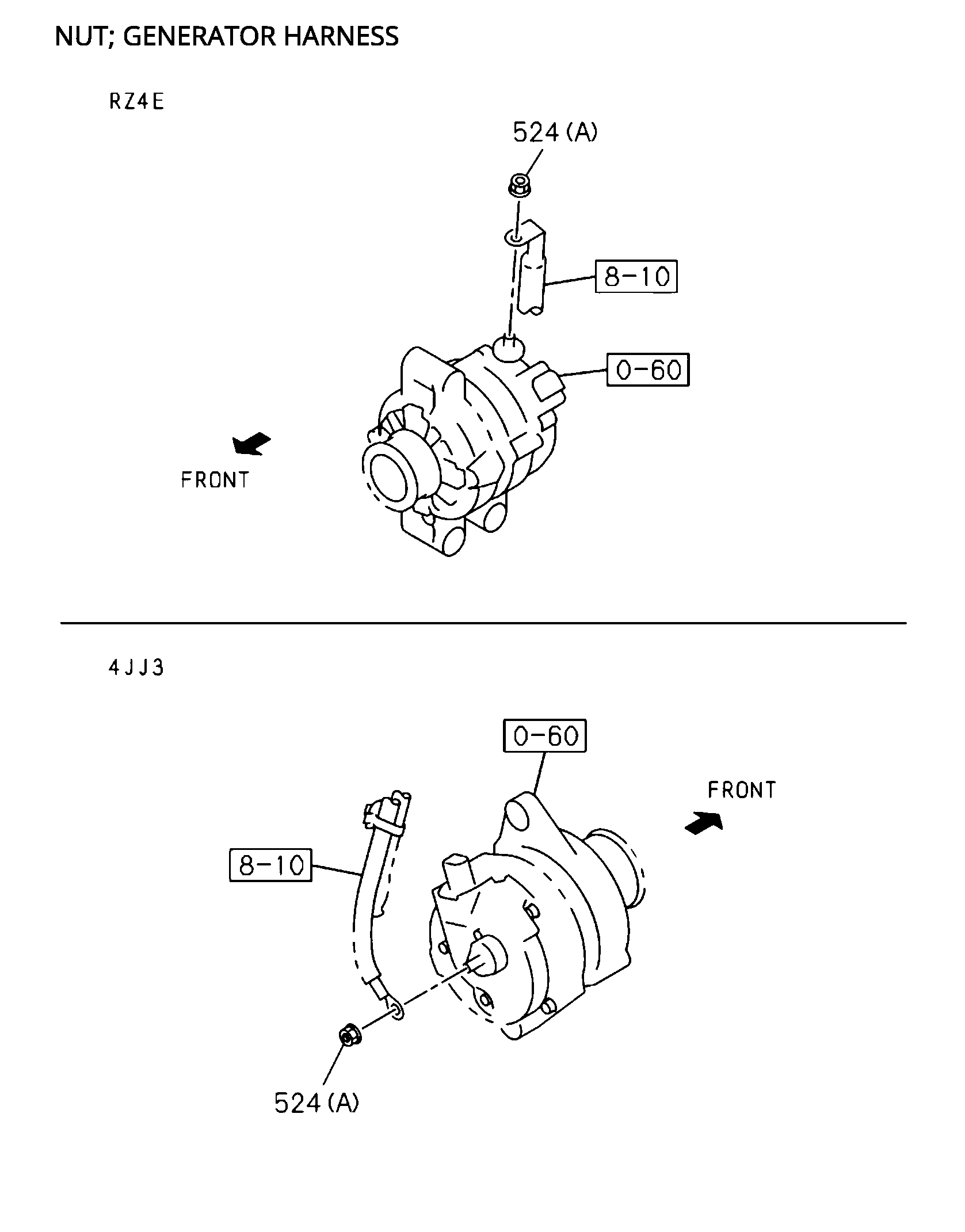

| 524 |
I0-91180 108-0 |
|
NUT; HARNESS |
1 |
2008-2009 |
|
ACE |
4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) (A) M8 FLANGE |
| 524 |
I0-91180 108-0 |
|
NUT; HARNESS |
1 |
2010- |
|
ABCDE F |
(A) M8 FLANGE |
| 38 |
I0-28050 816-0 |
|
BOLT; CLIP.HARNESS |
1 |
2007- |
|
ABCDE F |
4JJ3 ENG(LNG) EUROO SPECIFICATI0N(K7S),EUR02 SPECIFICATI0N(NT2),EUR04 SPECIFICATION(NT4) (C) M8X16 FLANGE |
| 524 |
I0-91180 108-0 |
|
NUT; HARNESS |
1 |
2007-2007 |
|
B D F |
(A) M8 FLANGE |
| 377 |
I8-98164 836-0 |
|
BOLT; CAB EARTH |
2 |
|
|
|
M6X14W/PL WASHER |
| 38 |
I0-28050 820-0 |
|
BOLT; CLIP.HARNESS |
3 |
2007- |
|
ABCDE F |
4JJ3 ENG(LNG) EUR05 SPECIFICATION(NT5) (D) M8X20 FLANGE |

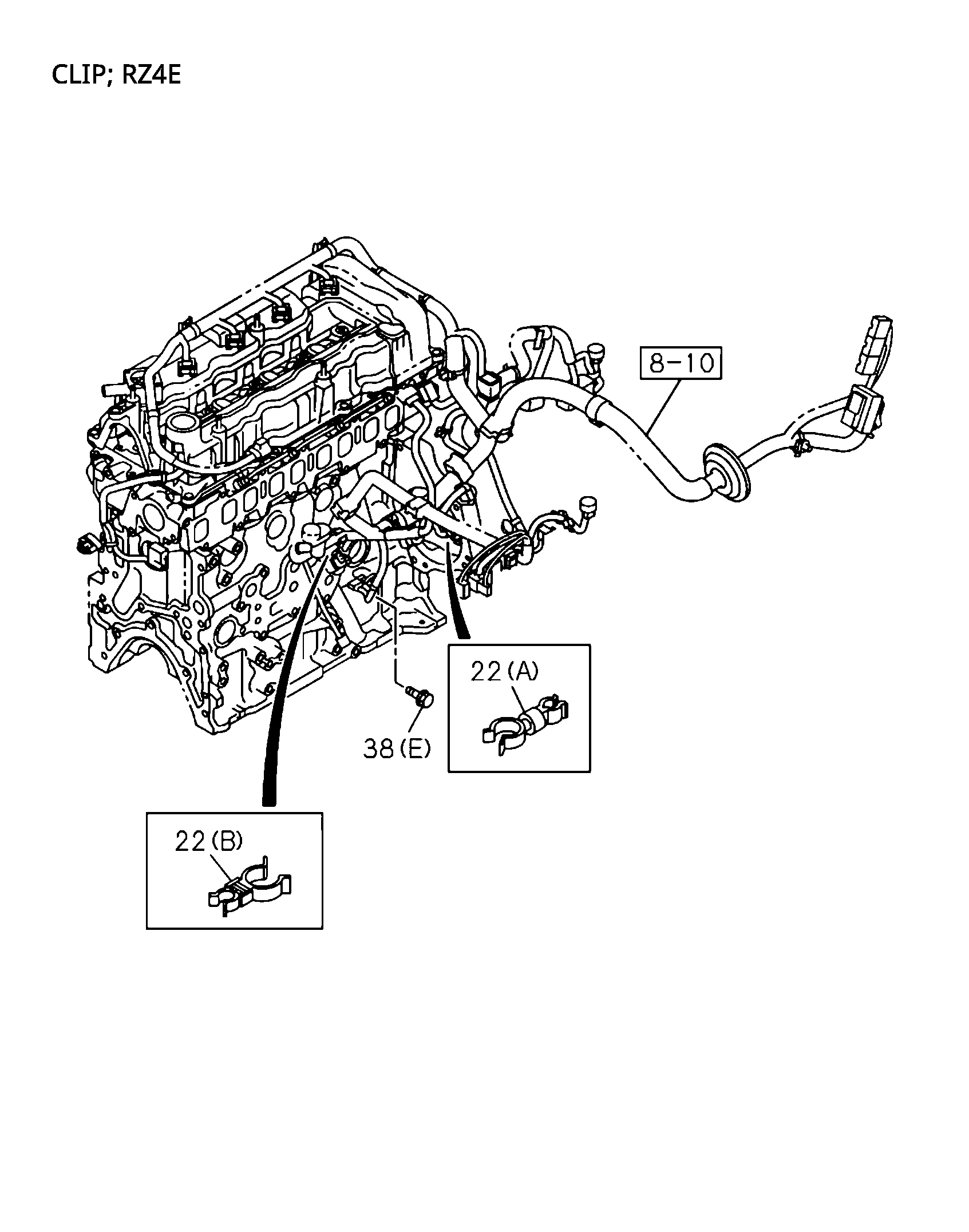

| 22 |
I8-94145 893-0 |
|
CLIP; ENG HARNESS |
1 |
2007- |
|
ACE |
RZ4E-TC ENG(RDZ) (A) ID=12 & 6 |
| 524 |
I8-98073 372-0 |
|
NUT; HARNESS |
2 |
2007- |
|
ABCDE F |
(B) M6W/DISHED WASHER |
| 38 |
I0-28050 816-0 |
|
BOLT; CLIP, HARN ESS |
9 |
2007- |
|
B D F |
RZ4E-TCX HI-POWER ENG(LNC) (C) M8X16 FLANGE |
| 38 |
I0-28050 820-0 |
|
BOLT; CLIP,HARNESS |
3 |
2007- |
|
B D F |
RZ4E-TCX HI-POWER ENG(LNC) (D) M8X20 FLANGE |

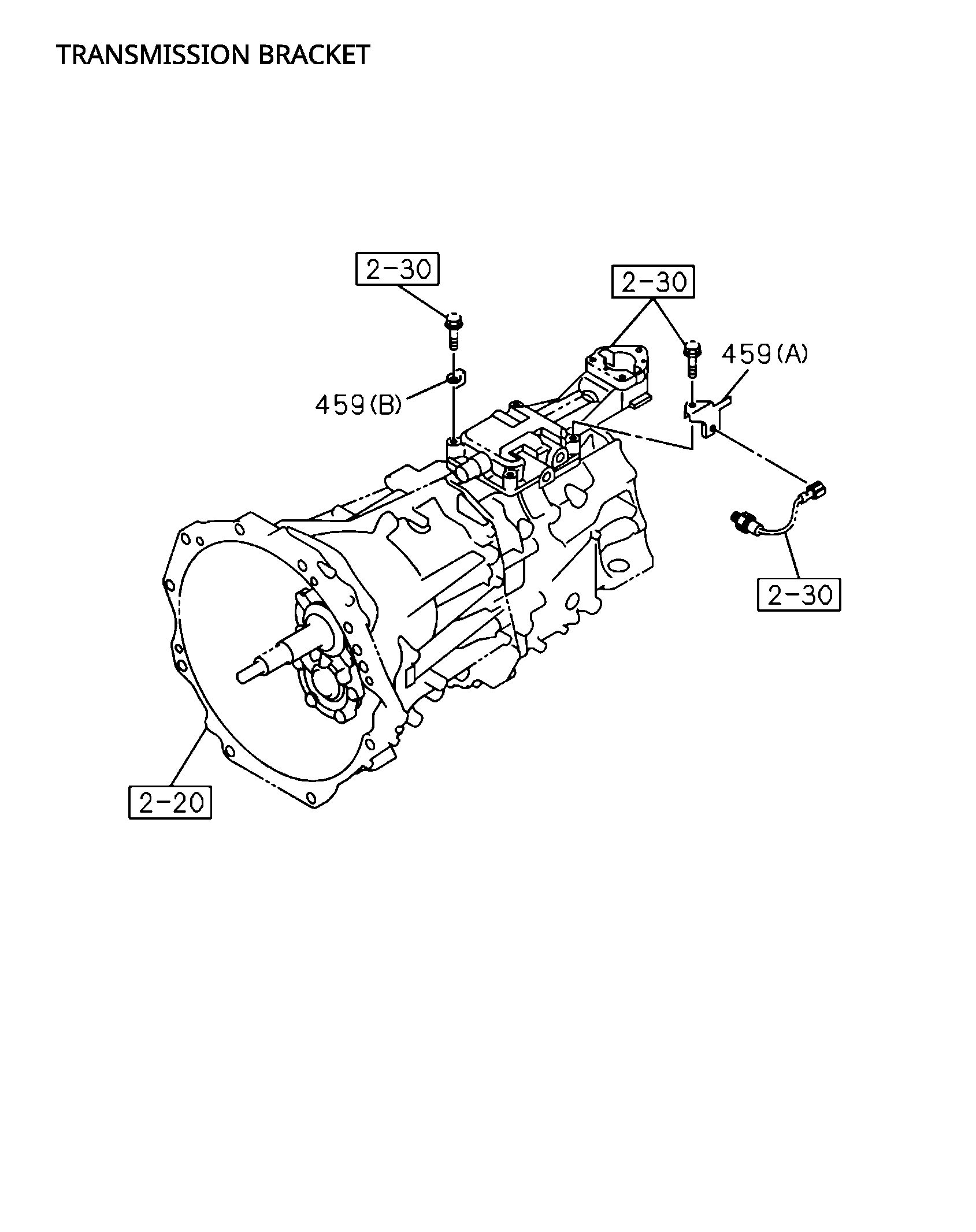

| 459 |
I8-98274 916-1 |
|
BRACKET; SUPPORT,HARNESS |
1 |
2007- |
|
ABCDE F |
M/T MVL 6 SPEED 6Y(Y6P),M/T MVL 6 SPEED 6S(Y6S) (B) |
| 38 |
I0-28050 616-0 |
|
BOLT; CLIP, HARN ESS |
2 |
2007- |
|
ABCDE F |
4JJ3 ENG(LNG) M6X16 FLANGE |
| 22 |
I8-94145 893-0 |
|
CLIP; ENG HARNESS |
1 |
2007- |
|
BCDE F |
RZ4E-TC ENG(RDZ) EUROO SPECIFICATIONS) (A) ID=12 & 6 |
| 16 |
I8-97378 707-0 |
|
CLIP; HARNESS |
4 |
2007- |
|
ABCDE F |
L=140 |
| 239 |
I0-28650 616-0 |
|
BOLT; GRAND |
1 |
2007- |
|
ABCDE F |
(A) M6X16 FLANGE |
| 38 |
I0-28050 820-0 |
|
BOLT; CLIP.HARNESS |
1 |
2007- |
|
ABCDE F |
RZ4E-TC ENG(RDZ) (D) M8X20 FLANGE |
| 38 |
I0-28050 820-0 |
|
BOLT; CLIP,HARNESS |
3 |
2007- |
|
ABCDE F |
4JJ3 ENG(LNG) EUR05 SPECIFICATION(NT5) (D) M8X20 FLANGE |
| 239 |
I8-98164 836-0 |
|
BOLT; GRAND |
1 |
2007- |
|
ABCDE F |
POWERSTEERING ELECTRIC<NV9> M6X14W/PL WASHER |

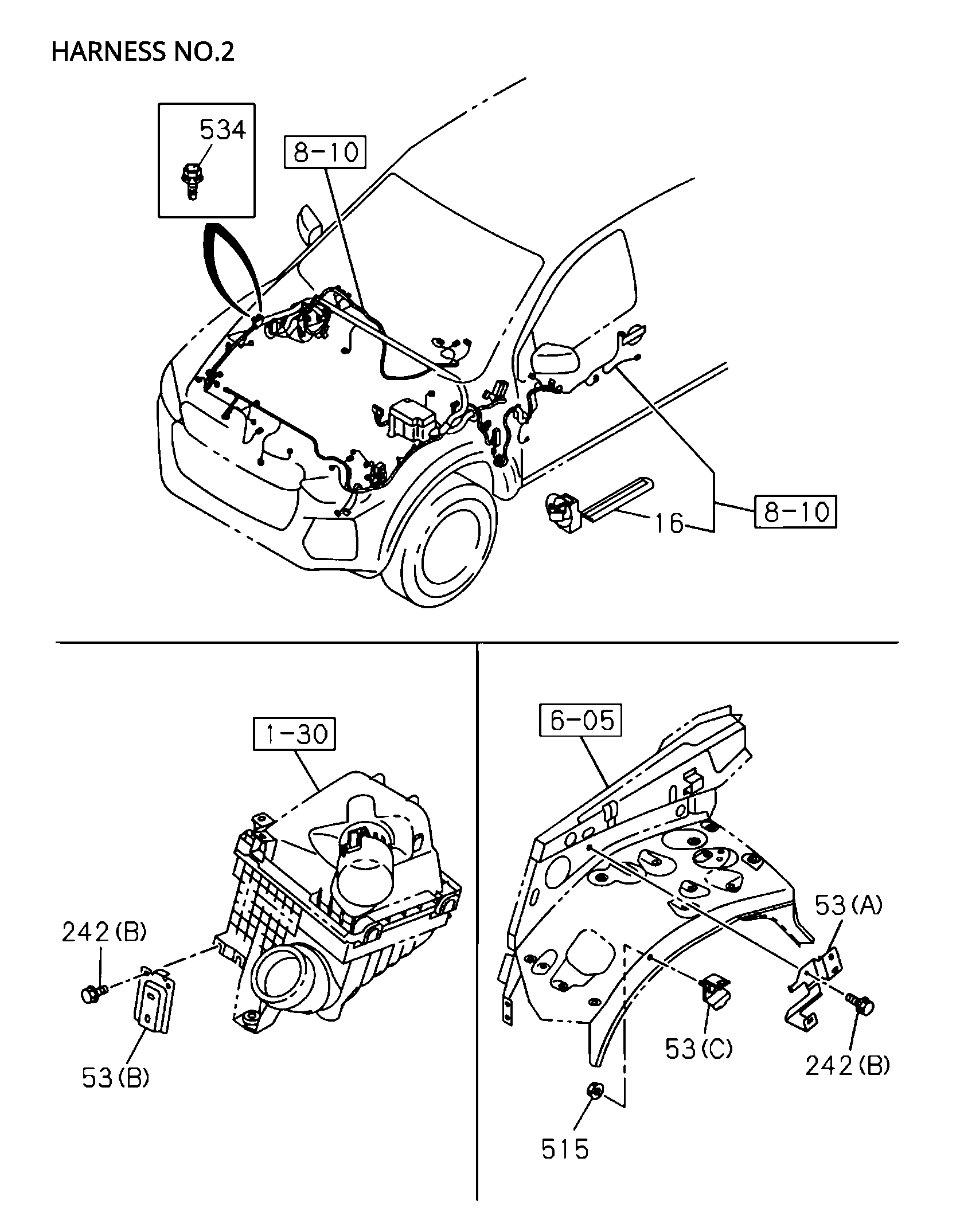

| 534 |
I8-98164 836-0 |
|
BOLT; EARTH |
4 |
2007- |
|
A D |
M6X14W/PL WASHER |
| 524 |
I0-91180 108-0 |
|
NUT; HARNESS |
1 |
2007-2007 |
|
ACE |
4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) (A) MS FLANGE |
| 459 |
I8-98274 915-0 |
|
BRACKET; SUPPORT,HARNESS |
1 |
2007- |
|
ABCDE F |
M/T MVL 6 SPEED 6Y(Y6P),M/T MVL 6 SPEED 6S(Y6S) (A) |
| 38 |
I0-28050 820-0 |
|
BOLT; CLIP.HARNESS |
1 |
2007- |
|
BCDE F |
4JJ3 ENG(LNG) M/T MVL 6 SPEED 6S(Y6S) EUR05 SPECIFICATION(NT5) (D) M8X20 FLANGE |
| 38 |
I0-28050 612-0 |
|
BOLT; CLIP, HARN ESS |
2 |
2007- |
|
ABCDE F |
4JJ3 ENG(LNG) (G) M6X12 FLANGE |
| 242 |
I0-28650 825-0 |
|
BOLT; BRKT,HARNESS |
2 |
2007- |
|
ABCDE F |
(A) M8X25 FLANGE |
| 552 |
I0-91180 108-0 |
|
NUT; BRKT.HARNESS |
1 |
2007- |
|
B D F |
RZ4E-TCX HI-POWER ENG(LNC) M8 FLANGE |
| 524 |
I0-91180 108-0 |
|
NUT; HARNESS |
1 |
2008-2009 |
|
B D F |
(A) M8 FLANGE |
| 38 |
I0-28050 820-0 |
|
BOLT; CLIP,HARNESS |
1 |
2007- |
|
BCDE F |
4JJ3 ENG(LNG) M/T MVL 6 SPEED 6S(Y6S) EUROS SPECIFICATION(NT5) (D) M8X20 FLANGE |
| 38 |
I0-28050 816-0 |
|
BOLT; CLIP, HARN ESS |
1 |
2007- |
|
ABCDE F |
4JJ3 ENG(LNG) EUROO SPECIFICATI0N(K75),EUR02 SPECIFICATI0N(NT2),EUR04 SPECIFICATION(NT4) (C) M8X16 FLANGE |
| 38 |
I0-28050 820-0 |
|
BOLT; CLIP.HARNESS |
3 |
2007- |
|
B D F |
RZ4E-TCX HI-POWER ENG(LNC) (D) M8X20 FLANGE |
| 38 |
I0-28050 820-0 |
|
BOLT; CLIP,HARNESS |
1 |
2007- |
|
ABCDE F |
RZ4E-TC ENG(RDZ) (D) M8X20 FLANGE |

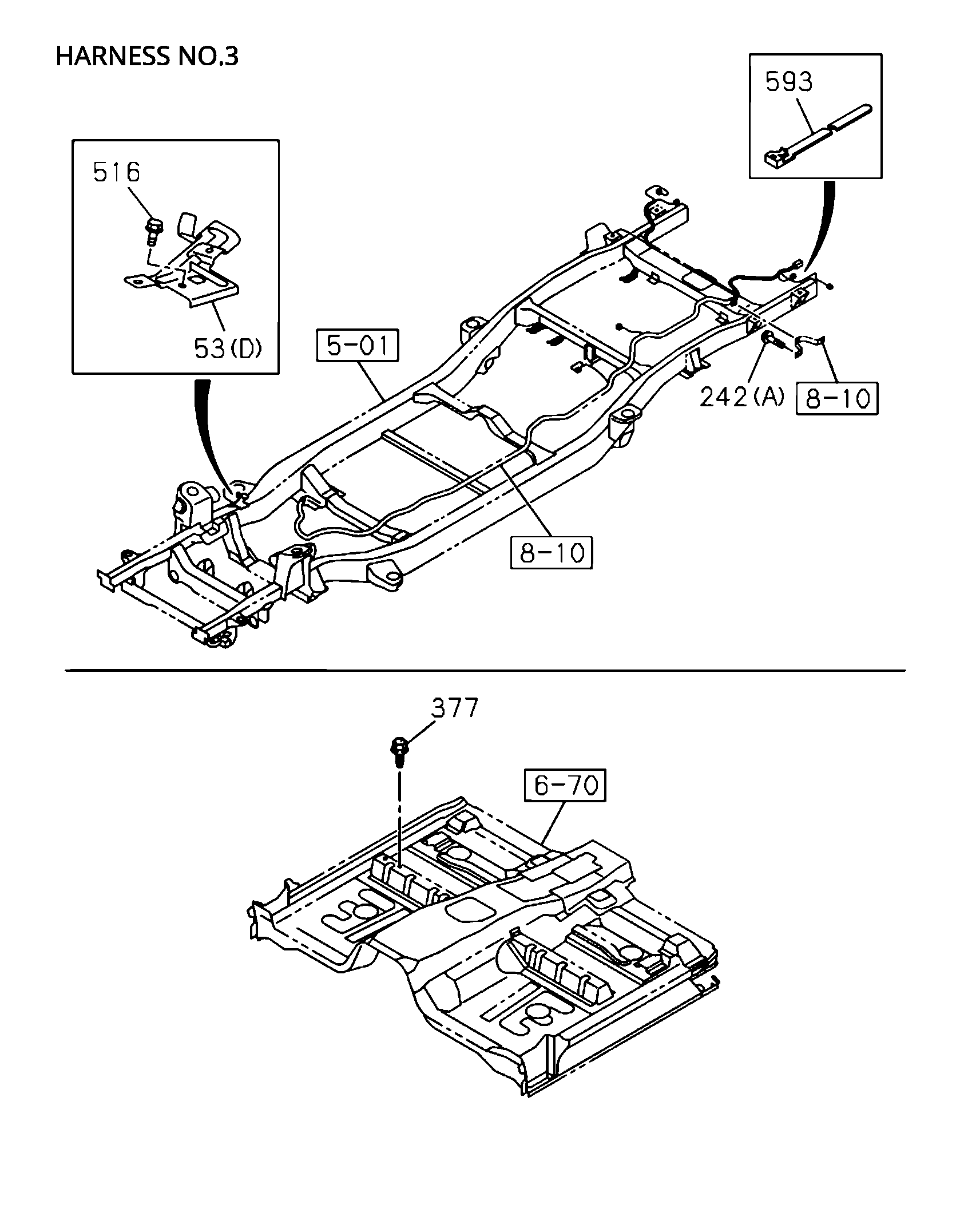

| 516 |
I0-28650 820-0 |
|
BOLT; HARNESS |
1 |
|
|
|
EUR06D SPECIFICATION(8SJ) M8X20 FLANGE |
| 242 |
I0-28650 616-0 |
|
BOLT; BRKT.HARNESS |
3 |
2007- |
|
B D F |
EUR06D SPECIFICATION(8SJ} (B) M6X16 FLANGE |
| 516 |
I0-28650 820-0 |
|
BOLT; HARNESS |
1 |
2007- |
|
B D F |
EUR06D SPECIFICATTON(8SJ) M8X20 FLANGE |
| 242 |
I0-28650 825-0 |
|
BOLT; BRKT,HARNESS |
2 |
|
|
|
(A) M8X25 FLANGE |
| 524 |
I0-91180 108-0 |
|
NUT; HARNESS |
1 |
2007-2007 |
|
ABCDE F |
4JJ3 ENG(LNG) IDENTIFICATION LABEL FOR KD<6UT> (A) M8 FLANGE |
| 38 |
I0-28050 816-0 |
|
BOLT; CLIP.HARNESS |
9 |
2007- |
|
B D F |
RZ4E-TCX HI-POWER ENG(LNC) (O M8X16 FLANGE |
| 547 |
I8-98164 836-0 |
|
BOLT |
1 |
2007- |
|
ABCDE F |
AIR BAG DRIVER 8c PASSENGER(AK5),AIR BAG DRIVER Si PASSENGER & SIDE 8. ROOF(AYO),AIR BAG DRIVER8<DRIVER KNEE8cPASS8iSIDE8tROOF(8TX),A/BAG DR&DR KNEE8iPASS8(SIDE/FAR SIDE/ROOF(8TY) M6X14W/PL WASHER |
| 22 |
I8-94145 893-0 |
|
CLIP; ENG HARNESS |
1 |
2007- |
|
B D F |
RZ4E-TCX HI-POWER ENG(LNC),RZ4E-TC ENG(RDZ) (A) ID=12 & 6 |
| 38 |
I0-28650 616-0 |
|
BOLT; CLIP,HARNESS |
2 |
2007- |
|
ABCDE F |
(A) M6X16 FLANGE |
| 16 |
I8-97173 307-0 |
|
CLIP; HARNESS |
4 |
2007- |
|
ABCDE F |
L=155 |
| 377 |
I8-98164 836-0 |
|
BOLT; CAB EARTH |
2 |
2007- |
|
A BC D E F |
M6X14W/PL WASHER |
| 239 |
I8-98164 836-0 |
|
BOLT; GRAND |
4 |
2007- |
|
ABCDE F |
(B) M6X14W/PL WASHER |
| 515 |
I0-91180 106-0 |
|
NUT; BRIO- |
1 |
2007- |
|
B D F |
EUR06D SPECIFICATION(8SJ) M6 FLANGE |
