| 8 |
I8-97472 456-0 |
|
SWITCH; POWER WINDOW |
2 |
2007- |
|
C F |
GRADE CUSTOM(RBD),GRADE ROYAL(RBE) DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> (B) SILVER |
| 29 |
I8-98394 409-0 |
|
SWITCH; DOOR |
2 |
2007- |
|
ABCDE F |
|
| 644 |
I8-98167 449-0 |
|
SCREW; TAPPING |
2 |
2007- |
|
A CD F |
PASSIVE ENTRY AND START SYSTEM<AP3>,PASSIVE ENTRY 8. START SYSTEM W/REMOTE ENG<8SR> M5X16 TAPPING |
| 789 |
I8-98394 531-1 |
|
SWITCH; HILL START ASSIST |
1 |
2007- |
|
A |
|
| 1 |
I8-98394 456-0 |
|
SWITCH; COMB |
1 |
2007- |
|
ABCDE F |
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER 8. SIDE & ROOF(AYO),AIR BAG DRIVER8.DRIVER KNEE&PASS&SIDE&ROOF(8TX),A/BAG DR&DR KNEE8.PASS8.SIDE/FAR SIDE/ROOF(8TY) SOUTH AFRICA EQUIPMENT(B02),AUSTRALIA EQUIPMENT(B13), CONGO EQUIPMENT(CDF),GENERAL EXPORT EQUIPMENT(TAA) VARIABLE INTERMITTENT WIPER<CD4> ELECTRONIC TRACTION CONTROL<NW9> FOG LAMP<T96> EXC. RR FOG LAMP<T79>AUTO LIGHT & AUTOMATIC HIGH BEAM<T80>AUTO UGHT<T82> |
| 1 |
I8-98394 447-0 |
|
SWITCH; COMB |
1 |
2007- |
|
BCDE F |
AIR BAG DRIVER 8c PASSENGER(AK5),AIR BAG DRIVER 8c PASSENGER 8c SIDE 8c ROOF(AYO),AIR BAG DRIVERScDRIVER KNEE8cPASS8iSIDE8iROOF(8TX)A/BAG DR8cDR KNEE8cPASS8cSIDE/FAR SIDE/ROOF(8TY) SOUTH AFRICA EQUIPMENT!B02),AUSTRALIA EQUIPMENT(B13), CONGO EQUIPMENT(CDF),GENERAL EXPORT EQUIPMENT(TAA) INTERMITTENT WIPER<C13> FOG LAMP<T96> EXC. ELECTRONIC TRACTION CONTROL<NW9>,RR FOG LAMP<T79>,AUTO LIGHT 8c AUTOMATIC HIGH BEAM<T80>,AUTO LIGHT<T82> |
| 1 |
I8-98394 456-0 |
|
SWITCH; COMB |
1 |
2007- |
|
ABCDE F |
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER 8. SIDE & ROOF(AYO),AIR BAG DRIVER8.DRIVER KNEE&PASS&SIDE&ROOF(8TX),A/BAG DR&DR KNEE8.PASS8.SIDE/FAR SIDE/ROOF(8TY) SOUTH AFRICA EQUIPMENT(B02),AUSTRALIA EQUIPMENT(B13), CONGO EQUIPMENT(CDF),GENERAL EXPORT EQUIPMENT(TAA) VARIABLE INTERMITTENT WIPER<CD4> ELECTRONIC TRACTION CONTROL<NW9> FOG LAMP<T96> EXC. RR FOG LAMP<T79>AUTO LIGHT & AUTOMATIC HIGH BEAM<T80>AUTO UGHT<T82> |
| 263 |
I8-97472 036-2 |
|
COVER; SW |
1 |
2007- |
|
A CD F |
GRADE CUSTOM(RBD),GRADE ROYAL(RBE) DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> (D) BLACK |
| 263 |
I8-97472 034-2 |
|
COVER; SW |
1 |
2007- |
|
C F |
GRADE CUSTOM(RBD),GRADE ROYAL(RBE) DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ> DOOR MIRROR POWER FOLDING CHROME TURN SIGNAL<DE3>, DOOR MIRROR HEATED CHROME TURN SIGNAL<DNQ>,DOOR MIR ELEC POWER FOLDING COLOR TURN SIGNAL<8ME>,DOOR MIR PWR ADJUST COLOR TURN SIG SPE PAINT<8UB>,DOOR MIR PWR ADJ HEATED CLR TURN SIG SP PAINT<8UC> (C) BLACK |
| 573 |
I8-97507 148-0 |
|
SWITCH; 4WD |
1 |
2007- |
|
D F |
GRADE BASIC(RBA),GRADE DELUXE(RBB),GRADE LUXURY(RBC) |
| 30 |
I8-98394 408-0 |
|
SCREW; DOOR SW |
2 |
2007- |
|
C F |
|
| 1 |
I8-98394 443-0 |
|
SWITCH; COMB |
1 |
2007- |
|
BCDE F |
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER 8. SIDE 8< ROOF(AYO),AIR BAG DRIVER8<DRIVER KNEE8tPASS8tSIDE8tROOF(8TX)A/BAG DR8(DR KNEE8.PASS8.SIDE/FAR SIDE/ROOF(8TY) SOUTH AFRICA EQUIPMENT!B02),AUSTRALIA EQUIPMENT(B13), CONGO EQUIPMENT(CDF),GENERAL EXPORT EQUIPMENT(TAA) INTERMITTENT WIPER<C13> EXC. ELECTRONIC TRACTION CONTROL<NW9>,RR FOG LAMP<T79>,AUTO LIGHT 8. AUTOMATIC HIGH BEAM<T80>,AUTO LIGHT<T82>,FOG LAMP<T96> |
| 573 |
I8-98394 530-0 |
|
SWITCH; 4WD |
1 |
2007- |
|
D F |
GRADE CUSTOM(RBD),GRADE ROYAL(RBE) |
| 566 |
I8-98394 528-1 |
|
SWITCH; MIRROR |
1 |
2007- |
|
A CD F |
DOOR MIRROR POWER FOLDING CHROME TURN SIGNAL<DE3>, DOOR MIRROR HEATED CHROME TURN SIGNAL<DNQ>,DOOR MIR ELEC POWER FOLDING COLOR TURN SIGNAL<8ME>,DOOR MIR PWR ADJUST COLOR TURN SIG SPE PAINT<8UB>,DOOR MIR PWR ADJ HEATED CLR TURN SIG SP PAINT<8UC> |

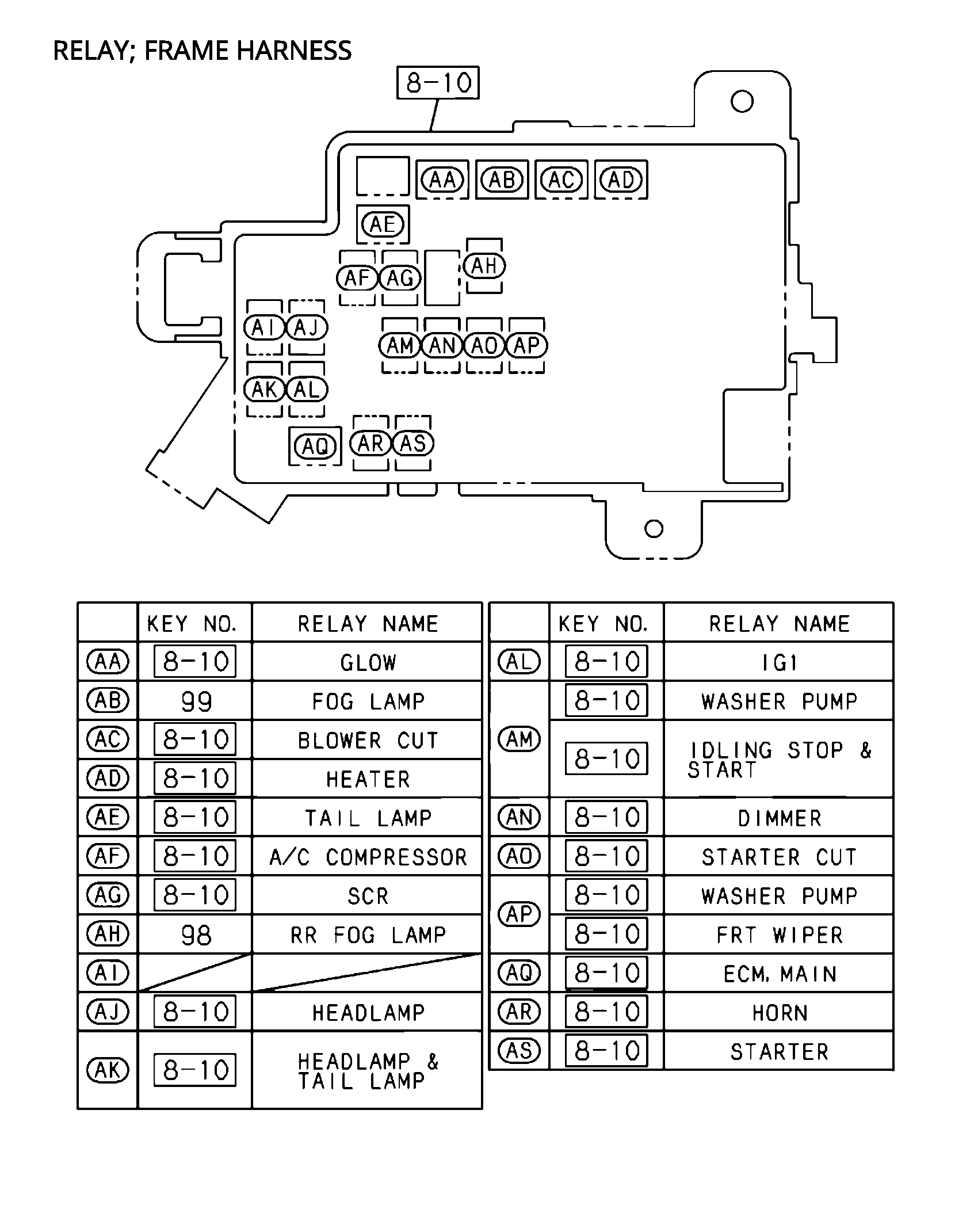

| 99 |
I8-97481 470-0 |
|
RELAY; FOG LAMP |
1 |
2007- |
|
ABCDE F |
FOG LAMP<T96> 12V PANASONIC |
| 789 |
I8-98394 531-1 |
|
SWITCH; HILL START ASSIST |
1 |
2007- |
|
BCDE F |
ELECTRONIC TRACTION CONTROL<NW9> |
| 8 |
I8-97464 938-0 |
|
SWITCH; POWER WINDOW |
2 |
2007- |
|
C F |
GRADE BASIC(RBA),GRADE DELUXE(RBB),GRADE LUXURY(RBC) INTERIOR COLOR UPR PALE GRAY LWR BLACK(162) DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> (B) BLACK |
| 752 |
I8-98394 537-1 |
|
COVER; SEAT HTR |
2 |
2007- |
|
B E |
FLOOR CONSOLE W/LID<D55> |
| 723 |
I8-98394 782-0 |
|
ANTENNA; KEYLESS ENTRY |
1 |
2007- |
|
A CD F |
PASSIVE ENTRY AND START SYSTEM<AP3>,PASSIVE ENTRY 8< START SYSTEM W/REMOTE ENG<8SR> |
| 573 |
I8-97507 148-0 |
|
SWITCH; 4WD |
1 |
2007- |
|
E |
|
| 268 |
I8-98164 677-0 |
|
CLIP; SW |
1 |
2007- |
|
ABCDE F |
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> |
| 263 |
I8-97472 033-1 |
|
COVER; SW |
1 |
2007- |
|
C F |
GRADE BASIC(RBA),GRADE DELUXE(RBB),GRADE LUXURY(RBC) INTERIOR COLOR UPR PALE GRAY LWR BLACK(162) DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> DOOR MIRROR POWER ADJUST COLOR TURN SIGNAL<DF9>, O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,DOOR MIRROR POWER ADJUST MATERIAL BLACK<D22> (C) BLACK |
| 29 |
I8-98394 409-0 |
|
SWITCH; DOOR |
2 |
2007- |
|
C F |
|
| 30 |
I8-98394 408-0 |
|
SCREW; DOOR SW |
2 |
2007- |
|
C F |
|
| 573 |
I8-97507 148-0 |
|
SWITCH; 4WD |
1 |
2007- |
|
D F |
GRADE BASIC(RBA),GRADE DELUXE(RBB),GRADE LUXURY(RBC) |
| 759 |
I8-97472 385-3 |
|
SWITCH ASM; WINDOW |
1 |
2007- |
|
C F |
GRADE CUSTOM(RBD),GRADE ROYAL(RBE) DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ> DOOR MIRROR POWER FOLDING CHROME TURN SIGNAL<DE3>, DOOR MIRROR HEATED CHROME TURN SIGNAL<DNQ>,DOOR MIR ELEC POWER FOLDING COLOR TURN SIGNAL<8ME>,DOOR MIR PWR ADJUST COLOR TURN SIG SPE PAINT<8UB>,DOOR MIR PWR ADJ HEATED CLR TURN SIG SP PAINT<8UC> (B) SILVER |
| 436 |
I8-98394 523-2 |
|
SWITCH; HEADLAMP LEVELING |
1 |
2007- |
|
ABCDE F |
HEADLAMP LEVELING MANUAL CONTROL<TR6> |
| 29 |
I8-98394 409-0 |
|
SWITCH; DOOR |
2 |
2007- |
|
ABCDE F |
|
| 759 |
I8-97464 935-3 |
|
SWITCH ASM; WINDOW |
1 |
2007- |
|
C F |
GRADE BASIC(RBA),GRADE DELUXE(RBB),GRADE LUXURY(RBC) DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> DOOR MIRROR POWER FOLDING CHROME TURN SIGNAL<DE3>, DOOR MIRROR POWER ADJUST COLOR TURN SIGNAL<DF9>, O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,DOOR MIRROR HEATED CHROME TURN SIGNAL<DNQ>,DOOR MIRROR POWER ADJUST MATERIAL BLACK<D22>,DOOR MIRROR MATERIAL BLACK<RT9>,DOOR MIR ELEC POWER FOLDING COLOR TURN SIGNAL<8ME>,DOOR MIR PWR ADJUST COLOR TURN SIG SPE PAINT<8UB>,DOOR MIR PWR ADJ HEATED CLR TURN SIG SP PAINT<8UC> (B) BLACK |
| 566 |
I8-98394 529-1 |
|
SWITCH; MIRROR |
1 |
2010- |
|
ABCDE F |
GRADE BASIC(RBA),GRADE DELUXE(RBB),GRADE LUXURY(RBC) DOOR MIRROR POWER ADJUST COLOR TURN SIGNAL<DF9>, O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,DOOR MIRROR POWER ADJUST MATERIAL BLACK<D22> |
| 263 |
I8-97472 460-3 |
|
COVER; SW |
1 |
2007- |
|
C F |
GRADE BASIC(RBA),GRADE DELUXE(RBB),GRADE LUXURY(RBC) INTERIOR COLOR UPR PALE GRAY LWR BLACK(162) DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> (B) BLACK |
| 29 |
I8-98394 409-0 |
|
SWITCH; DOOR |
2 |
2007- |
|
C F |
|
| 1 |
I8-98394 447-0 |
|
SWITCH; COMB |
1 |
2007- |
|
BCDE F |
AIR BAG DRIVER 8c PASSENGER(AK5),AIR BAG DRIVER 8c PASSENGER 8c SIDE 8c ROOF(AYO),AIR BAG DRIVERScDRIVER KNEE8cPASS8iSIDE8iROOF(8TX)A/BAG DR8cDR KNEE8cPASS8cSIDE/FAR SIDE/ROOF(8TY) SOUTH AFRICA EQUIPMENT!B02),AUSTRALIA EQUIPMENT(B13), CONGO EQUIPMENT(CDF),GENERAL EXPORT EQUIPMENT(TAA) INTERMITTENT WIPER<C13> FOG LAMP<T96> EXC. ELECTRONIC TRACTION CONTROL<NW9>,RR FOG LAMP<T79>,AUTO LIGHT 8c AUTOMATIC HIGH BEAM<T80>,AUTO LIGHT<T82> |
| 263 |
I8-97472 035-2 |
|
COVER; SW |
1 |
2007- |
|
ABCDE F |
GRADE BASIC(RBA),GRADE DELUXE(RBB),GRADE LUXURY(RBC) DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> (D) BLACK |
| 8 |
I8-97472 456-0 |
|
SWITCH; POWER WINDOW |
1 |
2007- |
|
A CD F |
GRADE CUSTOM(RBD),GRADE ROYAL(RBE) DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> (D) SILVER |
| 58 |
I8-97491 965-0 |
|
SWITCH; IGNITION |
1 |
2007- |
|
A CD F |
PASSIVE ENTRY AND START SYSTEM<AP3>,PASSIVE ENTRY & START SYSTEM W/REMOTE ENG<8SR> |
| 8 |
I8-97478 559-4 |
|
SWITCH; POWER WINDOW |
1 |
2007- |
|
C F |
GRADE BASIC(RBA),GRADE DELUXE(RBB),GRADE LUXURY(RBC) INTERIOR COLOR UPR PALE GRAY LWR BLACK(162) DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> DOOR MIRROR MATERIAL BLACK<RT9> (C) BLACK |
| 789 |
I8-98394 531-1 |
|
SWITCH; HILL START ASSIST |
1 |
2007- |
|
A |
|
| 8 |
I8-97478 560-4 |
|
SWITCH; POWER WINDOW |
1 |
2007- |
|
C F |
GRADE BASIC(RBA),GRADE DELUXE(RBB),GRADE LUXURY(RBC) INTERIOR COLOR UPR PALE GRAY LWR BLACK(162) DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> DOOR MIRROR POWER ADJUST COLOR TURN SIGNAL<DF9>, O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,DOOR MIRROR POWER ADJUST MATERIAL BLACK<D22> (C) BLACK |
| 755 |
I8-98394 525-1 |
|
SWITCH; ESC OFF |
1 |
2007- |
|
BCDE F |
ELECTRONIC TRACTION CONTROL<NW9> |
| 263 |
I8-97478 999-2 |
|
COVER; SW |
1 |
2007- |
|
C F |
GRADE BASIC(RBA),GRADE DELUXE(RBB),GRADE LUXURY(RBC) INTERIOR COLOR UPR PALE GRAY LWR BLACK(162) DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> DOOR MIRROR MATERIAL BLACK<RT9> (C) BLACK |
| 98 |
I8-97481 470-0 |
|
RELAY; RR FOG LAMP |
1 |
2007- |
|
ABCDE F |
RR FOG LAMP<T79> 12V PANASONIC |
| 30 |
I8-98394 408-0 |
|
SCREW; DOOR SW |
2 |
2007- |
|
ABCDE F |
|
| 360 |
I8-97507 127-1 |
|
SWITCH ASM; DIFF LK |
1 |
2007- |
|
ABCDE F |
REAR AXLE DIFF LOCK<8CL> |
| 566 |
I8-98394 529-1 |
|
SWITCH; MIRROR |
1 |
2007-2009 |
|
ABCDE F |
DOOR MIRROR POWER ADJUST COLOR TURN SIGNAL<DF9>, O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,DOOR MIRROR POWER ADJUST MATERIAL BLACK<D22> |
| 249 |
I8-98394 521-2 |
|
SWITCH; HAZARD |
1 |
2007- |
|
ABCDE F |
|
| 263 |
I8-97472 459-3 |
|
COVER; SW |
1 |
2007- |
|
C F |
GRADE CUSTOM(RBD),GRADE ROYAL(RBE) DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> (B) BLACK |
| 755 |
I8-98394 525-1 |
|
SWITCH; ESC OFF |
1 |
2007- |
|
A |
|
| 30 |
I8-98394 408-0 |
|
SCREW; DOOR SW |
2 |
2007- |
|
ABCDE F |
|
| 789 |
I8-98394 531-1 |
|
SWITCH; HILL START ASSIST |
1 |
2007- |
|
BCDE F |
ELECTRONIC TRACTION CONTROL<NW9> |
| 10 |
I8-98192 450-0 |
|
SCREW; POWER WINDOW SW |
3 |
2007- |
|
ABCDE F |
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> |
| 360 |
I8-97507 127-1 |
|
SWITCH ASM; DIFF LK |
1 |
2007- |
|
ABCDE F |
REAR AXLE DIFF LOCK<8CL> |
| 752 |
I8-98394 537-1 |
|
COVER; SEAT HTR |
2 |
2007- |
|
A CD F |
FLOOR CONSOLE W/LID & RR CUP HOLDER<D07>,FLOOR CONSOLE W/LID<D55> |
| 8 |
I8-97464 938-0 |
|
SWITCH; POWER WINDOW |
1 |
2007- |
|
ABCDE F |
GRADE BASIC(RBA),GRADE DELUXE(RBB),GRADE LUXURY(RBC) INTERIOR COLOR UPR PALE GRAY LWR BLACK(162),INTERIOR COLOR UPR PALE BLACK,BROWN LWR BLACK(163) DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> (D) BLACK |
| 573 |
I8-97507 148-0 |
|
SWITCH; 4WD |
1 |
2007- |
|
E |
|
| 249 |
I8-98394 521-2 |
|
SWITCH; HAZARD |
1 |
2007- |
|
ABCDE F |
|
| 573 |
I8-98394 530-0 |
|
SWITCH; 4WD |
1 |
2007- |
|
D F |
GRADE CUSTOM(RBD),GRADE ROYAL(RBE) |
| 1 |
I8-98394 443-0 |
|
SWITCH; COMB |
1 |
2007- |
|
BCDE F |
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER 8. SIDE 8< ROOF(AYO),AIR BAG DRIVER8<DRIVER KNEE8tPASS8tSIDE8tROOF(8TX)A/BAG DR8(DR KNEE8.PASS8.SIDE/FAR SIDE/ROOF(8TY) SOUTH AFRICA EQUIPMENT!B02),AUSTRALIA EQUIPMENT(B13), CONGO EQUIPMENT(CDF),GENERAL EXPORT EQUIPMENT(TAA) INTERMITTENT WIPER<C13> EXC. ELECTRONIC TRACTION CONTROL<NW9>,RR FOG LAMP<T79>,AUTO LIGHT 8. AUTOMATIC HIGH BEAM<T80>,AUTO LIGHT<T82>,FOG LAMP<T96> |
