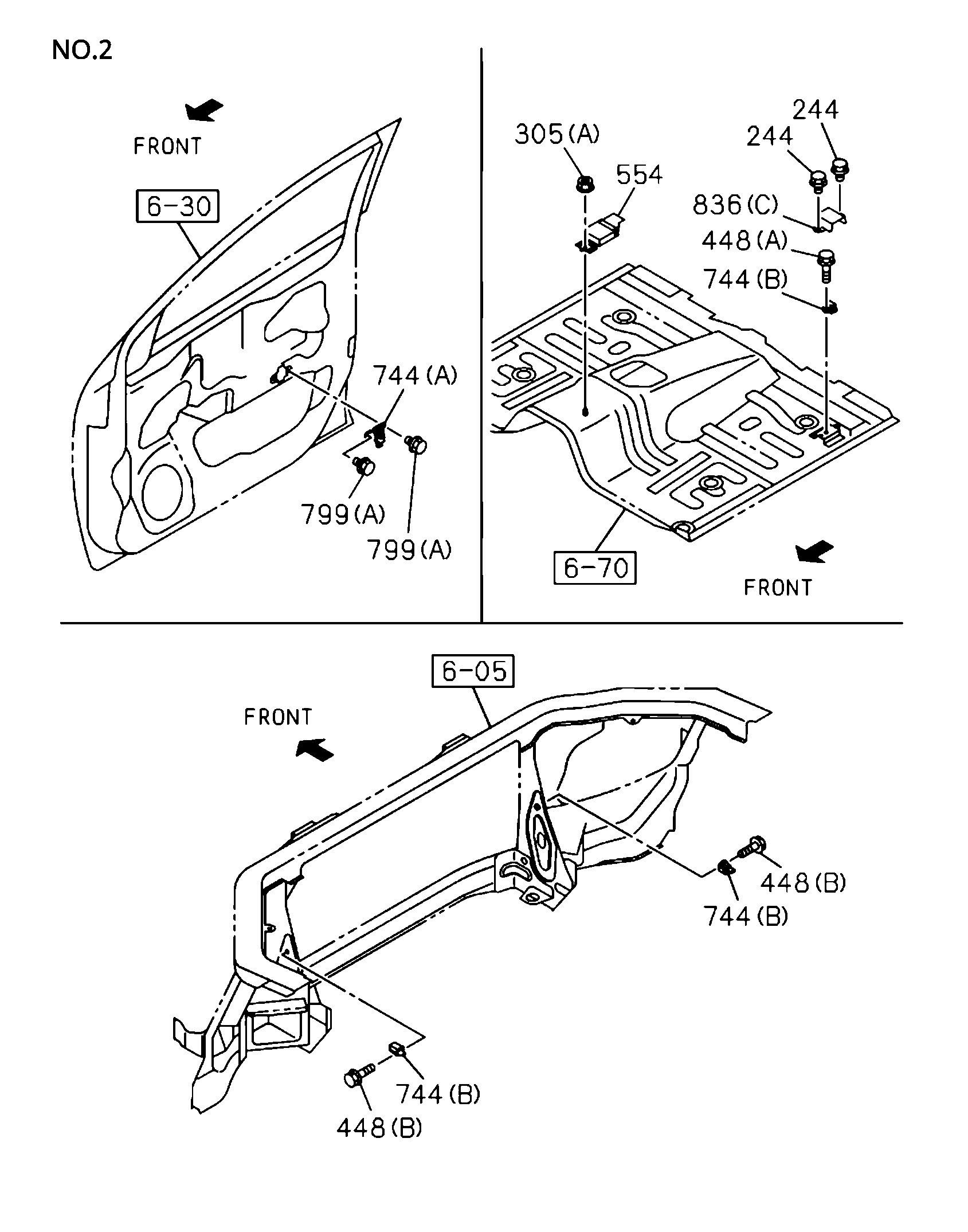

| 744 |
I8-98347 516-0 |
|
SENSOR; AIR BAG |
2 |
2007- |
|
A CD F |
AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AYO),AIR BAG DRIVER&DRIVER KNEE&PASS&SIDE&ROOF(8TX),A/BAG DR&DR KNEE&PA5S&SIDE/FAR SIDE/ROOF(8TY) (B) |

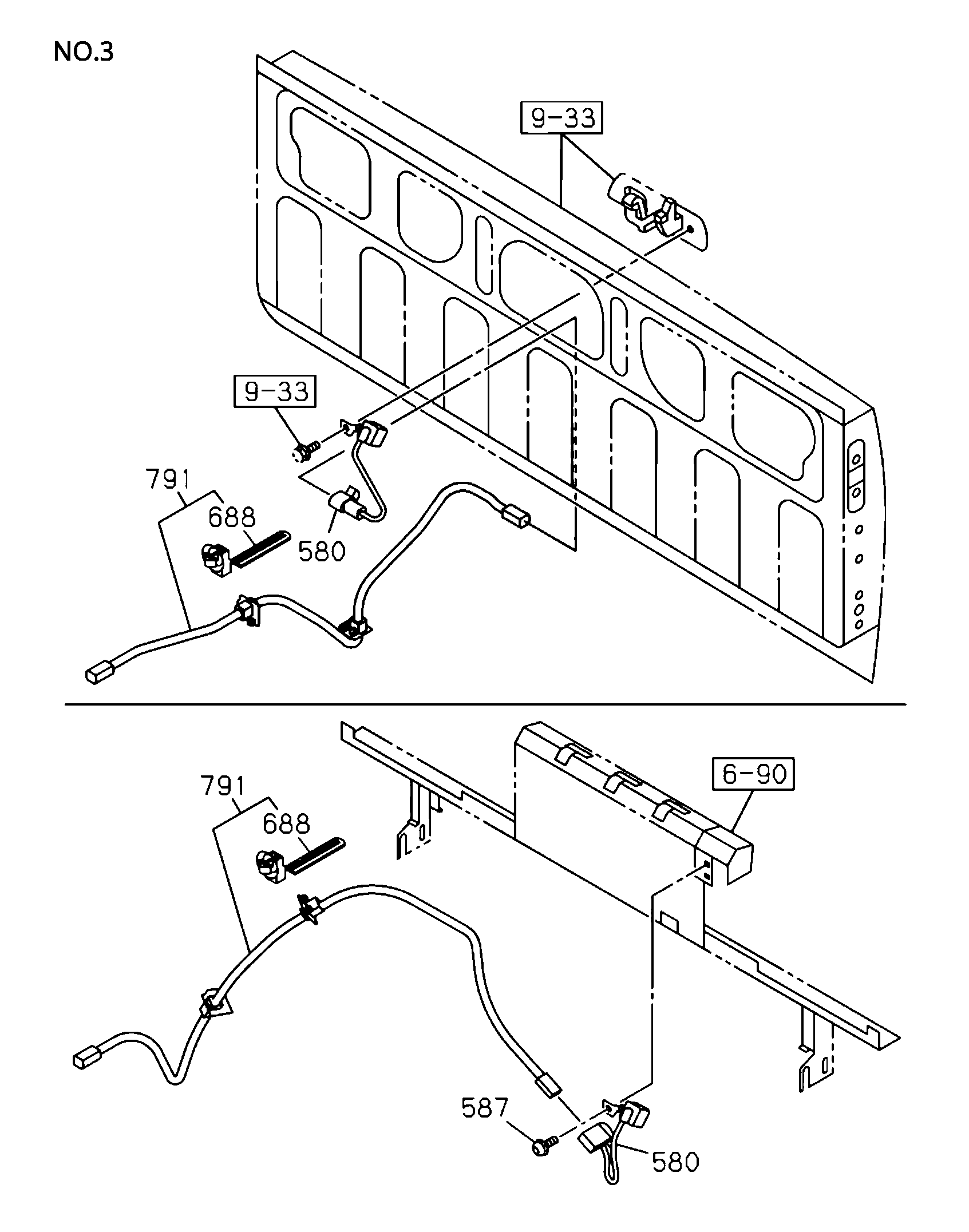

| 580 |
I8-98398 053-1 |
|
CAMERA; REAR |
1 |
2007- |
|
ABCDE F |
REAR CAMERA AT TAIL GATE HANDLE<8PK> |

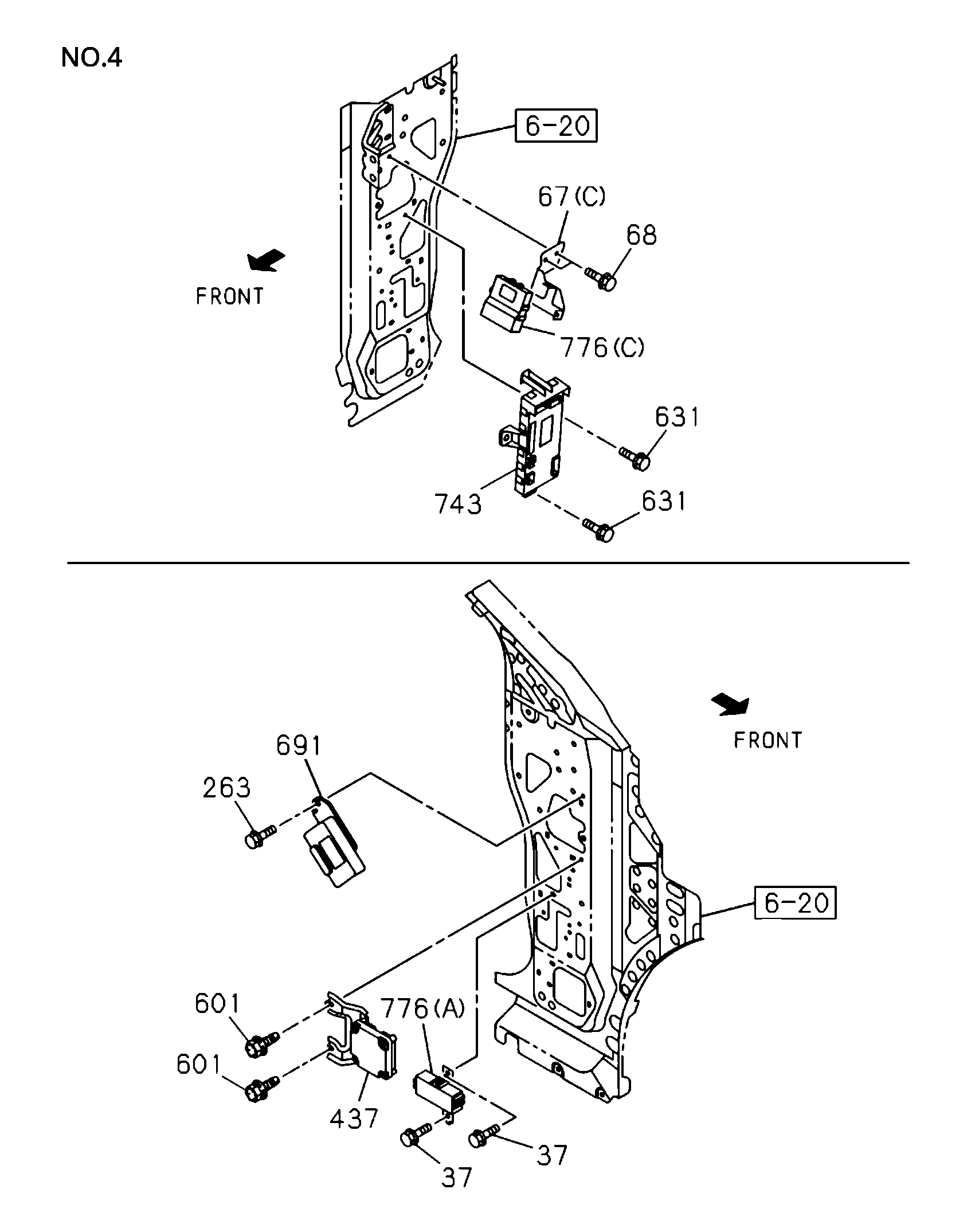

| 743 |
I8-97672 038-0 |
|
CONTROL UNn"; BCM |
1 |
2007- |
|
ABCDE F |
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> SOUTH AFRICA EQUIPMENT(B02),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),GENERAL EXPORT EQUIPMENT(TAA) ELECTRONIC TRACTION CONTROL<NW9> |
| 743 |
I8-97555 534-4 |
|
CONTROL UNfT; BCM |
1 |
2007- |
|
BCDE F |
SOUTH AFRICA EQUIPMENT(B02),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),GENERAL EXPORT EQUIPMENT(TAA) RR FOG LAMP<T79> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5>,REAR DEFOGGER<C49>,ELECTRONIC TRACTION CONTROL<NW9>,HEADLAMPS LED<TT7>,AUTO WIPER<8SN>,PASSIVE ENTRY & START SYSTEM W/REMOTE ENG<8SR>,SAFETY PACKAGE FT<8SW>,SAFETY PACKAGE FT 8c RR<8SY> |

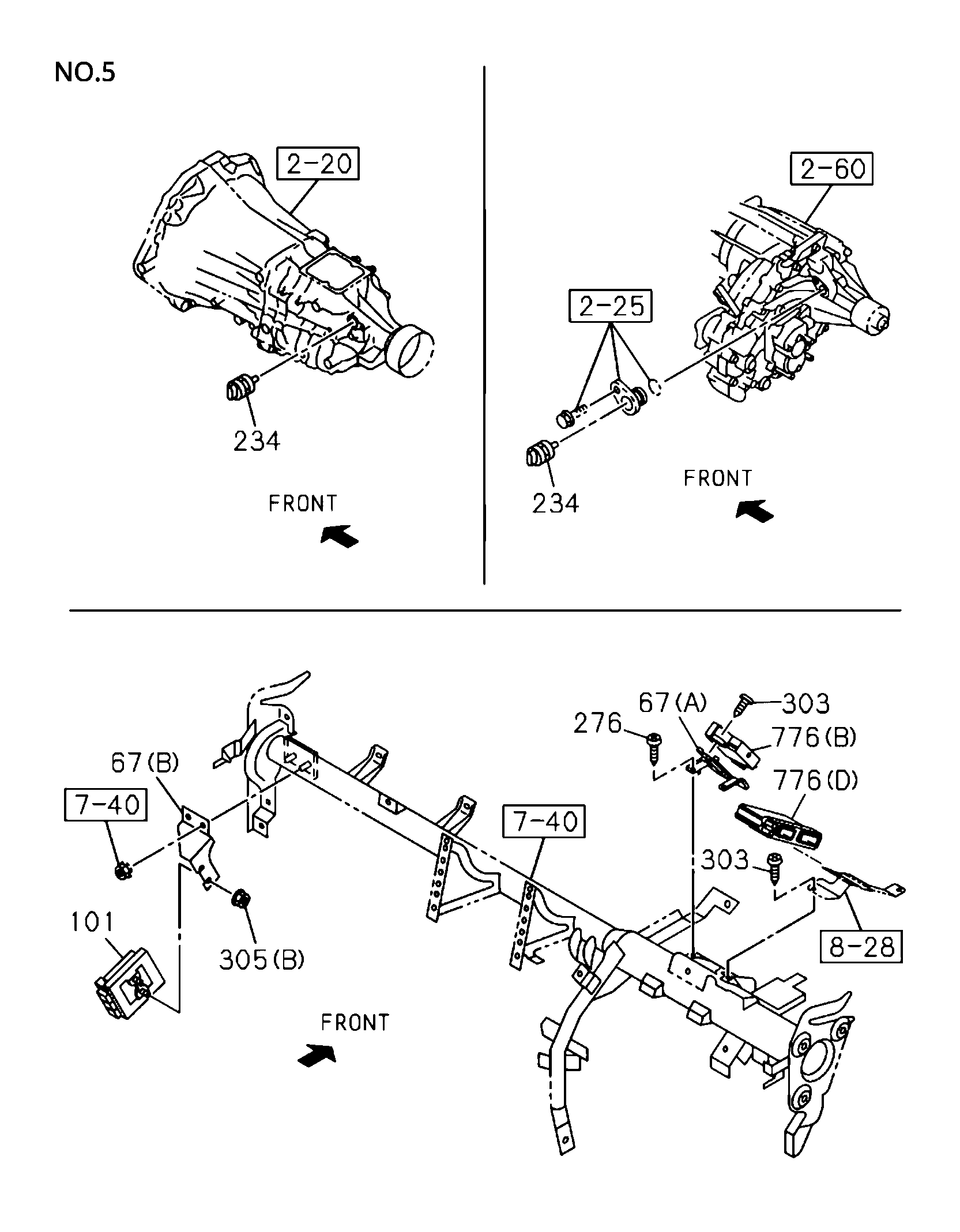

| 67 |
I8-98278 959-0 |
|
BRACKET; CONT UNIT |
1 |
2007- |
|
ABCDE F |
A/T 6 SPEED-AISIN(Y6A) (B) |
| 743 |
I8-97672 038-0 |
|
CONTROL UNIT; BCM |
1 |
2007- |
|
ABCDE F |
SOUTH AFRICA EQUIPMENT!B02),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),GENERAL EXPORT EQUIPMENT(TAA) EXC. HEADLAMPS LED<TT7>,AUTO WIPER<8SN>,SAFETY PACKAGE FT<8SW>,SAFETY PACKAGE FT & RR<8SY> |
| 303 |
I8-98167 449-0 |
|
SCREW; CONT UNIT |
2 |
2007- |
|
ABCDE F |
PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<APS>,PASSIVE ENTRY & START SYSTEM W/REMOTE ENG<8SR> M5X16 TAPPING |
| 448 |
I0-28650 620-0 |
|
BOLT; SENSOR |
2 |
2007- |
|
ABCDE F |
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AYO),AIR BAG DRIVER&DRIVER KNEE&PASS&5IDE&ROOF(87X),A/BAG DR&DR KNEE&PASS&SIDE/FAR SIDE/ROOF(8TY) (B) M6X20 FLANGE |

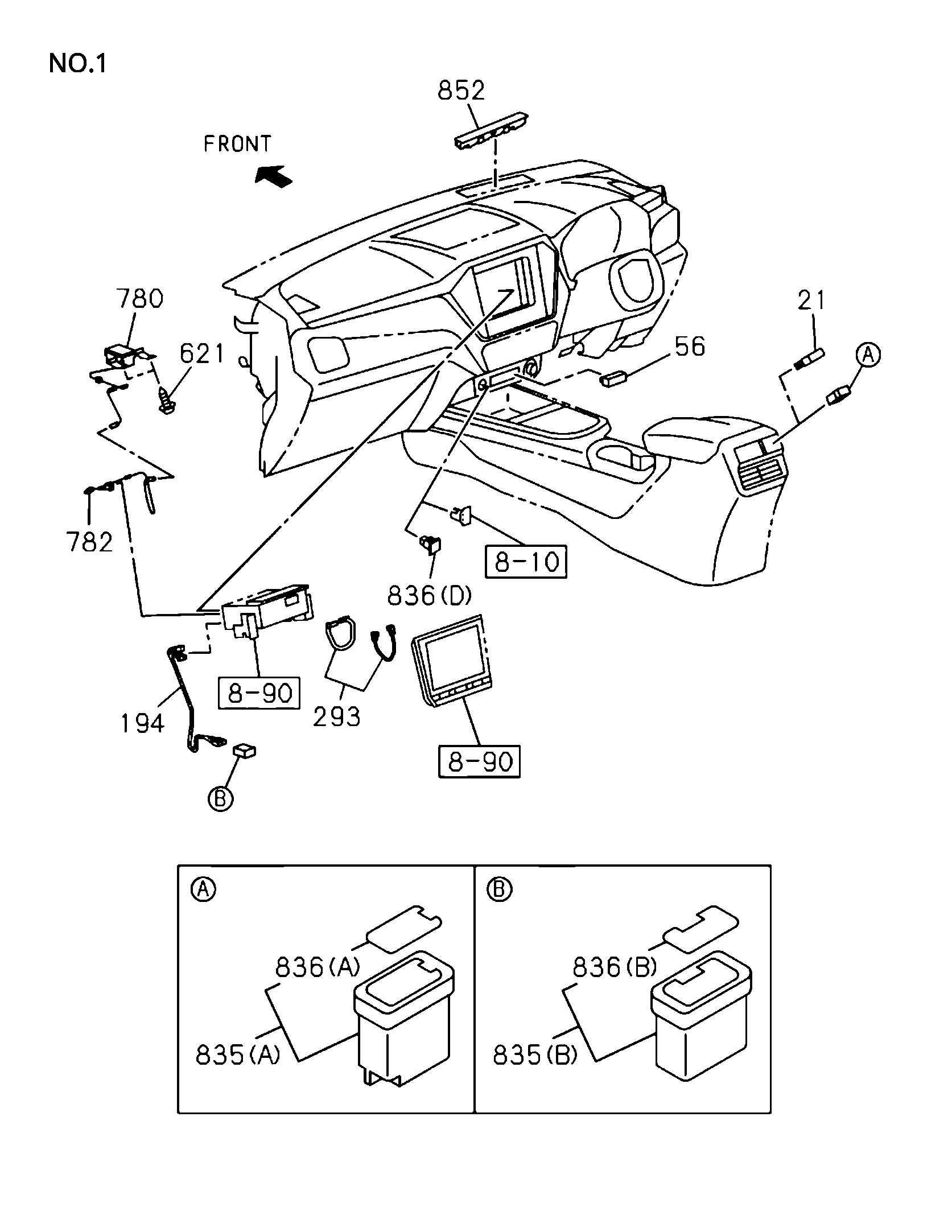

| 835 |
I8-97488 250-0 |
|
SOCKET; ACCESSORY |
1 |
2007- |
|
A CD F |
GRADE DELUXE(RBB),GRADE LUXURY(RBC),GRADE CUSTOM(RBD),GRADE ROYAL(RBE) FLOOR CONSOLE W/LID 8< RR CUP HOLDER<D07>,FLOOR CONSOLE W/LID<D55> ACCESSORY SOCKET FRT8iRR<8SZ> (A) USB |
| 791 |
I8-98398 054-0 |
|
CABLE; SAFETY |
1 |
2007- |
|
ABCDE F |
REAR CAMERA ATTAIL GATE HANDLE<8PK> |

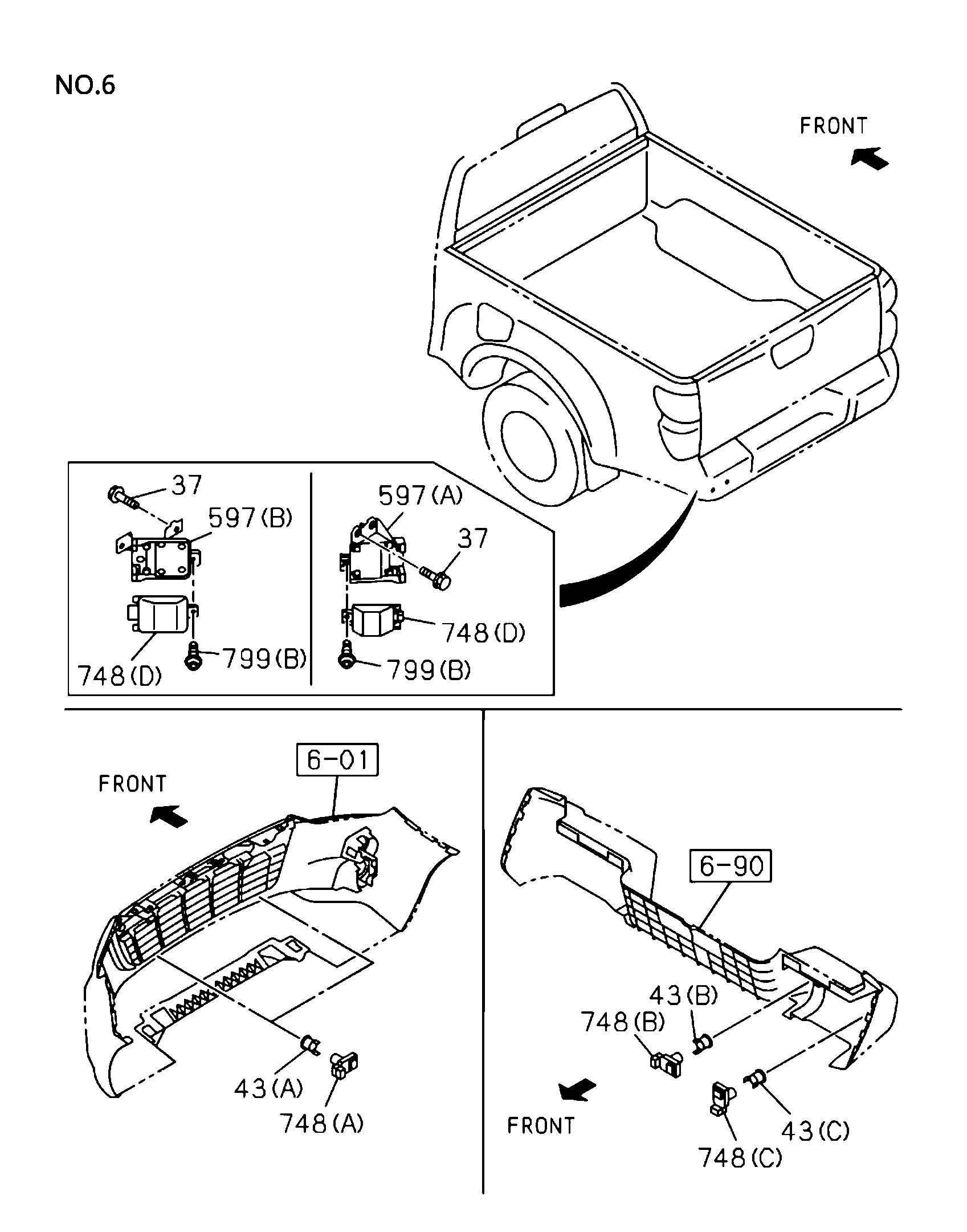

| 37 |
I0-28650 616-0 |
|
BOLT; BRKT FIX |
6 |
2007- |
|
ABCDE F |
REAR STEP BUMPER(VF6),REAR STEP BUMPER PAINTED(V43) SAFETY PACKAGE FT & RR<8SY> M6X16 FLANGE |
| 631 |
I0-28650 625-0 |
|
BOLT; CONT UNIT |
2 |
2007- |
|
BCDE F |
VARIABLE INTERMITTENT WIPER<CD4»,INTERMrTTENT WIPER<C13>,AUTO WIPER<8SN> EXC. DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31>,REAR DEFOGGER<C49>,ELECTRONIC TRACTION CONTROL<NW9>, HEADLAMPS LED<TT7>,RR FOG LAMP<T79> M6X25 FLANGE |
| 744 |
I8-98347 516-0 |
|
SENSOR; AIR BAG |
2 |
2007- |
|
ABCDE F |
AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AYO),AIR BAG DRIVER&DRIVER KNEE&PASS&SIDE&ROOF(8TX),A/BAG DR&DR KNEE&PASS&SIDE/FAR SIDE/ROOF(8TY) (B) |
| 276 |
I8-98167 449-0 |
|
SCREW; BRKT |
2 |
2007- |
|
ABCDE F |
SAFETY PACKAGE FT<8SW>,SAFETY PACKAGE FT & RR<8SY> M5X16 TAPPING |
| 776 |
I8-97673 227-0 |
|
CONTROL UNIT |
1 |
2007-2007 |
|
ABCDE F |
REMOTE CONT DOOR LOCK<AP5> SOUTH AFRICA EQUIPMENT(B02),HONG KONG EQUIPMENT(B14), CONGO EQUIPMENT(CDF),GENERAL EXPORT EQUIPMENT(TAA) EXC. TIRE PRESSURE MONITORING SENSOR<UJ6> (D) |
| 448 |
I0-28650 625-0 |
|
BOLT; SENSOR |
2 |
2007- |
|
ABCDE F |
AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AYO),AIR BAG D RIVE R&D RIVE R KNEE&PASS&SIDE&ROOF(8TX),A/BAG DR&DR KNEE&PASS&SIDE/FAR SIDE/ROOF(8TY) (A) M6X25 FLANGE |
| 836 |
I8-97501 695-0 |
|
COVER; SOCKET |
1 |
2007- |
|
A CD F |
GRADE DELUXE(RBB),GRADE LUXURY(RBC),GRADE CUSTOM(RBD),GRADE ROYAL(RBE) FLOOR CONSOLE W/LID 8< RR CUP HOLDER<D07>,FLOOR CONSOLE W/LID<D55> ACCESSORY SOCKET FRT8iRR<8SZ> (A) |
| 743 |
I8-97555 534-4 |
|
CONTROL UNIT; BCM |
1 |
2007- |
|
BCDE F |
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> SOUTH AFRICA EQUIPMENT(B02),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),GENERAL EXPORT EQUIPMENT(TAA) EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5>,REAR DEFOGGER<C49>,ELECTRONIC TRACTION CONTROL<NW9>,HEADLAMPS LED<TT7>,RR FOG LAMP<T79>,AUTO WIPER<8SN>,PASSIVE ENTRY & START SYSTEM W/REMOTE ENG<8SR>,SAFETY PACKAGE FT<8SW>,SAFETY PACKAGE FT & RR<8SY> |
| 68 |
I0-28650 616-0 |
|
BOLT; BRKT |
2 |
2007- |
|
D E F |
REAR AXLE DIFF LOCK<8CL> M6X16 FLANGE |
| 799 |
I8-98167 615-0 |
|
SCREW; SENSOR |
4 |
2007- |
|
ABCDE F |
AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AYO),AIR BAG DRIVER&DRIVER KNEE&PASS&SIDE&ROOF(8TX),A/BAG DR&DR KNEE&PASS&SIDE/FAR SIDE/ROOF(8TY) (A) BOLT M6X15 W/LK&PL WASHER |
| 448 |
I0-28650 625-0 |
|
BOLT; SENSOR |
2 |
2007- |
|
A CD F |
AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AYO).AIR BAG DRIVER&DRIVER KNEE&PASS&SIDE&ROOF(8TX),A/BAG DR&DR KNEE&PASS&SIDE/FAR SIDE/ROOF(8TY) (A) M6X25 FLANGE |
| 37 |
I0-28650 616-0 |
|
BOLT; BRKT FIX |
2 |
2007- |
|
A CD F |
WARNING - DISTANCE, PARKING ASSIST,RR<8ST>,WARNING -DISTANCE, PARKING ASSIST.FRT & RR<8SU> M6X16 FLANGE |
| 631 |
I0-28650 625-0 |
|
BOLT; CONT UNIT |
2 |
2007- |
|
BCDE F |
ELECTRONIC TRACTION CONTROL<NW9> EXC. DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> M6X25 FLANGE |
| 776 |
I8-98394 773-5 |
|
CONTROL UNIT |
1 |
2008- |
|
CD F |
PASSIVE ENTRY AND START SYSTEM<AP3>,PASSIVE ENTRY& START SYSTEM W/REMOTE ENG<8SR> HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF), GENERAL EXPORT EQUIPMENT(TAA) OUTSIDE HANDLE CHROME<E20> IMMOBILIZER SYSTEM<7KC> EXC. TIRE PRESSURE MONITORING SENSOR<UJ6> (D) |
| 67 |
I8-98398 134-0 |
|
BRACKET; CONT UNIT |
1 |
2007- |
|
D E F |
REAR AXLE DIFF LOCK<8CL> (C) |
| 836 |
I8-98394 968-0 |
|
COVER; SOCKET |
2 |
2007- |
|
ABCDE F |
(C) |
| 691 |
I8-97551 587-0 |
|
CONTROLLER; TRANSFER |
1 |
2007- |
|
D E F |
|
| 244 |
I8-98167 615-0 |
|
BOLT; COVER |
4 |
2007- |
|
ABCDE F |
M6X15 W/LK&PL WASHER |
| 688 |
I8-97378 707-0 |
|
CLIP; CABLE |
3 |
2007- |
|
ABCDE F |
REAR CAMERA ATTAIL GATE HANDLE<8PK> L=140 |
| 101 |
I8-98395 450-0 |
|
CONTROL UNIT; ELEC,A/T |
1 |
2007- |
|
ABC |
RZ4E-TC ENG(RDZ) A/T 6 SPEED-AISIN(Y6A) EUROO SPECIFICATION(K75),EUR02 SPECIFICATION(NT2) HIGH RIDESUSPENSION(7YC) EXC. IDLE STOP SYSTEM<8BM> |
| 776 |
I8-98394 773-5 |
|
CONTROL UNIT |
1 |
2008-2008 |
|
A CD F |
PASSIVE ENTRY AND START SYSTEM<AP3>,PASSIVE ENTRY & START SYSTEM W/REMOTE ENG<8SR> SOUTH AFRICA EQUIPMENT(B02),HONG KONG EQUIPMENT(B14), CONGO EQUIPMENT(CDF),GENERAL EXPORT EQUIPMENT(TAA) OUTSIDE HANDLE CHROME<E2ü> IMMOBILIZER SYSTEM<7KC> EXC. TIRE PRESSURE MONITORING SENSOR<UJ6> (D) |
| 776 |
I8-97673 227-0 |
|
CONTROL UNIT |
1 |
2008- |
|
BCDE F |
REMOTE CONT DOOR LOCK<AP5> HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF), GENERAL EXPORT EQUIPMENT(TAA) EXC. TIRE PRESSURE MONITORING SENSOR<UJ6> (D) |
| 37 |
I0-28650 616-0 |
|
BOLT; BRKT FIX |
2 |
2007- |
|
A CD F |
WARNING - DISTANCE, PARKING ASSIST,RR<8ST>,WARNING -DISTANCE, PARKING ASSIST.FRT & RR<8SU> M6X16 FLANGE |
| 631 |
I0-28650 625-0 |
|
BOLT; CONT UNIT |
2 |
2007- |
|
CD F |
REAR DEFOGGER<C49> EXC. DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31>, ELECTRONIC TRACTION CONTROL<NW9> M6X25 FLANGE |
| 743 |
I8-97555 534-4 |
|
CONTROL UNrT; BCM |
1 |
2007- |
|
BCDE F |
SOUTH AFRICA EQUIPMENT(B02),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),GENERAL EXPORT EQUIPMENT(TAA) VARIABLE INTERMITTENT WIPER<CD4>,INTERMrTTENT WIPER<C13> EXC. DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5>,DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31 >,REAR DEFOGGER<C49>,ELECTRONIC TRACTION CONTROL<NW9>,HEADLAMPS LED<TT7>,RR FOG LAMP<T79>, PASSIVE ENTRY 8c START SYSTEM W/REMOTE ENG<8SR>,SAFETY PACKAGE FT<8SW>,SAFETY PACKAGE FT & RR<8SY> |
| 743 |
I8-97672 038-0 |
|
CONTROL UNIT; BCM |
1 |
2007- |
|
CD F |
SOUTH AFRICA EQUIPMENT!B02),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),GENERAL EXPORT EQUIPMENT(TAA) HEADLAMPS LED<TT7> EXC. ELECTRONIC TRACTION CONTROL<NW9> |
| 305 |
I0-91180 106-0 |
|
NUT; CONT UNIT |
2 |
2007- |
|
ABCDE F |
A/T 6 SPEED-AISIN{Y6A) (B) M6 FLANGE |
| 743 |
I8-97555 534-4 |
|
CONTROL UNIT; BCM |
1 |
2007- |
|
CD F |
SOUTH AFRICA EQUIPMENT(B02),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),GENERAL EXPORT EQUIPMENT(TAA) REAR DEFOGGER<C49> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5>,ELECTRONIC TRACTION CONTROL<NW9>, HEADLAMPS LED<TT7>,AUTO WIPER<8SN>,PASSIVE ENTRY & START SYSTEM W/REMOTE ENG<8SR>,SAFETY PACKAGE FT<8SW>, SAFETY PACKAGE FT & RR<8SY> |
| 631 |
I0-28650 625-0 |
|
BOLT; CONT UNIT |
2 |
2007- |
|
BCDE F |
RR FOG LAMP<T79> EXC. DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31>,REAR DEFOGGER<C49>,ELECTRONIC TRACTION CONTROL<NW9> M6X25 FLANGE |
| 37 |
I0-28650 616-0 |
|
BOLT; BRKT FIX |
6 |
2007- |
|
ABCDE F |
REAR STEP BUMPER(VF6),REAR STEP BUMPER PAINTED(V43) SAFETY PACKAGE FT & RR<8SY> M6X16 FLANGE |
| 263 |
I0-28650 616-0 |
|
BOLT; CONT UNIT |
1 |
2007- |
|
D E F |
M6X16 FLANGE |
| 303 |
I8-98167 449-0 |
|
SCREW; CONT UNIT |
2 |
2007- |
|
ABCDE F |
SAFETY PACKAGE FT<8SW>,SAFETY PACKAGE FT & RR<8SY> M5X16 TAPPING |
| 303 |
I8-98167 449-0 |
|
SCREW; CONT UNIT |
2 |
2007- |
|
ABCDE F |
IMMOBILIZER SYSTEM<7KC> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5>,TIRE PRESSURE MONITORING SENSOR<UJ6>, PASSIVE ENTRY & START SYSTEM W/REMOTE ENG<8SR> M5X16 TAPPING |
| 305 |
I0-91180 206-0 |
|
NUT; CONT UNIT |
1 |
2007- |
|
A CD F |
HEAD LAMP AUTO LEVELING<TR7> (A) M6 FLANGE |
| 631 |
I0-28650 625-0 |
|
BOLT; CONT UNIT |
2 |
2007- |
|
ABCDE F |
M6X25 FLANGE |
| 744 |
I8-98347 516-0 |
|
SENSOR; AIR BAG |
2 |
2007- |
|
ABCDE F |
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AYO),AIR BAG DRIVER&DRIVER KNEE&PASS&SIDE&ROOF(8TX),A/BAG DR&DR KNEE&PASS&SIDE/FAR SIDE/ROOF(8TY) (B) |
| 621 |
I8-94358 694-0 |
|
SCREW |
2 |
2007- |
|
ABCDE F |
AM/FM,DVD,NAVI W/DISPLAY,SMART PHONE(8RW),AM/FM, MEMOLY NAVI W/DISPLAY.SMART PHONE(8TG),SCREEN 7" W/DVD(8TJ),SCREEN 9" WO/DVD(8TK),SCREEN 9" W/DVD(8TL) MSX16 |
| 743 |
I8-97672 038-0 |
|
CONTROL UNIT; BCM |
1 |
2007- |
|
BCDE F |
SOUTH AFRICA EQUIPMENT(B02),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),GENERAL EXPORT EQUIPMENT(TAA) AUTO WIPER<8SN> EXC. ELECTRONIC TRACTION CONTROL<NW9>,HEADLAMPS LED<TT7> |
| 776 |
I8-97553 226-0 |
|
CONTROL UNIT |
1 |
2009- |
|
D E F |
REAR AXLE DIFF LOCK<8CL> (C) |
| 101 |
I8-98395 450-0 |
|
CONTROL UNIT; ELEC,A/T |
1 |
2007- |
|
D E F |
RZ4E-TC ENG(RDZ) A/T 6 SPEED-AISIN(Y6A) EUROO SPECIFICATION(K75),EUR02SPECIFICATI0N(NT2) EXC. IDLE STOP SYSTEM<8BM> |
