8-28 | 8-28 - CHASSIS ELECTRICAL
DMAX
D-MAX 2021
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|

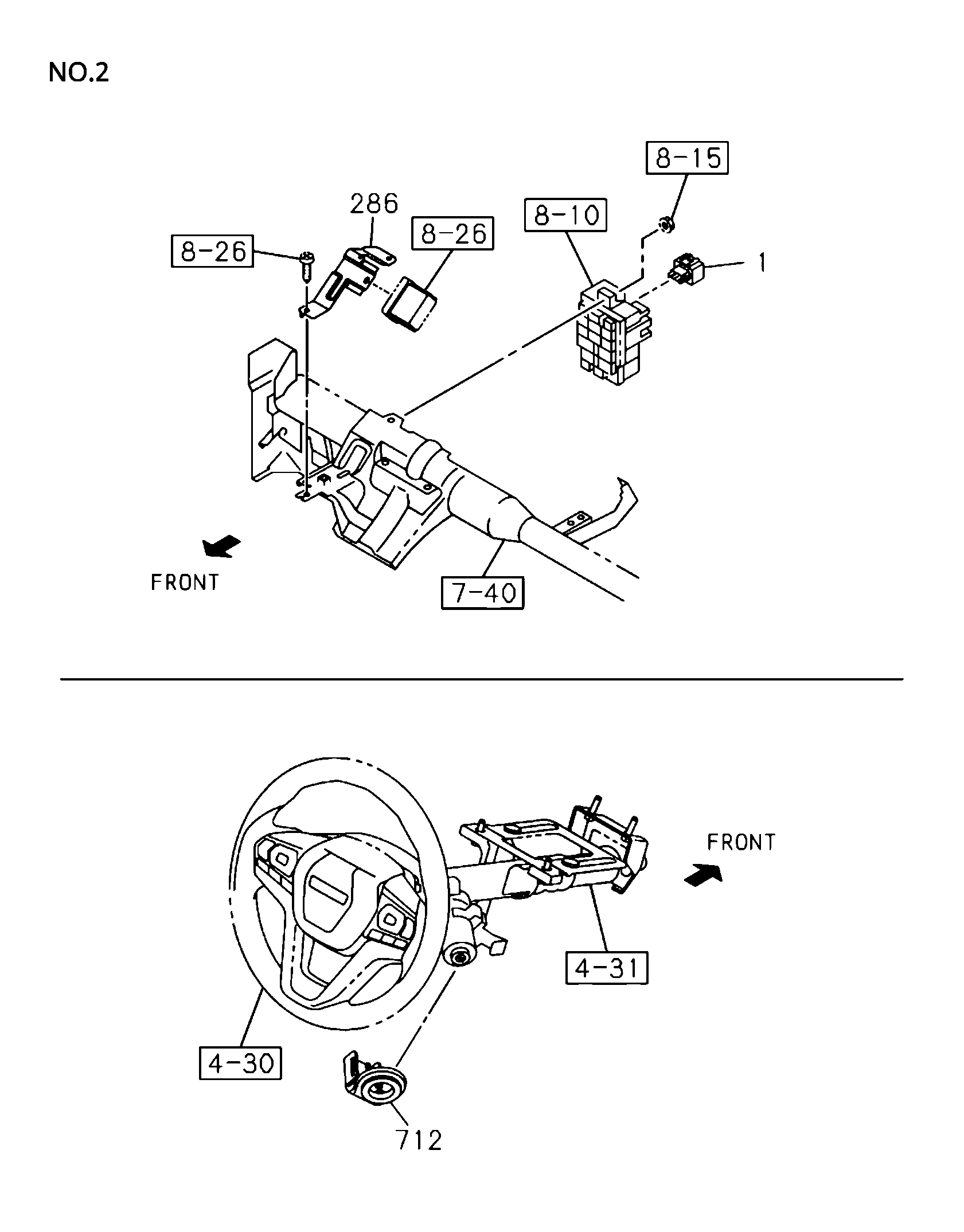

| 712 | I8-98394 787-0 | CONTROL UNIT; ANT! THEFT | 1 | 2007- | A CD F | IMMOBILIZER SYSTEM<7KC> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,PASSIVE ENTRY & START SYSTEM W/REMOTE ENG<8SR> | ||
| 286 | I8-97516 345-0 | BRACKET | 1 | 2007- | ABCDE F | IMMOBILIZER SYSTEM<7KC> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5>,TIRE PRESSURE MONITORING SENSOR<UJ6>, PASSIVE ENTRY 81 START SYSTEM W/REMOTE ENG<8SR> | ||

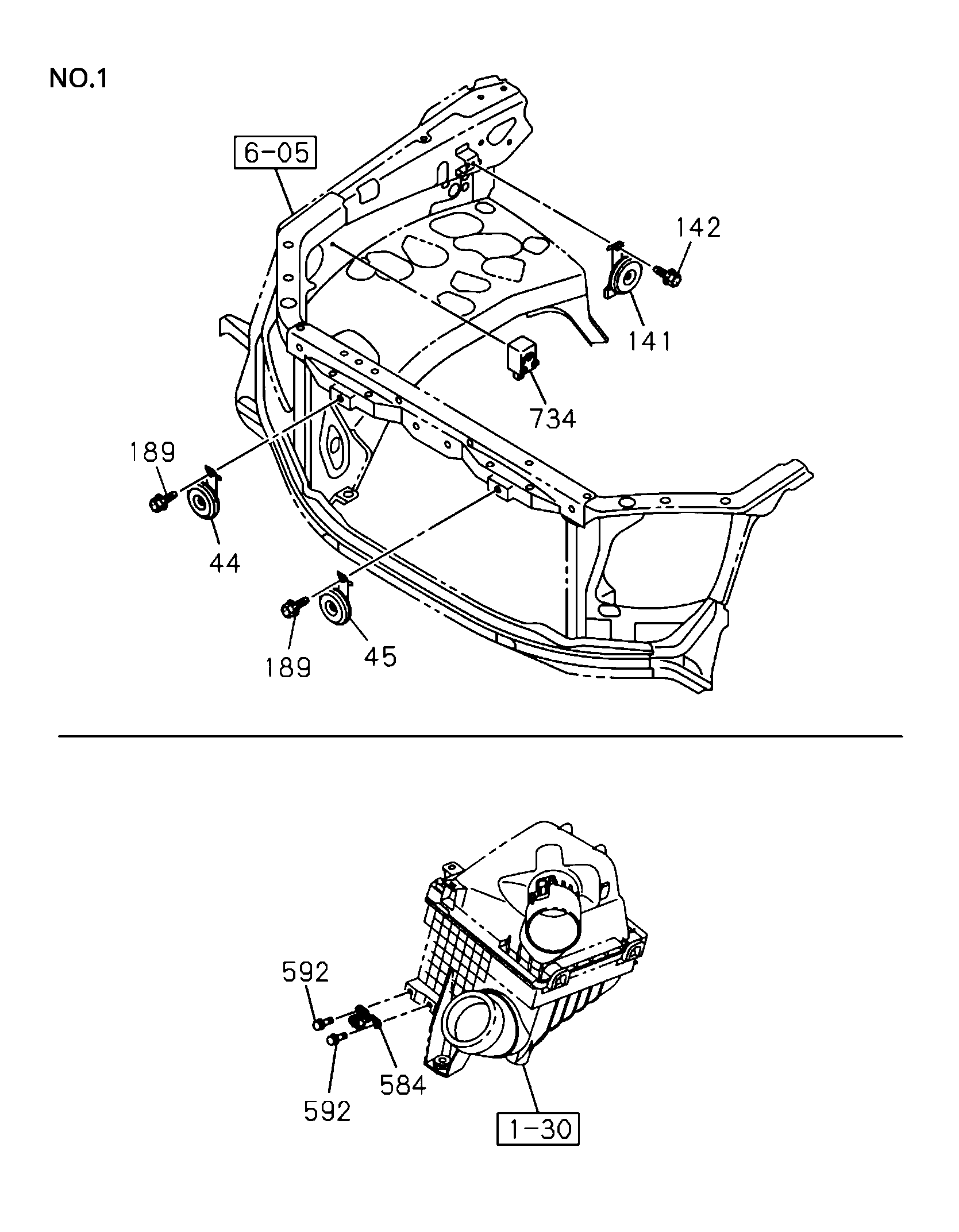

| 45 | I8-98084 023-0 | HORN; LOW NOTE | 1 | 2007- | ABCDE F | |||
| 189 | I8-98164 836-0 | BOLT; HORN | 1 | 2007- | BCDE F | EXC. DUAL TONE HORN<U05> M6X14W/PL WASHER | ||
| 734 | I8-98192 897-0 | ALARM; MULTI | 1 | 2007- | A C D F | PASSIVE ENTRY AND START SYSTEM<AP3>,PASSIVE ENTRY & START SYSTEM W/REMOTE ENG<8SR> | ||
| 286 | I8-97516 345-0 | BRACKET | 1 | 2007- | ABCDE F | PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5>,PASSIVE ENTRY & START SYSTEM W/REMOTE ENG<8SR> | ||
| 592 | I0-28650 616-0 | BOLT; SENSOR | 2 | 2007- | ABCDE F | RZ4E-TC ENG(RDZ) M6X16 FLANGE | ||
| 142 | I8-98164 836-0 | BOLT; HORN,ANTITHEFT | 1 | 2007- | ABCDE F | REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> M6X14W/PL WASHER | ||
| 189 | I8-98164 836-0 | BOLT; HORN | 2 | 2007- | A | M6X14W/PL WASHER | ||
| 584 | I8-98020 514-0 | SENSOR; PRESSURE | 1 | 2007- | ABCDE F | RZ4E-TC ENG(RDZ) | ||
| 712 | I8-98394 787-0 | CONTROL UNIT; ANTI THEFT | 1 | 2007- | B E | IMMOBILIZER SYSTEM<7KC> | ||
| 189 | I8-98164 836-0 | BOLT; HORN | 2 | 2007- | BCDE F | DUAL TONE HORN<U05> M6X14W/PL WASHER |
