8-40 | 8-40 - HEATER SYSTEM
DMAX
D-MAX 2021

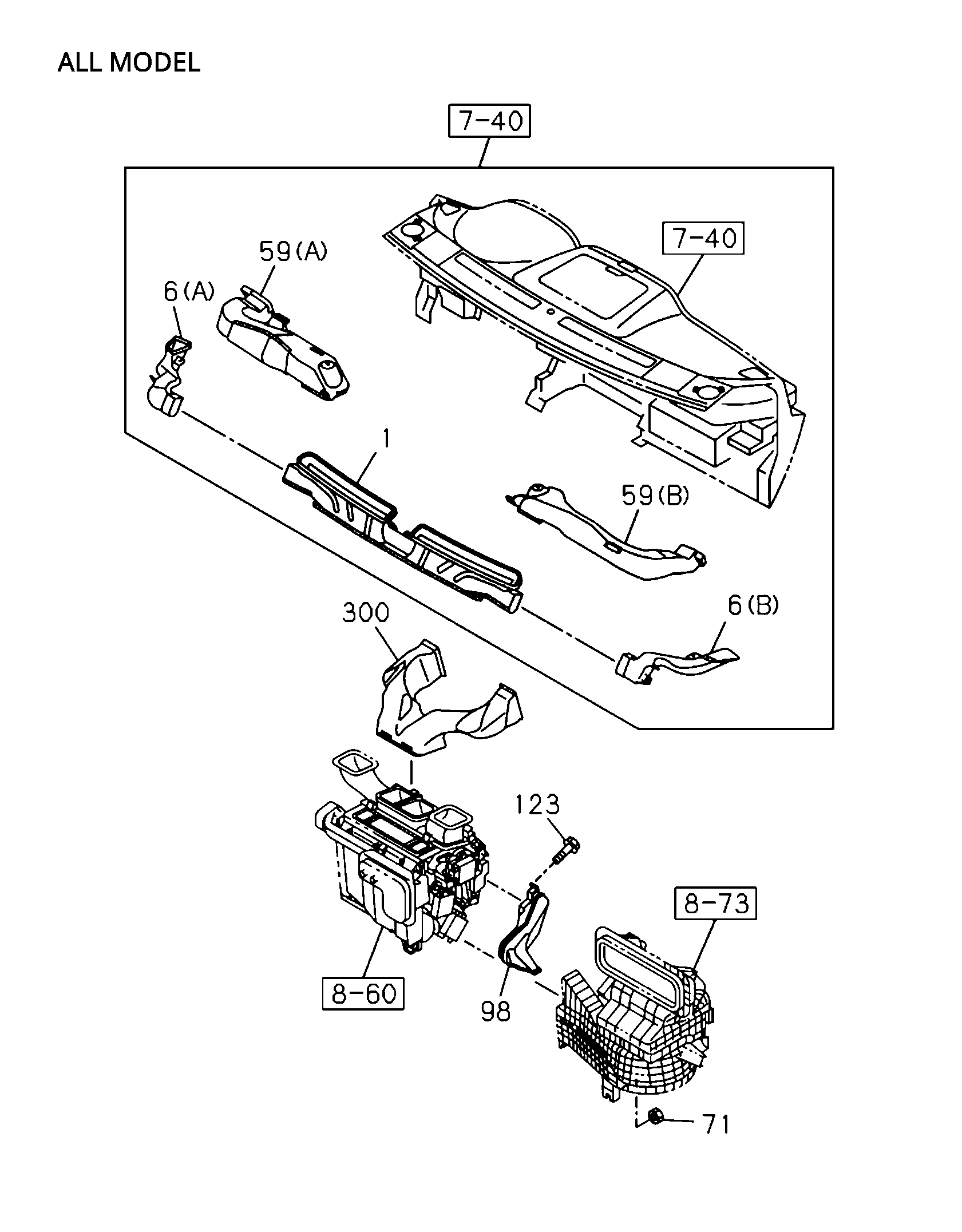

| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 6 | I8-97553 765-0 | DUCT; SIDE DEFROSTER | 1 | 2007- | L | ABCDE F | (B) | |
| 59 | I8-97553 767-0 | DUCT; VENT,ASSIST SIDE | 1 | 2007- | ABCDE F | (B) | ||
| 1 | I8-97553 763-1 | NOZZLE; DEFROSTER.INST PNL | 1 | 2007- | ABCDE F | |||
| 98 | I8-97491 446-1 | DUCT; BLOWER UNIT TO HTR UNIT | 1 | 2007- | A CD F | AIR CONDITIONER AUTOMATIC CONT(C61) | ||
| 123 | I8-98167 449-0 | SCREW; DUCT | 1 | 2007- | A CD F | AIR CONDITIONER AUTOMATIC CONT(C61) M5X16 TAPPING | ||
| 6 | I8-97553 764-0 | DUCT; SIDE DEFROSTER | 1 | 2007- | R | ABCDE F | (A) | |
| 59 | I8-97553 766-0 | DUCT; VENT.ASSIST SIDE | 1 | 2007- | ABCDE F | (A) | ||

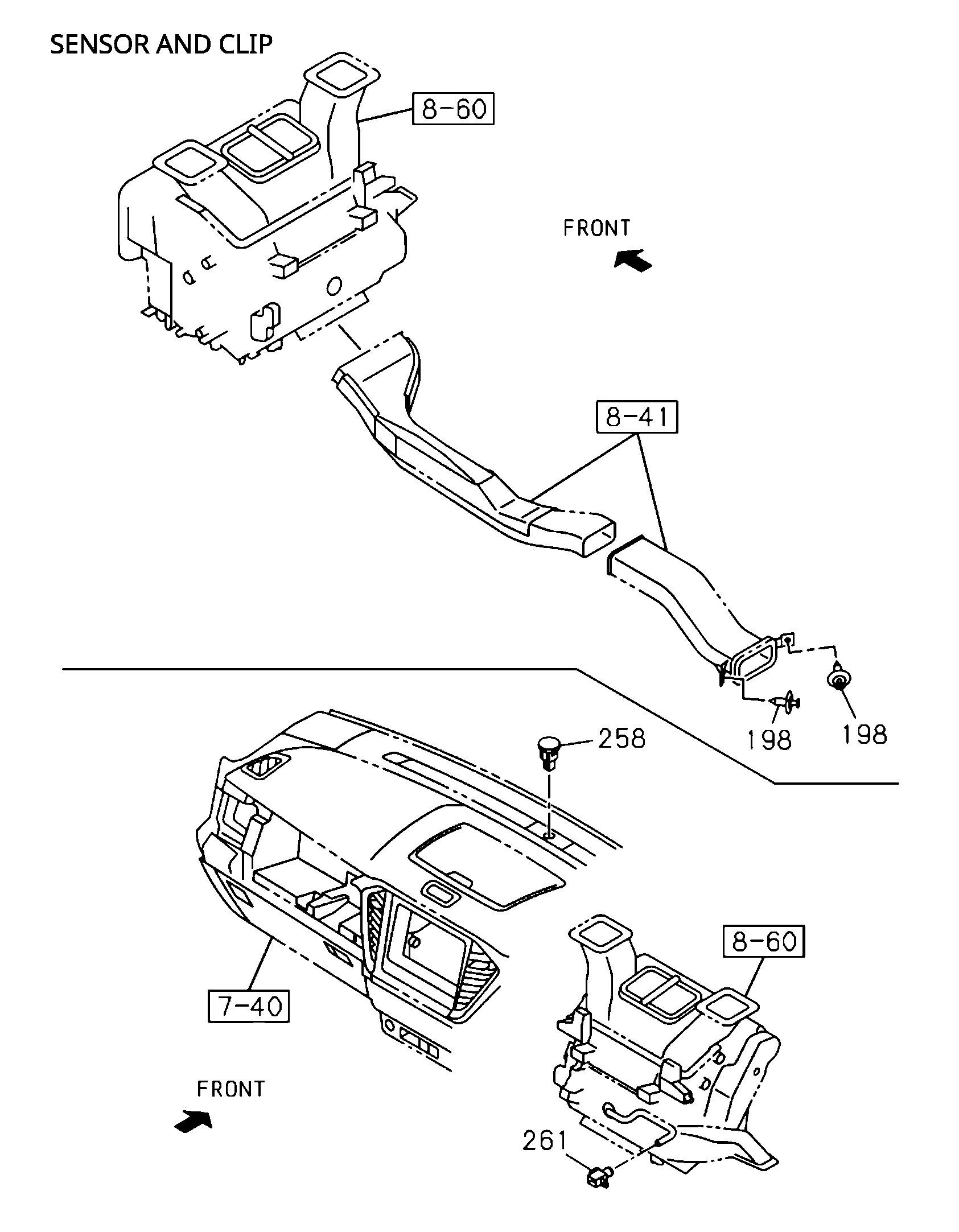

| 198 | I8-97360 070-0 | CLIP; DUCT | 2 | 2007- | CD F | REAR HEATER DUCT<S8C>,RR COOLER<7UL> BLACK | ||
| 300 | I8-98398 503-0 | DUCT; VENT,CENTER | 1 | 2007- | ABCDE F | |||
| 71 | I8-94279 514-0 | NUT; BLOWER UNIT TO DASH | 1 | 2007- | ABCDE F | M6 FLANGE | ||
| 258 | I8-98394 854-0 | SENSOR; SUN | 1 | 2007- | A CD F | AIR CONDITIONER AUTOMATIC CONT(C61) | ||
| 261 | I8-98394 853-0 | SENSOR; IN CAR | 1 | 2007- | A CD F | AIR CONDITIONER AUTOMATIC CONT(C61) |
