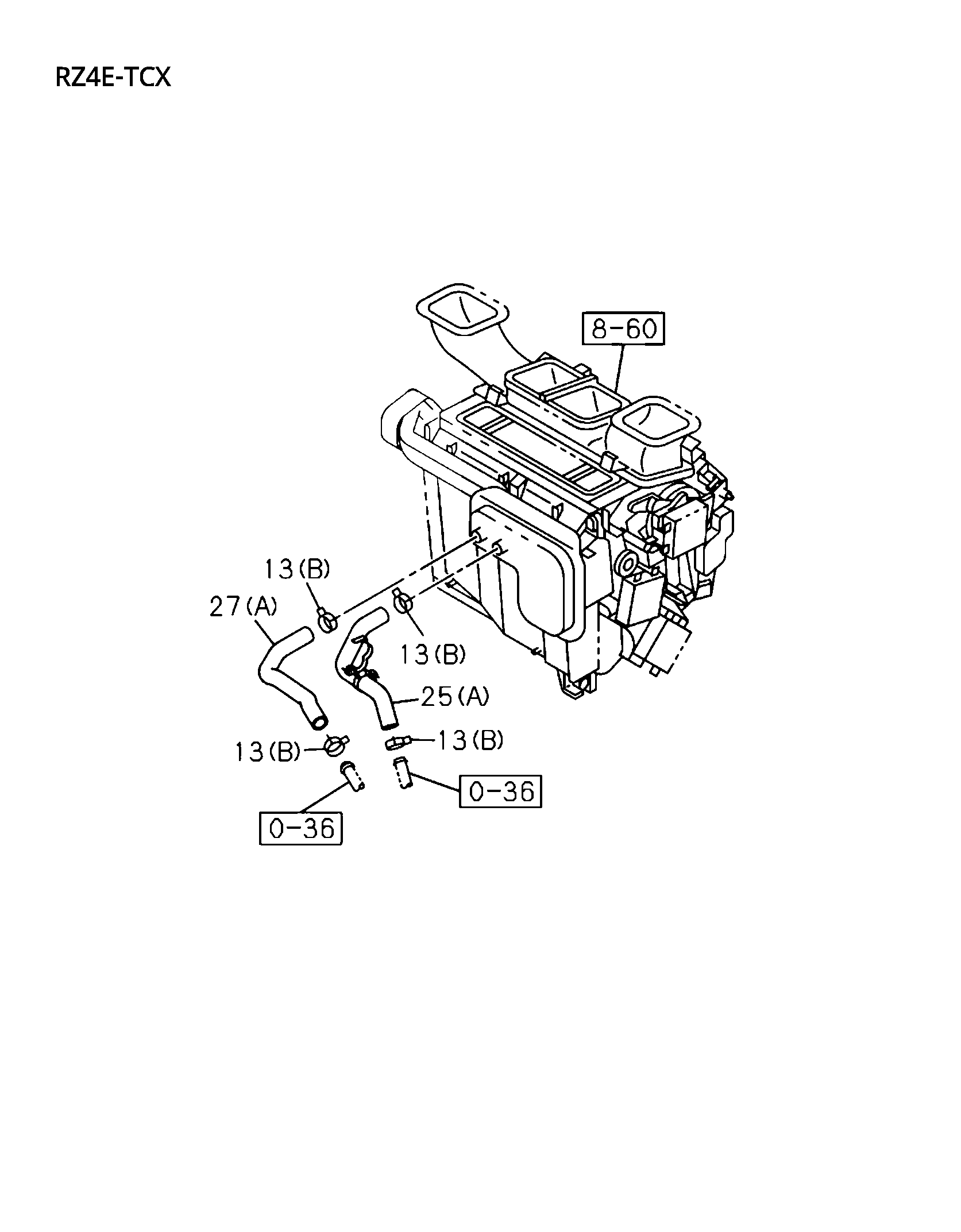

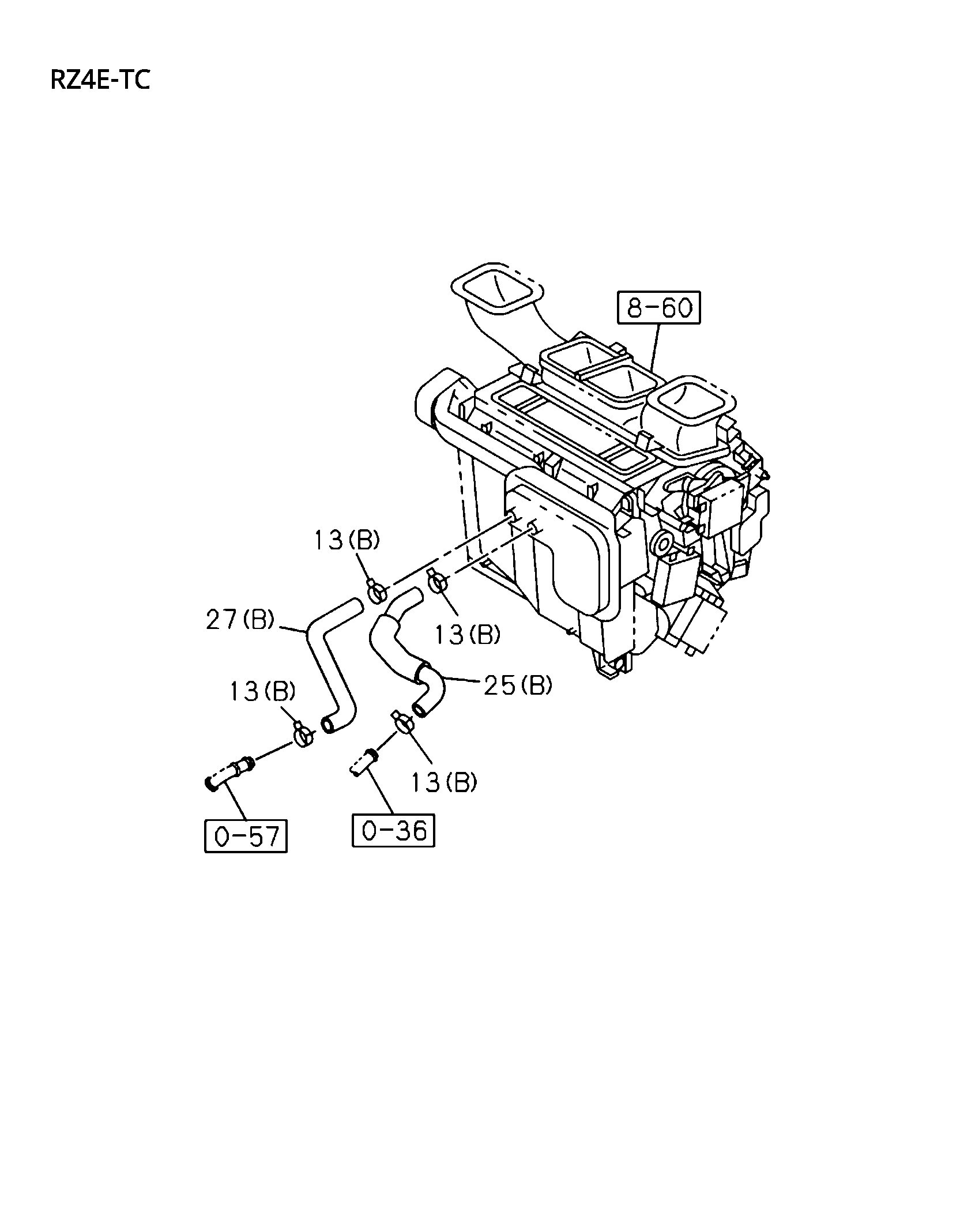

8-45 | 8-45 - HEATER PIPING
DMAX
D-MAX 2021
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 13 | I8-98133 607-0 | CLIP; HTR HOSE | 4 | 2007- | ABCDE F | ID=20.8 | ||
| 73 | I8-97944 127-0 | CLIP; HTR HOSE | 2 | 2007- | BCDE F | 4H3 ENG(LNG) M/T MVL 6 SPEED 6S(Y6S) ID=20.8 | ||
| 25 | I8-97503 703-1 | HOSE; WATERING TO HTR UNIT | 1 | 2007- | ABCDE F | RZ4E-TC ENG(RDZ) M/T MVL 6 SPEED 6Y(Y6P),M/T MVL 6 SPEED 6S(Y6S) (B) | ||
| 27 | I8-97491 372-0 | HOSE; WATER,HTR UNIT TO WATER PIPE | 1 | 2007- | ABCDE F | RZ4E-TC ENG(RDZ) (B) | ||
| 95 | I0-28050 816-0 | BOLT; BYPASS PIPE | 4 | 2007- | ABCDE F | 4JJ3 ENG(LNG) EUROO SPECIFICATI0N(K75),EURO2 SPECIFICATI0N(NT2),EUR04 SPECIFICATION(NT4) M8X16 FLANGE | ||
| 13 | I8-98133 607-0 | CLIP; HTR HOSE | 4 | 2007- | ABCDE F | ID=20.8 | ||
| 73 | I8-97944 127-0 | CLIP; HTR HOSE | 2 | 2007- | ABCDE F | 4JJ3 ENG(LNG) ID=20.8 | ||
| 95 | I0-28050 816-0 | BOLT; BYPASS PIPE | 4 | 2007- | ABCDE F | 4JJ3 ENG(LNG) EUROO SPECIFICATI0N(K75),EUR02 SPECIFICATI0N(NT2),EUR04 SPECIFICATION(NT4) M8X16 FLANGE | ||
| 25 | I8-97491 375-1 | HOSE; WATER,ENG TO HTR UNIT | 1 | 2007- | ABCDE F | RZ4E-TC ENG(RDZ) A/T 6 SPEED-AISIN(Y6A) (B) | ||
| 119 | I0-28050 816-0 | BOLT; RR HTR | 1 | 2007- | ABCDE F | 4JJ3 ENG(LNG) M8X16 FLANGE | ||
| 119 | I0-28050 816-0 | BOLT; RR HTR | 1 | 2007- | ABCDE F | 4JJ3 ENG(LNG) M8X16 FLANGE | ||
| 95 | I0-28050 816-0 | BOLT; BYPASS PIPE | 1 | 2007- | ABCDE F | 4JJ3 ENG(LNG) EUR05 SPECIFICATION(NT5) M8X16 FLANGE | ||
| 73 | I8-97944 127-0 | CLIP; HTR HOSE | 2 | 2007- | ABCDE F | 4L)3 ENG(LNG) ID=20.8 | ||
| 73 | I8-97944 127-0 | CLIP; HTR HOSE | 2 | 2007- | BCDE F | 4JJ3 ENG(LNG) M/T MVL 6 SPEED 6S(Y6S) ID=20.B | ||
| 13 | I8-98133 607-0 | CLIP; HTR HOSE | 4 | 2007- | ABCDE F | ID=20.8 | ||
| 95 | I0-28050 816-0 | BOLT; BYPASS PIPE | 1 | 2007- | ABCDE F | 4JJ3 ENG(LNG) EUR05 SPECIFICATION(NT5) M8X16 FLANGE | ||
| 13 | I8-98133 607-0 | CLIP; HTR HOSE | 4 | 2007- | ABCDE F | ID=20.8 |
