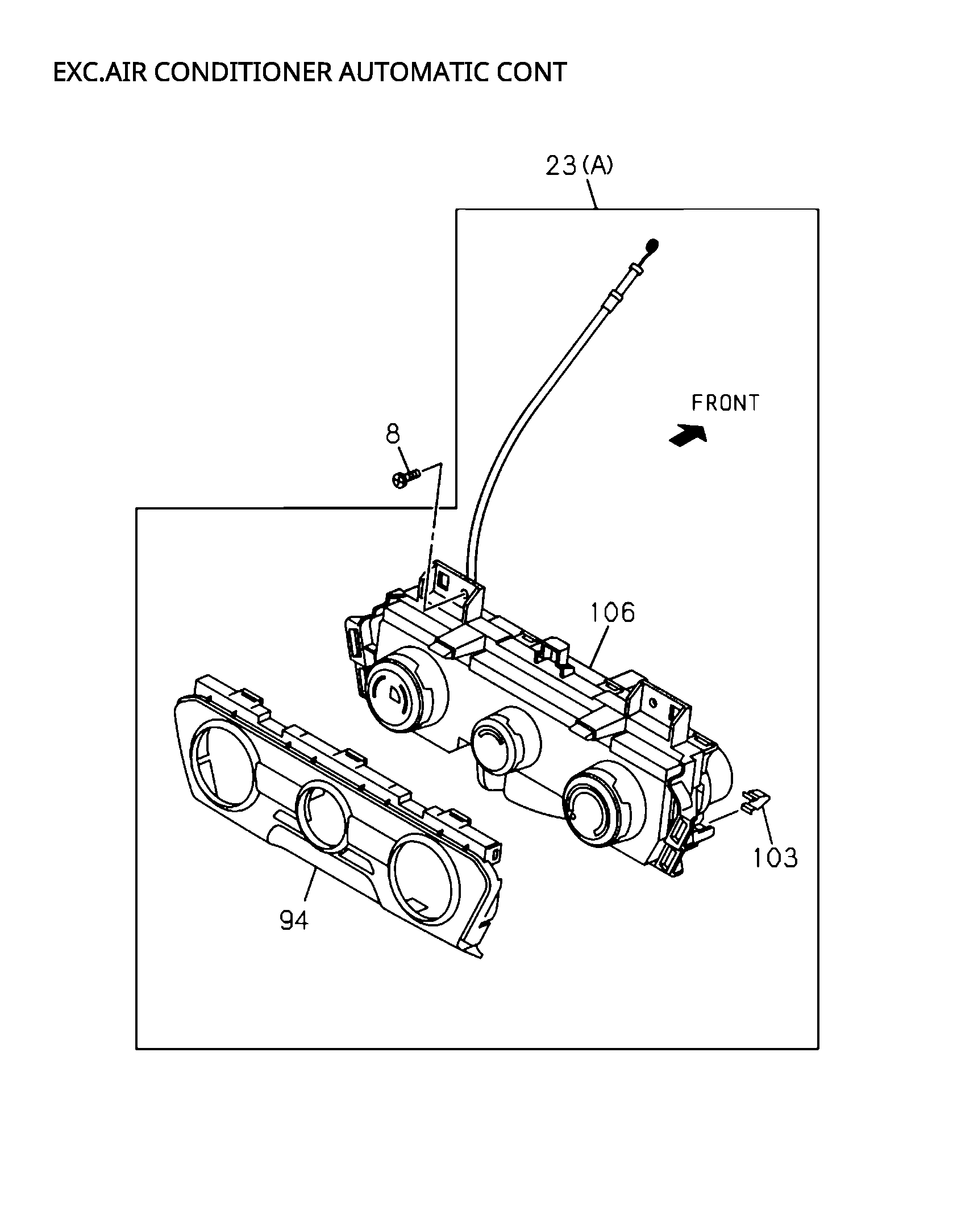

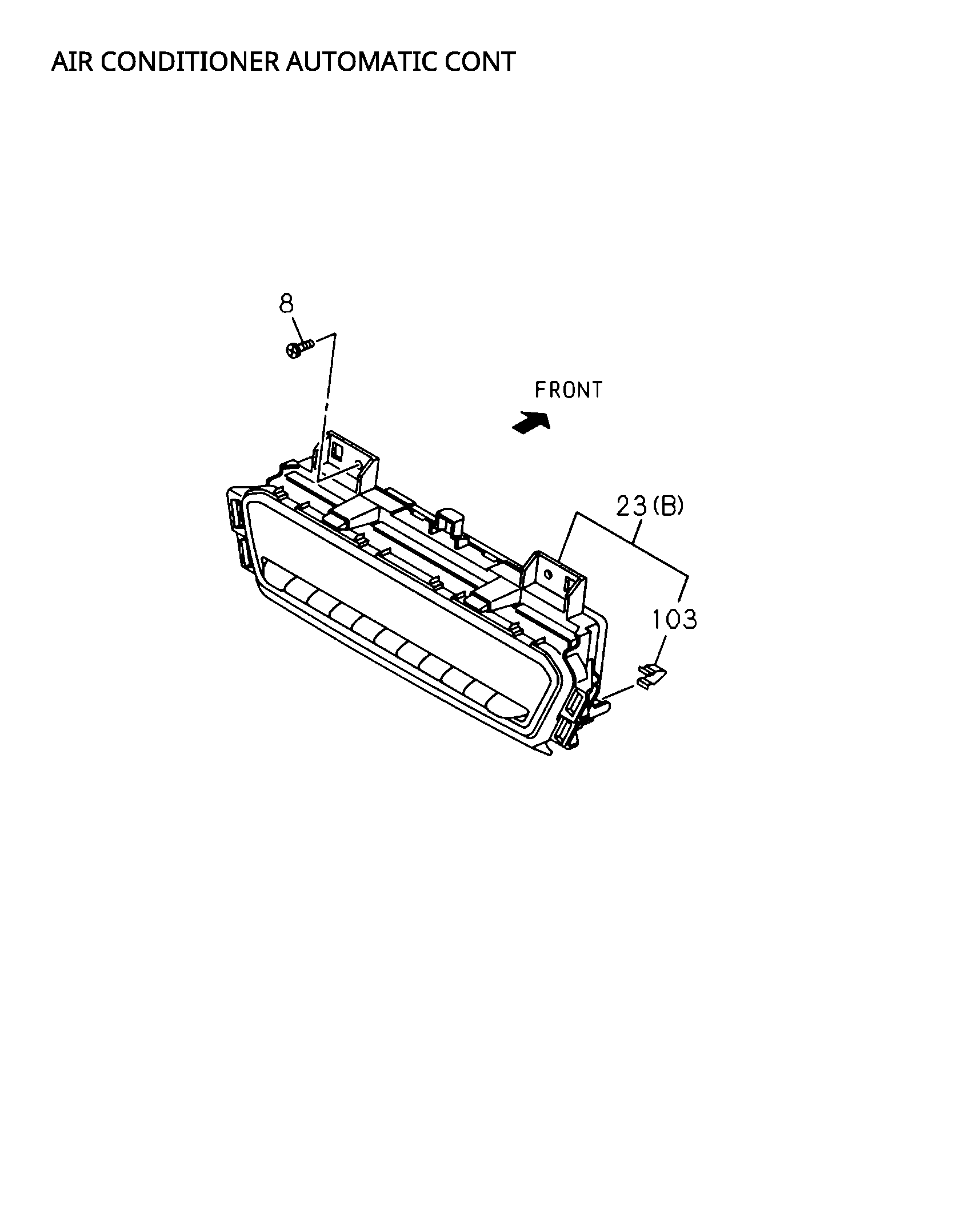

8-65 | 8-65 - CONTROL LEVER; HEATER AND AIR CON
DMAX
D-MAX 2021
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 8 | I8-98167 449-0 | SCREW; CONT LVR TO INST PNL | 2 | 2007- | ABCDE F | M5X16 TAPPING | ||
| 103 | I8-97554 439-0 | CLIP | 2 | 2007- | ABCDE F | HEATER 8c DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) | ||
| 103 | I8-97508 564-0 | CLIP | 2 | 2007- | A CD F | AIR CONDmONER AUTOMATIC CONT(C61) | ||
| 103 | I8-97508 564-0 | CLIP | 2 | 2007- | A CD F | AIR CONDmONER AUTOMATIC CONT(C61) | ||
| 8 | I8-98167 449-0 | SCREW; CONT LVR TO INST PNL | 2 | 2007- | ABCDE F | M5X16 TAPPING | ||
| 23 | I8-97491 425-2 | BEZEL; CONT LEVER | 1 | 2007- | A CD F | AIR CONDITIONER AUTOMATIC CONT(C61) (B) | ||
| 103 | I8-97554 439-0 | CLIP | 2 | 2007- | ABCDE F | HEATER 8t DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) | ||
| 94 | I8-97554 437-0 | PANEL; BEZEL | 1 | 2007- | ABCDE F | HEATER 8c DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) |
