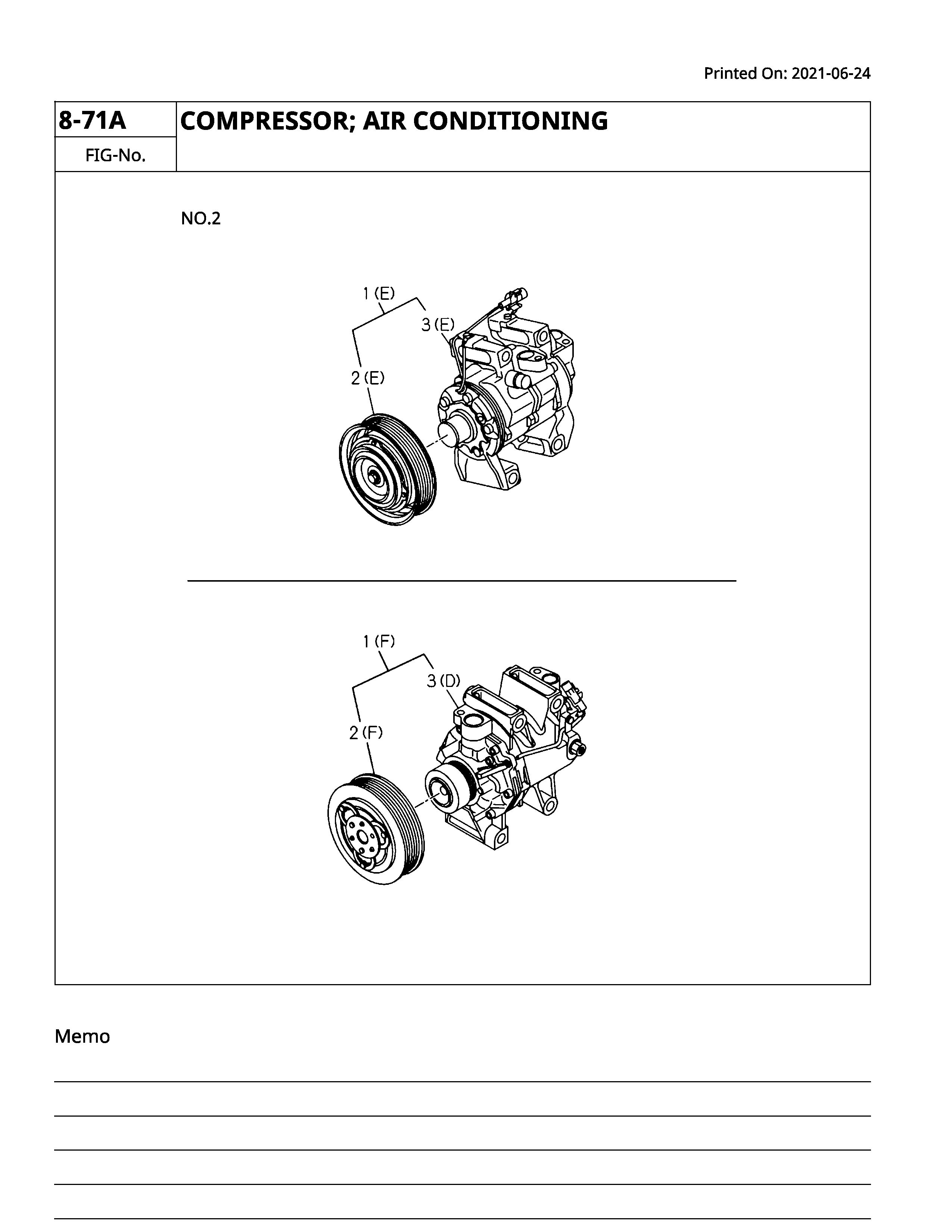

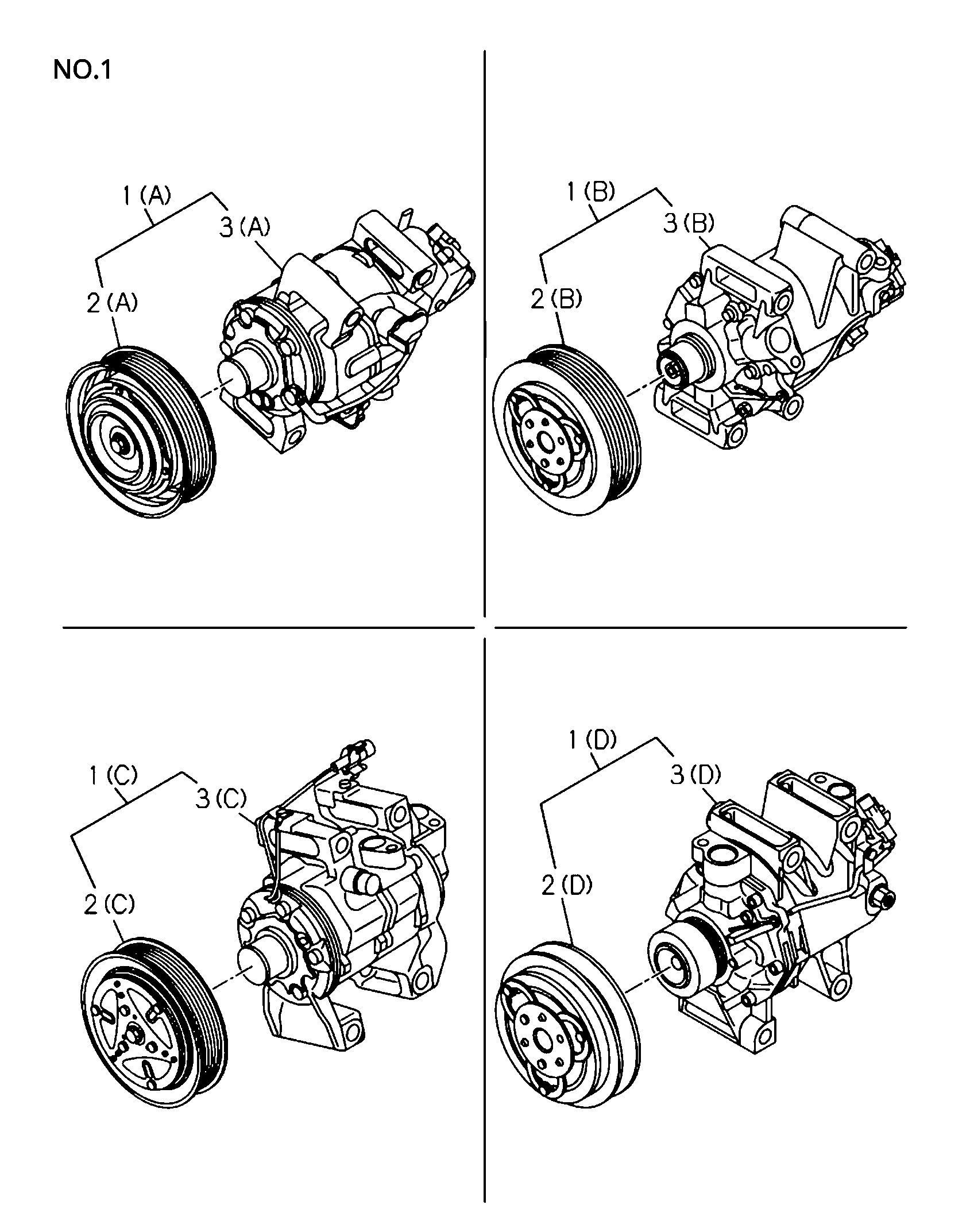

8-71 | 8-71 - COMPRESSOR; AIR CONDITIONING
DMAX
D-MAX 2021
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 3 | I8-97512 053-0 | COMPRESSOR ASM; A/C | 1 | 2007-2009 | A CD F | RZ4E-TCX HI-POWER ENG(LNC),RZ4E-TC ENG(RDZ) AIR CONDITIONER AUTOMATIC CONT(C61) (A) | ||
| 2 | I8-97507 246-0 | CLUTCH; MAGNET,A/C | 1 | 2010- | B D F | RZ4E-TCX HI-POWER ENG(LNC),RZ4E-TC ENG(RDZ) AIR CONDmONER MANUAL CONT(C60) (B) | ||
| 2 | I8-97507 246-0 | CLUTCH; MAG NET, A/C | 1 | 2007-2009 | ABCDE F | RZ4E-TCX HI-POWER ENG(LNC),RZ4E-TC ENG(RDZ) AIR CONDmONER MANUAL CONT(C60) (B) | ||
| 3 | I8-98391 443-0 | COMPRESSOR ASM; A/C | 1 | 2010- | B D F | RZ4E-TCX HI-POWER ENG(LNC),RZ4E-TC ENG(RDZ) AIR CONDITIONER MANUAL CONT(C60) (B) | ||
| 1 | I8-97491 379-1 | COMPRESSOR ASM; A/C | 1 | 2010- | A C | RZ4E-TC ENG(RDZ) AIR CONDITIONER AUTOMATIC CONT(C61) (A) | ||
| 3 | I8-97512 053-0 | COMPRESSOR ASM; A/C | 1 | 2010- | A C | RZ4E-TC ENG(RDZ) AIR CONDITIONER AUTOMATIC CONT(C61 ) (A) | ||
| 3 | I8-98391 443-0 | COMPRESSOR ASM; A/C | 1 | 2010- | ACE | RZ4E-TC ENG(RDZ) AIR CONDITIONER MANUAL CONT(C60) (B) | ||
| 2 | I8-97512 051-0 | CLUTCH; MAGNET,A/C | 1 | 2007-2009 | A CD F | RZ4E-TCX HI-POWER ENG(LNC),RZ4E-TC ENG(RDZ) AIR CONDmONER AUTOMATIC CONT(C61) (A) | ||
| 2 | I8-97512 051-0 | CLUTCH; MAG NET, A/C | 1 | 2010- | D F | RZ4E-TCX HI-POWER ENG(LNC),RZ4E-TC ENG(RDZ) AIR CONDmONER AUTOMATIC CONT(C61) (A) | ||
| 1 | I8-97491 377-0 | COMPRESSOR ASM; A/C | 1 | 2010- | ACE | RZ4E-TC ENG(RDZ) AIR CONDITIONER MANUAL CONT(C60) (B) | ||
| 1 | I8-97491 379-1 | COMPRESSOR ASM; A/C | 1 | 2010- | D F | RZ4E-TCX HI-POWER ENG(LNC),RZ4E-TC ENG(RDZ) AIR CONDmONER AUTOMATIC CONT(C61) (A) | ||
| 3 | I8-98391 443-0 | COM PRESSOR ASM; A/C | 1 | 2007-2009 | ABCDE F | RZ4E-TCX HI-POWER ENG(LNC),RZ4E-TC ENG(RDZ) AIR CONDITIONER MANUAL CONT(C60) (B) | ||
| 2 | I8-97512 051-0 | CLUTCH; MAG NET, A/C | 1 | 2010- | A C | RZ4E-TC ENG(RDZ) AIR CONDmONER AUTOMATIC CONT(C61) (A) | ||
| 3 | I8-97512 053-0 | COMPRESSOR ASM; A/C | 1 | 2010- | D F | RZ4E-TCX HI-POWER ENG(LNC),RZ4E-TC ENG(RDZ) AIR CONDITIONER AUTOMATIC CONT(C61) (A) | ||
| 1 | I8-97491 377-0 | COM PRESSOR ASM; A/C | 1 | 2007-2009 | ABCDE F | RZ4E-TCX HI-POWER ENG(LNC),RZ4E-TC ENG(RDZ) AIR CONDITIONER MANUAL CONT(C60) (B) | ||
| 1 | I8-97491 377-0 | COMPRESSOR ASM; A/C | 1 | 2010- | B D F | RZ4E-TCX HI-POWER ENG(LNC),RZ4E-TC ENG(RDZ) AIR CONDITIONER MANUAL CONT(C60) (B) | ||
| 2 | I8-97507 246-0 | CLUTCH; MAGNET,A/C | 1 | 2010- | ACE | RZ4E-TC ENG(RDZ) AIR CONDmONER MANUAL CONT(C60) (B) | ||
| 1 | I8-97491 379-1 | COM PRESSOR ASM; A/C | 1 | 2007-2009 | A CD F | RZ4E-TCX HI-POWER ENG(LNC),RZ4E-TC ENG(RDZ) AIR CONDITIONER AUTOMATIC CONT(C61) (A) |
