PORTAL SPAREPART

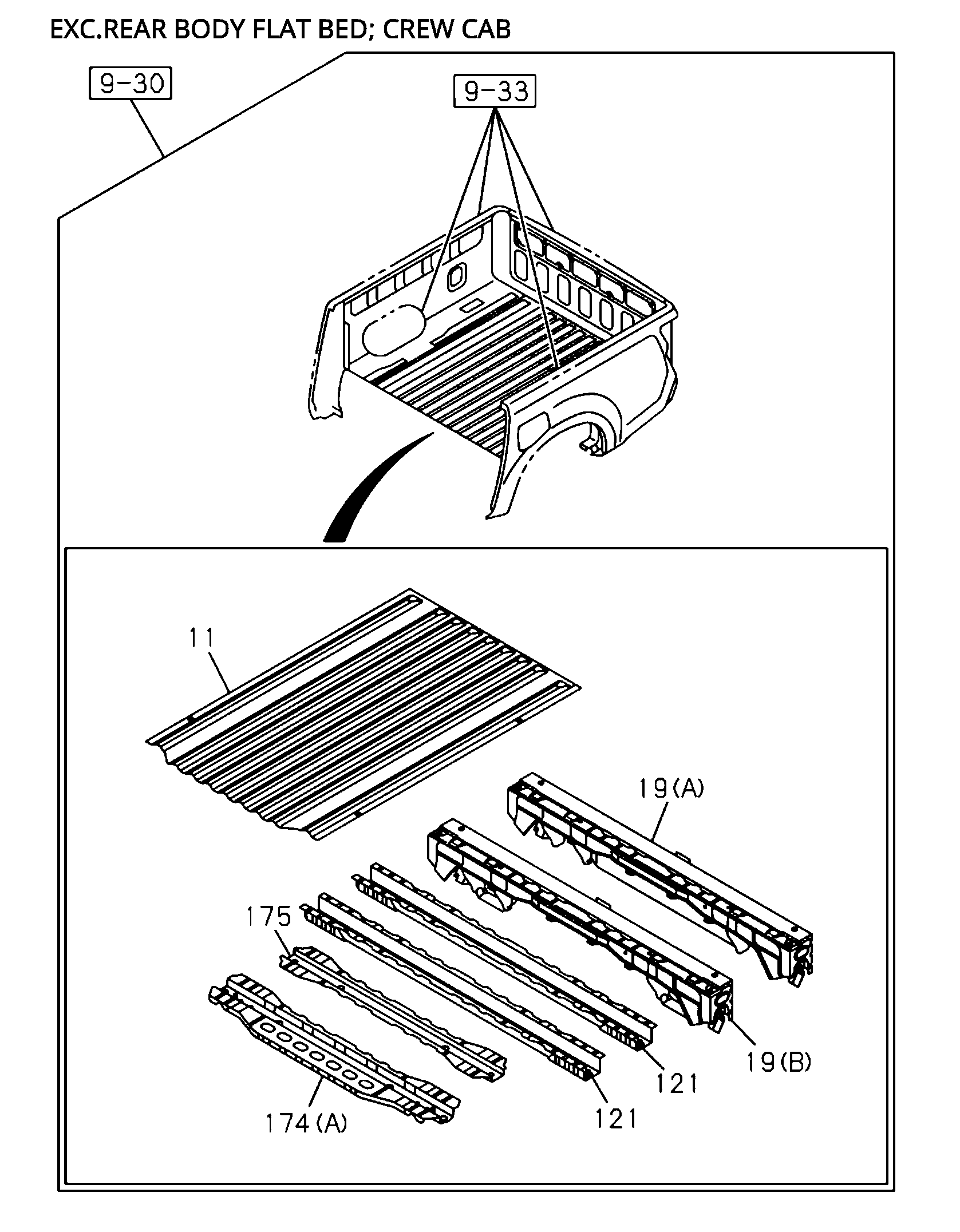

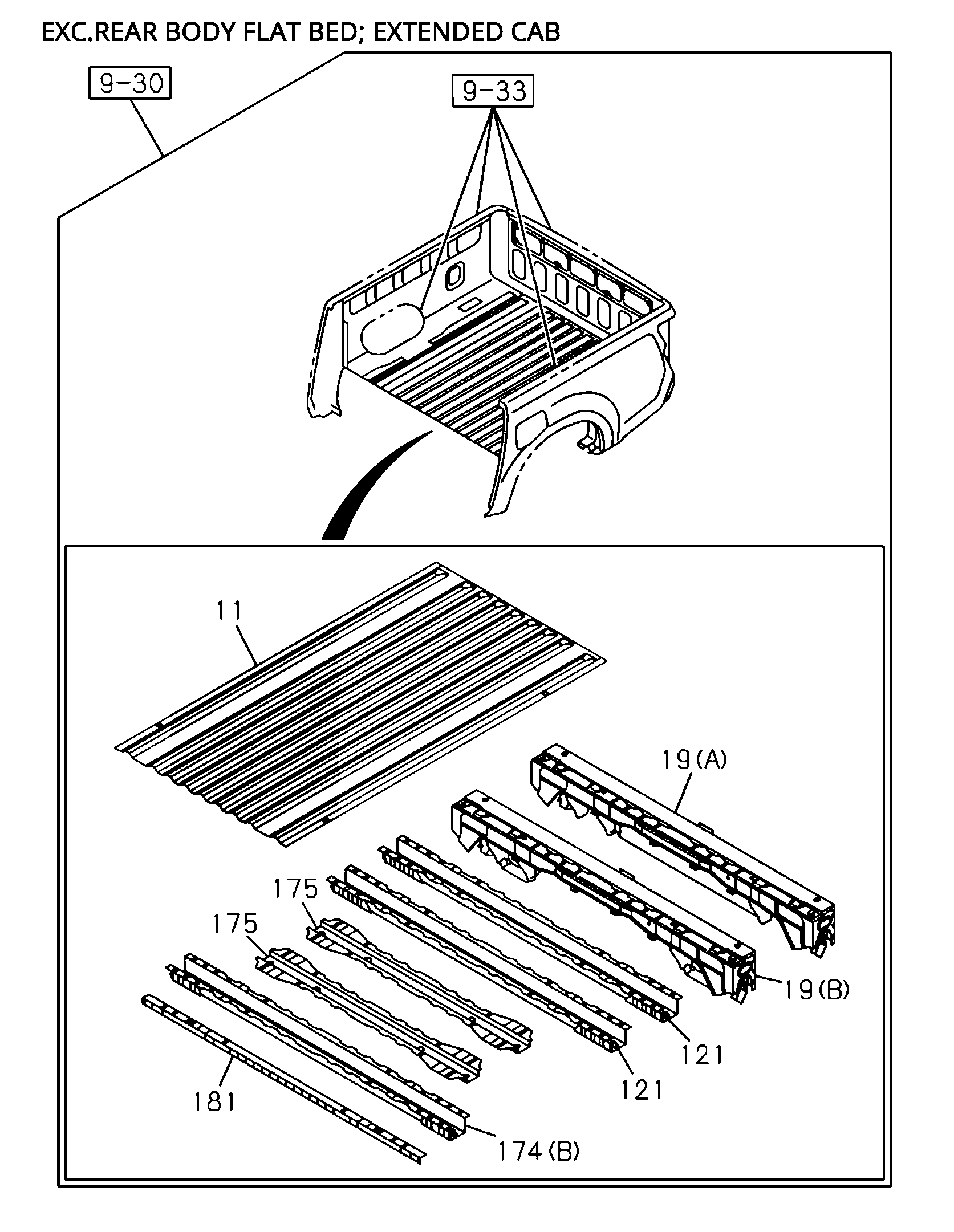

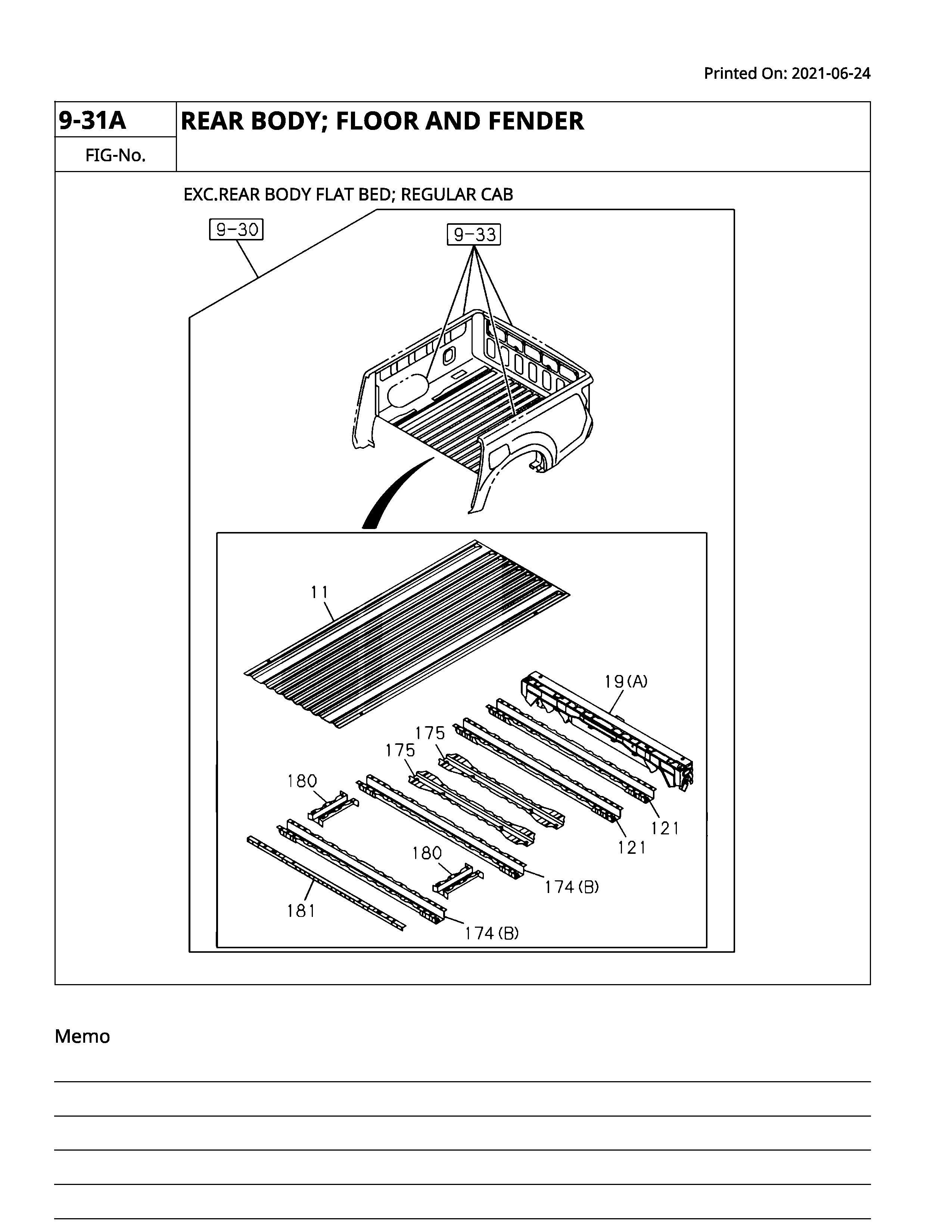

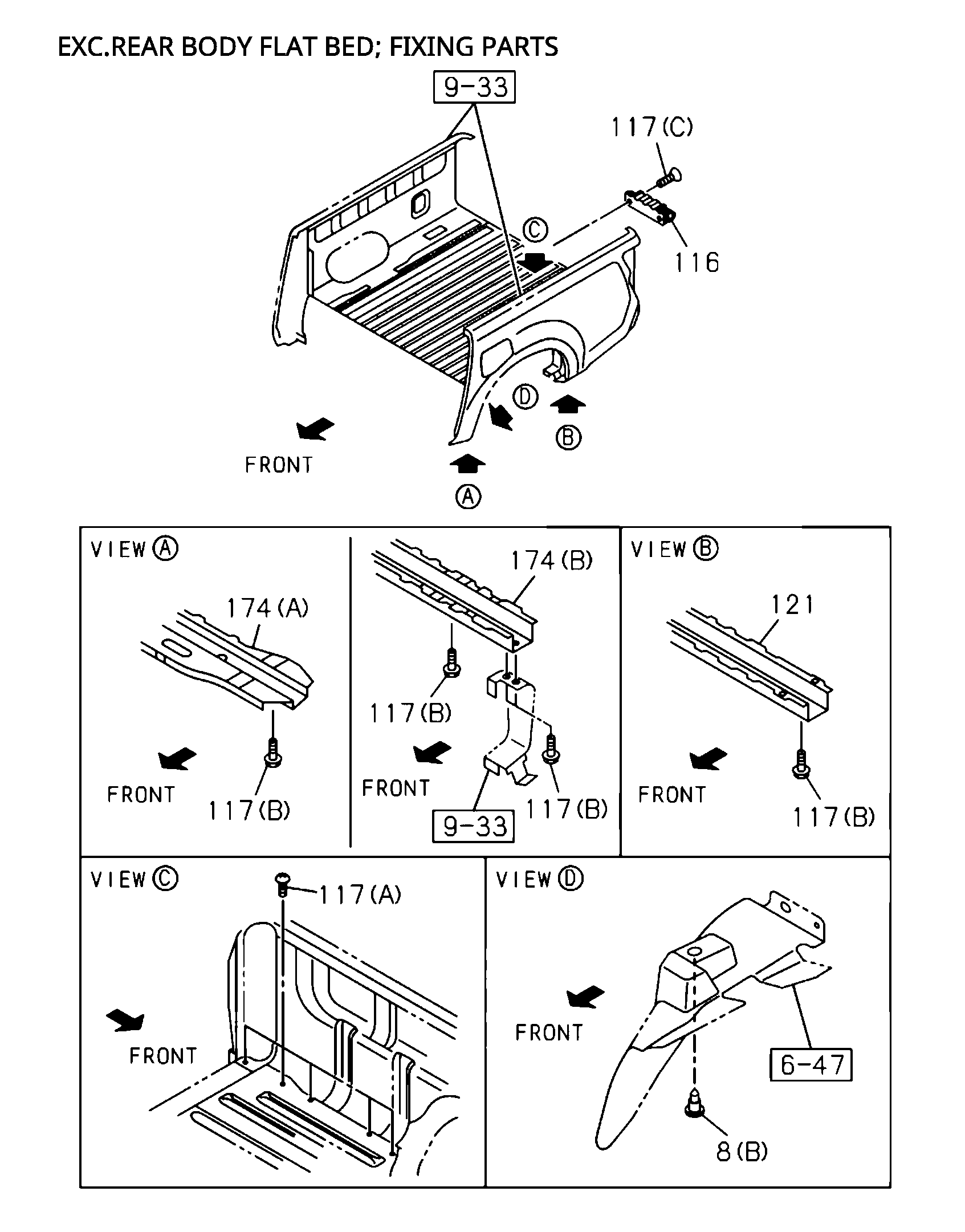

9-31 | 9-31 - REAR BODY; FLOOR AND FENDER

Partial Engine Partial Engine Partial Engine Partial Engine Partial Engine

DMAX

D-MAX 2021

Key PART NO ITC DESCRIPTION QTY APP DATE LR MODEL REMARKS
175 I8-98386 378-1 SILL; RR BODY CROSS NO.2 1 2007- C F REAR BODY DBL WALL CTR PULL(E63)
121 I8-98386 383-1 BOLSTER; RR BODY 2 2007- A
117 I8-98050 437-0 BOLT; SILL 2 2007- D F SOUTH AFRICA EQUIPMENT!B02),CONGO EQUIPMENT(CDF) REAR BODY DBL WALL CTR PULL(E63) (C) M8X22
116 I8-98104 017-1 SUPPORT; RR BODY.SILL 1 2007- D F SOUTH AFRICA EQUIPMENT(B02),CONGO EQUIPMENT(CDF) REAR BODY DBL WALL CTR PULL(E63)
19 I8-98399 087-5 BOLSTER; RR END.RR BODY 1 2007- B E REAR BODY DBL WALL CTR PULL(E63) (A)
19 I8-98399 087-5 BOLSTER; RR END.RR BODY 1 2007- A EXC. HIGH RIDE SUSPENSION(7YC) (A)
181 I8-98399 096-0 EXTENSION; RR BODY.SILL 1 2007- A
117 I8-98290 484-0 BOLT; SILL 10 2007- BCDE F REAR BODY DBL WALL CTR PULL(E63) (A) M8X16.5 HEXALOBULAR SOCKET
11 I8-98386 377-0 PANEL; FLOOR BOARD.RR BODY 1 2007- C F REAR BODY DBL WALL CTR PULL(E63)
121 I8-98386 383-1 BOLSTER; RR BODY 2 2007- BCDE F REAR BODY DBL WALL CTR PULL(E63)
19 I8-98399 087-5 BOLSTER; RR END.RR BODY 1 2007- C REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (A)
11 I8-98386 377-0 PANEL; FLOOR BOARD.RR BODY 1 2007- C F REAR BODY DBL WALL CTR PULL(E63)
175 I8-98386 378-1 SILL; RR BODY CROSS NO.2 1 2007- C F REAR BODY DBL WALL CTR PULL(E63)
175 I8-98386 378-1 SILL; RR BODY CROSS NO.2 1 2007- C F REAR BODY DBL WALL CTR PULL(E63)
19 I8-98399 087-5 BOLSTER; RR END.RR BODY 1 2007- C REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (A)
174 I8-98386 379-0 SILL; RR BODY CROSS N0.1 1 2007- C F REAR BODY DBL WALL CTR PULL(E63) (A)
11 I8-98399 076-0 PANEL; FLOOR BOARD.RR BODY 1 2007- B E REAR BODY DBL WALL CTR PULL(E63)
19 I8-98386 387-4 BOLSTER; RR END.RR BODY 1 2007- C REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) (B)
117 I8-98294 857-0 BOLT; SILL 10 2007- A (B) M8X20
116 I8-98104 017-1 SUPPORT; RR BODY.SILL 1 2007- B E REAR BODY DBL WALL CTR PULL(E63)
175 I8-98386 378-1 SILL; RR BODY CROSS NO.2 2 2007- A
19 I8-98386 387-4 BOLSTER; RR END.RR BODY 1 2007- C REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) (B)
175 I8-98386 378-1 SILL; RR BODY CROSS NO.2 2 2007- B DE REAR BODY DBL WALL CTR PULL(E63)
175 I8-98386 378-1 SILL; RR BODY CROSS NO.2 2 2007- B DE REAR BODY DBL WALL CTR PULL(E63)
117 I8-98294 857-0 BOLT; SILL 6 2007- A (B) M8X20
19 I8-98386 387-4 BOLSTER; RR END.RR BODY 1 2007- D F REAR BODY DBL WALL CTR PULL(E63) (B)
11 I8-98386 377-0 PANEL; FLOOR BOARD.RR BODY 1 2007- C F REAR BODY DBL WALL CTR PULL(E63)
181 I8-98399 096-0 EXTENSION; RR BODY.SILL 1 2007- B DE REAR BODY DBL WALL CTR PULL(E63)
8 I8-97301 188-0 HOLDER; FLAP RUBBER 2 2007- D REAR BODY DBL WALL CTR PULL(E63) SIDE STEP<6TC> (B)
180 I8-98399 083-0 REINFORCEMENT; SILL 2 2007- B E REAR BODY DBL WALL CTR PULL(E63)
121 I8-98386 383-1 BOLSTER; RR BODY 2 2007- BCDE F REAR BODY DBL WALL CTR PULL(E63)
116 I8-98104 017-1 SUPPORT; RR BODY.SILL 1 2007- A SOUTH AFRICA EQUIPMENT(B02)
117 I8-98294 857-0 BOLT; SILL 10 2007- BCDE F REAR BODY DBL WALL CTR PULL(E63) (B) M8X20
121 I8-98386 383-1 BOLSTER; RR BODY 2 2007- A
121 I8-98386 383-1 BOLSTER; RR BODY 2 2007- BCDE F REAR BODY DBL WALL CTR PULL(E63)
19 I8-98386 387-4 BOLSTER; RR END.RR BODY 1 2007- A HIGH RIDE SUSPENSION(7YC) (B)
175 I8-98386 378-1 SILL; RR BODY CROSS NO.2 2 2007- B DE REAR BODY DBL WALL CTR PULL(E63)
19 I8-98386 387-4 BOLSTER; RR END.RR BODY 1 2007- A HIGH RIDE SUSPENSION(7YC) (B)
19 I8-98399 087-5 BOLSTER; RR END.RR BODY 1 2007- B E REAR BODY DBL WALL CTR PULL(E63) (A)
19 I8-98386 387-4 BOLSTER; RR END.RR BODY 1 2007- D F REAR BODY DBL WALL CTR PULL(E63) (B)
121 I8-98386 383-1 BOLSTER; RR BODY 2 2007- A
121 I8-98386 383-1 BOLSTER; RR BODY 2 2007- BCDE F REAR BODY DBL WALL CTR PULL(E63)
11 I8-98399 076-0 PANEL; FLOOR BOARD.RR BODY 1 2007- B E REAR BODY DBL WALL CTR PULL(E63)
8 I8-97301 188-0 HOLDER; FLAP RUBBER 2 2007- A EXC. SIDE STEP<6TC>,HIGH RIDE SUSPENSION(7YC) (B)
19 I8-98399 087-5 BOLSTER; RR END.RR BODY 1 2007- C REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (A)
174 I8-98399 079-1 SILL; RR BODY CROSS NO.1 1 2007- D REAR BODY DBL WALL CTR PULL(E63) (B)
175 I8-98386 378-1 SILL; RR BODY CROSS NO.2 2 2007- A
117 I8-98294 857-0 BOLT; SILL 6 2007- D REAR BODY DBL WALL CTR PULL(E63) (B) M8X20
117 I8-98294 857-0 BOLT; SILL 10 2007- B E REAR BODY DBL WALL CTR PULL(E63) (B) M8X20
174 I8-98399 079-1 SILL; RR BODY CROSS NO.1 1 2007- D REAR BODY DBL WALL CTR PULL(E63) (B)
117 I8-98050 437-0 BOLT; SILL 2 2007- C REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOK5<7MZ> (C) M8X22
11 I8-98399 076-0 PANEL; FLOOR BOARD.RR BODY 1 2007- B E REAR BODY DBL WALL CTR PULL(E63)
117 I8-98050 437-0 BOLT; SILL 2 2007- A SOUTH AFRICA EQUIPMENT(B02) (C) M8X22
116 I8-98104 017-1 SUPPORT; RR BODY.SILL 1 2007- C REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ>
121 I8-98386 383-1 BOLSTER; RR BODY 2 2007- A
174 I8-98386 379-0 SILL; RR BODY CROSS NO.1 1 2007- C F REAR BODY DBL WALL CTR PULL(E63) (A)
117 I8-98050 437-0 BOLT; SILL 2 2007- C SOUTH AFRICA EQUIPMENT!B02) REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> (C) M8X22
117 I8-98290 484-0 BOLT; SILL 10 2007- A (A) M8X16.5 HEXALOBULAR SOCKET
117 I8-98294 857-0 BOLT; SILL 2 2007- C F REAR BODY DBL WALL CTR PULL(E63) (B) M8X20
174 I8-98399 079-1 SILL; RR BODY CROSS NO.1 2 2007- B E REAR BODY DBL WALL CTR PULL(E63) (B)
117 I8-98050 437-0 BOLT; SILL 2 2007- B E REAR BODY DBL WALL CTR PULL(E63) (C) M8X22
19 I8-98399 087-5 BOLSTER; RR END.RR BODY 1 2007- B E REAR BODY DBL WALL CTR PULL(E63) (A)
19 I8-98399 087-5 BOLSTER; RR END.RR BODY 1 2007- A EXC. HIGH RIDE SUSPENSION(7YC) (A)
19 I8-98399 087-5 BOLSTER; RR END.RR BODY 1 2007- A EXC. HIGH RIDE SUSPENSION(7YC) (A)
181 I8-98399 096-0 EXTENSION; RR BODY,SILL 1 2007- B DE REAR BODY DBL WALL CTR PULL(E63)
116 I8-98104 017-1 SUPPORT; RR BODY.SILL 1 2007- C SOUTH AFRICA EQUIPMENT!B02) REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ>
174 I8-98399 079-1 SILL; RR BODY CROSS NO.1 2 2007- B E REAR BODY DBL WALL CTR PULL(E63) (B)
174 I8-98399 079-1 SILL; RR BODY CROSS N0.1 1 2007- D REAR BODY DBL WALL CTR PULL(E63) (B)
181 I8-98399 096-0 EXTENSION; RR BODY,SILL 1 2007- A
174 I8-98399 079-1 SILL; RR BODY CROSS N0.1 2 2007- B E REAR BODY DBL WALL CTR PULL(E63) (B)
174 I8-98399 079-1 SILL; RR BODY CROSS N0.1 1 2007- A (B)
174 I8-98399 079-1 SILL; RR BODY CROSS NO.1 1 2007- A (B)
175 I8-98386 378-1 SILL; RR BODY CROSS NO.2 2 2007- A
8 I8-97301 188-0 HOLDER; FLAP RUBBER 2 2007- A SIDE STEP<6TC> (B)
174 I8-98399 079-1 SILL; RR BODY CROSS NO.1 1 2007- A (B)
