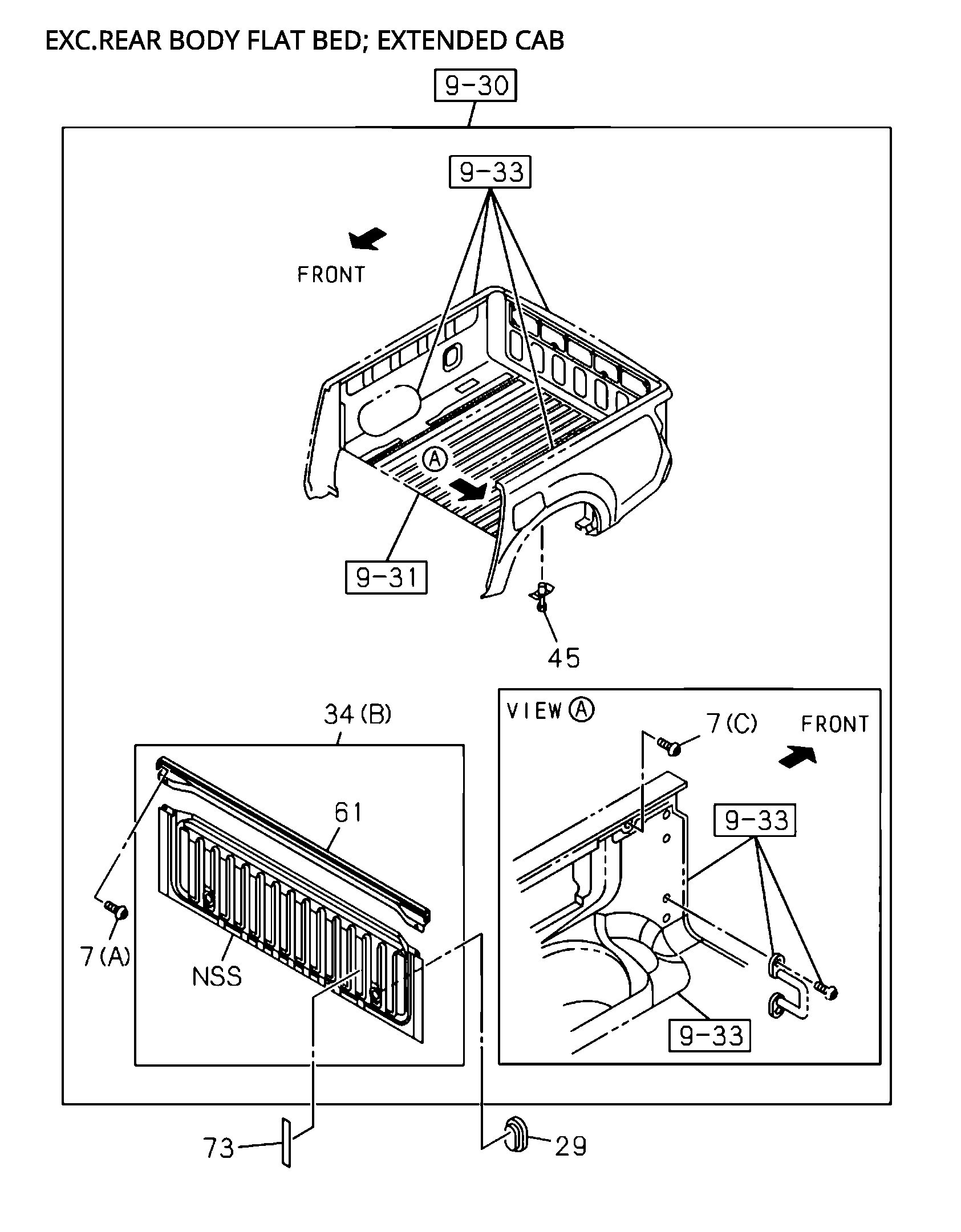

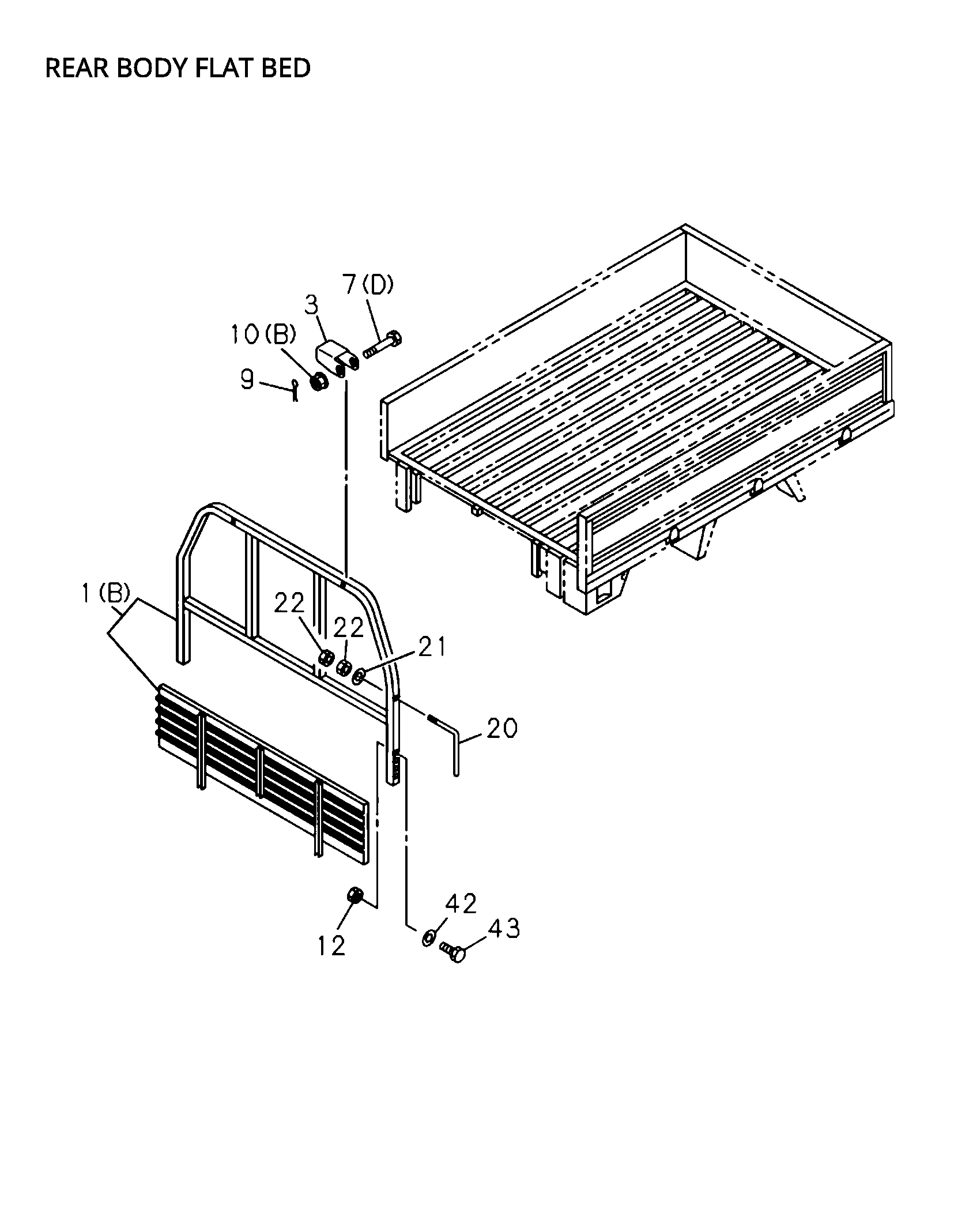

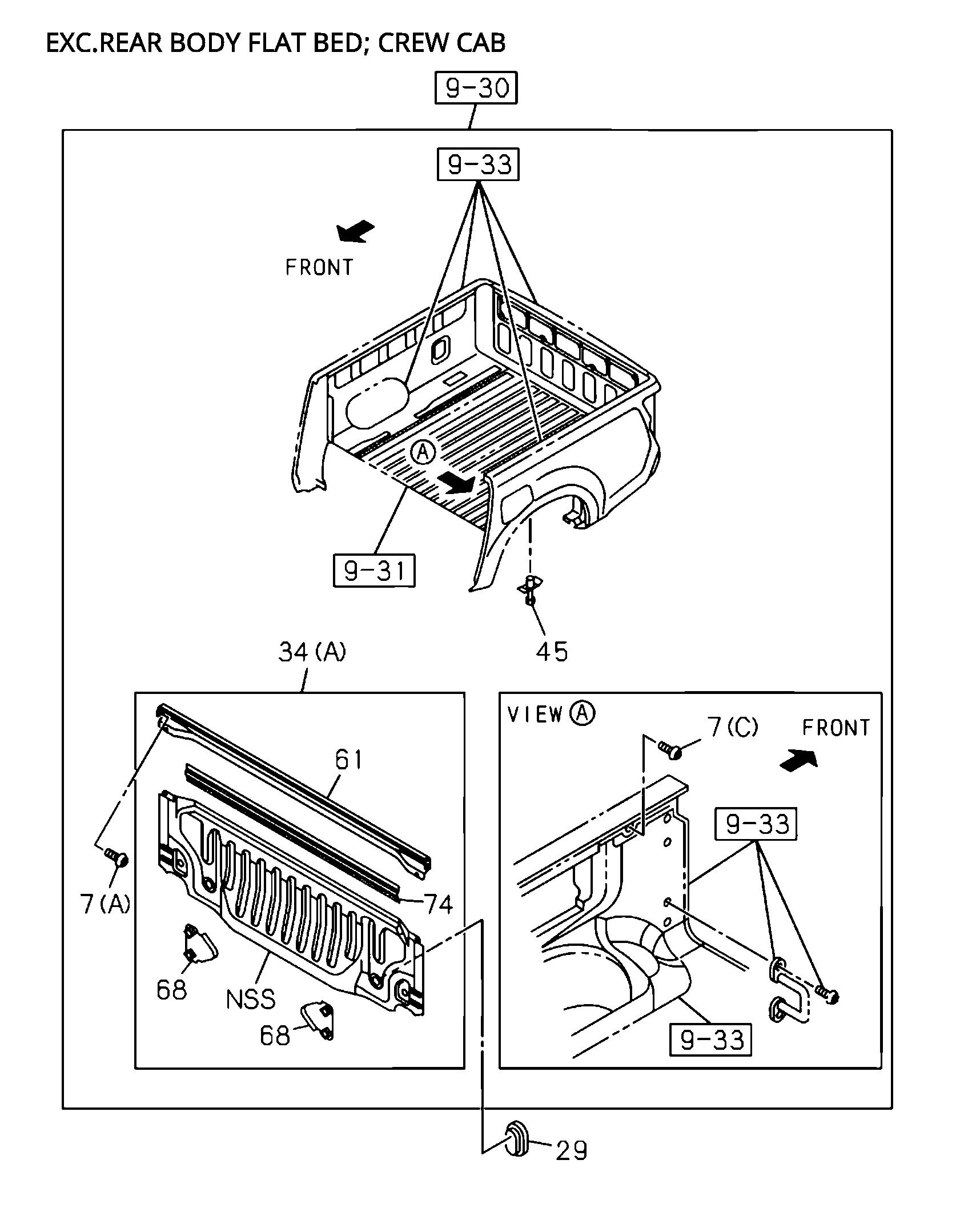

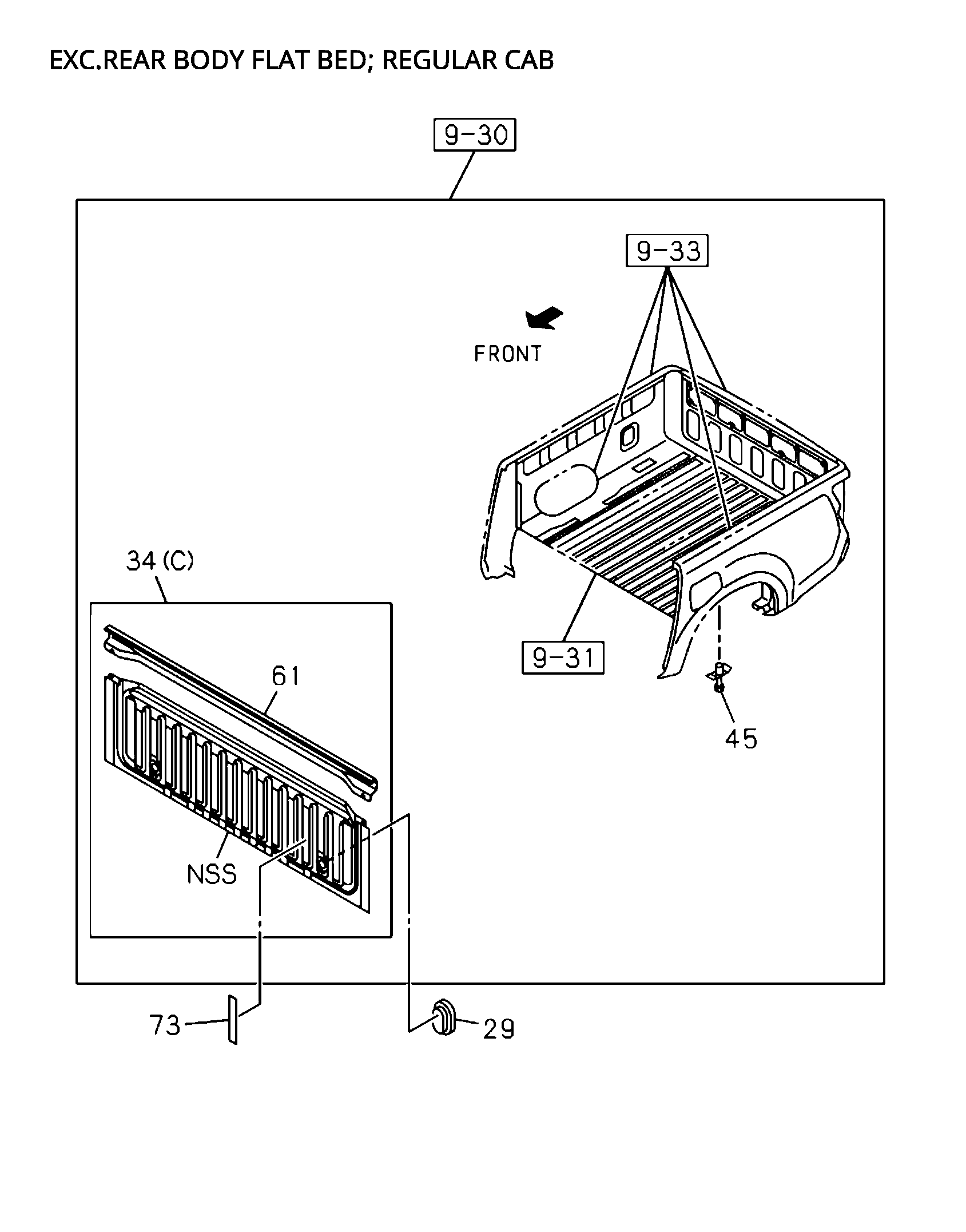

9-32 | 9-32 - REAR BODY; GUARD FRAME

Partial Engine Partial Engine Partial Engine Partial Engine Partial Engine

DMAX

D-MAX 2021

Key PART NO ITC DESCRIPTION QTY APP DATE LR MODEL REMARKS
7 I8-98152 995-2 BOLT; GUARD FRAME STOPPER,RR BODY 6 2103- B E REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> OUTER ROPE HOOKS<7MZ> (A) M8X20.5 HEXALOBULAR SOCKET
45 I8-94221 150-0 RIVET; DUST SHIELD COVER,RR BODY 14 2007- B E REAR BODY DBL WALL CTR PULL(E63)
7 I8-98290 484-0 BOLT; GUARD FRAME STOPPER,RR BODY 2 2103- C REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> EXC. OUTER ROPE HOOKS<7MZ> (A) M8X16.5 HEXALOBULAR SOCKET
7 I8-98152 995-2 BOLT; GUARD FRAME STOPPER,RR BODY 6 2007-2102 A GUARD FRAME BAR CARGO TIE DOWN<V89> (A) M8X20.5 HEXALOBULAR SOCKET
7 I8-98290 484-0 BOLT; GUARD FRAME STOPPER,RR BODY 2 2103- D F REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> (A) M8X16.5 HEXALOBULAR SOCKET
34 I8-98386 414-2 PANEL; FRT,RR BODY 1 2007-2102 F REAR BODY DBL WALL CTR PULL(E63) (A)
7 I8-98290 484-0 BOLT; GUARD FRAME STOPPER.RR BODY 4 2103- C REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89>,OUTER ROPE HOOKS<7MZ> (A) M8X16.S HEXALOBULAR SOCKET
61 I8-98386 415-2 BAR ASM 1 2007-2102 A EXC. GUARD FRAME BAR CARGO TIE DOWN<V89>
45 I8-94221 150-0 RIVET; DUST SHIELD COVER.RR BODY 14 2007- A EXC. HIGH RIDE SUSPENSION(7YC)
7 I8-98056 129-0 BOLT; GUARD FRAME STOPPER,RR BODY 2 2007- ABCDE AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14), GENERAL EXPORT EQUIPMENTfTAA) REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> (B) M6X45
7 I8-98152 995-2 BOLT; GUARD FRAME STOPPER,RR BODY 6 2007-2102 CD REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> (A) M8X20.5 HEXALOBULAR SOCKET
61 I8-98386 415-2 BAR ASM 1 2103- C REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89>,OUTER ROPE HOOKS<7MZ>
61 I8-98386 415-2 BAR ASM 1 2007-2102 A EXC. GUARD FRAME BAR CARGO TIE DOWN<V89>
7 I8-98152 995-2 BOLT; GUARD FRAME STOPPER,RR BODY 6 2007-2102 B E REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> OUTER ROPE HOOKS<7MZ> (A) M8X20.5 HEXALOBULAR SOCKET
7 I8-98290 484-0 BOLT; GUARD FRAME STOPPER,RR BODY 2 2007-2102 A GUARD FRAME BAR CARGO TIE DOWN<V89> (A) M8X16.5 HEXALOBULAR SOCKET
7 I8-98152 995-2 BOLT; GUARD FRAME STOPPER,RR BODY 6 2007-2102 CD REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> (A) M8X20.5 HEXALOBULAR SOCKET
7 I8-98290 484-0 BOLT; GUARD FRAME STOPPER,RR BODY 4 2103- A EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> (A) M8X16.5 HEXALOBULAR SOCKET
34 I8-98391 604-1 PANEL; FRT.RR BODY 1 2007- B E REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> OUTER ROPE HOOK5<7MZ> (O
7 I8-98290 484-0 BOLT; GUARD FRAME STOPPER,RR BODY 2 2007-2102 A GUARD FRAME BAR CARGO TIE DOWN<V89> (A) M8X16.5 HEXALOBULAR SOCKET
7 I8-98290 484-0 BOLT; GUARD FRAME STOPPER,RR BODY 4 2007-2102 C REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89>,OUTER ROPE HOOKS<7MZ> (A) M8X16.5 HEXALOBULAR SOCKET
7 I8-98152 995-2 BOLT; GUARD FRAME STOPPER,RR BODY 6 2007-2102 CD REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> (A) M8X20.5 HEXALOBULAR SOCKET
61 I8-98386 415-2 BAR ASM 1 2103- C REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89>,OUTER ROPE HOOKS<7MZ>
7 I8-98152 995-2 BOLT; GUARD FRAME STOPPER,RR BODY 6 2103- B E REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> OUTER ROPE HOOKS<7MZ> (A) M8X20.5 HEXALOBULAR SOCKET
61 I8-98386 415-2 BAR ASM 1 2007-2102 F REAR BODY DBL WALL CTR PULL(E63)
5 I8-98056 308-0 WASHER; PL,GUARD FRAME STOPPER 2 2007-2007 A GUARD FRAME BAR CARGO TIE DOWN<V89>
7 I8-98290 484-0 BOLT; GUARD FRAME STOPPER,RR BODY 4 2007-2102 F REAR BODY DBL WALL CTR PULL(E63) (A) M8X16.5 HEXALOBULAR SOCKET
7 I8-98290 484-0 BOLT; GUARD FRAME STOPPER,RR BODY 2 2007-2102 C REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> EXC. OUTER ROPE HOOKS<7MZ> (A) M8X16.5 HEXALOBULAR SOCKET
61 I8-98386 419-1 BAR ASM 1 2007- BC E REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> OUTER ROPE HOOKS<7MZ>
3 I8-97352 624-1 STOPPER; GUARD FRAME,RR BODY 2 2007-2007 BCDE REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89>
7 I8-98290 484-0 BOLT; GUARD FRAME STOPPER,RR BODY 4 2007-2102 F REAR BODY DBL WALL CTR PULL(E63) (A) M8X16.5 HEXALOBULAR SOCKET
45 I8-94221 150-0 RIVET; DUST SHIELD COVER.RR BODY 12 2007- D F REAR BODY DBL WALL CTR PULL(E63)
61 I8-98386 415-2 BAR ASM 1 2103- C REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89>,OUTER ROPE HOOKS<7MZ>
7 I8-98152 995-2 BOLT; GUARD FRAME STOPPER,RR BODY 6 2103- CD F REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> (A) M8X20.5 HEXALOBULAR SOCKET
7 I8-98056 129-0 BOLT; GUARD FRAME STOPPER,RR BODY 2 2007-2007 A GUARD FRAME BAR CARGO TIE DOWN<V89> (B) M6X45
61 I8-98386 415-2 BAR ASM 1 2007-2102 D REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89>
37 I0-28050 612-0 BOLT; GUARD FRAME 5 2103- B E REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> OUTER ROPE HOOK5<7MZ> M6X12 FLANGE
61 I8-98386 415-2 BAR ASM 1 2007-2102 C REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89>,OUTER ROPE HOOKS<7MZ>
61 I8-98386 415-2 BAR ASM 1 2007-2102 A EXC. GUARD FRAME BAR CARGO TIE DOWN<V89>
61 I8-98386 415-2 BAR ASM 1 2103- A EXC. GUARD FRAME BAR CARGO TIE DOWN<V89>
22 I0-91111 512-0 NUT; FRT HANDLE 4 2007- B REAR BODY FLAT BED(E39) M12
45 I8-94221 150-0 RIVET; DUST SHIELD COVER.RR BODY 12 2007- D F REAR BODY DBL WALL CTR PULL(E63)
45 I8-94221 150-0 RIVET; DUST SHIELD COVER,RR BODY 14 2007- C REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC)
3 I8-97352 624-1 STOPPER; GUARD FRAME,RR BODY 2 2007- ABCDE AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14), GENERAL EXPORT EQUIPMENT(TAA) REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89>
45 I8-94221 150-0 RIVET; DUST SHIELD COVER,RR BODY 12 2007- D F REAR BODY DBL WALL CTR PULL(E63)
7 I8-98290 484-0 BOLT; GUARD FRAME STOPPER,RR BODY 4 2103- A EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> (A) M8X16.5 HEXALOBULAR SOCKET
29 I8-97918 416-0 COVER; GUARD FRAME 2 2007- A
74 I8-97537 162-0 REINFORCEMENT 1 2007- C REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89>,OUTER ROPE HOOKS<7MZ>
7 I8-98290 484-0 BOLT; GUARD FRAME STOPPER,RR BODY 2 2007-2102 D REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> (A) M8X16.5 HEXALOBULAR SOCKET
7 I8-98290 484-0 BOLT; GUARD FRAME STOPPER,RR BODY 4 2103- C REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89>,OUTER ROPE HOOKS<7MZ> M8X16.5 HEXALOBULAR SOCKET
34 I8-98386 414-2 PANEL; FRT.RR BODY 1 2103- F REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> (A)
10 I8-98056 127-0 NUT; GUARD FRAME STOPPER 2 2007- ABCDE AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14), GENERAL EXPORT EQUIPMENT(TAA) REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> (A) M6
7 I8-98152 995-2 BOLT; GUARD FRAME STOPPER,RR BODY 6 2007-2102 A GUARD FRAME BAR CARGO TIE DOWN<V89> (A) M8X20.5 HEXALOBULAR SOCKET
7 I8-98290 484-0 BOLT; GUARD FRAME STOPPER,RR BODY 2 2007-2102 C REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> EXC. OUTER ROPE HOOKS<7MZ> (A) M8X16.5 HEXALOBULAR SOCKET
73 I8-97559 200-0 PROTECTOR; TAPE 2 2007- B DE REAR BODY DBL WALL CTR PULL(E63)
61 I8-98386 415-2 BAR ASM 1 2007-2102 C REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89>,OUTER ROPE HOOKS<7MZ>
43 I0-28650 825-0 BOLT; GUARD FRAME.RR BODY 7 2007- B REAR BODY FLAT BED(E39) M8X25 FLANGE
5 I8-98056 308-0 WASHER; PL,GUARD FRAME STOPPER 2 2007-2007 BCDE REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89>
61 I8-98386 415-2 BAR ASM 1 2007-2102 F REAR BODY DBL WALL CTR PULL(E63)
45 I8-94221 150-0 RIVET; DUST SHIELD COVER,RR BODY 12 2007- C REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC)
45 I8-94221 150-0 RIVET; DUST SHIELD COVER,RR BODY 12 2007- C REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC)
7 I8-98152 995-2 BOLT; GUARD FRAME STOPPER,RR BODY 6 2103- CD F REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> (A) M8X20.5 HEXALOBULAR SOCKET
37 I0-28050 612-0 BOLT; GUARD FRAME 5 2103- CD F REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> M6X12 FLANGE
34 I8-98386 414-2 PANEL; FRT,RR BODY 1 2007-2102 C REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89>,OUTER ROPE HOOK5<7MZ> (A)
7 I8-98294 857-0 BOLT; GUARD FRAME STOPPER,RR BODY 2 2007- C REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> (O M8X20
7 I8-98294 857-0 BOLT; GUARD FRAME STOPPER,RR BODY 2 2007- D F REAR BODY DBL WALL CTR PULL(E63) (C) M8X20
37 I0-28050 612-0 BOLT; GUARD FRAME 5 2007-2102 CD REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> M6X12 FLANGE
7 I8-98290 484-0 BOLT; GUARD FRAME STOPPER.RR BODY 4 2103- D F REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWNiV89> (A) M8X16.5 HEXALOBULAR SOCKET
29 I8-97918 416-0 COVER; GUARD FRAME 2 2007- A
45 I8-94221 150-0 RIVET; DUST SHIELD COVER.RR BODY 14 2007- B E REAR BODY DBL WALL CTR PULL(E63)
3 I8-97352 624-1 STOPPER; GUARD FRAME,RR BODY 2 2007-2007 BCDE REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89>
74 I8-97537 162-0 REINFORCEMENT 1 2007- F REAR BODY DBL WALL CTR PULL(E63)
29 I8-97918 416-0 COVER; GUARD FRAME 2 2007- BCDE F REAR BODY DBL WALL CTR PULL(E63)
7 I8-98290 484-0 BOLT; GUARD FRAME STOPPER,RR BODY 4 2007-2102 C REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89>,OUTER ROPE HOOKS<7MZ> (A) M8X16.5 HEXALOBULAR SOCKET
7 I8-98056 129-0 BOLT; GUARD FRAME STOPPER,RR BODY 2 2007-2007 BCDE REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> (B) M6X45
73 I8-97559 200-0 PROTECTOR; TAPE 2 2007- A
7 I8-98290 484-0 BOLT; GUARD FRAME STOPPER,RR BODY 2 2103- A GUARD FRAME BAR CARGO TIE DOWN<V89> (A) M8X16.5 HEXALOBULAR SOCKET
7 I8-98152 995-2 BOLT; GUARD FRAME STOPPER,RR BODY 6 2103- B E REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> OUTER ROPE HOOKS<7MZ> (A) M8X20.5 HEXALOBULAR SOCKET
45 I8-94221 150-0 RIVET; DUST SHIELD COVER,RR BODY 12 2007- A HIGH RIDE SUSPENSION(7YC)
61 I8-98386 415-2 BAR ASM 1 2007-2102 D REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89>
7 I8-98290 484-0 BOLT; GUARD FRAME STOPPER,RR BODY 4 2007-2102 A EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> (A) M8X16.5 HEXALOBULAR SOCKET
61 I8-98386 419-1 BAR ASM 1 2007- BC E REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> OUTER ROPE HOOKS<7MZ>
45 I8-94221 150-0 RIVET; DUST SHIELD COVER,RR BODY 14 2007- A EXC. HIGH RIDE SUSPENSION(7YC)
45 I8-94221 150-0 RIVET; DUST SHIELD COVER,RR BODY 12 2007- A HIGH RIDE SUSPENSION(7YC)
29 I8-97918 416-0 COVER; GUARD FRAME 2 2007- BCDE F REAR BODY DBL WALL CTR PULL(E63)
7 I8-98290 484-0 BOLT; GUARD FRAME STOPPER.RR BODY 4 2103- C REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89>,OUTER ROPE HOOKS<7MZ> (A) M8X16.5 HEXALOBULAR SOCKET
45 I8-94221 150-0 RIVET; DUST SHIELD COVER,RR BODY 14 2007- C REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC)
45 I8-94221 150-0 RIVET; DUST SHIELD COVER,RR BODY 14 2007- B E REAR BODY DBL WALL CTR PULL(E63)
7 I8-98294 857-0 BOLT; GUARD FRAME STOPPER.RR BODY 2 2007- A (C) M8X20
7 I8-98290 484-0 BOLT; GUARD FRAME STOPPER,RR BODY 4 2007-2102 D REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> (A) M8X16.5 HEXALOBULAR SOCKET
7 I8-98290 484-0 BOLT; GUARD FRAME STOPPER,RR BODY 2 2103- C REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> EXC. OUTER ROPE HOOKS<7MZ> (A) M8X16.5 HEXALOBULAR SOCKET
7 I8-98290 484-0 BOLT; GUARD FRAME STOPPER,RR BODY 4 2007-2102 D REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> (A) M8X16.5 HEXALOBULAR SOCKET
61 I8-98386 415-2 BAR ASM 1 2103- D F REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89>
29 I8-97918 416-0 COVER; GUARD FRAME 2 2007- A
10 I8-98056 127-0 NUT; GUARD FRAME STOPPER 2 2007-2007 A GUARD FRAME BAR CARGO TIE DOWN<V89> M6
5 I8-98056 308-0 WASHER; PL.GUARD FRAME STOPPER 2 2007- ABCDE AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14), GENERAL EXPORT EQUIPMENTfTAA) REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89>
73 I8-97559 200-0 PROTECTOR; TAPE 2 2007- A
61 I8-98386 415-2 BAR ASM 1 2103- A EXC. GUARD FRAME BAR CARGO TIE DOWN<V89>
7 I8-98294 857-0 BOLT; GUARD FRAME STOPPER.RR BODY 2 2007- A (C) M8X20
7 I8-98290 484-0 BOLT; GUARD FRAME STOPPER,RR BODY 2 2007-2102 A GUARD FRAME BAR CARGO TIE DOWN<V89> (A) M8X16.5 HEXALOBULAR SOCKET
73 I8-97559 200-0 PROTECTOR; TAPE 2 2007- B DE REAR BODY DBL WALL CTR PULL(E63)
37 I0-28050 612-0 BOLT; GUARD FRAME 5 2007-2102 B E REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> OUTER ROPE HOOKS<7MZ> M6X12 FLANGE
61 I8-98386 419-1 BAR ASM 1 2007- BC E REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> OUTER ROPE HOOKS<7MZ>
7 I8-98290 484-0 BOLT; GUARD FRAME STOPPER,RR BODY 4 2007-2102 D REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> (A) M8X16.5 HEXALOBULAR SOCKET
3 I8-97352 624-1 STOPPER; GUARD FRAME,RR BODY 2 2007-2007 A GUARD FRAME BAR CARGO TIE DOWN<V89>
7 I8-98290 484-0 BOLT; GUARD FRAME STOPPER,RR BODY 2 2007-2102 C REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> EXC. OUTER ROPE HOOKS<7MZ> (A) M8X16.5 HEXALOBULAR SOCKET
61 I8-98386 415-2 BAR ASM 1 2007-2102 D REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89>
7 I8-98290 484-0 BOLT; GUARD FRAME STOPPER,RR BODY 4 2007-2102 F REAR BODY DBL WALL CTR PULL(E63) (A) M8X16.5 HEXALOBULAR SOCKET
10 I8-98056 127-0 NUT; GUARD FRAME STOPPER 2 2007-2007 BCDE REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> M6
45 I8-94221 150-0 RIVET; DUST SHIELD COVER,RR BODY 12 2007- A HIGH RIDE SUSPENSION(7YC)
7 I8-98290 484-0 BOLT; GUARD FRAME STOPPER,RR BODY 2 2103- C REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> EXC. OUTER ROPE HOOKS<7MZ> (A) M8X16.5 HEXALOBULAR SOCKET
37 I0-28050 612-0 BOLT; GUARD FRAME 5 2007-2102 A GUARD FRAME BAR CARGO TIE DOWN<V89> M6X12 FLANGE
7 I8-98152 995-2 BOLT; GUARD FRAME STOPPER,RR BODY 6 2007-2102 B E REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> OUTER ROPE HOOKS<7MZ> (A) M8X20.5 HEXALOBULAR SOCKET
45 I8-94221 150-0 RIVET; DUST SHIELD COVER,RR BODY 14 2007- C REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC)
7 I8-98152 995-2 BOLT; GUARD FRAME STOPPER,RR BODY 6 2007-2102 B E REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> OUTER ROPE HOOKS<7MZ> (A) M8X20.5 HEXALOBULAR SOCKET
1 I8-98386 420-1 FRAME; GUARD,RR BODY 1 2007- B E REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> (A)
7 I8-98294 857-0 BOLT; GUARD FRAME STOPPER,RR BODY 2 2007- D F REAR BODY DBL WALL CTR PULL(E63) (C) M8X20
7 I8-98152 995-2 BOLT; GUARD FRAME STOPPER,RR BODY 6 2103- A GUARD FRAME BAR CARGO TIE DOWN<V89> (A) M8X20.5 HEXALOBULAR SOCKET
7 I8-98290 484-0 BOLT; GUARD FRAME STOPPER,RR BODY 2 2007-2102 D REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> (A) M8X16.5 HEXALOBULAR SOCKET
45 I8-94221 150-0 RIVET; DUST SHIELD COVER.RR BODY 14 2007- A EXC. HIGH RIDE SUSPENSION(7YC)
7 I8-98290 484-0 BOLT; GUARD FRAME STOPPER,RR BODY 4 2007-2102 C REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89>,OUTER ROPE HOOKS<7MZ> (A) M8X16.5 HEXALOBULAR SOCKET
61 I8-98386 415-2 BAR ASM 1 2103- A EXC. GUARD FRAME BAR CARGO TIE DOWN<V89>
7 I8-98152 995-2 BOLT; GUARD FRAME STOPPER,RR BODY 6 2103- A GUARD FRAME BAR CARGO TIE DOWN<V89> (A) M8X20.5 HEXALOBULAR SOCKET
7 I8-98290 484-0 BOLT; GUARD FRAME STOPPER,RR BODY 2 2103- D F REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> (A) M8X16.5 HEXALOBULAR SOCKET
7 I8-98290 484-0 BOLT; GUARD FRAME STOPPER,RR BODY 2 2103- A GUARD FRAME BAR CARGO TIE DOWN<V89> (A) M8X16.5 HEXALOBULAR SOCKET
7 I8-98290 484-0 BOLT; GUARD FRAME STOPPER,RR BODY 4 2007-2102 A EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> (A) M8X16.5 HEXALOBULAR SOCKET
7 I8-98290 484-0 BOLT; GUARD FRAME STOPPER,RR BODY 2 2007-2102 D REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> (A) M8X16.5 HEXALOBULAR SOCKET
37 I0-28050 612-0 BOLT; GUARD FRAME 5 2103- A GUARD FRAME BAR CARGO TIE DOWN<V89> M6X12 FLANGE
34 I8-98386 414-2 PANEL; FRT.RR BODY 1 2103- C REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89>,OUTER ROPE HOOKS<7MZ> (A)
61 I8-98386 415-2 BAR ASM 1 2103- D F REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89>
3 I8-97352 624-1 STOPPER; GUARD FRAME,RR BODY 2 2007- ABCDE AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14), GENERAL EXPORT EQUIPMENTfTAA) REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89>
7 I8-98290 484-0 BOLT; GUARD FRAME STOPPER,RR BODY 4 2103- D F REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> M8X16.5 HEXALOBULAR SOCKET
7 I8-98152 995-2 BOLT; GUARD FRAME STOPPER,RR BODY 6 2103- A GUARD FRAME BAR CARGO TIE DOWN<V89> (A) M8X20.5 HEXALOBULAR SOCKET
7 I8-98152 995-2 BOLT; GUARD FRAME STOPPER,RR BODY 6 2103- CD F REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> (A) M8X20.5 HEXALOBULAR SOCKET
7 I8-98290 484-0 BOLT; GUARD FRAME STOPPER,RR BODY 2 2103- A GUARD FRAME BAR CARGO TIE DOWN<V89> (A) M8X16.5 HEXALOBULAR SOCKET
61 I8-98386 415-2 BAR ASM 1 2007-2102 C REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89>,OUTER ROPE HOOK5<7MZ>
29 I8-97918 416-0 COVER; GUARD FRAME 2 2007- BCDE F REAR BODY DBL WALL CTR PULL(E63)
61 I8-98386 415-2 BAR ASM 1 2103- D F REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89>
3 I8-97352 624-1 STOPPER; GUARD FRAME,RR BODY 2 2007-2007 A GUARD FRAME BAR CARGO TIE DOWN<V89>
7 I8-98290 484-0 BOLT; GUARD FRAME STOPPER,RR BODY 4 2007-2102 A EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> M8X16.5 HEXALOBULAR SOCKET
74 I8-97537 162-0 REINFORCEMENT 1 2007- C REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89>
7 I8-98290 484-0 BOLT; GUARD FRAME STOPPER,RR BODY 2 2103- D F REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> (A) M8X16.5 HEXALOBULAR SOCKET
7 I8-98290 484-0 BOLT; GUARD FRAME STOPPER,RR BODY 4 2103- A EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> (A) M8X16.5 HEXALOBULAR SOCKET
7 I8-98294 857-0 BOLT; GUARD FRAME STOPPER,RR BODY 2 2007- C REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> (O M8X20
45 I8-94221 150-0 RIVET; DUST SHIELD COVER,RR BODY 12 2007- C REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC)
7 I8-98152 995-2 BOLT; GUARD FRAME STOPPER,RR BODY 6 2007-2102 A GUARD FRAME BAR CARGO TIE DOWN<V89> (A) M8X20.5 HEXALOBULAR SOCKET
7 I8-98290 484-0 BOLT; GUARD FRAME STOPPER,RR BODY 4 2103- D F REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> (A) M8X16.5 HEXALOBULAR SOCKET
61 I8-98386 415-2 BAR ASM 1 2007-2102 F REAR BODY DBL WALL CTR PULL(E63)
