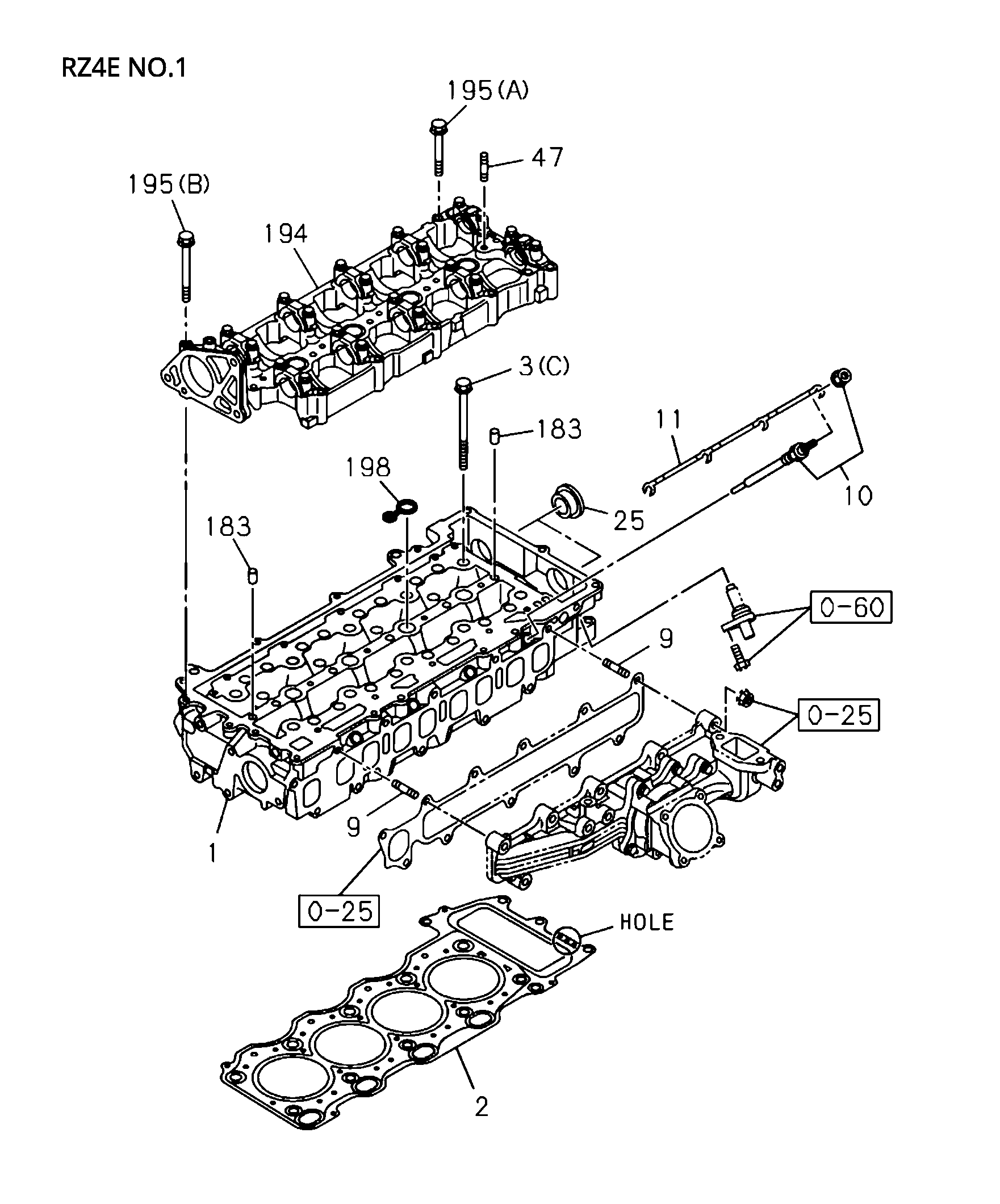

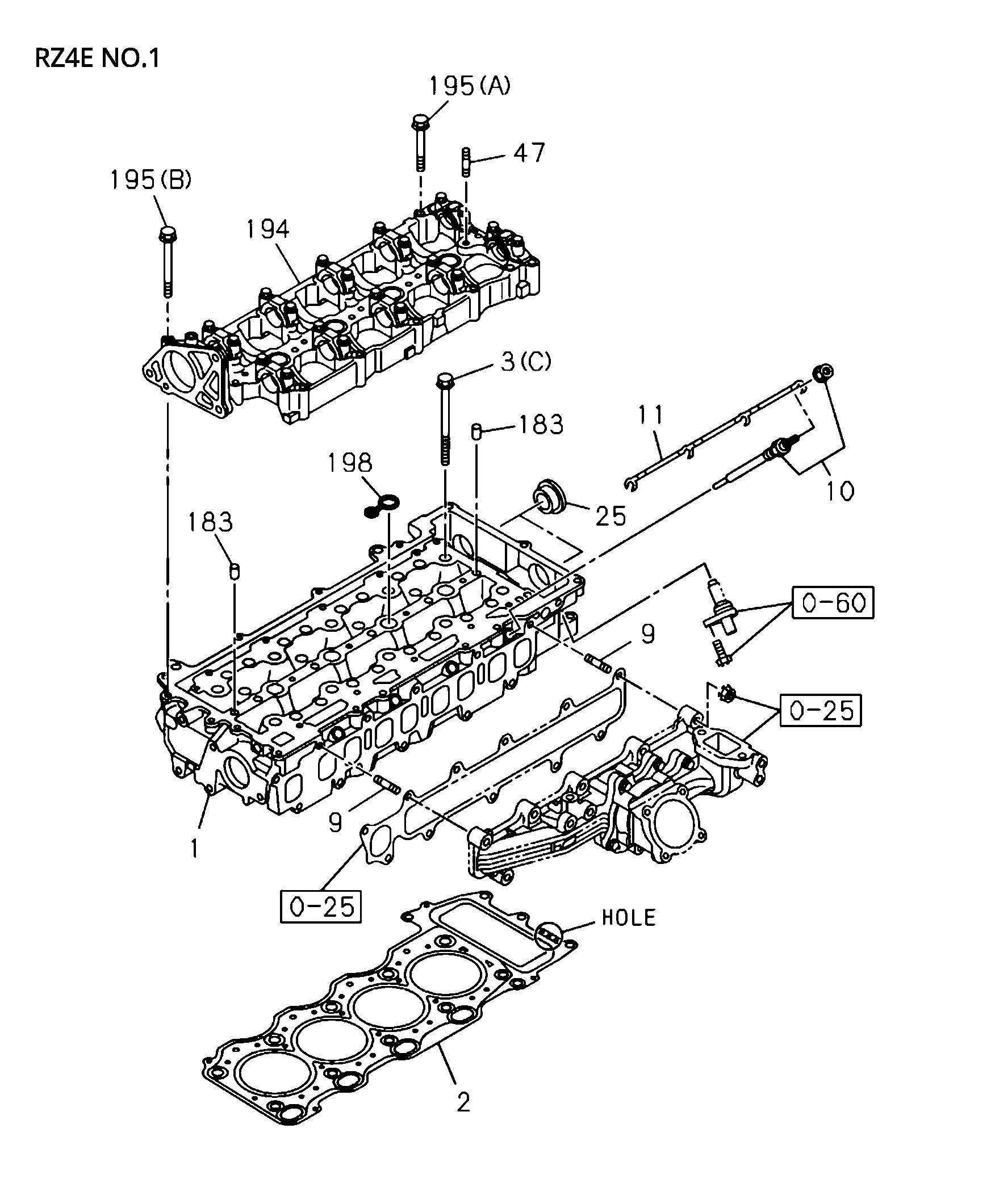

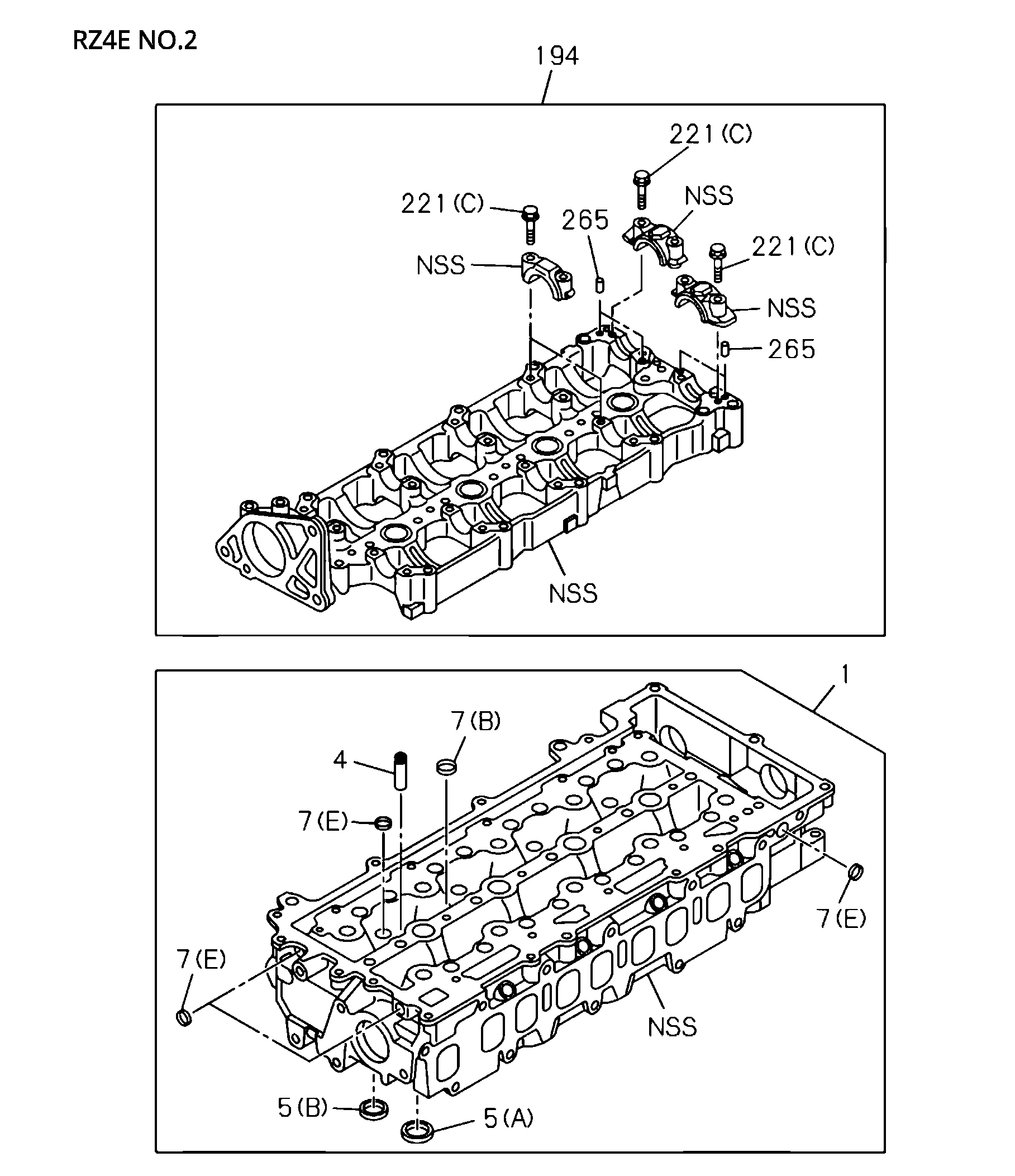

0-11 | 0-11 - CYLINDER HEAD
DMAX
D-MAX 2022
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 14 | I8-98048 446-0 | STUD; EXH MANIF | 4 | 2110- | B | (C) M10X70 L=83 | ||
| 14 | I8-94397 286-0 | STUD; EXH MANIF | 2 | 2110- | AB | (A) M10X60 L=75 | ||
| 4 | I8-98250 248-0 | GUIDE; VLV | 16 | 2110- | AB | L=42 AFTER PRESS FITTING, MACHINE IT | ||
| 265 | I8-98224 627-0 | PIN; CAM CARRIER SET | 4 | 2110- | AB | |||
| 195 | I0-28050 670-0 | BOLT; CARRIER | 2 | 2110- | A B | (B) M6X70 FLANGE | ||
| 10 | I8-98259 502-0 | PLUG; GLOW | 4 | 2110- | B | EUROO SPECIFICATI0N(K75),EUR02 SPECIFICATI0N(NT2),EUR04 SPECIFICATION(NT4) NGK | ||
| 11 | I8-98287 709-0 | CONNECTOR, | 1 | 2110- | B | EUROO SPECIFICATI0N(K75),EUR02 SPECIFICATI0N(NT2),EUR04 SPECIFICATION(NT4) | ||
| 7 | I8-97333 120-0 | CUP; SEALINGfCYL HEAD | 5 | 2110- | C | (A) OD=24 | ||
| 123 | I0-28050 820-0 | BOLT; COVER | 3 | 2110- | C | M8X20 FLANGE | ||
| 2 | I8-98346 418-0 | GASKET; CYL HD | 1 | 2110- | AB | T=1.05 3-HOLE | ||
| 1 | I8-98330 416-0 | HEAD ASM; CYL | 1 | 2111- | A | |||
| 2 | I8-98346 417-0 | GASKET; CYL HD | 1 | 2110- | A B | T=1.00 2-HOLE | ||
| 7 | I5-11219 008-0 | CUP; SEALINGfCYL HEAD | 6 | 2110- | C | (B) OD=18 | ||
| 5 | I8-98301 295-0 | SEAT; VLV INSERT | 8 | 2110- | A B | (A) INLET ID=24 OD=29 | ||
| 3 | I0-28650 835-0 | BOLT; CYL HD TO BLOCK | 4 | 2110- | A B | (B) M8X35 FLANGE | ||
| 3 | I8-98273 485-0 | BOLT; CYL HD TO BLOCK | 10 | 2110- | AB | (C) M12X176.5 W/WASHER | ||
| 47 | I0-41010 625-0 | STUD; CYL HD | 1 | 2110- | AB | M6X25 L=34 | ||
| 7 | I5-09600 013-0 | CUP; SEALINGfCYL HEAD | 7 | 2110- | A B | (E) OD=12.3 | ||
| 263 | I0-28050 860-0 | BOLT; CYL HD | 1 | 2110- | C | (A) M8X60 FLANGE | ||
| 14 | I8-97379 383-0 | STUD; EXH MANIF | 1 | 2110- | AB | (B) M10X33 L=48 | ||
| 14 | I8-98287 944-0 | STUD; EXH MANIF | 2 | 2110- | A B | |||
| 221 | I0-28060 630-0 | BOLT; BRKT | 20 | 2110- | A B | (C) M6X30 FLANGE | ||
| 195 | I0-28050 650-0 | BOLT; CARRIER | 15 | 2110- | AB | (A) M6X50 FLANGE | ||
| 7 | I5-11219 008-0 | CUP; SEALINGfCYL HEAD | 3 | 2110- | A B | (B) | ||
| 13 | I0-28151 020-0 | BOLT; HANGER | 2 | 2110- | C | (C) M10X20 FLANGE | ||
| 2 | I8-98346 416-0 | GASKET; CYL HD | 1 | 2110- | AB | T=0.95 1-HOLE | ||
| 198 | I8-98248 244-0 | GASKET; CAM CARRIER | 4 | 2110- | AB | |||
| 183 | I8-98286 973-0 | DOWEL; CYL HEAD | 2 | 2110- | AB | |||
| 1 | I8-98330 416-0 | HEAD ASM; CYL | 1 | 2111- | B | EUROO SPECIFICATI0N(K75),EUR02 SPECIFICATI0N(NT2),EUR04 SPECIFICATION(NT4) | ||
| 1 | I8-98330 416-0 | HEAD ASM; CYL | 1 | 2110-2110 | B | EUROO SPECIFICATI0N(K75),EUR02 SPECIFICATI0N(NT2),EUR04 SPECIFICATION(NT4) | ||
| 224 | I0-91180 208-0 | NUT; COVER | 4 | 2110- | C | M8 FLANGE | ||
| 13 | I0-58330 820-0 | BOLT; HANGER | 1 | 2110- | C | (A) M8X20 HEX SOCKET | ||
| 7 | I5-11219 008-0 | CUP; SEALINGfCYL HEAD | 1 | 2110- | C | (B) OD=18 | ||
| 9 | I0-41010 830-0 | STUD; INL MANIF | 2 | 2110- | AB | M 8X30 L=41 | ||
| 194 | I8-98243 890-1 | CARRIER; CAM SHAFT | 1 | 2110- | AB | |||
| 5 | I8-98301 296-0 | SEAT; VLV INSERT | 8 | 2110- | A B | (B) EXHAUST ID=22 OD=26 | ||
| 263 | I0-28650 835-0 | BOLT; CYL HD | 3 | 2110- | C | (B) M8X35 FLANGE |
