PORTAL SPAREPART

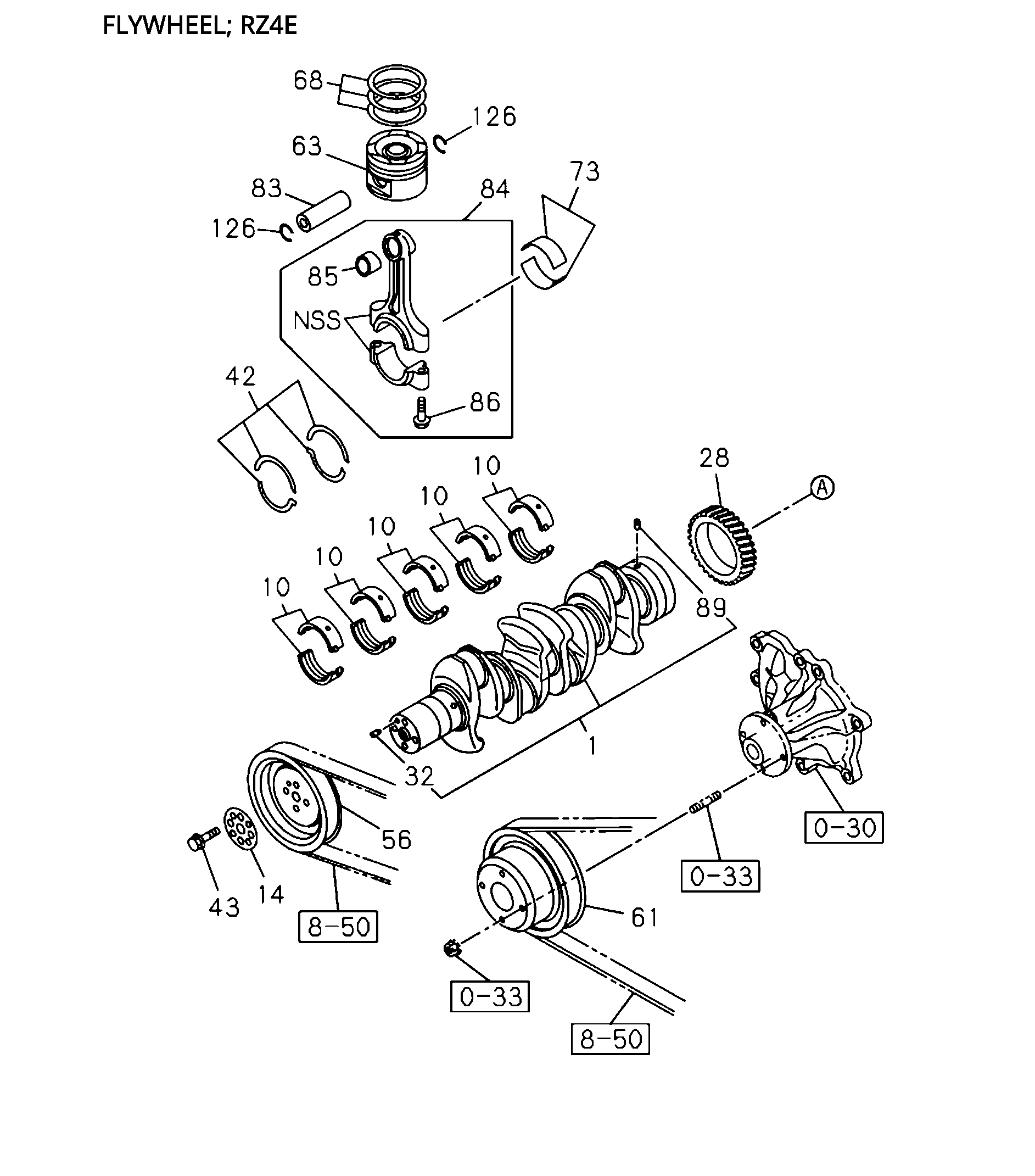

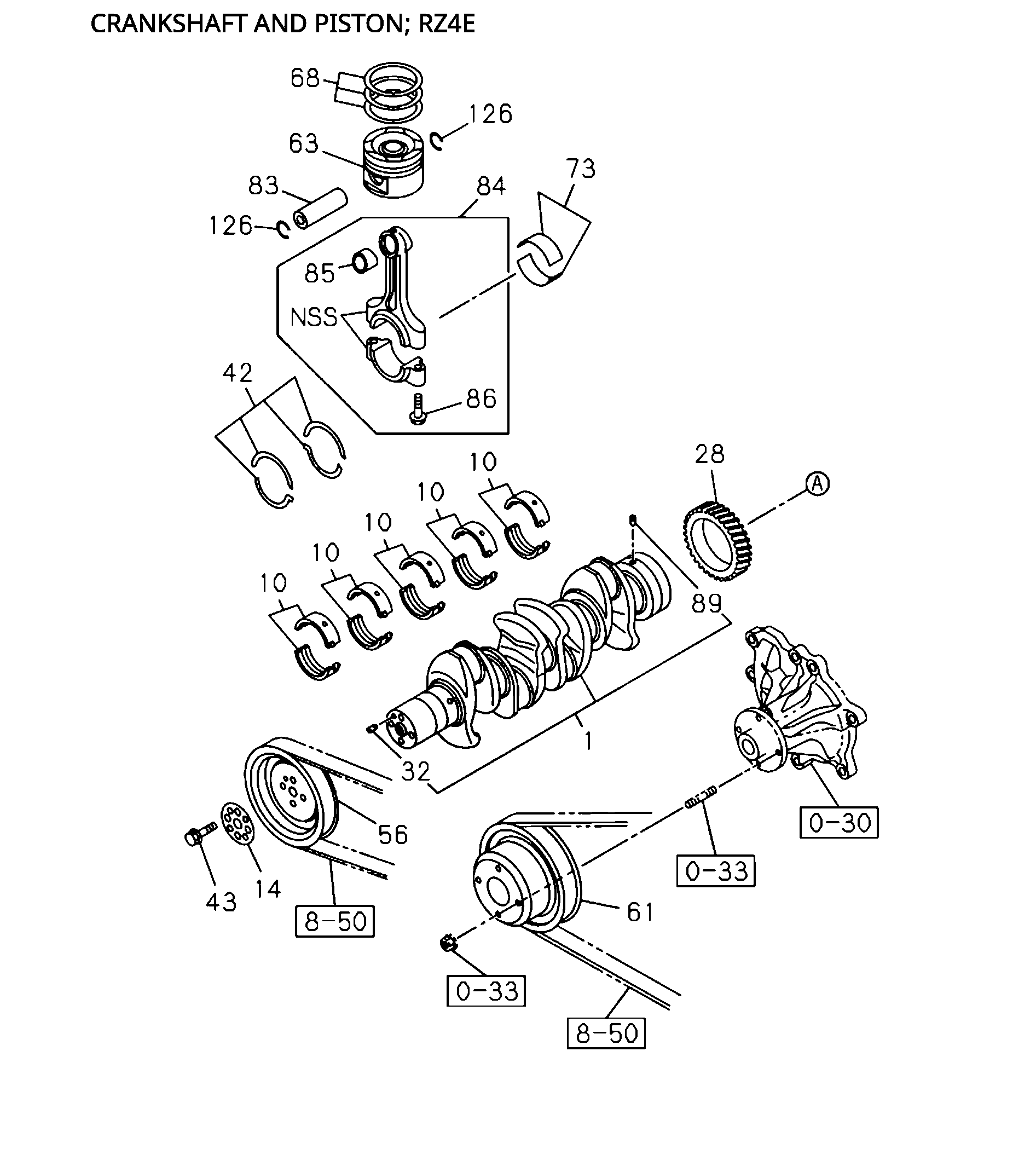

0-15 | 0-15 - CRANKSHAFT,PISTON AND FLYWHEEL

Partial Engine Partial Engine

DMAX

D-MAX 2022

Key PART NO ITC DESCRIPTION QTY APP DATE LR MODEL REMARKS
12 I8-98372 427-0 FLYWHEEL 1 2110- A B A/T 6 SPEED-AISIN(Y6A) (D)
49 I8-97920 344-2 BEARING; PILOT 1 2110- B M/T MVL 6 SPEED 6Y(Y6P) NACHI
10 I8-98333 350-0 METAL SET; CRAN KSH AFT, STAN DARD 5 2110- B GRADE=2
68 I8-98333 347-0 RING SET; PISTO N .STANDARD 4 2110- B
89 I9-09878 626-0 PIN; STRAIGHT,GEAR 1 2110- A B OD=5 L=6
85 I8-98247 334-0 BUSHING; CONNROD 4 2110- A B AFTER PRESS FITTING, MACHINE IT.
61 I8-98383 362-1 PULLEY; FAN DRIVE 1 2110- A B 1-GROOVE
28 I8-98351 802-0 GEAR; CR/SHF 1 2110- AB Z=57
10 I8-98333 350-0 METAL SET; CRAN KSH AFT, STAN DARD 5 2110- B GRADE=2
126 I8-94460 687-0 RING; SNAP,PISTON PIN 8 2110- ABC OD=37.5
63 I8-98248 254-1 PISTON 4 2110- B EUROO SPECIFICATI0N(K75),EUR02 SPECIFICATI0N(NT2),EUR04 SPECIFICATION(NT4) GRADE=C
40 I8-98286 207-0 BOLT; FLYWHEEL 8 2110- A B A/T 6 SPEED-AISIN(Y6A) (C) M12X102 FLANGE
43 I8-98287 328-0 BOLT; CR/SHF PULLEY 4 2110- A B M10X31 FLANGE
35 I8-98247 327-0 GEAR; RING 1 2110- A B Z=122
10 I8-98333 351-0 METAL SET; CRAN KSH AFT, STAN DARD 5 2110- B GRADE=3
40 I8-98286 206-0 BOLT; FLYWHEEL 8 2110- B M/T MVL 6 SPEED 6Y(Y6P) (B) M12X38 FLANGE
49 I8-97920 344-2 BEARING; PILOT 1 2110- A M/T MVL 6 SPEED 6S(Y6S) NACHI
43 I8-98287 328-0 BOLT; CR/SHF PULLEY 4 2110- A B M10X31 FLANGE
100 I8-98278 962-0 PLATE; FLEX 1 2110- AB A/T 6 SPEED-AISIN(Y6A)
83 I8-98285 227-0 PIN; PISTON 4 2110- A B
14 I8-98286 647-1 WASHER; PULLEY DAMPER 1 2110- A B ID=16 OD=65 T=3
38 I8-98286 638-0 WASHER; FLYWHEEL 1 2110- B M/T MVL 6 SPEED 6Y(Y6P) (C) ID=42 OD=90
49 I8-97920 344-2 BEARING; PILOT 1 2110- C M/T MVL 6 SPEED 6S(Y6S) EUR02 SPECIFICATI0N(NT2),EUR04 SPECIFICATION(NT4) NSK
126 I8-94460 687-0 RING; SNAP,PISTON PIN 8 2110- ABC OD=37.5
63 I8-98248 252-1 PISTON 4 2110- B EUROO SPECIFICATI0N(K75),EUR02 SPECIFICATI0N(NT2),EUR04 SPECIFICATION(NT4) GRADE=A
89 I9-09878 626-0 PIN; STRAIGHT,GEAR 1 2110- A B OD=5 L=6
40 I8-98286 206-0 BOLT; FLYWHEEL 8 2110- B M/T MVL 6 SPEED 6Y(Y6P) (B) M12X38 FLANGE
14 I8-98286 647-1 WASHER; PULLEY DAMPER 1 2110- A B ID=16 OD=65 T=3
100 I8-98278 962-0 PLATE; FLEX 1 2110- AB A/T 6 SPEED-AISIN(Y6A)
28 I8-98351 802-0 GEAR; CR/SHF 1 2110- AB Z=57
10 I8-98333 351-0 METAL SET; CRAN KSH AFT, STAN DARD 5 2110- B GRADE=3
40 I8-98286 206-0 BOLT; FLYWHEEL 8 2110- A M/T MVL 6 SPEED 6S(Y6S) (B) M12X38 FLANGE
83 I8-98285 227-0 PIN; PISTON 4 2110- A B
12 I8-97497 693-0 FLYWHEEL 1 2110- A M/T MVL 6 SPEED 6S(Y6S) (C)
86 I8-98258 467-0 BOLT; CONNROD 8 2110- AB M9X45.5 FLANGE
85 I8-98247 334-0 BUSHING; CONNROD 4 2110- A B AFTER PRESS FITTING, MACHINE IT.
40 I8-98286 207-0 BOLT; FLYWHEEL 8 2110- A B A/T 6 SPEED-AISIN(Y6A) (C) M12X102 FLANGE
35 I8-98247 327-0 GEAR; RING 1 2110- A B Z=122
1 I8-98373 020-0 CRANKSHAFT 1 2110- A B
42 I8-98334 690-0 WASHER; THRUSTfCR/SHF 1 2110- B
63 I8-98248 253-1 PISTON 4 2110- B EUROO SPECIFICATI0N(K75),EUR02 SPECIFICATI0N(NT2),EUR04 SPECIFICATION(NT4) GRADE=B
83 I8-98285 227-0 PIN; PISTON 4 2110- A B
73 I8-98333 348-0 METAL SET; CONN ROD,STANDARD 4 2110- A B
100 I8-98278 962-0 PLATE; FLEX 1 2110- AB A/T 6 SPEED-AISIN(Y6A)
63 I8-98248 254-1 PISTON 4 2110- B EUROO SPECIFICATI0N(K75),EUR02 SPECIFICATI0N(NT2),EUR04 SPECIFICATION(NT4) GRADE=C
68 I8-98333 347-0 RING SET; PISTO N .STANDARD 4 2110- B
63 I8-98248 253-1 PISTON 4 2110- B EUROO SPECIFICATI0N(K75),EUR02 SPECIFICATI0N(NT2),EUR04 SPECIFICATION(NT4) GRADE=B
38 I8-98286 638-0 WASHER; FLYWHEEL 1 2110- A M/T MVL 6 SPEED 6S(Y6S) (C) ID=42 OD=90
86 I8-98258 467-0 BOLT; CONNROD 8 2110- AB M9X45.5 FLANGE
12 I8-97497 693-0 FLYWHEEL 1 2110- B M/T MVL 6 SPEED 6Y(Y6P) (C)
68 I8-98333 347-0 RING SET; PISTO N .STANDARD 4 2110- B
10 I8-98333 352-0 METAL SET; CRAN KSH AFT, STAN DARD 5 2110- B GRADE=4
12 I8-98372 427-0 FLYWHEEL 1 2110- A B A/T 6 SPEED-AISIN(Y6A) (D)
86 I8-98258 467-0 BOLT; CONNROD 8 2110- AB M9X45.5 FLANGE
12 I8-97497 693-0 FLYWHEEL 1 2110- A M/T MVL 6 SPEED 6S(Y6S) (C)
38 I8-98281 810-0 WASHER; FLYWHEEL 1 2110- AB A/T 6 SPEED-AISIN(Y6A) (D) ID=35 OD=120
89 I9-09878 626-0 PIN; STRAIGHT,GEAR 1 2110- A B OD=5 L=6
84 I8-98330 197-0 ROD ASM; CONN 4 2110- AB
42 I8-98334 690-0 WASHER; THRUSTfCR/SHF 1 2110- B
12 I8-97497 693-0 FLYWHEEL 1 2110- B M/T MVL 6 SPEED 6Y(Y6P) (C)
10 I8-98333 352-0 METAL SET; CRAN KSH AFT, STAN DARD 5 2110- B GRADE=4
49 I8-97920 344-2 BEARING; PILOT 1 2110- A M/T MVL 6 SPEED 6S(Y6S) NSK
38 I8-98286 638-0 WASHER; FLYWHEEL 1 2110- A M/T MVL 6 SPEED 6S(Y6S) (C) ID=42 OD=90
38 I8-98286 638-0 WASHER; FLYWHEEL 1 2110- B M/T MVL 6 SPEED 6Y(Y6P) (C) ID=42 OD=90
63 I8-98248 252-1 PISTON 4 2110- B EUROO SPECIFICATI0N(K75),EUR02 SPECIFICATI0N(NT2),EUR04 SPECIFICATION(NT4) GRADE=A
10 I8-98333 349-0 METAL SET; CRAN KSH AFT, STAN DARD 5 2110- B GRADE=1
73 I8-98333 348-0 METAL SET; CONN ROD,STANDARD 4 2110- A B
1 I8-98373 020-0 CRANKSHAFT 1 2110- A B
56 I8-98378 672-0 PULLEY; CR/SHF DAMPER 1 2110- AB 1-GROOVE
73 I8-98333 348-0 METAL SET; CONN ROD,STANDARD 4 2110- A B
49 I8-97920 344-2 BEARING; PILOT 1 2110- B M/T MVL 6 SPEED 6Y(Y6P) NSK
85 I8-98247 334-0 BUSHING; CONNROD 4 2110- A B AFTER PRESS FITTING, MACHINE IT.
56 I8-98378 672-0 PULLEY; CR/SHF DAMPER 1 2110- AB 1-GROOVE
84 I8-98330 197-0 ROD ASM; CONN 4 2110- AB
61 I8-98383 362-1 PULLEY; FAN DRIVE 1 2110- A B 1-GROOVE
38 I8-98281 810-0 WASHER; FLYWHEEL 1 2110- AB A/T 6 SPEED-AISIN(Y6A) (D) ID=35 OD=120
126 I8-94460 687-0 RING; SNAP,PISTON PIN 8 2110- ABC OD=37.5
84 I8-98330 197-0 ROD ASM; CONN 4 2110- AB
32 I9-08160 512-0 PIN; FLYWHEEL 2 2110- A B OD=5 L=12
10 I8-98333 349-0 METAL SET; CRAN KSH AFT, STAN DARD 5 2110- B GRADE=1
40 I8-98286 206-0 BOLT; FLYWHEEL 8 2110- A M/T MVL 6 SPEED 6S(Y6S) (B) M12X38 FLANGE
32 I9-08160 512-0 PIN; FLYWHEEL 2 2110- I A B OD=5 L=12
49 I8-97920 344-A BEARING; PILOT 1 2110- AB C (IADG)
