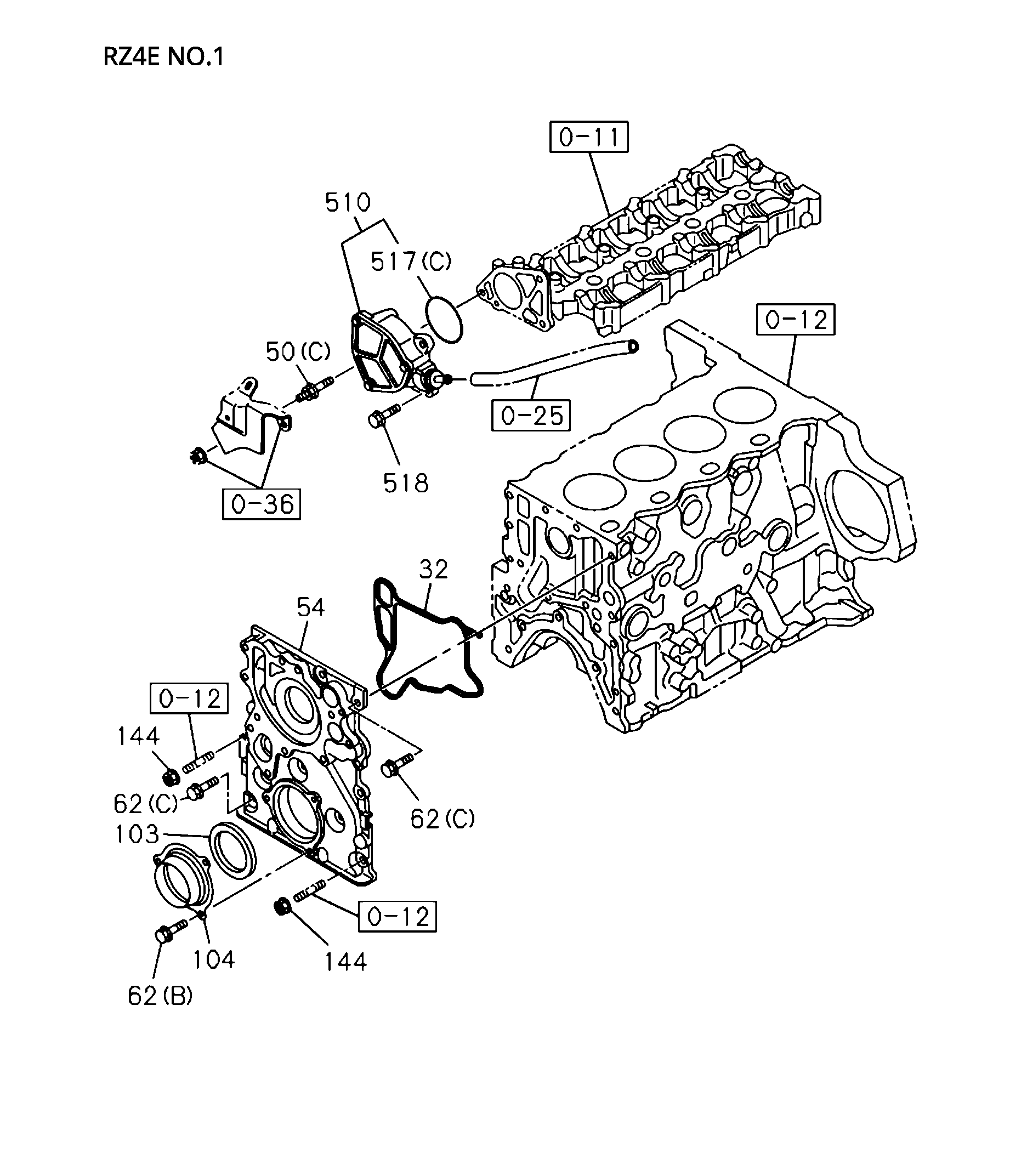

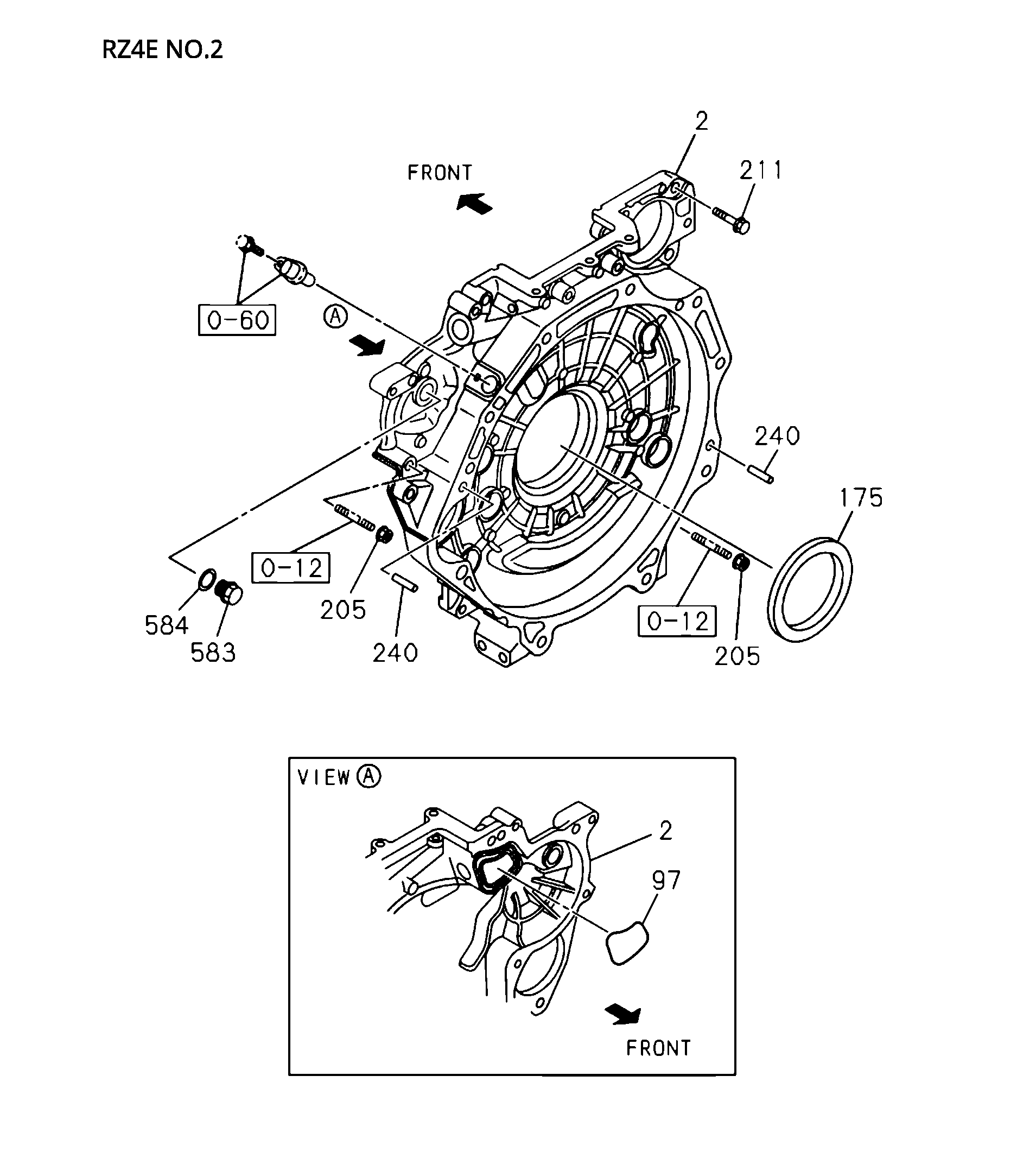

0-20 | 0-20 - TIMING GEAR CASE AND FLYWHEEL HOUSING
DMAX
D-MAX 2022
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 103 | I8-98259 275-0 | SEAL; OIL,CR/SHF,FRT | 1 | 2110- | AB | ID=57 OD=76 | ||
| 97 | I8-98248 823-1 | GASKET; BLOCK TO HSG | 1 | 2110- | A B | |||
| 36 | I0-28050 816-0 | BOLT; GEAR CASE | 1 | 2110- | C | (C) M8X16 FLANGE | ||
| 80 | I0-91180 206-0 | NUT; COVER | 2 | 2110- | C | M6 FLANGE | ||
| 518 | I0-28050 825-0 | BOLT; VAC PUMP | 1 | 2110- | A | M8X25 FLANGE | ||
| 103 | I8-98259 275-0 | SEAL; OIL,CR/SHF,FRT | 1 | 2110- | AB | ID=57 OD=76 | ||
| 240 | I9-08151 030-0 | PIN; FLYWHEEL HSG | 2 | 2110- | A B | L=30 | ||
| 517 | I8-98317 822-0 | GASKET; VAC PUMP | 1 | 2110- | B | EUROO SPECIFICATI0N(K75),EUR02 SPECIFICATI0N(NT2),EUR04 SPECIFICATION(NT4) (C) | ||
| 51 | I8-98248 078-2 | BOLT; GEAR CASE COVER | 1 | 2110- | A B | |||
| 238 | I0-28050 830-0 | BOLT; DIST | 1 | 2110- | C | M8X30 FLANGE | ||
| 175 | I8-98259 276-0 | SEAL; OIL,CR/SHF,RR | 1 | 2110- | A B | ID=83 OD=108 | ||
| 518 | I0-28050 825-0 | BOLT; VAC PUMP | 3 | 2110- | B | M8X25 FLANGE | ||
| 36 | I0-28650 825-0 | BOLT; GEAR CASE | 16 | 2110- | C | (D) M8X25 FLANGE | ||
| 124 | I0-28050 616-0 | BOLT; TIMING COVER | 3 | 2110- | C | M6X16 FLANGE | ||
| 205 | I7-05110 010-A | NUT; HSG | 2 | 2110- | AB | M10 FLANGE | ||
| 36 | I0-28050 860-0 | BOLT; GEAR CASE | 1 | 2110- | C | (A) M8X60 FLANGE | ||
| 73 | I0-28050 612-0 | BOLT; COVER FIX | 2 | 2110- | C | A/T 6 SPEED-AISIN(Y6A) (A) M6X12 FLANGE | ||
| 185 | I0-28650 825-0 | BOLT; RET TO C/BL | 5 | 2110- | C | M8X25 FLANGE | ||
| 518 | I0-28050 825-0 | BOLT; VAC PUMP | 1 | 2110- | A | M8X25 FLANGE | ||
| 73 | I0-28050 612-0 | BOLT; COVER FIX | 2 | 2110- | C | A/T 6 SPEED-AISIN(Y6A) (A) M6X12 FLANGE | ||
| 97 | I8-98248 823-1 | GASKET; BLOCK TO HSG | 1 | 2110- | A B | |||
| 36 | I0-28650 825-0 | BOLT; GEAR CASE | 16 | 2110- | C | (D) M8X25 FLANGE | ||
| 62 | I0-28050 820-0 | BOLT; COVER | 8 | 2110- | AB | (C) M8X20 FLANGE | ||
| 238 | I0-28050 830-0 | BOLT; DIST | 1 | 2110- | C | M8X30 FLANGE | ||
| 73 | I0-28650 620-0 | BOLT; COVER FIX | 3 | 2110- | C | M/T MVL 6 SPEED 6S(Y6S) EUR05 SPECIFICATION(NT5) (B) M6X20 FLANGE | ||
| 144 | I0-91180 108-0 | NUT; COVER | 2 | 2110- | AB | M8 FLANGE | ||
| 73 | I0-28050 612-0 | BOLT; COVER FIX | 2 | 2110- | C | M/T MVL 6 SPEED 6S(Y6S) EUR02 SPECIFICATI0N(NT2),EUR04 SPECIFICATION(NT4) (A) M6X12 FLANGE | ||
| 36 | I0-28650 830-0 | BOLT; GEAR CASE | 2 | 2110- | C | (B) M8X30 FLANGE | ||
| 81 | I0-41010 616-0 | STUD; GEAR CASE COVER FIX | 2 | 2110- | C | (B) M6X16 L=25 | ||
| 211 | I0-28161 040-0 | BOLT; HSG | 14 | 2110- | A B | M10X40 FLANGE | ||
| 510 | I8-98247 221-4 | PUMP ASM; VACUUM | 1 | 2110- | B | EUROO SPECIFICATI0N(K75),EUR02 SPECIFICATI0N(NT2),EUR04 SPECIFICATION(NT4) | ||
| 583 | I8-98368 785-0 | PLUG; FRT COVER | 1 | 2110- | AB | M20X14 | ||
| 73 | I0-28050 612-0 | BOLT; COVER FIX | 2 | 2110- | C | M/T MVL 6 SPEED 6S(Y6S) EUR02 SPECIFICATI0N(NT2),EUR04 SPECIFICATION(NT4) (A) M6X12 FLANGE | ||
| 144 | I0-91180 108-0 | NUT; COVER | 2 | 2110- | AB | M8 FLANGE | ||
| 32 | I8-98248 248-0 | GASKET; GEAR CASE TO C/BL | 1 | 2110- | AB | |||
| 32 | I8-98248 248-0 | GASKET; GEAR CASE TO C/BL | 1 | 2110- | AB | |||
| 80 | I0-91180 206-0 | NUT; COVER | 2 | 2110- | C | M6 FLANGE | ||
| 205 | I7-05110 010-A | NUT; HSG | 2 | 2110- | AB | M10 FLANGE | ||
| 36 | I0-28050 835-0 | BOLT; GEAR CASE | 1 | 2110- | C | (E) M8X35 FLANGE | ||
| 518 | I0-28050 825-0 | BOLT; VAC PUMP | 3 | 2110- | B | M8X25 FLANGE | ||
| 104 | I8-98248 079-0 | COVER; DUST,OIL SEAL FRT.CR/SHF | 1 | 2110- | A B | |||
| 36 | I0-28050 845-0 | BOLT; GEAR CASE | 2 | 2110- | C | (F) M8X45 FLANGE | ||
| 62 | I0-28650 620-0 | BOLT; COVER | 4 | 2110- | C | (A) M6X20 FLANGE | ||
| 621 | I0-91180 208-0 | NUT; VAC PUMP | 3 | 2110- | C | M8 FLANGE | ||
| 36 | I0-28050 835-0 | BOLT; GEAR CASE | 1 | 2110- | C | (E) M8X35 FLANGE | ||
| 73 | I0-28650 620-0 | BOLT; COVER FIX | 3 | 2110- | C | M/T MVL 6 SPEED 6S(Y6S) EUR05 SPECIFICATION(NT5) (B) M6X20 FLANGE | ||
| 104 | I8-98248 079-0 | COVER; DUST,OIL SEAL FRT.CR/SHF | 1 | 2110- | A B | |||
| 98 | I0-91180 208-0 | NUT; STUD.INJ PUMP | 2 | 2110- | C | M8 FLANGE | ||
| 81 | I0-41010 616-0 | STUD; GEAR CASE COVER FIX | 2 | 2110- | C | (B) M6X16 L=25 | ||
| 62 | I0-28050 612-0 | BOLT; COVER | 3 | 2110- | AB | (B) M6X12 FLANGE | ||
| 124 | I0-28050 616-0 | BOLT; TIMING COVER | 3 | 2110- | C | M6X16 FLANGE | ||
| 510 | I8-98247 221-4 | PUMP ASM; VACUUM | 1 | 2110- | B | EUROO SPECIFICATI0N(K75),EUR02 SPECIFICATI0N(NT2),EUR04 SPECIFICATION(NT4) | ||
| 62 | I0-28050 820-0 | BOLT; COVER | 8 | 2110- | AB | (C) M8X20 FLANGE | ||
| 584 | I1-09630 088-0 | GASKET; PLUG,FRT COVER | 1 | 2110- | AB | ID=20.2 OD=26 | ||
| 175 | I8-98259 276-0 | SEAL; OIL,CR/SHF,RR | 1 | 2110- | A B | ID=83 OD=108 | ||
| 583 | I8-98368 785-0 | PLUG; FRT COVER | 1 | 2110- | AB | M20X14 | ||
| 240 | I9-08151 030-0 | PIN; FLYWHEEL HSG | 2 | 2110- | A B | L=30 | ||
| 584 | I1-09630 088-0 | GASKET; PLUG,FRT COVER | 1 | 2110- | AB | ID=20.2 OD=26 | ||
| 36 | I0-28050 816-0 | BOLT; GEAR CASE | 1 | 2110- | C | (C) M8X16 FLANGE | ||
| 517 | I8-98317 822-0 | GASKET; VAC PUMP | 1 | 2110- | B | EUROO SPECIFICATI0N(K75),EUR02 SPECIFICATI0N(NT2),EUR04 SPECIFICATION(NT4) (C) | ||
| 98 | I0-91180 208-0 | NUT; STUD.INJ PUMP | 2 | 2110- | C | M8 FLANGE | ||
| 36 | I0-28050 845-0 | BOLT; GEAR CASE | 2 | 2110- | C | (F) M8X45 FLANGE | ||
| 62 | I0-28650 620-0 | BOLT; COVER | 4 | 2110- | C | (A) M6X20 FLANGE | ||
| 54 | I8-98248 078-2 | COVER ; GEAR CASE | 1 | 2110- | A B | |||
| 36 | I0-28650 830-0 | BOLT; GEAR CASE | 2 | 2110- | C | (B) M8X30 FLANGE | ||
| 185 | I0-28650 825-0 | BOLT; RET TO C/BL | 5 | 2110- | C | M8X25 FLANGE | ||
| 36 | I0-28050 860-0 | BOLT; GEAR CASE | 1 | 2110- | C | (A) M8X60 FLANGE | ||
| 202 | I0-91180 208-0 | NUT; BRKT | 1 | 2110- | C | M8 FLANGE | ||
| 211 | I0-28161 040-0 | BOLT; HSG | 14 | 2110- | A B | M10X40 FLANGE | ||
| 62 | I0-28050 612-0 | BOLT; COVER | 3 | 2110- | AB | (B) M6X12 FLANGE | ||
| 202 | I0-91180 208-0 | NUT; BRKT | 1 | 2110- | C | M8 FLANGE |
