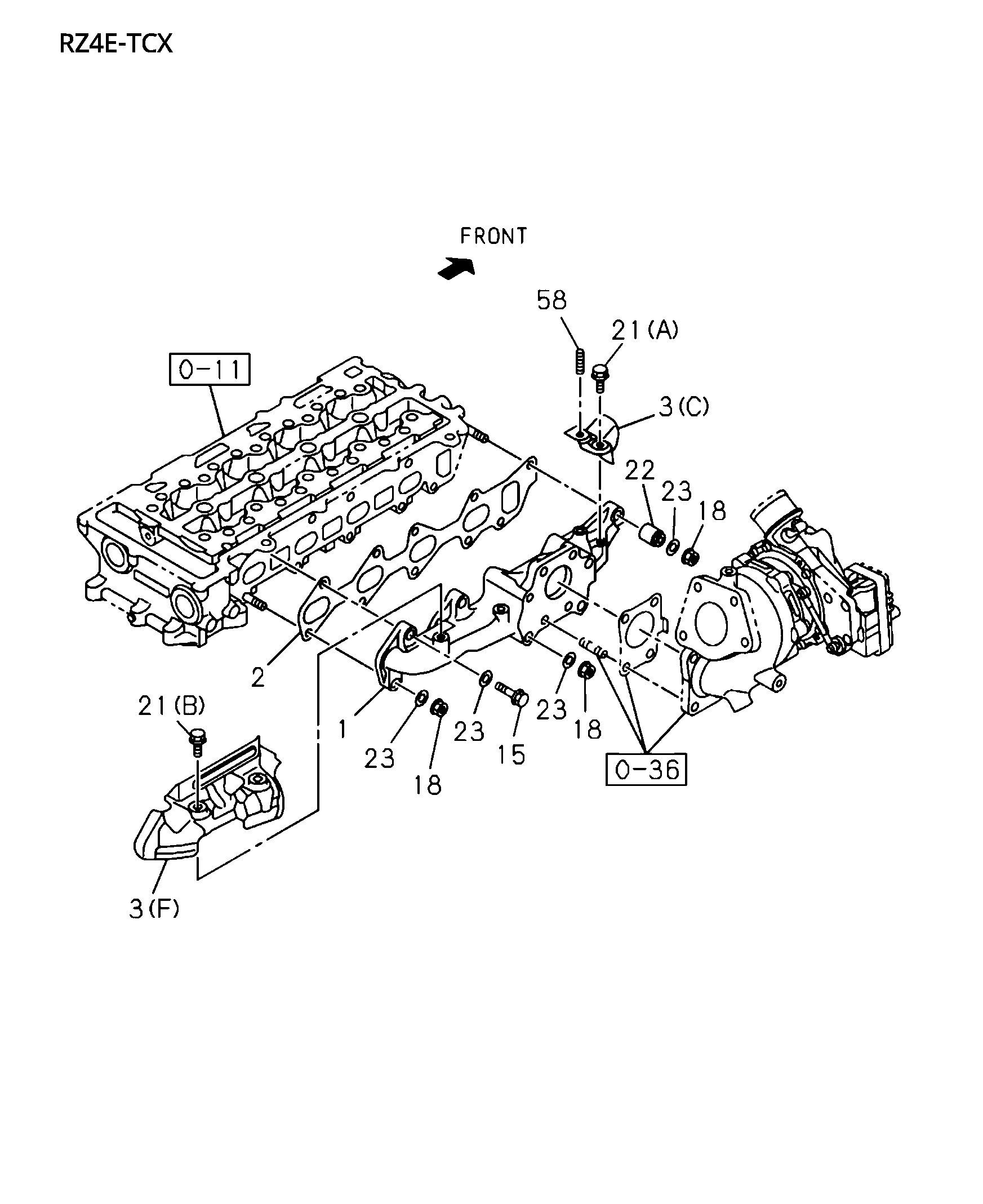

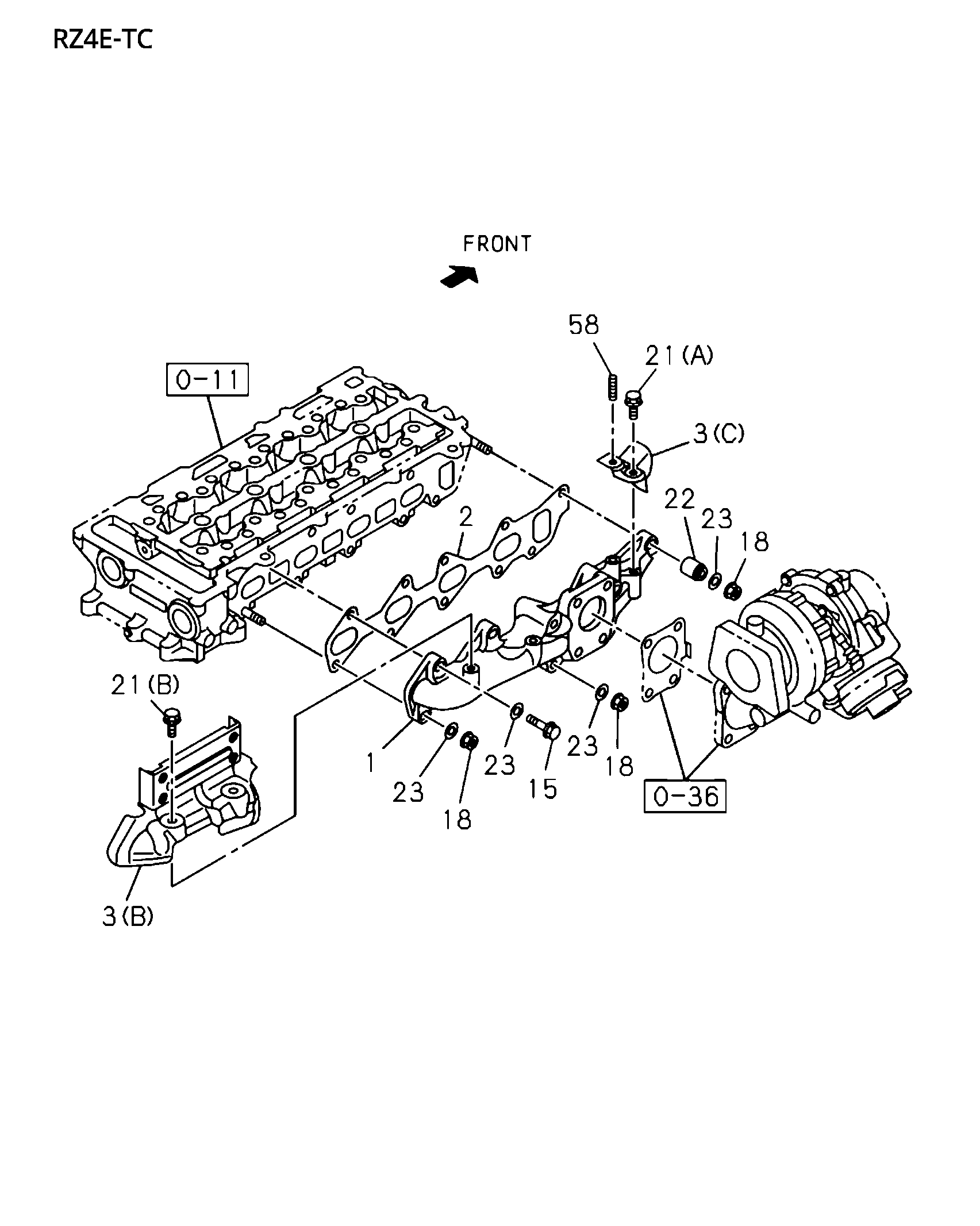

0-27 | 0-27 - EXHAUST MANIFOLD
DMAX
D-MAX 2022
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 22 | I8-98307 650-0 | SPACER; EXH MANIF BRKT | 2 | 2110- | A B | |||
| 3 | I8-97541 163-1 | PROTECTOR; | 1 | 2110- | B | EUROO SPECIFICATI0N(K75),EUR02 SPECIFICATI0N(NT2),EUR04 SPECIFICATION(NT4) (B) | ||
| 15 | I8-98032 158-0 | BOLT; EXH MANIF | 6 | 2110- | C | M10X30 FLANGE | ||
| 21 | I0-28050 812-A | BOLT; HEAT PROTECTOR | 2 | 2110- | C | (A) | ||
| 58 | I8-98360 821-0 | STUD; HEAT PROTECTOR | 1 | 2110- | A | M8X25 L=33 | ||
| 21 | I0-28050 812-A | BOLT; HEAT PROTECTOR | 1 | 2110- | A B | (A) M8X12 FLANGE | ||
| 21 | I0-28050 820-0 | BOLT; HEAT PROTECTOR | 2 | 2110- | A B | (B) M8X20 FLANGE | ||
| 18 | I8-97309 942-0 | NUT; EXH MANIF | 7 | 2110- | AB | M10 FLANGE | ||
| 21 | I0-28050 812-A | BOLT; HEAT PROTECTOR | 1 | 2110- | A B | (A) M8X12 FLANGE | ||
| 1 | I8-98247 605-3 | MANIFOLD; EXHAUST | 1 | 2110- | B | |||
| 3 | I8-98247 218-3 | PROTECTOR; | 1 | 2110- | A B | (C) | ||
| 58 | I0-41010 825-0 | STUD; HEAT PROTECTOR | 1 | 2110- | B | EUR05 SPECIFICATION(NT5) M8X25 L=37 | ||
| 15 | I8-98032 158-0 | BOLT; EXH MANIF | 3 | 2110- | AB | M10X30 FLANGE | ||
| 2 | I8-98247 606-2 | GASKET; EXH MANIF TO HD | 1 | 2110- | A B | |||
| 2 | I8-98247 606-2 | GASKET; EXH MANIF TO HD | 1 | 2110- | A B | |||
| 33 | I5-09500 013-0 | WASHER; EXH MANIF | 8 | 2110- | C | ID=10.5 | ||
| 21 | I0-28050 812-A | BOLT; HEAT PROTECTOR | 2 | 2110- | C | (A) M8X12 FLANGE | ||
| 18 | I8-97309 942-0 | NUT; EXH MANIF | 7 | 2110- | AB | M10 FLANGE | ||
| 21 | I0-28050 820-0 | BOLT; HEAT PROTECTOR | 2 | 2110- | A B | (B) M8X20 FLANGE | ||
| 1 | I8-98247 605-3 | MANIFOLD; EXHAUST | 1 | 2110- | B | |||
| 23 | I5-09500 013-0 | WASHER; PL EXH MANIF BRKT | 10 | 2110- | AB | ID=10.5 | ||
| 19 | I8-97379 383-0 | STUD; MANIF TO CYL HD | 2 | 2110- | C | M10X33 L=48 | ||
| 15 | I8-98032 158-0 | BOLT; EXH MANIF | 3 | 2110- | AB | M10X30 FLANGE | ||
| 3 | I8-97541 163-1 | PROTECTOR; | 1 | 2110- | B | EUROO SPECIFICATI0N(K75),EUR02 SPECIFICATI0N(NT2),EUR04 SPECIFICATION(NT4) (B) | ||
| 3 | I8-98247 218-3 | PROTECTOR; | 1 | 2110- | A B | (C) | ||
| 58 | I8-98360 821-0 | STUD; HEAT PROTECTOR | 1 | 2110- | B | EUROO SPECIFICATI0N(K75),EUR02 SPECIFICATI0N(NT2),EUR04 SPECIFICATION(NT4) M8X25 L=33 | ||
| 19 | I8-97379 383-0 | STUD; MANIF TO CYL HD | 2 | 2110- | C | M10X33 L=48 | ||
| 15 | I8-98032 158-0 | BOLT; EXH MANIF | 6 | 2110- | C | M10X30 FLANGE |
