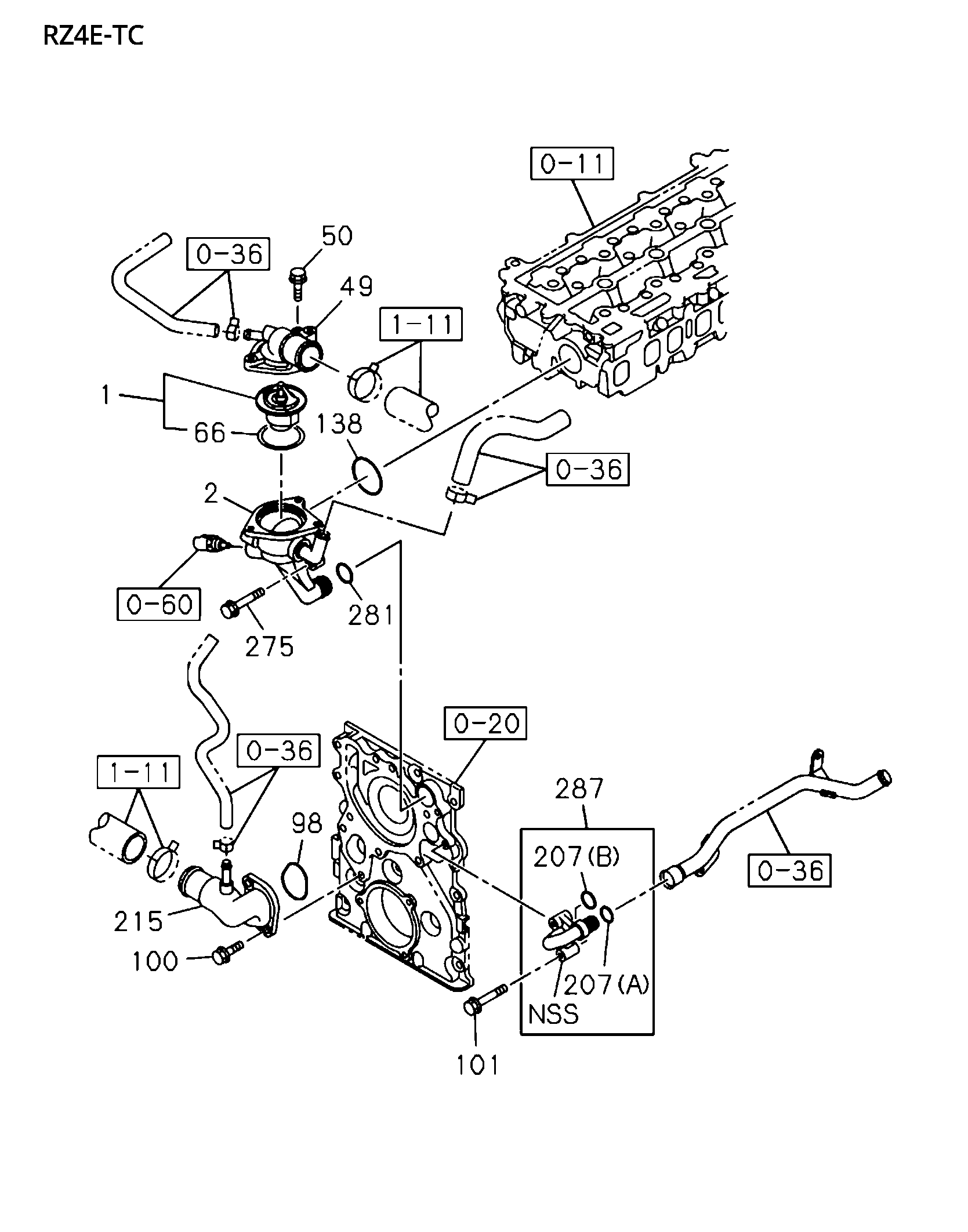

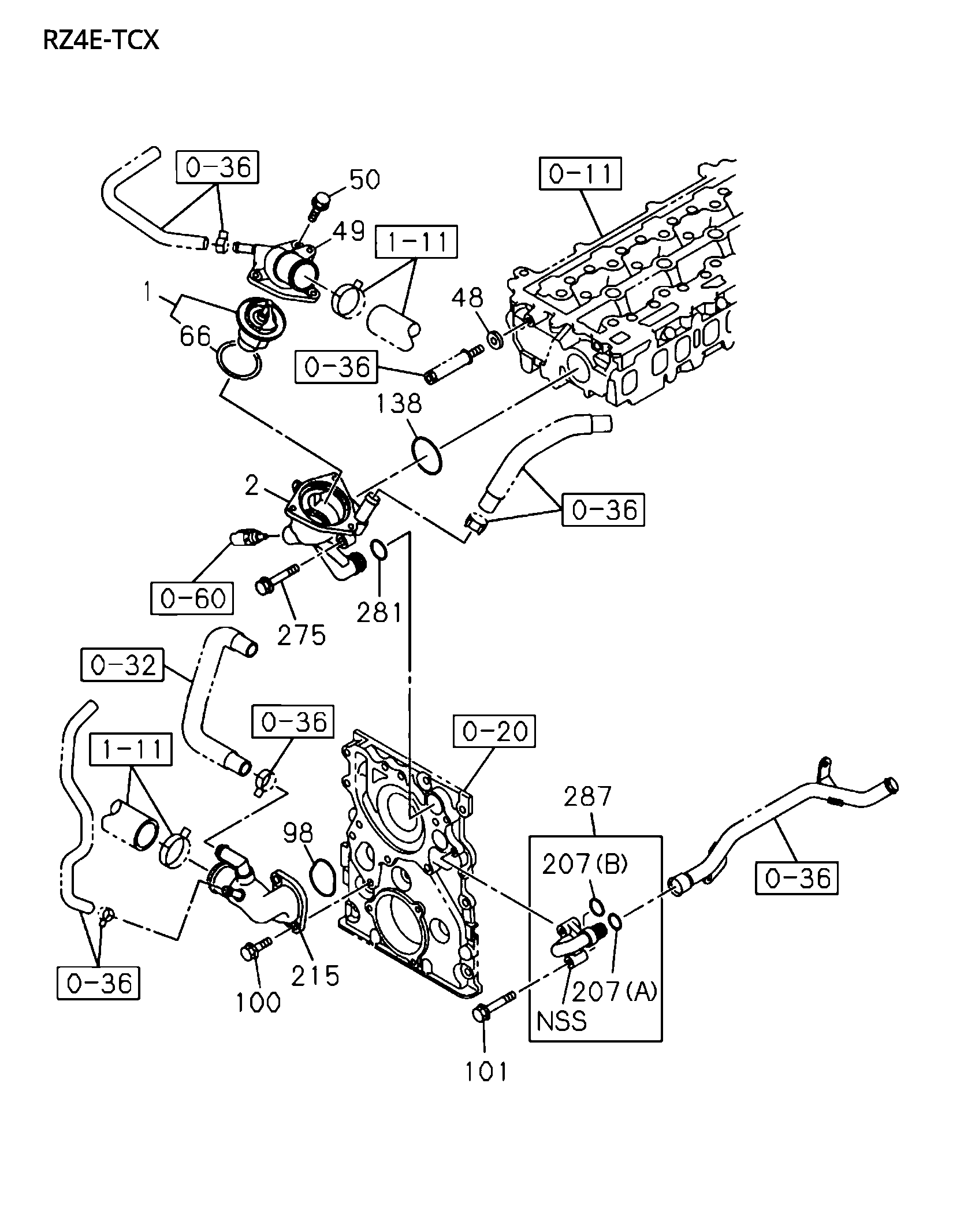

0-31 | 0-31 - THERMOSTAT AND HOUSING
DMAX
D-MAX 2022
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 215 | I8-98247 212-3 | PIPE; WATERfINL | 1 | 2110- | B | |||
| 138 | I8-98292 489-1 | GASKET; WATER PIPE | 1 | 2110- | AB | |||
| 98 | I8-98292 489-1 | GASKET; WATER PIPE | 1 | 2110- | A B | |||
| 138 | I8-98292 489-1 | GASKET; WATER PIPE | 1 | 2110- | AB | |||
| 275 | I0-28050 830-0 | BOLT; THERMOSTAT HSG | 2 | 2110- | A B | M8X30 FLANGE | ||
| 287 | I8-98291 663-2 | ADAPTER | 1 | 2110- | A B | |||
| 98 | I8-98292 489-1 | GASKET; WATER PIPE | 1 | 2110- | A B | |||
| 66 | I8-98114 587-0 | GASKET; THERMOSTAT HSG | 1 | 2110- | ABC | |||
| 105 | I0-28050 816-0 | BOLT; BRKT | 1 | 2110- | B | EUR05 SPECIFICATION(NT5) M8X16 FLANGE | ||
| 2 | I8-98373 700-1 | HOUSING; THERMOSTAT | 1 | 2110- | B | |||
| 2 | I8-98373 700-1 | HOUSING; THERMOSTAT | 1 | 2110- | B | |||
| 215 | I8-98247 212-3 | PIPE; WATERfINL | 1 | 2110- | B | |||
| 281 | I9-09568 222-0 | GASKET | 1 | 2110- | A B ID=22 | |||
| 207 | I9-09561 220-0 | GASKET | 1 | 2110- | AB | (A) | ||
| 100 | I0-28050 820-0 | BOLT; WATER PIPE | 2 | 2110- | AB | M8X20 FLANGE | ||
| 50 | I0-28050 620-0 | BOLT; OUTLET PIPE | 3 | 2110- | AB | M6X20 FLANGE | ||
| 66 | I8-98114 587-0 | GASKET; THERMOSTAT HSG | 1 | 2110- | ABC | |||
| 281 | I9-09568 222-0 | GASKET | 1 | 2110- | A B ID=22 | |||
| 1 | I8-98227 722-0 | THERMOSTAT | 1 | 2110- | A B | 82 CELSIUS | ||
| 49 | I8-98373 699-0 | PIPE; WATER OUTLET | 1 | 2110- | B | |||
| 207 | I9-09562 217-0 | GASKET | 1 | 2110- | A B | (B) | ||
| 50 | I0-28050 620-0 | BOLT; OUTLET PIPE | 3 | 2110- | AB | M6X20 FLANGE | ||
| 287 | I8-98291 663-2 | ADAPTER | 1 | 2110- | A B | |||
| 1 | I8-98227 722-0 | THERMOSTAT | 1 | 2110- | A B | 82 CELSIUS | ||
| 101 | I0-28050 635-0 | BOLT; PIPE | 2 | 2110- | AB | M6X35 FLANGE | ||
| 105 | I0-28050 816-0 | BOLT; BRKT | 1 | 2110- | B | EUR05 SPECIFICATION(NT5) M8X16 FLANGE | ||
| 275 | I0-28050 830-0 | BOLT; THERMOSTAT HSG | 2 | 2110- | A B | M8X30 FLANGE | ||
| 207 | I9-09561 220-0 | GASKET | 1 | 2110- | AB | (A) | ||
| 49 | I8-98373 699-0 | PIPE; WATER OUTLET | 1 | 2110- | B | |||
| 100 | I0-28050 820-0 | BOLT; WATER PIPE | 2 | 2110- | AB | M8X20 FLANGE | ||
| 101 | I0-28050 635-0 | BOLT; PIPE | 2 | 2110- | AB | M6X35 FLANGE | ||
| 207 | I9-09562 217-0 | GASKET | 1 | 2110- | A B | (B) |
