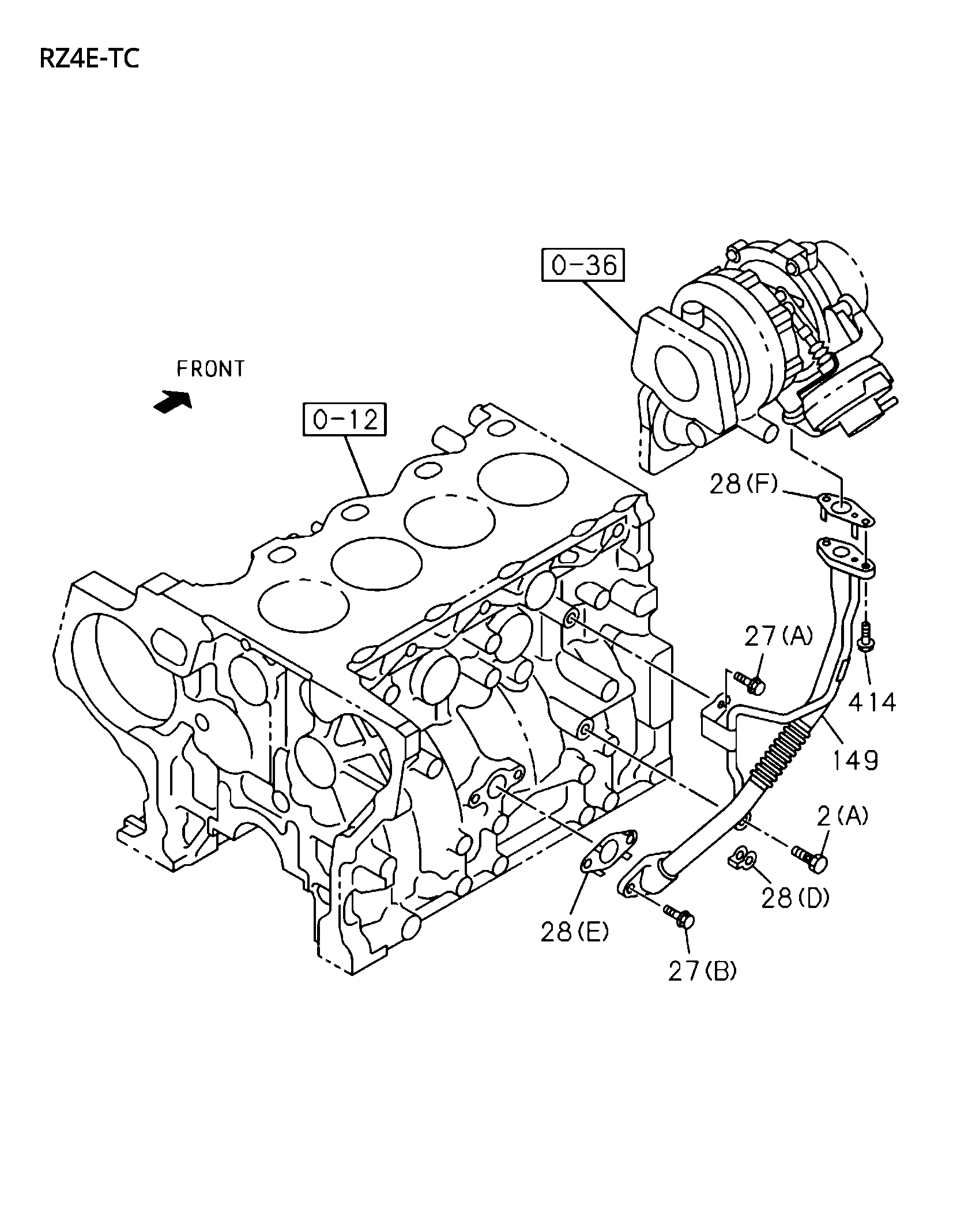

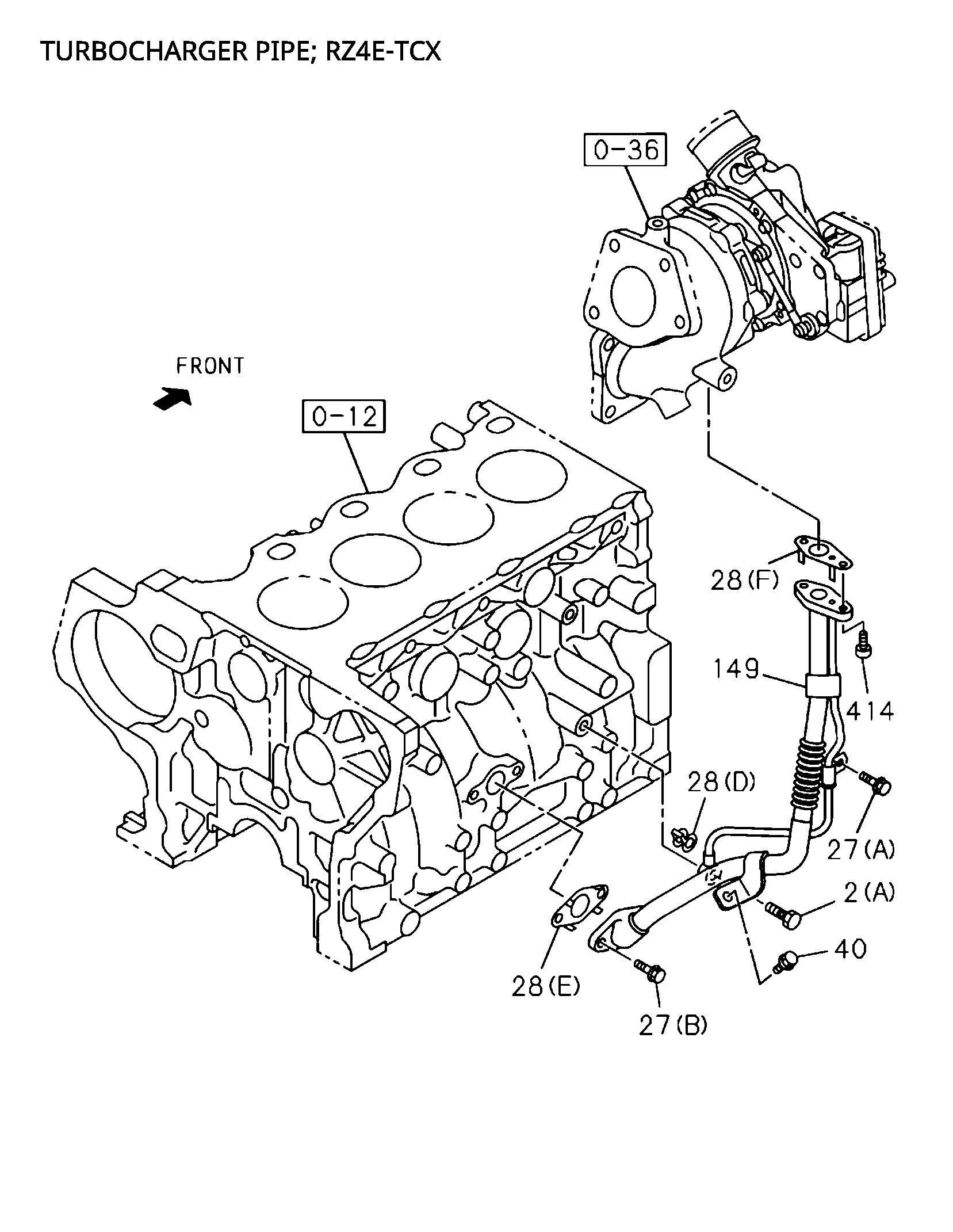

0-52 | 0-52 - OIL AND VACUUM PIPING; ENGINE
DMAX
D-MAX 2022
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 2 | I8-98037 824-0 | BOLT; EYE.OIL PIPE | 1 | 2110- | A B | (A) M10X23 EYE-BOLT | ||
| 28 | I8-98247 536-1 | GASKET; OIL PIPE | 1 | 2110- | AB | (E) | ||
| 147 | I8-98292 482-0 | GASKET; OIL PIPE TO TURBOCHARGER | 1 | 2110- | C | |||
| 311 | I0-28050 816-0 | BOLT; PIPE FIX | 2 | 2110- | C | M8X16 FLANGE | ||
| 40 | I0-28050 816-0 | BOLT; OIL PIPE | 1 | 2110- | A | M8X16 FLANGE | ||
| 274 | I0-28050 820-0 | BOLT; BRKT | 1 | 2110- | C | (B) M8X20 FLANGE | ||
| 274 | I0-28050 816-0 | BOLT; BRKT | 2 | 2110- | C | EUROS SPECIFICATION(NT5) (A) M8X16 FLANGE | ||
| 27 | I0-28050 816-0 | BOLT; OIL PIPE FIX | 1 | 2110- | AB | (A) M8X16 FLANGE | ||
| 28 | I8-98292 482-0 | GASKET; OIL PIPE | 1 | 2110- | A B | (F) | ||
| 414 | I0-58330 620-0 | BOLT; OIL PIPE | 2 | 2110- | A B | M6X20 HEX SOCKET | ||
| 563 | I0-41010 820-0 | STUD; OIL PIPE | 2 | 2110- | C | M 8X20 L=32 | ||
| 29 | I0-28050 820-0 | BOLT; OIL PIPE.OIL JET | 4 | 2110- | B | EUR05 SPECIFICATION(NT5) (C) M8X20 FLANGE | ||
| 3 | I8-98136 142-0 | GASKET; EYE BOLT.OIL PIPE | 1 | 2110- | C | ID=10.2 0D=16 | ||
| 100 | I0-28050 812-A | BOLT; CLIP | 1 | 2110- | C | M8X12 FLANGE | ||
| 28 | I8-98136 142-0 | GASKET; OIL PIPE | 1 | 2110- | AB | (D) ID=10.2 OD=16 | ||
| 27 | I0-28050 820-0 | BOLT; OIL PIPE FIX | 2 | 2110- | AB | (B) M8X20 FLANGE | ||
| 15 | I8-98247 320-0 | PIPE; OIL JET,PISTON COOLING | 4 | 2110- | B | EUROS SPECIFICATION(NT5) | ||
| 544 | I0-91180 208-0 | NUT; BRKT | 1 | 2110- | C | M8 FLANGE | ||
| 534 | I0-91180 208-0 | NUT; OIL PIPE | 2 | 2110- | C | M8 FLANGE | ||
| 149 | I8-98247 191-2 | PIPE; OIL RETURNJURBOCHARGER | 1 | 2110- | B | EUROO SPECIFICATI0N(K75),EUR02 SPECIFICATI0N(NT2),EUR04 SPECIFICATION(NT4) |
