0-60 | 0-60 - ENGINE ELECTRICAL CONTROL PARTS
DMAX
D-MAX 2022
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|

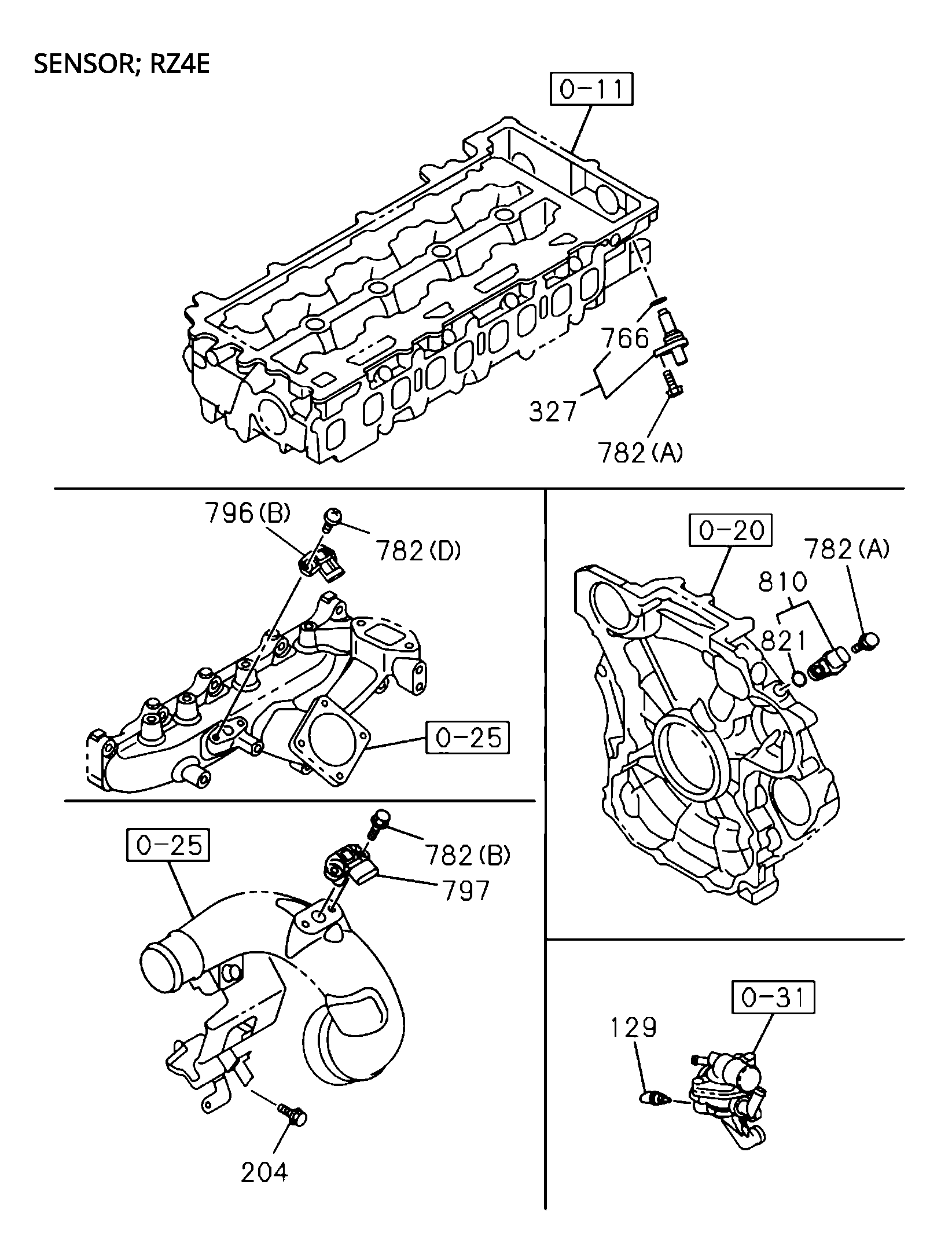

| 129 | I8-98260 257-0 | SENSOR; GLOW PLUG,THERMO | 1 | 2110- | ABC | NISHIDA | ||
| 4 | I0-28151 040-0 | BOLT; STARTER | 1 | 2110- | AB | (B) M10X40 FLANGE | ||
| 821 | I8-97369 404-0 | GASKET; CRANKSHAFT SENSOR | 1 | 2110- | AB | ID=14.2 OD=18.8 | ||
| 766 | I8-98318 106-0 | GASKET; SENSOR | 1 | 2110- | D=17.8 OD=22.6 | |||
| 613 | I8-97542 482-1 | CONTROL UNIT; ENG | 1 | 2110- | B | RODEO, EUR04 SPECIFICATION(NT4), EXC. AUTO CRUISE CONT<K30>,ADAPTIVE CRUISE CONT<K59>,IMMOBILIZER SYSTEM<7KC>,IDLE STOP SYSTEM VAR2<8BM> | ||
| 810 | I8-98183 621-0 | SENSOR; CRANK ANGLE | 1 | 2110- | AB | |||
| 608 | I8-98008 687-0 | SENSOR; AIR TEMP | 1 | 2110- | ABC | CREW CAB ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> | ||

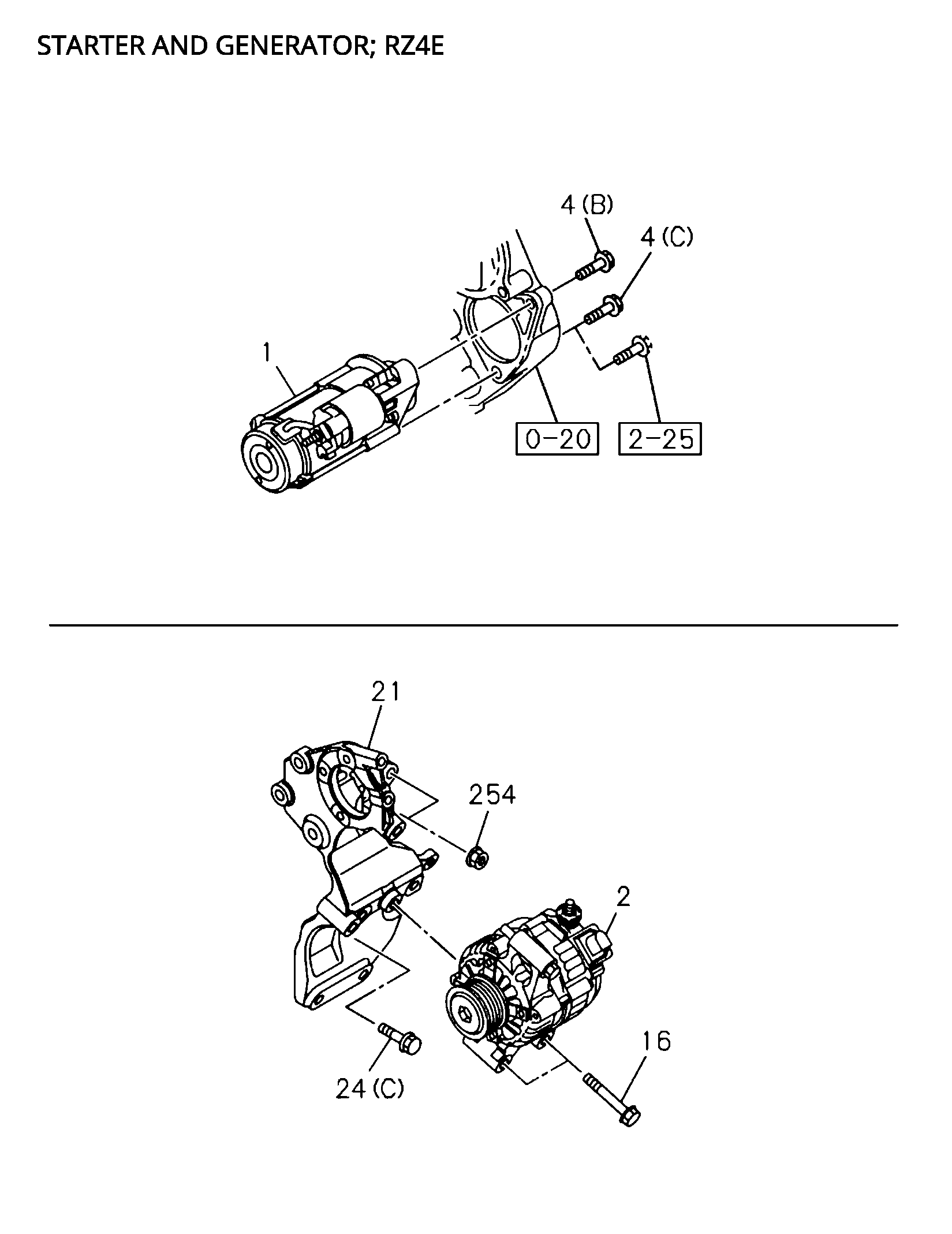

| 1 | I8-98248 271-2 | STARTER ASM | 1 | 2110- | B | 12V 1.6KW | ||
| 748 | I0-28650 616-0 | BOLT; CONT UNIT | 2 | 2110- | (C ) IDLE STOP SYSTEM | |||
| 21 | I8-98378 725-2 | BRACKET; GEN | 1 | 2110- | AB | |||
| 897 | I8-97487 649-2 | DRM | 1 | 2110- | ABC | (A) SAFETY PACKEGE FRT&RR | ||
| 2 | I8-98385 217-0 | GENERATOR ASM | 1 | 2110- | B | 12V 90A | ||
| 498 | I8-98396 304-0 | BRACKET; RELAY | 1 | 2110- | ABC | (B) EXC. IDLE STOP SYSTEM VAR2 | ||
| 613 | I8-97517 262-4 | CONTROL UNIT; ENG | 1 | 2110- | B | EUR04 SPECIFICATION(NT4), EXC. AUTO CRUISE CONT<K30>,ADAPTIVE CRUISE CONT<K59>,IMMOBILIZER SYSTEM<7KC>,IDLE STOP SYSTEM VAR2<8BM> | ||
| 393 | I8-98480 358-0 | BRACKET; HARNESS TO BODY | 1 | 2110- | A | (B) | ||
| 16 | I0-28151 070-0 | BOLT; GEN | 3 | 2110- | AB | M10X70 FLANGE | ||
| 797 | I8-98121 697-1 | SENSOR; MAT | 1 | 2110- | ||||
| 24 | I0-28151 025-0 | BOLT; GEN BRKT | 2 | 2110- | AB | ( C ) M10X25 FLANGE | ||
| 327 | I8-98258 187-0 | SENSOR; CAMSHAFT POSITION | 1 | 2110- | AB | |||
| 153 | I8-97012 320-1 | BOLT; BRKT FIX | 1 | 2110- | ABC | (A) M8X12 FLANGE | ||
| 153 | I8-97086 823-0 | BOLT; BRKT FIX | 1 | 2110- | ABC | (B) M6X16 W/LK&PL WASHER | ||

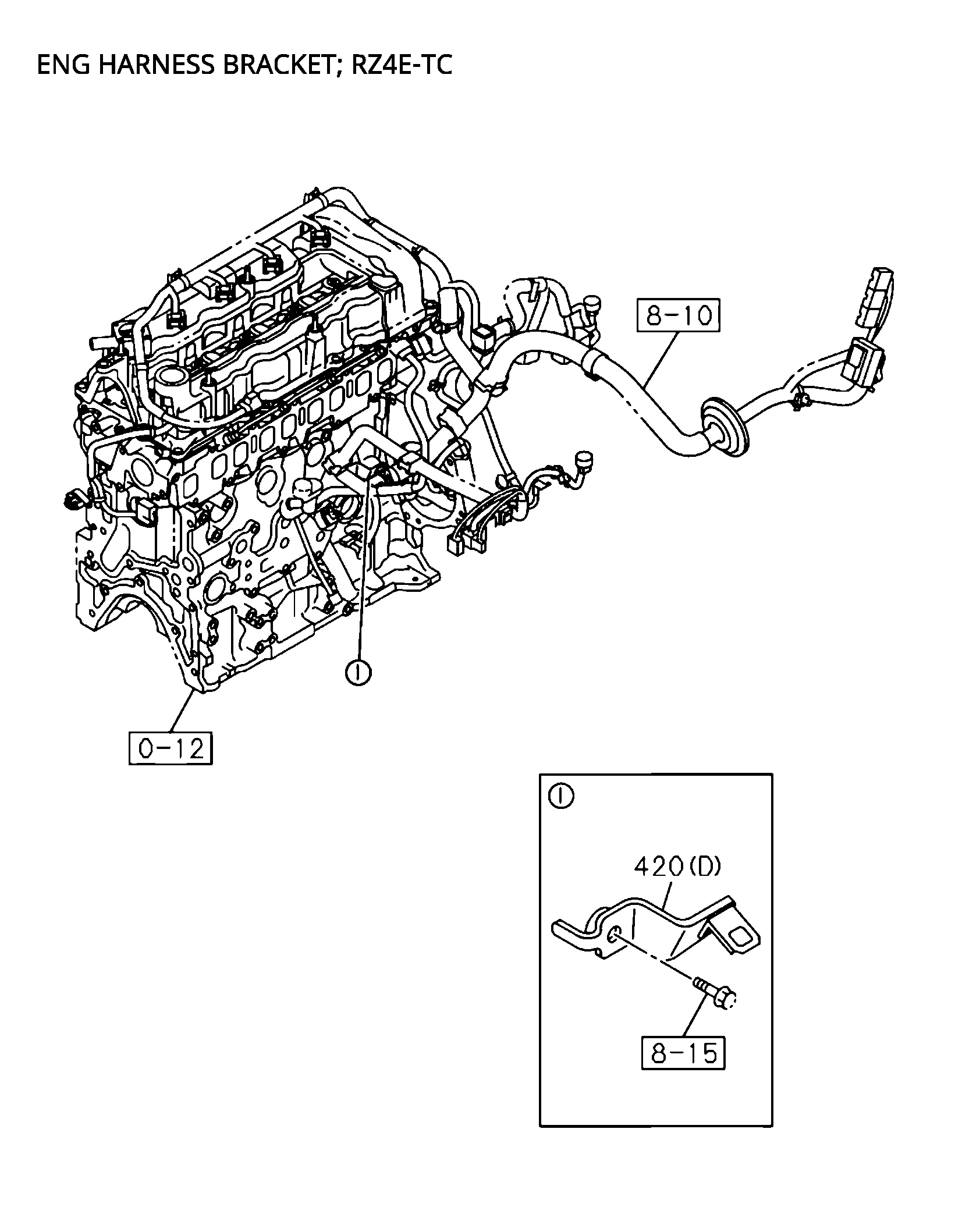

| 420 | I8-97498 154-0 | BRACKET; HARNESS | 1 | 2110- | B | (J) |
