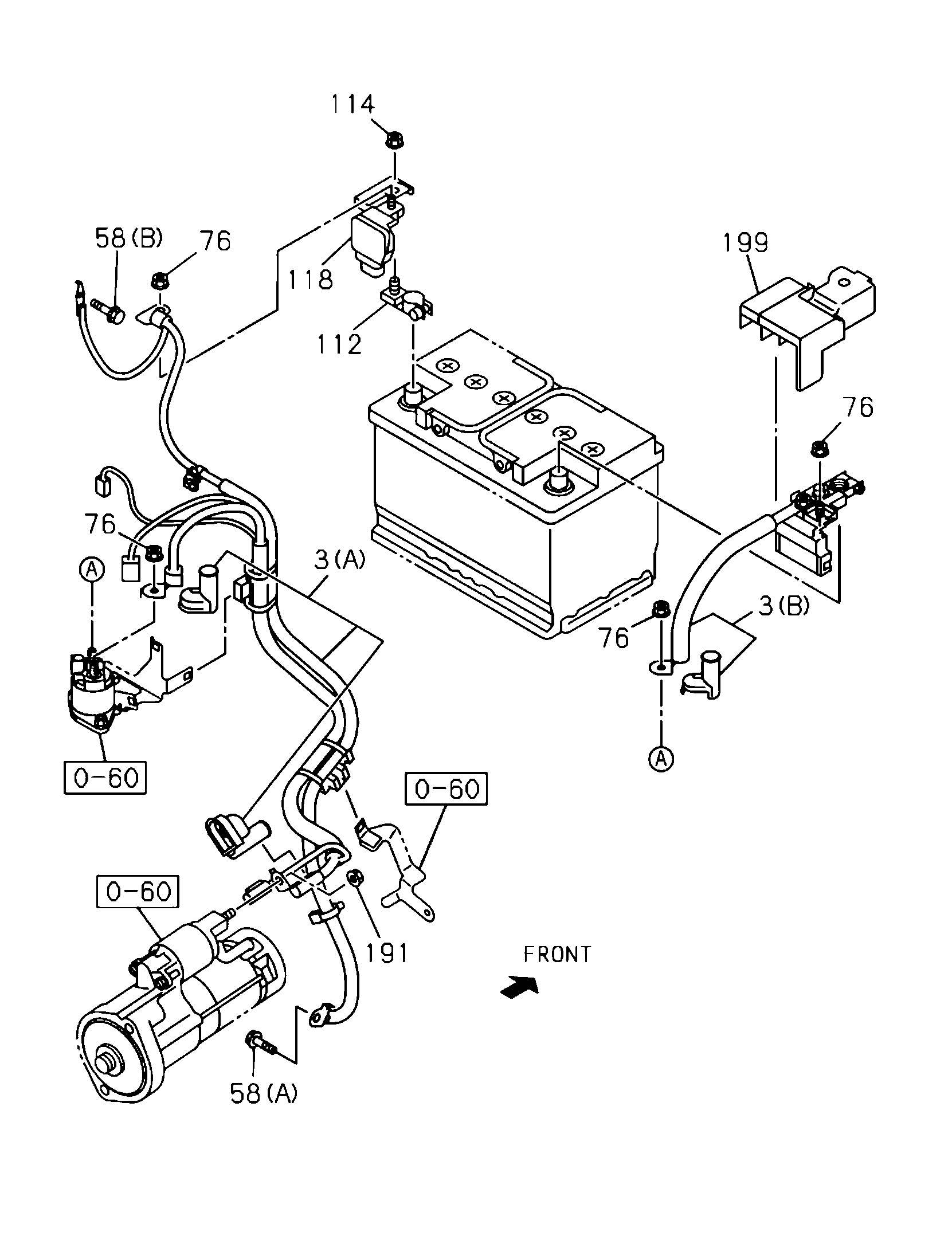

0-61 | 0-61 - BATTERY AND ENGINE ELECTRICAL PARTS
DMAX
D-MAX 2022
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 112 | I8-98228 976-0 | TERMINAL; BATTERY | 1 | 2110- | B | <-> | ||
| 76 | I0-91180 108-0 | NUT; BATTERY CABLE | 2 | 2110- | ABC | M8 FLANGE | ||
| 112 | I8-98228 976-0 | TERMINAL; BATTERY | 1 | 2110- | A C | AUSTRALIA EQUIPMENT(B13) <-> | ||
| 114 | I0-91180 108-0 | NUT; CABLE,BATTERY TERMINAL | 1 | 2110- | A C | AUSTRALIA EQUIPMENT(B13) M8 FLANGE | ||
| 58 | I0-28650 820-0 | BOLT; CABLE.BATTERY | 1 | 2110- | ABC | (A) M8X20 FLANGE | ||
| 114 | I0-91180 108-0 | NUT; CABLE,BATTERY TERMINAL | 1 | 2110- | B | M8 FLANGE | ||
| 3 | I8-97491 565-5 | HARNESS; CABLE,BATTERY TO STARTER | 1 | 2110- | B | EUROO SPECIFICATI0N(K75),EUR02 SPECIFICATI0N(NT2),EUR04 SPECIFICATION(NT4) BATTERY LN3 490 CCA(8TB),BATTERY LN4 565 CCA(8TC),BATTERY LN3 673 CCA(8UN),BATTERY LN4 780 CCA(8UQ) EXC. IDLE STOP SYSTEM VAR2<8BM> (A) | ||
| 76 | I0-91180 108-0 | NUT; BATTERY CABLE | 2 | 2110- | ABC | IDLE STOP SYSTEM VAR2<8BM> M8 FLANGE | ||
| 199 | I8-97554 180-0 | COVER; BOX | 1 | 2110- | ABC | |||
| 58 | I8-98164 836-0 | BOLT; CABLE.BATTERY | 1 | 2110- | ABC | (B) M6X14W/PL WASHER | ||
| 191 | I0-91180 108-0 | NUT; STARTER | 1 | 2110- | ABC | M8 FLANGE |
