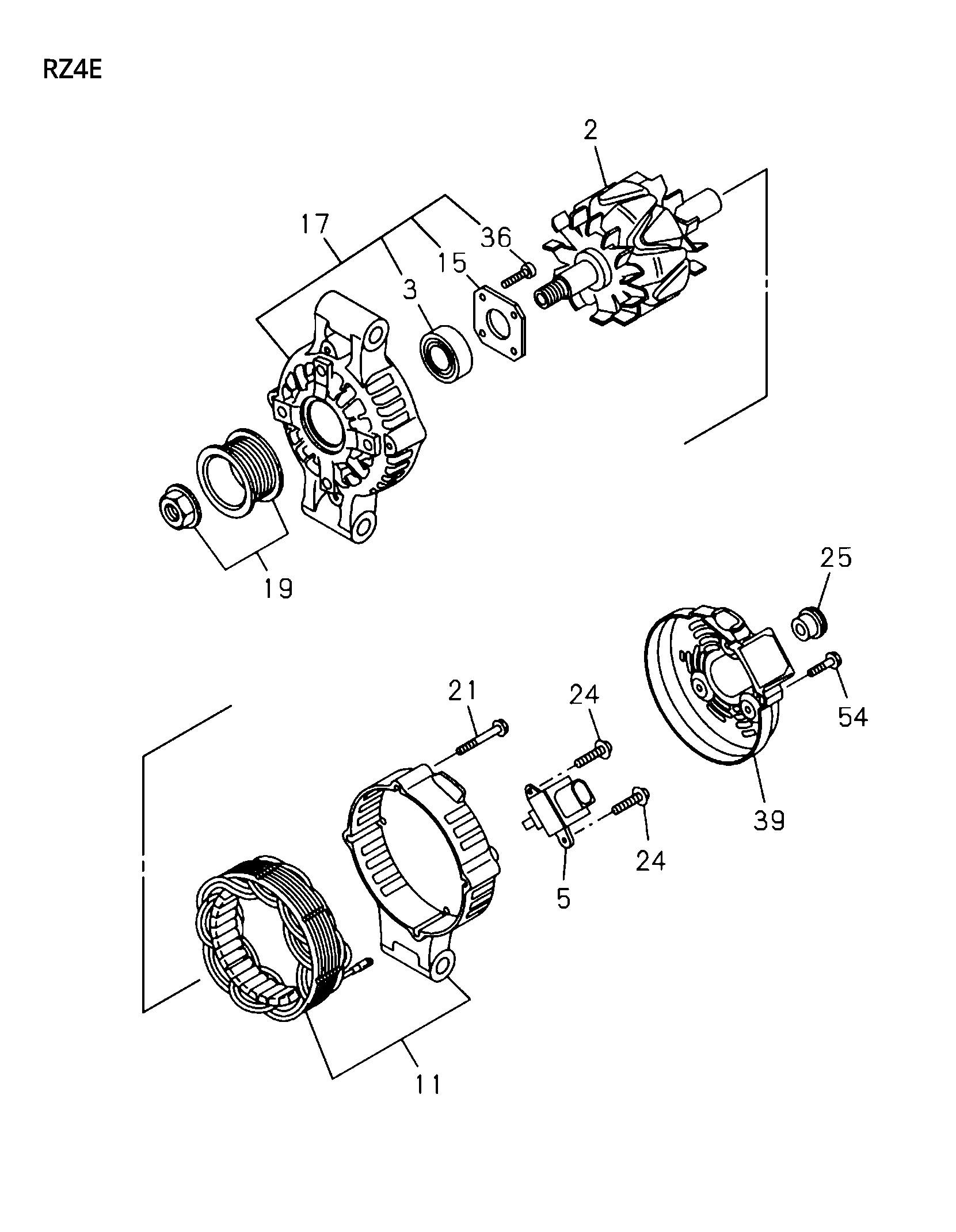

| 36 |
I8-97142 562-0 |
|
SCREW; FRT COVER |
4 |
|
|
ABCD |
ASSY 8983852170, 8983852180, 8983917531, 8983917541 |
| 2 |
I8-97378 924-0 |
|
ROTOR; GEN |
1 |
|
|
ACD |
ASSY 8983852170, 8983917531, 8983917541 |
| 3 |
I8-98228 965-0 |
|
BEARING; ROTOR,GEN |
1 |
|
|
ACD |
ASSY 8983852170, 8983917531, 8983917541 |
| 21 |
I8-97319 752-0 |
|
BOLT; THROUGH.GEN |
4 |
|
|
ACD |
ASSY 8983852170, 8983917531, 8983917541 |
| 5 |
I8-98249 245-0 |
|
HOLDER; BRUSH.GEN |
1 |
|
|
AB |
ASSY 8983852170, 8983852180 |
| 17 |
I8-98393 105-0 |
|
COVER ASM; FRT,GEN |
1 |
|
|
A |
ASSY 8983852170 |
| 25 |
I8-98285 771-0 |
|
BUSHING; INSULATION TERMINAL |
1 |
|
|
AB |
ASSY 8983852170, 8983852180 |
| 11 |
I8-98393 106-0 |
|
COVER; RR.GEN |
1 |
|
|
A |
ASSY 8983852170 |
| 24 |
I8-94455 161-0 |
|
SCREW; RECTIFIER,GEN |
3 |
|
|
BCD |
ASSY 8983852180, 8983917531, 8983917541 |
| 19 |
I8-98393 104-0 |
|
PULLEY; GEN |
1 |
|
|
ACD |
ASSY 8983852170, 8983917531, 8983917541 |
| 54 |
I8-98232 109-0 |
|
BOLT; RECTIFIER.GEN |
3 |
|
|
ACD |
ASSY 8983852170, 8983917531, 8983917541 |
| 15 |
I8-94406 982-0 |
|
RETAINER; ROTOR.GEN |
1 |
|
|
ABC |
ASSY 8983852170, 8983852180, 8983917531 |
