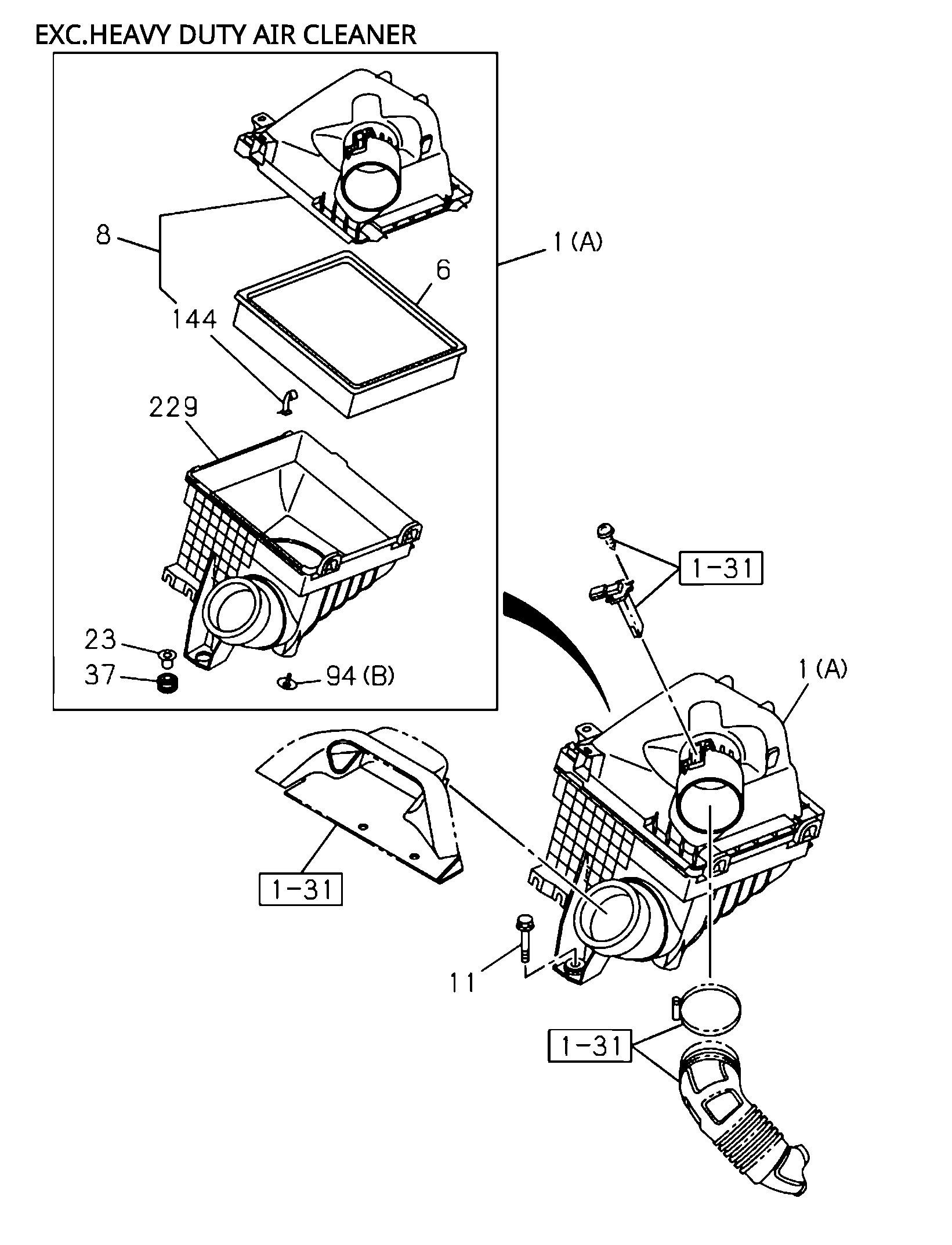

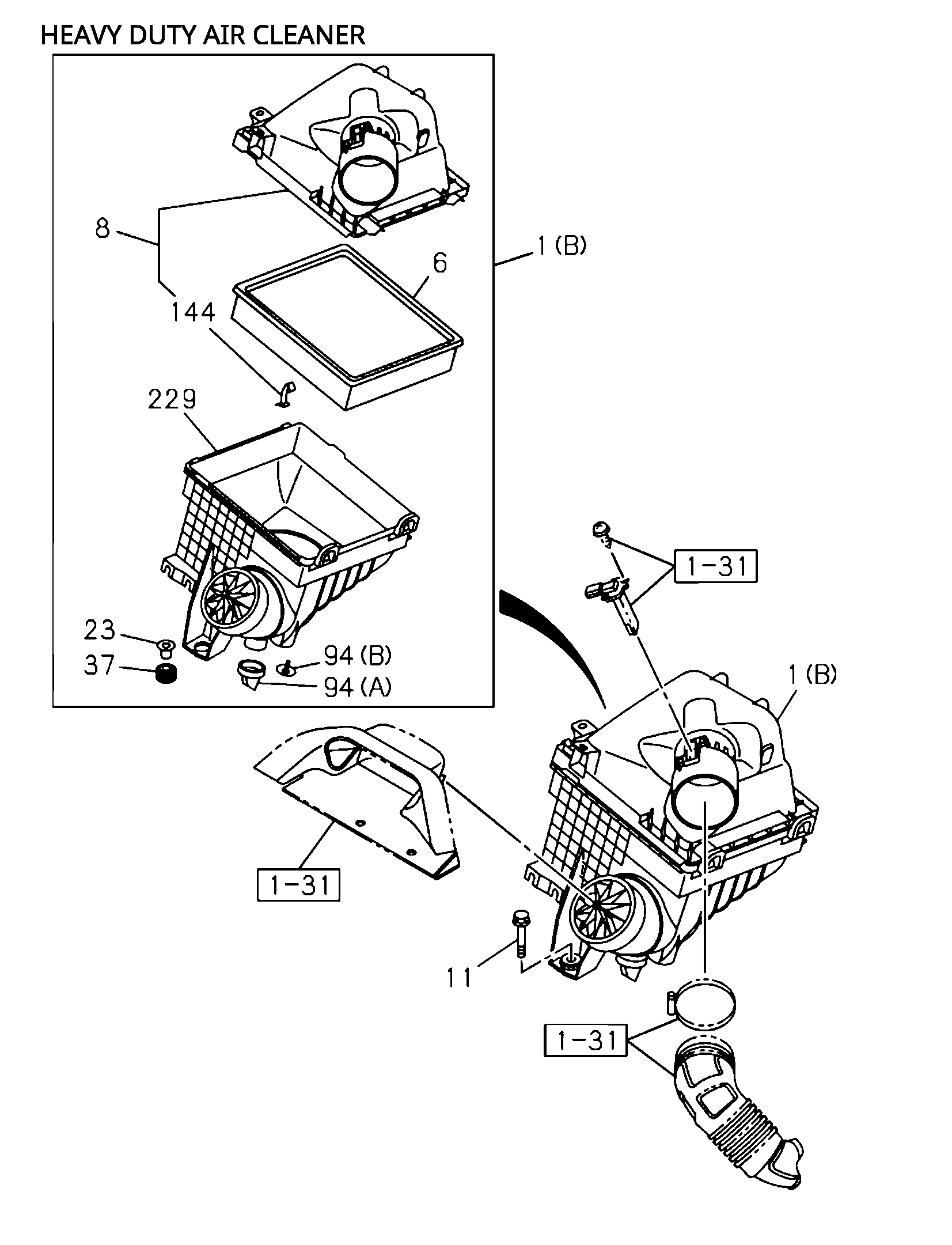

1-30 | 1-30 - AIR CLEANER
DMAX
D-MAX 2022
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 229 | I8-97554 704-1 | BODY ASM; ACL | 1 | 2110- | A | |||
| 6 | I8-97499 548-0 | FILTER; ACL | 1 | 2110- | | ABC | |||
| 94 | I8-97148 258-0 | VALVE; VACUATOR | 1 | 2110- | | ABC | (B) | ||
| 6 | I8-97499 548-A | FILTER; ACL | 1 | 2110- | | ABC | ( IADG ) | ||
| 11 | I0-28650 835-0 | BOLT; ACL | 3 | 2110- | | ABC | M8X35 FLANGE | ||
| 8 | I8-97554 702-0 | COVER ASM; ACL | 1 | 2110- | B | EUROO SPECIFICATI0N(K75),EUR02 SPECIFICATI0N(NT2),EUR04 SPECIFICATTON(NT4) EXC. HEAVY DUTY AIR CLEANER<K46> | ||
| 144 | I8-97324 624-0 | CLIP; ACL | 2 | 2110- | ABC | |||
| 37 | I8-98140 269-0 | RUBBER; MTG.ACL | 3 | 2110- | | ABC | |||
| 23 | I8-98140 270-0 | COLLAR; ACL STAY | 3 | 2110- | | ABC | |||
| 1 | I8-98395 906-1 | CLEANER ASM; AIR | 1 | 2110- | B | EUROO SPECIFICATI0N(K75),EUR02 SPECIFICATI0N(NT2),EUR04 SPECIFICATTON(NT4) EXC. HEAVY DUTY AIR CLEANER<K46> (A) | ||
| 229 | I8-97554 704-1 | BODY ASM; ACL | 1 | 2110- | BC | EXC. HEAVY DUTY AIR CLEANER<K46> |
