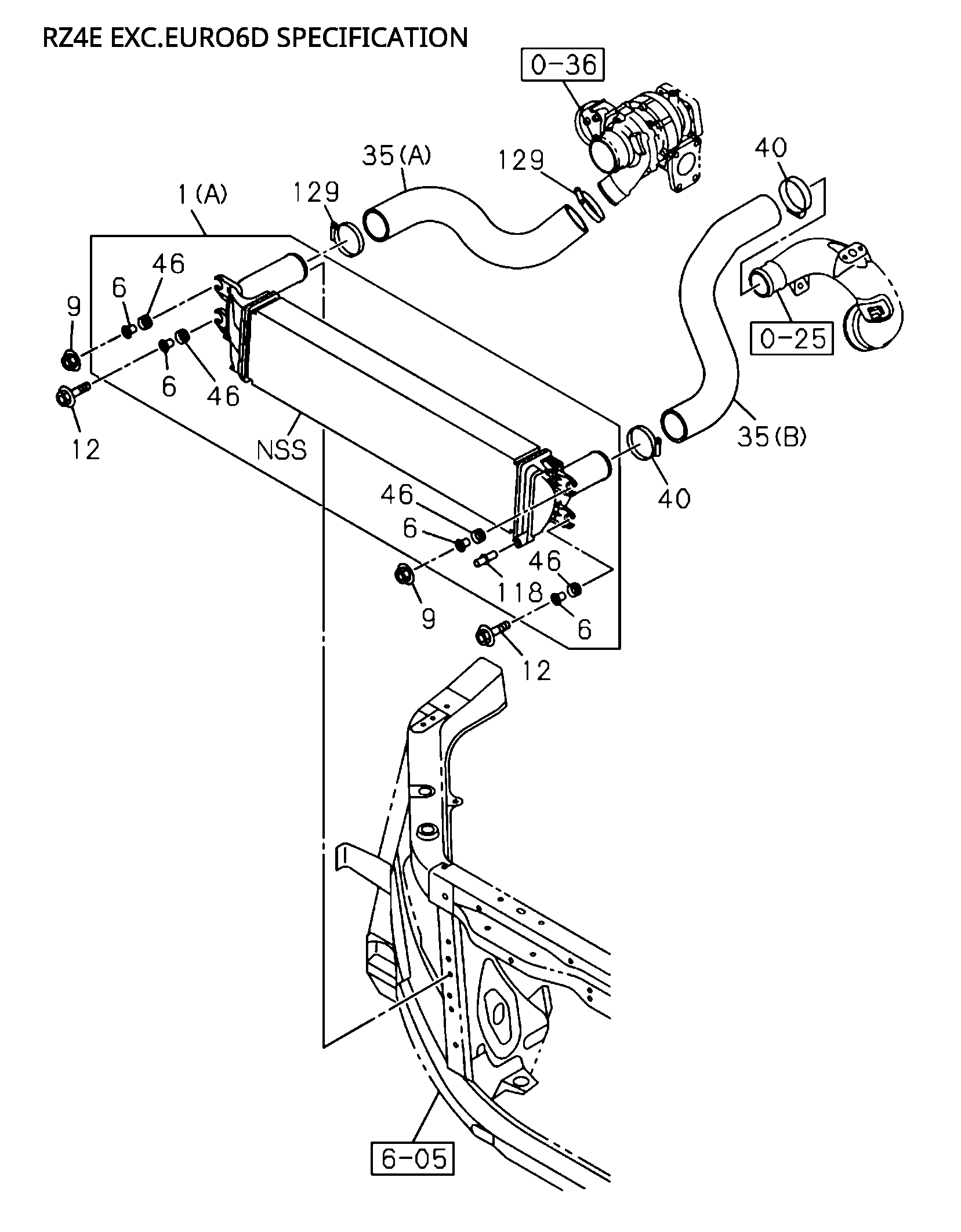

1-35 | 1-35 - CHARGE AIR COOLER
DMAX
D-MAX 2022
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 98 | I0-28650 840-0 | BOLT; BRKT TO CHARGE AIR COOLER | 3 | 2110- | A | (C) M8X40 FLANGE | ||
| 9 | I8-98049 361-0 | NUT; CHARGE AIR COOLER | 2 | 2110- | BC | M8 FLANGE | ||
| 118 | I8-98189 894-0 | COCK; DRAIN | 1 | 2110- | BC | |||
| 98 | I0-28050 816-0 | BOLT; BRKT TO CHARGE AIR COOLER | 4 | 2110- | A | (A) M8X16 FLANGE | ||
| 6 | I8-97942 932-0 | COLLAR; MTG.CHARGE AIR COOLER | 4 | 2110- | BC | |||
| 1 | I8-98396 418-1 | COOLER; CHARGE AIR | 1 | 2110-2111 | B | EUROO SPECIFICATI0N(K75),EUR02 SPECIFICATI0N(NT2),EUR04 SPECIFICATION(NT4) (A) | ||
| 3 | I0-28050 825-0 | BOLT; CHARGE AIR COOLER | 3 | 2110- | A | (A) M8X25 FLANGE | ||
| 12 | I8-98044 006-0 | BOLT; CHARGE AIR COOLER | 4 | 2110- | A | M 8X41 W/WASHER | ||
| 1 | I8-98396 418-2 | COOLER; CHARGE AIR | 1 | 2112- | B | (A) | ||
| 12 | I8-98136 077-0 | BOLT; CHARGE AIR COOLER | 2 | 2110- | BC | M8X32.5W/PL WASHER | ||
| 35 | I8-98394 396-2 | HOSE; CONNECTING | 1 | 2110- | B | EUROO SPECIFICATI0N(K75),EUR02 SPECIFICATI0N(NT2),EUR04 SPECIFICATI0N(NT4) (B) | ||
| 129 | I8-98194 605-0 | CLAMP; HOSE | 2 | 2110- | BC | ID=60-65 | ||
| 40 | I8-97833 075-0 | CLIP; RUBBER HOSE | 2 | 2110- | BC | ID=45-65 | ||
| 1 | I8-98396 418-2 | COOLER; CHARGE AIR | 1 | 2112- | C | EUR02 SPECIFICATI0N(NT2),EUR04 SPECIFICATION(NT4) (A) | ||
| 1 | I8-98396 418-1 | COOLER; CHARGE AIR | 1 | 2110-2111 | C | EUR02 SPECIFICATI0N(NT2),EUR04 SPECIFICATION(NT4) (A) | ||
| 98 | I0-28050 860-0 | BOLT; BRKT TO CHARGE AIR COOLER | 2 | 2110- | A | (B) M8X60 FLANGE | ||
| 35 | I8-98394 394-0 | HOSE; CONNECTING | 1 | 2110- | B | (A) | ||
| 46 | I8-97942 930-0 | RUBBER; MTG,CHARGE AIR COOLER | 4 | 2110- | BC |
