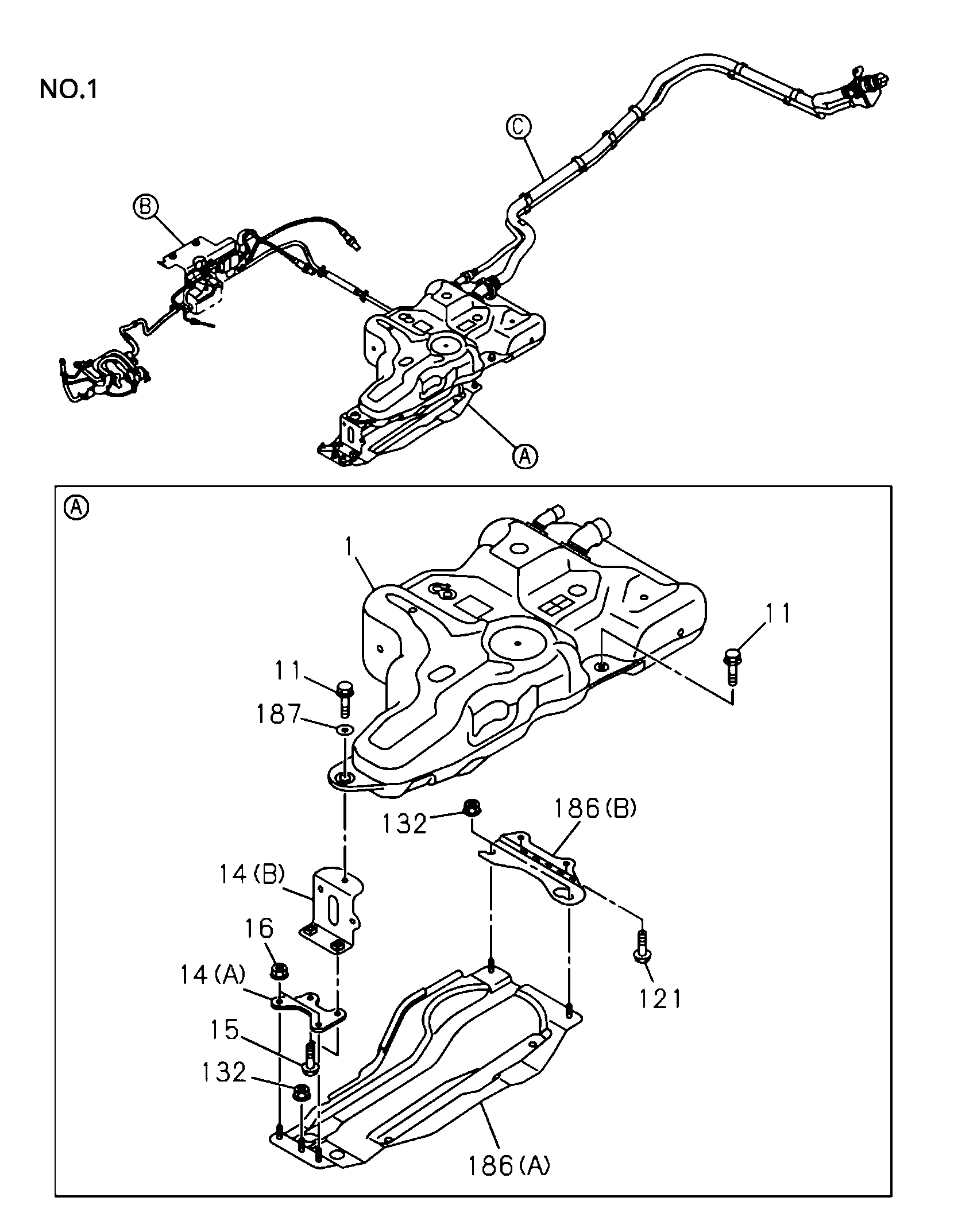

1-46 | 1-46 - DEF TANK AND PIPING
DMAX
D-MAX 2022
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 108 | I0-91180 108-0 | NUT; CLIP | 1 | 2110- | | A | M8 FLANGE | ||
| 15 | I0-28650 820-0 | BOLT; BRKT,DEF TANK | 2 | 2110- | A | M8X20 FLANGE | ||
| 121 | I0-28650 825-0 | BOLT; PROTECTOR | 2 | 2110- | | A | M8X25 FLANGE | ||

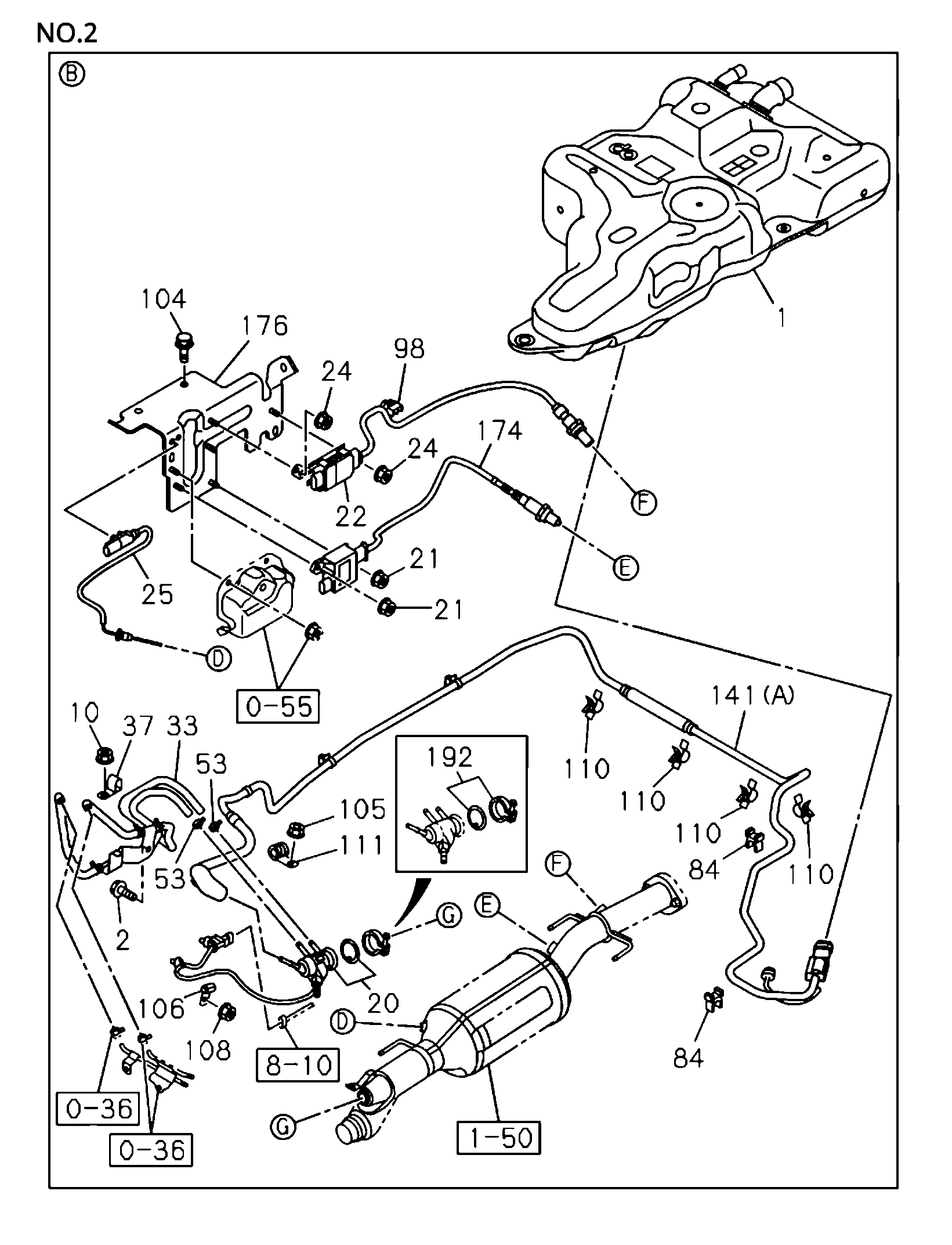

| 104 | I0-28661 025-0 | BOLT; BRKT | 2 | 2110- | | A | M10X25 FLANGE | ||

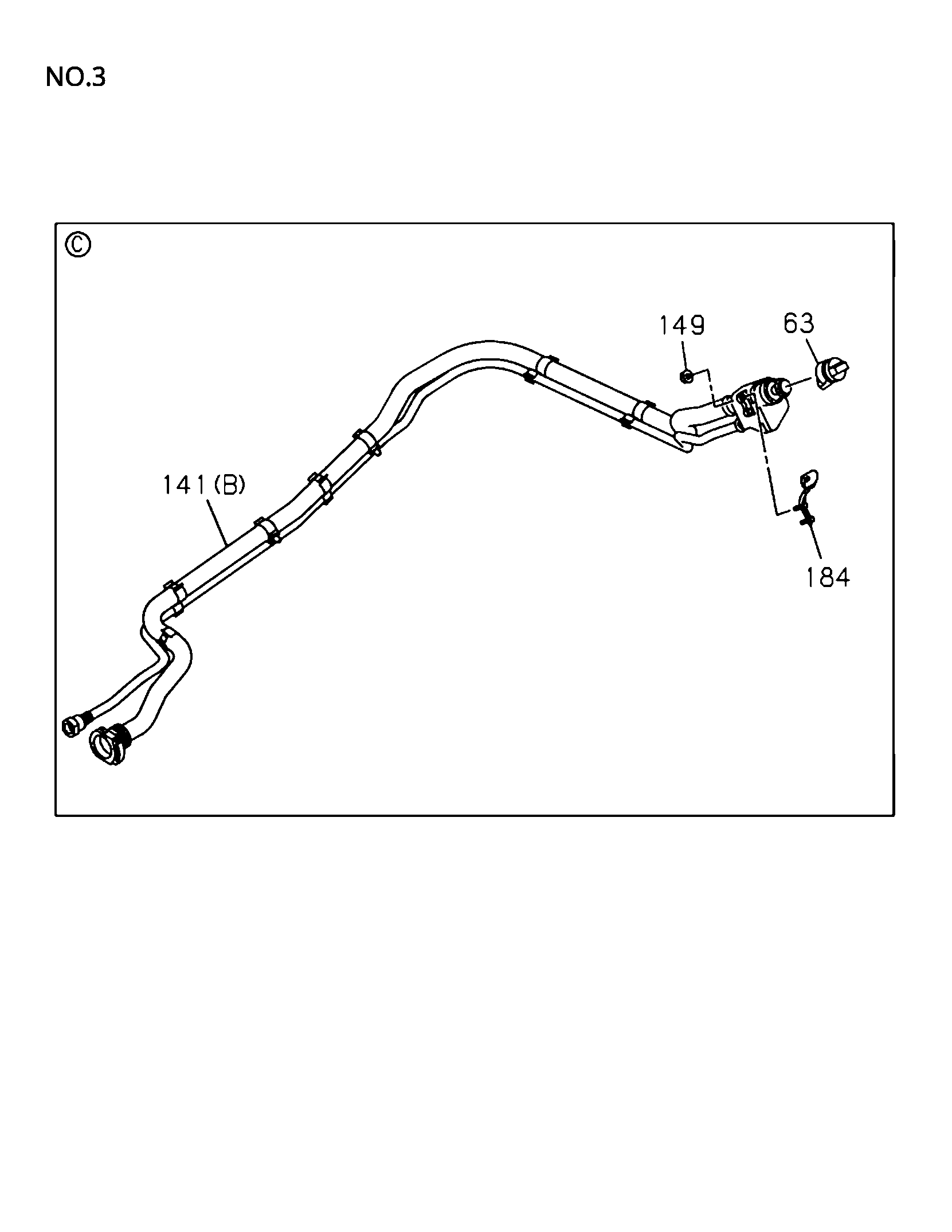

| 149 | I0-91180 106-0 | NUT; PIPE | 2 | 2110- | | A | M6 FLANGE | ||
| 21 | I0-91180 106-0 | NUT; INJECTOR ASM,DEF DCM | 2 | 2110- | A | M6 FLANGE | ||
| 16 | I0-91180 208-0 | NUT; BRKT,DEF TANK | 2 | 2110- | A | M8 FLANGE | ||
| 24 | I0-91180 106-0 | NUT; SENSOR,DEF DCM EXH NOX | 4 | 2110- | A | M6 FLANGE | ||
| 84 | I8-97944 126-0 | CLIP; DEF DCM MDL COOL RTN HOSE | 2 | 2110- | A | ID=10.5 | ||
| 53 | I8-97944 126-0 | CLAMP; DEF DCM MDL COOL DLVY HOSE | 2 | 2110- | A | ID=10.5 | ||
| 132 | I0-91180 208-0 | NUT; PROTECTOR | 3 | 2110- | | A | M8 FLANGE | ||
| 105 | I0-91180 208-0 | NUT; BRKT | 1 | 2110- | | A | M8 FLANGE | ||
| 11 | I0-28650 825-0 | BOLT; DEF TANK | 3 | 2110- | A | M8X25 FLANGE | ||
| 10 | I0-91180 108-0 | NUT; DEF DCM MDL COOL DLVY HOSE CLIP | 1 | 2110- | A | M8 FLANGE | ||
| 2 | I0-28650 820-0 | BOLT; DEF DCM | 1 | 2110- | A | M8X20 FLANGE |
