Isuzu | Part Center System

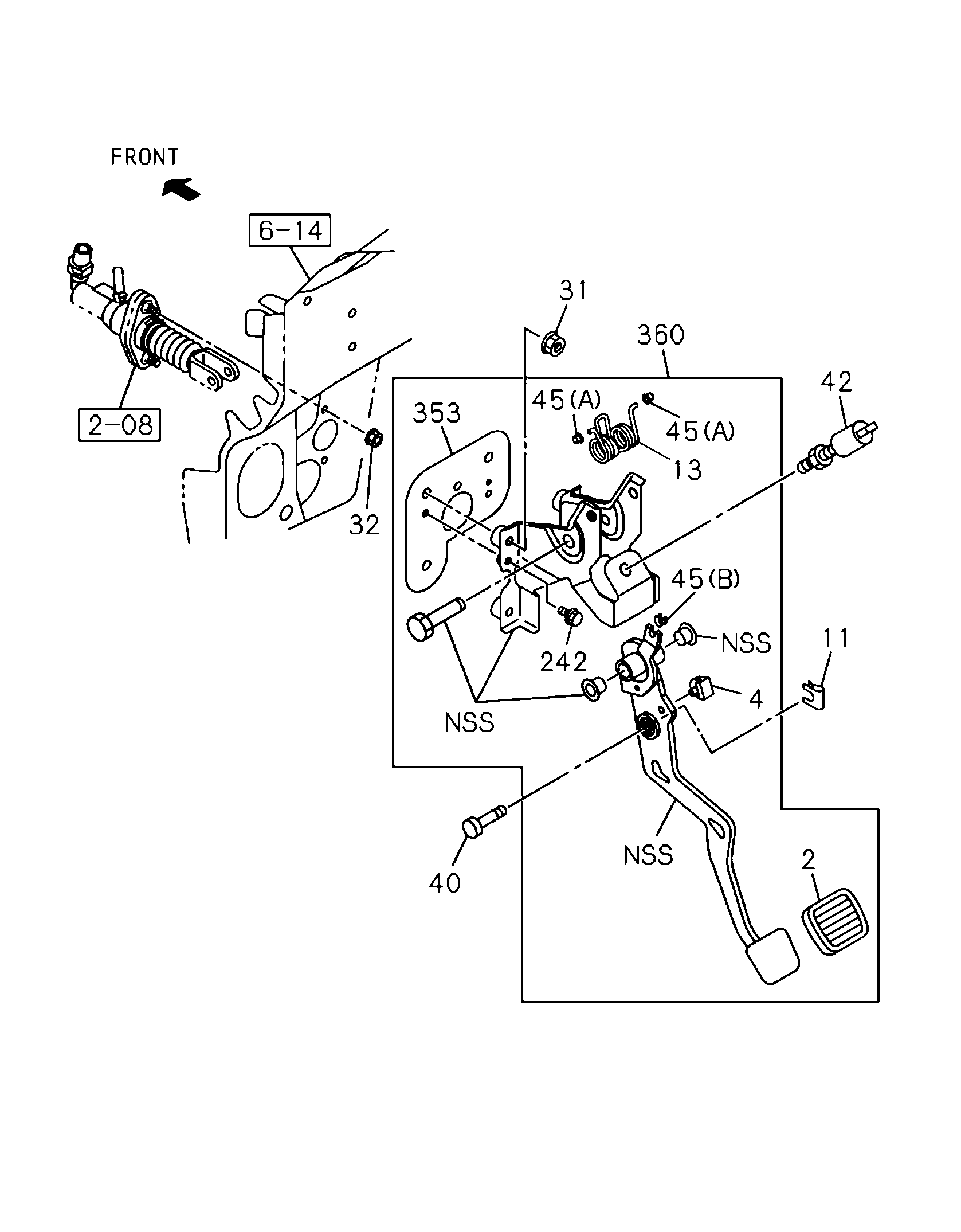

2-03 | 2-03 - CLUTCH PEDAL AND CONTROL

DMAX

D-MAX 2022

Key	PART NO	DESCRIPTION	QTY	APP DATE	MODEL	REMARKS

40	I8-97312 338-0	PIN; JOINT,CLU DAMPER	1	2110-	BCDE F	M/T MVL 6 SPEED 6Y(Y6P),M/T MVL 6 SPEED 6S(Y6S) OD=7.9 L=27.5
31	I0-91180 108-0	NUT; MTG BRKTTO BODY	3	2110-	BCDE F	M/T MVL 6 SPEED 6Y(Y6P),M/T MVL 6 SPEED 6S(Y6S) M8 FLANGE
360	I8-97664 080-0	PEDAL ASM; CLUTCH	1	2110-	B D F	RZ4E-TCX HI-POWER ENG(LNC) M/T MVL 6 SPEED 6S(Y6S)
4	I8-97947 783-0	STOPPER; CLU PEDAL	1	2110-	BC D E F	M/T MVL 6 SPEED 6Y(Y6P),M/T MVL 6 SPEED 6S(Y6S)
31	I0-91180 108-0	NUT; MTG BRKTTO BODY	3	2110-	BCDE F	M/T MVL 6 SPEED 6Y(Y6P),M/T MVL 6 SPEED 6S(Y6S) M8 FLANGE
242	I0-28050 612-0	BOLT; BRKT,CLUTCH	2	2110-	BCDE F	M/T MVL 6 SPEED 6Y(Y6P),M/T MVL 6 SPEED 6S(Y6S) M6X12 FLANGE
4	I8-97947 783-0	STOPPER; CLU PEDAL	1	2110-	BC D E F	M/T MVL 6 SPEED 6Y(Y6P),M/T MVL 6 SPEED 6S(Y6S)
2	I8-97318 799-0	COVER; CLU PEDAL	1	2110-	BC D E F	M/T MVL 6 SPEED 6Y(Y6P),M/T MVL 6 SPEED 6S(Y6S)
360	I8-97664 080-0	PEDAL ASM; CLUTCH	1	2110-	B D F	RZ4E-TCX HI-POWER ENG(LNC) M/T MVL 6 SPEED 6S(Y6S)
353	I8-97553 119-0	PLATE ASM; CLUTCH PEDAL	1	2110-	BCDE F	M/T MVL 6 SPEED 6Y(Y6P),M/T MVL 6 SPEED 6S(Y6S)
353	I8-97553 119-0	PLATE ASM; CLUTCH PEDAL	1	2110-	BCDE F	M/T MVL 6 SPEED 6Y(Y6P),M/T MVL 6 SPEED 6S(Y6S)
40	I8-97312 338-0	PIN; JOINT,CLU DAMPER	1	2110-	BCDE F	M/T MVL 6 SPEED 6Y(Y6P),M/T MVL 6 SPEED 6S(Y6S) OD=7.9 L=27.5
360	I8-97664 080-0	PEDAL ASM; CLUTCH	1	2110-	BCDE F	M/T MVL 6 SPEED 6Y(Y6P)
360	I8-97664 080-0	PEDAL ASM; CLUTCH	1	2110-	BCDE F	M/T MVL 6 SPEED 6Y(Y6P)
32	I0-91180 108-0	NUT; BRKT TO CLU M/CYL	2	2110-	BCDE F	M/T MVL 6 SPEED 6Y(Y6P),M/T MVL 6 SPEED 6S(Y6S) M8 FLANGE
2	I8-97318 799-0	COVER; CLU PEDAL	1	2110-	BC D E F	M/T MVL 6 SPEED 6Y(Y6P),M/T MVL 6 SPEED 6S(Y6S)
45	I8-97942 313-0	BUSHING; ASSIST SPRING,CLU PEDAL	2	2110-	BCDE F	M/T MVL 6 SPEED 6Y(Y6P),M/T MVL 6 SPEED 6S(Y6S) (A)
32	I0-91180 108-0	NUT; BRKT TO CLU M/CYL	2	2110-	BCDE F	M/T MVL 6 SPEED 6Y(Y6P),M/T MVL 6 SPEED 6S(Y6S) M8 FLANGE
42	I8-98154 210-0	SWITCH; CLU	1	2110-	BCDE F	M/T MVL 6 SPEED 6Y(Y6P),M/T MVL 6 SPEED 6S(Y6S)
42	I8-98154 210-0	SWITCH; CLU	1	2110-	BCDE F	M/T MVL 6 SPEED 6Y(Y6P),M/T MVL 6 SPEED 6S(Y6S)
11	I8-98007 161-0	PIN; SNAP.PUSH ROD TO PEDAL	1	2110-	BCDE F	M/T MVL 6 SPEED 6Y(Y6P),M/T MVL 6 SPEED 6S(Y6S)
45	I8-97942 313-0	BUSHING; ASSIST SPRING,CLU PEDAL	2	2110-	BCDE F	M/T MVL 6 SPEED 6Y(Y6P),M/T MVL 6 SPEED 6S(Y6S) (A)
13	I8-97942 312-0	SPRING; ASSIST,CLU PEDAL	1	2110-	BCDE F	M/T MVL 6 SPEED 6Y(Y6P),M/T MVL 6 SPEED 6S(Y6S)
45	I8-97942 314-0	BUSHING; ASSIST SPRING,CLU PEDAL	1	2110-	BCDE F	M/T MVL 6 SPEED 6Y(Y6P),M/T MVL 6 SPEED 6S(Y6S) (B)
45	I8-97942 314-0	BUSHING; ASSIST SPRING,CLU PEDAL	1	2110-	BCDE F	M/T MVL 6 SPEED 6Y(Y6P),M/T MVL 6 SPEED 6S(Y6S) (B)
11	I8-98007 161-0	PIN; SNAP.PUSH ROD TO PEDAL	1	2110-	BCDE F	M/T MVL 6 SPEED 6Y(Y6P),M/T MVL 6 SPEED 6S(Y6S)
13	I8-97942 312-0	SPRING; ASSIST,CLU PEDAL	1	2110-	BCDE F	M/T MVL 6 SPEED 6Y(Y6P),M/T MVL 6 SPEED 6S(Y6S)
242	I0-28050 612-0	BOLT; BRKT,CLUTCH	2	2110-	BCDE F	M/T MVL 6 SPEED 6Y(Y6P),M/T MVL 6 SPEED 6S(Y6S) M6X12 FLANGE
