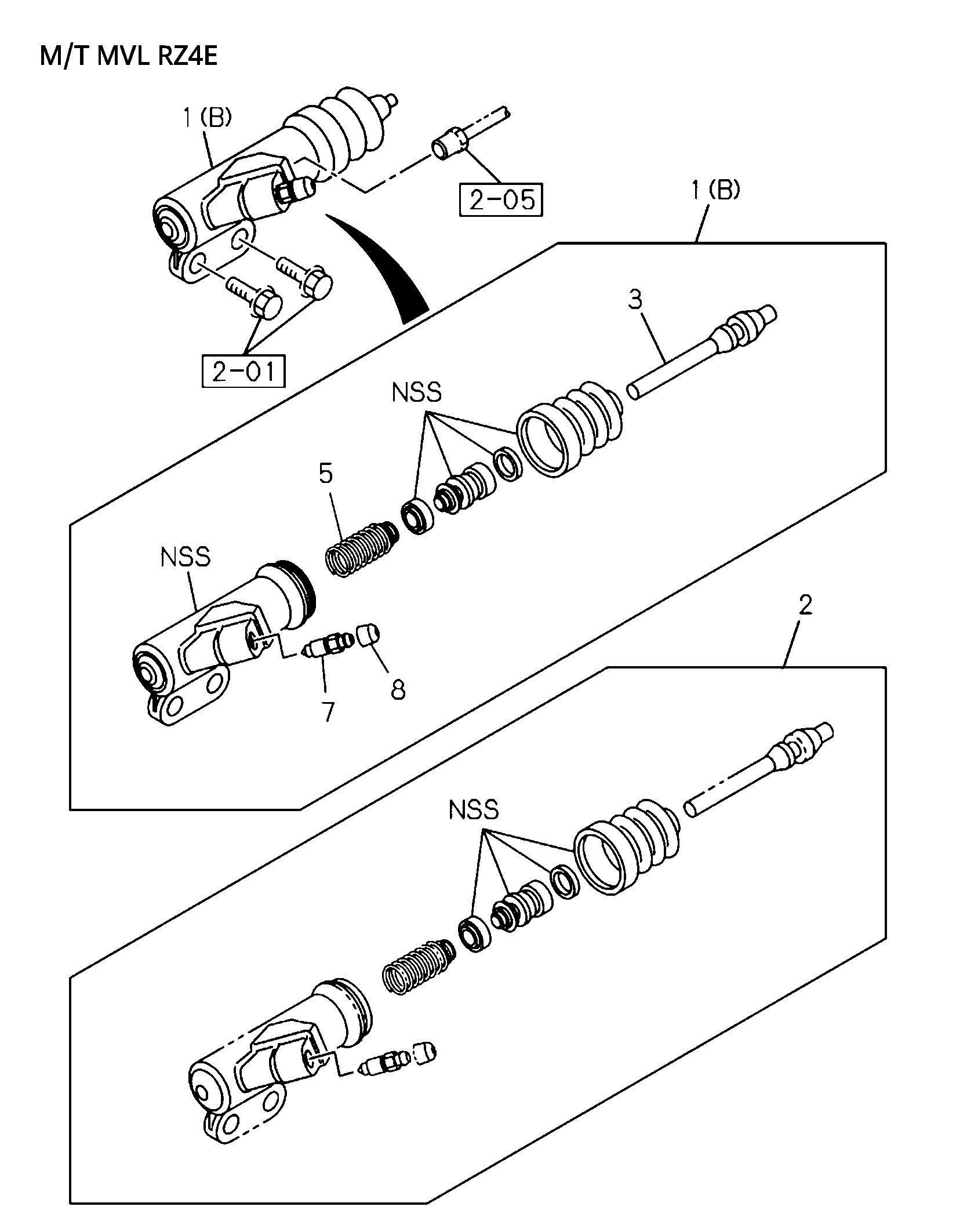

2-06 | 2-06 - CLUTCH SLAVE CYLINDER
DMAX
D-MAX 2022
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 5 | I8-97942 801-0 | SPRING ASM; PISTON,SLAVE CYL | 1 | 2110- | AB | |||
| 7 | I8-98020 477-0 | SCREW; BLEEDERfSLAVE CYL | 1 | 2110- | AB | M 8X10 | ||
| 3 | I8-98280 478-0 | ROD; PUSH,SLAVE CYL | 1 | 2110- | B | |||
| 8 | I8-97940 638-0 | CAP; BLEEDER,SLAVE CYL | 1 | 2110- | A B | OD=10 | ||
| 1 | I8-97949 006-0 | CYLINDER; SLAVE.CLU | 1 | 2110- | B | (B) | ||
| 7 | I8-98020 477-0 | SCREW; BLEEDERfSLAVE CYL | 1 | 2110- | AB | M 8X10 | ||
| 5 | I8-97942 801-0 | SPRING ASM; PISTON,SLAVE CYL | 1 | 2110- | AB | |||
| 3 | I8-98280 478-0 | ROD; PUSH,SLAVE CYL | 1 | 2110- | A | RZ4E-TCX HI-POWER ENG(LNC) | ||
| 3 | I8-98280 478-0 | ROD; PUSH,SLAVE CYL | 1 | 2110- | A | RZ4E-TCX HI-POWER ENG(LNC) | ||
| 3 | I8-98280 478-0 | ROD; PUSH,SLAVE CYL | 1 | 2110- | B | |||
| 8 | I8-97940 638-0 | CAP; BLEEDER,SLAVE CYL | 1 | 2110- | A B | OD=10 | ||
| 1 | I8-97949 006-0 | CYLINDER; SLAVE.CLU | 1 | 2110- | A | RZ4E-TCX HI-POWER ENG(LNC) (B) | ||
| 1 | I8-97949 006-0 | CYLINDER; SLAVE.CLU | 1 | 2110- | B | (B) | ||
| 2 | I5-87832 048-0 | REPAIR KIT; CLU SLAVE CYL | 1 | 2110- | AB | |||
| 2 | I5-87832 048-0 | REPAIR KIT; CLU SLAVE CYL | 1 | 2110- | AB | |||
| 1 | I8-97949 006-0 | CYLINDER; SLAVE.CLU | 1 | 2110- | A | RZ4E-TCX HI-POWER ENG(LNC) (B) |
