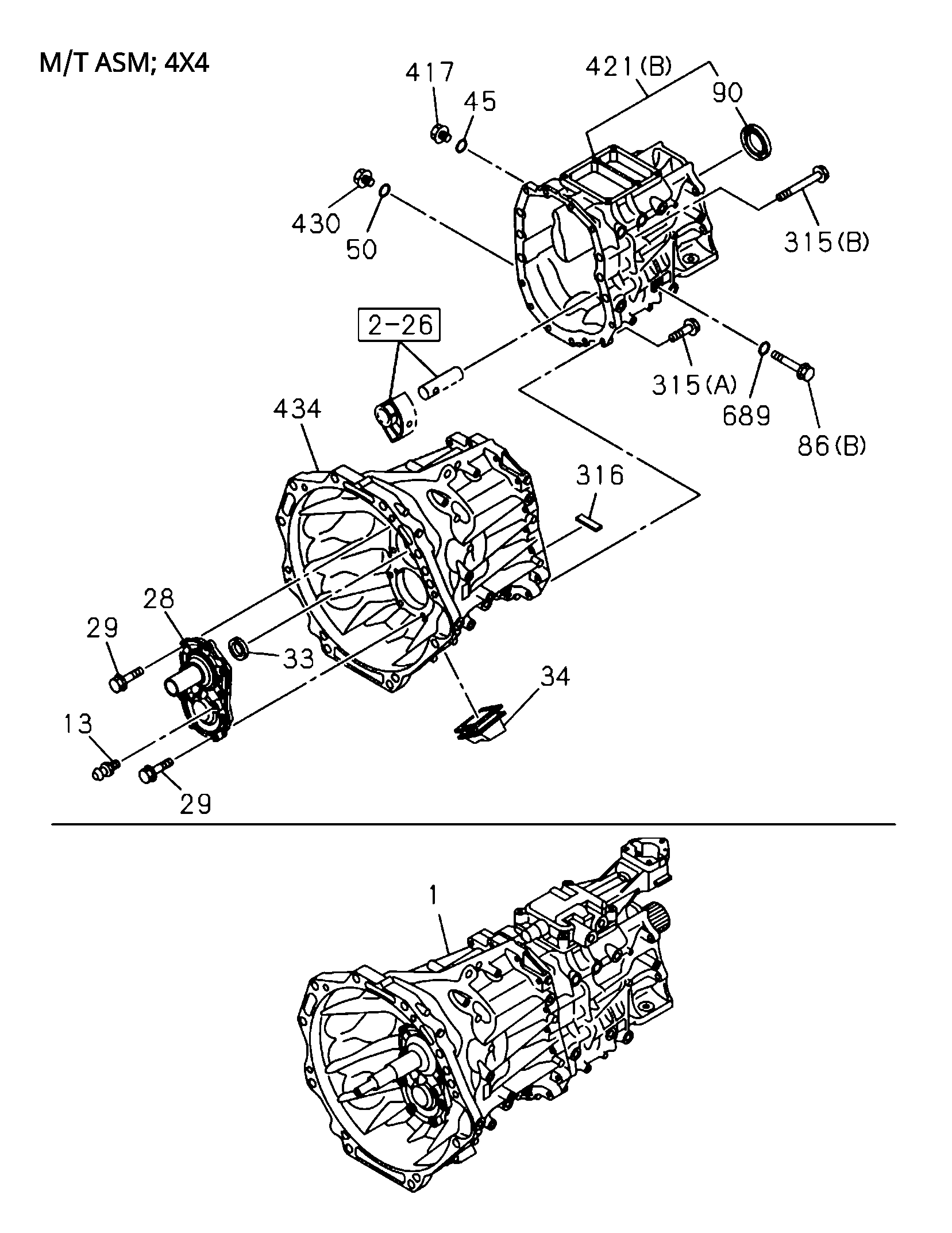

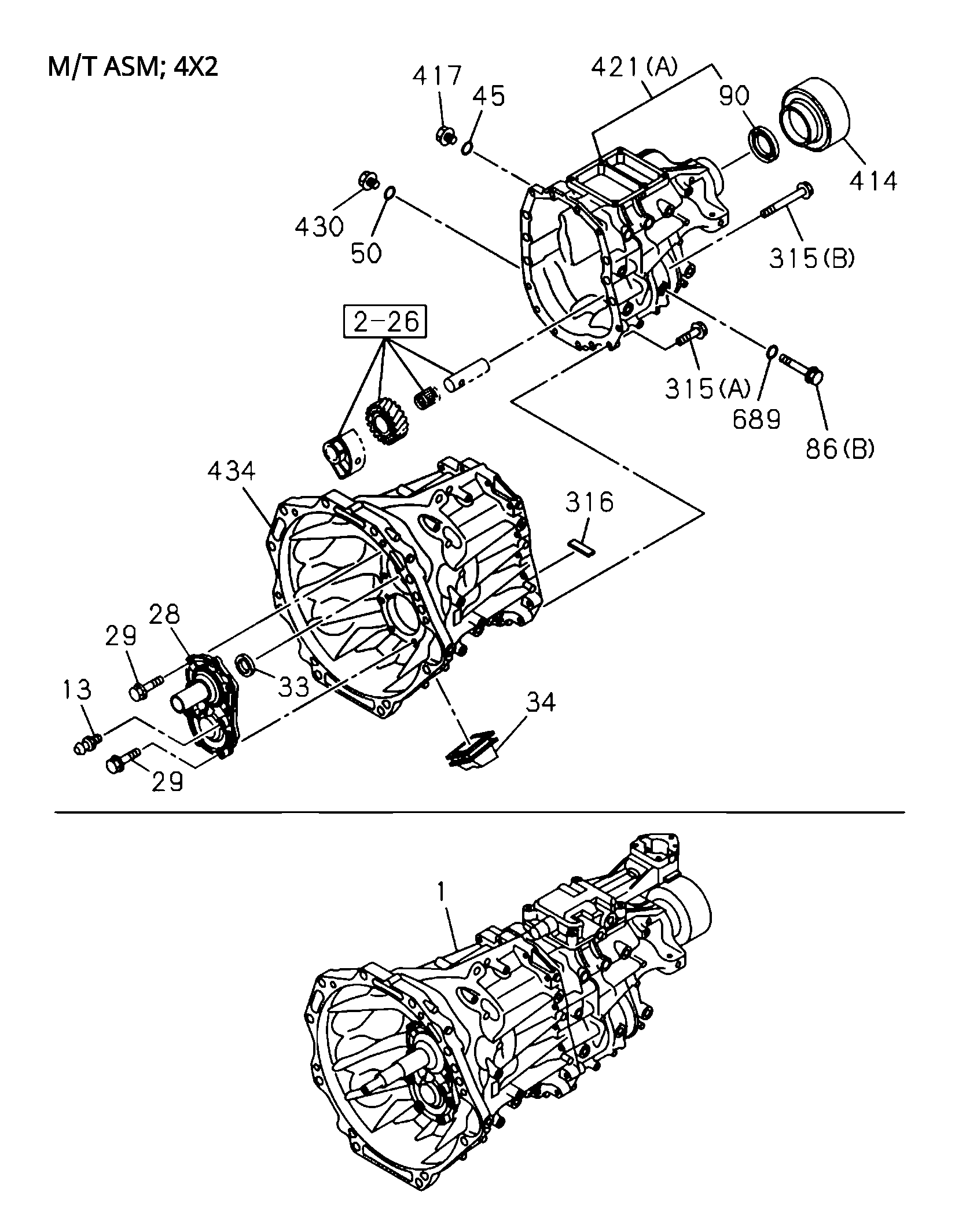

2-20 | 2-20 - MANUAL TRANSMISSION ASM AND CASE
DMAX
D-MAX 2022
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|

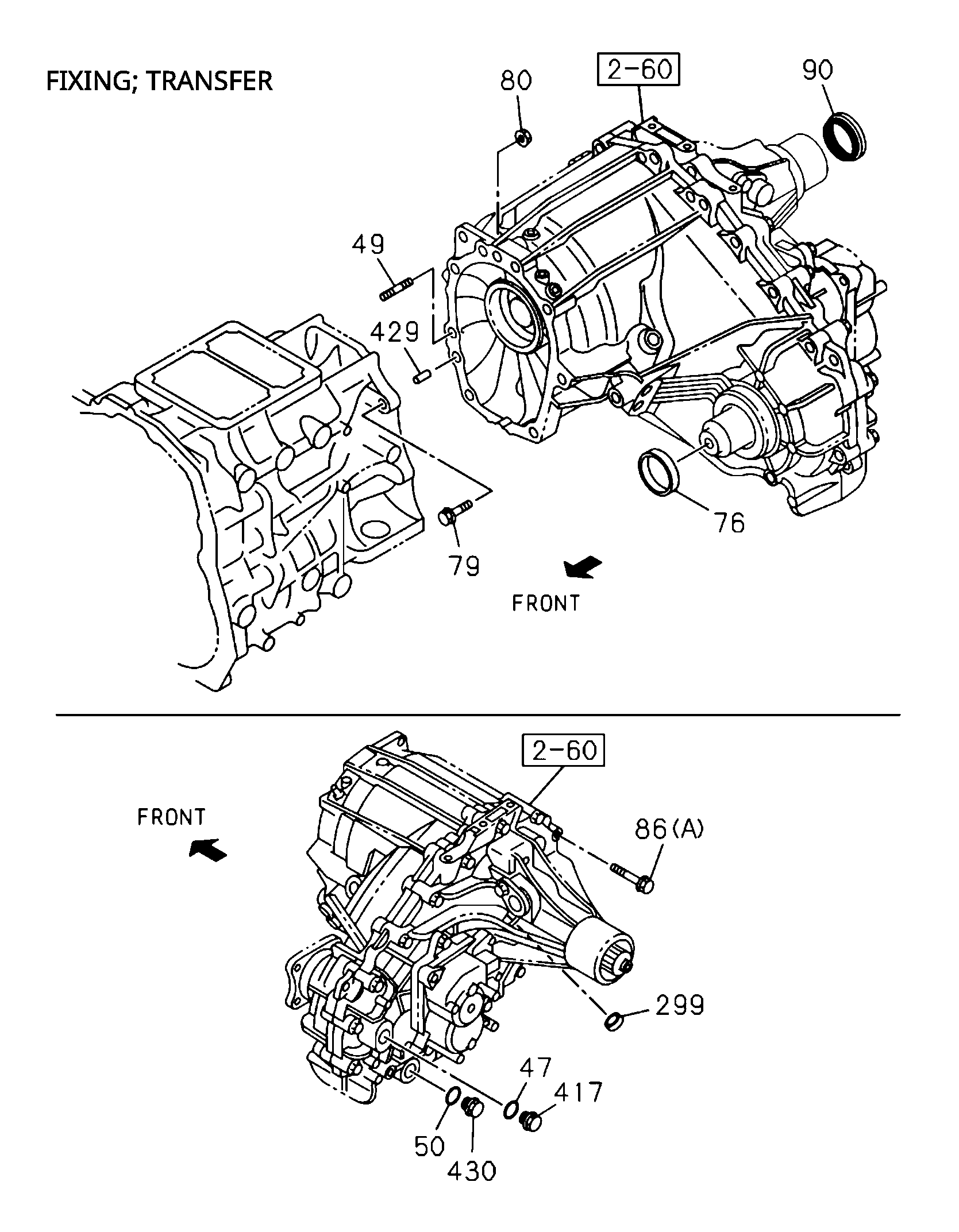

| 79 | I0-28051 045-0 | BOLT; TRANSFER CASE | 7 | 2110- | C | 4X4(TFS***) M10X45 FLANGE | ||
| 90 | I8-98189 443-0 | SEAL; OIL,RR COVER | 1 | 2110- | A B | NOK | ||
| 49 | I8-97490 621-0 | STUD; TRANSFER CASE | 1 | 2110- | B | 4X4(TFS***) DENTIFICATION LABEL FOR KD<6UT> M10X56 L=72.5 | ||
| 49 | I8-97490 621-0 | STUD; TRANSFER CASE | 1 | 2110- | B | 4X4(TFS***) MADEN JAPAN TRANSMISSION<8QP> M10X56 L=72.5 | ||
| 34 | I8-97500 668-0 | COVER; DUST.SHIFT FORK | 1 | 2110- | A B | |||
| 13 | I8-97072 827-0 | SUPPORT; SHIFT FORK | 1 | 2110- | AB | L=47.5 | ||
| 80 | I0-91180 110-0 | NUT; TRANSFER CASE | 2 | 2110- | B | 4X4(TFS***) EXC.DENTIFICATION LABEL FOR KD<6UT>,MADEN JAPAN TRANSMISSION<8QP> M10 FLANGE | ||
| 79 | I0-28051 035-0 | BOLT; TRANSFER CASE | 5 | 2110- | B | 4X4(TFS***) MADEN JAPAN TRANSMISSION<8QP> M10X35 FLANGE | ||
| 421 | I8-98358 889-1 | COVER; RR.TRANS | 1 | 2110- | A | 4X4(TFS***) (B) | ||
| 33 | I8-97947 839-0 | SEAL; OIL,FRT COVER,T/M | 1 | 2110- | B | EXC. MADEN JAPAN TRANSMISSION<8QP> NOK | ||
| 417 | I8-97365 373-0 | PLUG; OIL FILLERJRANS | 1 | 2110- | AB | |||
| 79 | I0-28051 035-0 | BOLT; TRANSFER CASE | 5 | 2110- | B | 4X4(TFS***) DENTIFICATION LABEL FOR KD<6UT> M10X35 FLANGE | ||
| 33 | I8-97947 839-0 | SEAL; OIL,FRT COVER,T/M | 1 | 2110- | A | RZ4E-TCX HI-POWER ENG(LNC) NOK | ||
| 316 | I8-94249 524-2 | MAGNET; TRANS CASE | 1 | 2110- | A B | |||
| 1 | I8-97660 748-0 | TRANSMISSION ASM; MANUAL | 1 | 2110- | B | 4X4(TFS***) EXC. MADEN JAPAN TRANSMISSION<8QP> | ||
| 86 | I0-28050 845-0 | BOLT; RR COVER | 16 | 2110- | ABC | 4X4(TFS***) (A) M8X45 FLANGE | ||
| 421 | I8-98358 889-1 | COVER; RR.TRANS | 1 | 2110- | B | 4X4(TFS***) EXC. MADEN JAPAN TRANSMISSION<8QP> (B) | ||
| 76 | I8-97238 999-0 | SEAL; OILJRANSFER CASE | 1 | 2110- | ABC | 4X4(TFS***) NOK | ||
| 80 | I0-91180 110-0 | NUT; TRANSFER CASE | 2 | 2110- | B | 4X4(TFS***) MADEN JAPAN TRANSMISSION<8QP> M10 FLANGE | ||
| 80 | I0-91180 110-0 | NUT; TRANSFER CASE | 1 | 2110- | A | 4X4(TFS***) 4JJ3 ENG(LNG) M10 FLANGE | ||
| 79 | I0-28051 035-0 | BOLT; TRANSFER CASE | 5 | 2110- | B | 4X4(TFS***) EXC.DENTIFICATION LABEL FOR KD<6UT>,MADEN JAPAN TRANSMISSION<8QP> M10X35 FLANGE | ||
| 80 | I0-91180 110-0 | NUT; TRANSFER CASE | 2 | 2110- | B | 4X4(TFS***) DENTIFICATION LABEL FOR KD<6UT> M10FLANGE | ||
| 47 | I8-97115 712-0 | GASKET; FILLER PLUG/TRANSFER CASE | 1 | 2110- | ABC | 4X4(TFS***)D=17 | ||
| 50 | I8-97115 712-0 | GASKET; DRAIN PLUG | 1 | 2110- | A B | ID=17 | ||
| 90 | I6-98189 443-0 | SEAL; OIL,RR COVER | 1 | 2110- | ABC | (IADG) (4X4(TFS***) NOK | ||
| 49 | I8-98035 675-0 | STUD; TRANSFER CASE | 1 | 2110- | A B | 4X4(TFS***) M10X30 L=45 | ||
| 86 | I8-98275 948-0 | BOLT; RR COVER | 1 | 2110- | AB | (B) M12X63 FLANGE | ||
| 434 | I8-98303 300-0 | HOUSING; CLU | 1 | 2110- | B | EXC. MADEN JAPAN TRANSMISSION<8QP> | ||
| 29 | I8-98275 947-0 | BOLT; FRT COVER | 9 | 2110- | AB | M8X30 FLANGE | ||
| 90 | I6-98189 443-0 | SEAL; OIL,RR COVER | 1 | 2110- | A B | (IADG) NOK | ||
| 28 | I8-98275 338-1 | COVER; FRTJRANS CASE | 1 | 2110- | B | |||
| 49 | I8-97490 621-0 | STUD; TRANSFER CASE | 1 | 2110- | B | 4X4(TFS***) EXC.DENTIFICATION LABEL FOR KD<6UT>,MADEN JAPAN TRANSMISSION<8QP> M10X56 L=72.5 | ||
| 689 | I9-09571 412-0 | GASKET | 1 | 2110- | A B | ID=12.2 OD=18 | ||
| 80 | I0-91180 110-0 | NUT; TRANSFER CASE | 2 | 2110- | A | 4X4(TFS***) RZ4E-TCX HI-POWER ENG(LNC) M10FLANGE | ||
| 79 | I0-28051 035-0 | BOLT; TRANSFER CASE | 5 | 2110- | A | 4X4(TFS***) RZ4E-TCX HI-POWER ENG(LNC) M10X35 FLANGE | ||
| 315 | I0-28050 800-0 | BOLT; CASE | 6 | 2110- | A B | (B) M8X100 FLANGE | ||
| 28 | I8-98275 338-1 | COVER; FRTJRANS CASE | 1 | 2110- | A | RZ4E-TCX HI-POWER ENG(LNC) | ||
| 417 | I8-97365 373-0 | PLUG; OIL FILLERJRANS | 1 | 2110- | ABC | 4X4(TFS***) | ||
| 429 | I8-97135 423-0 | PIN; STRAIGHT | 2 | 2110- | ABC | 4X4(TFS***) OD=10 L=20 | ||
| 434 | I8-98303 300-0 | HOUSING; CLU | 1 | 2110- | A | RZ4E-TCX HI-POWER ENG(LNC) | ||
| 49 | I8-97490 621-0 | STUD; TRANSFER CASE | 1 | 2110- | A | 4X4(TFS***) RZ4E-TCX HI-POWER ENG(LNC) M10X56 L=72.5 | ||
| 430 | I8-97365 374-0 | PLUG; OIL DRAIN | 1 | 2110- | AB | M20X12 W/MAGNET | ||
| 315 | I0-28050 840-0 | BOLT; CASE | 11 | 2110- | A B | (A) M8X40 FLANGE | ||
| 430 | I8-97365 374-0 | PLUG; OIL DRAIN | 1 | 2110- | ABC | 4X4(TFS***) M20X12 W/MAGNET | ||
| 50 | I8-97115 712-0 | GASKET; DRAIN PLUG | 1 | 2110- | ABC | 4X4(TFS***)D=17 | ||
| 299 | I8-94173 641-0 | PLUG; SHIFTER ROD | 2 | 2110- | ABC | 4X4(TFS***) OD=15.6 | ||
| 90 | I8-98189 443-0 | SEAL; OIL,RR COVER | 1 | 2110- | ABC | 4X4(TFS***) NOK | ||
| 79 | I0-28051 035-0 | BOLT; TRANSFER CASE | 6 | 2110- | A | 4X4(TFS***) 4JJ3 ENG(LNG) M10X35 FLANGE |
