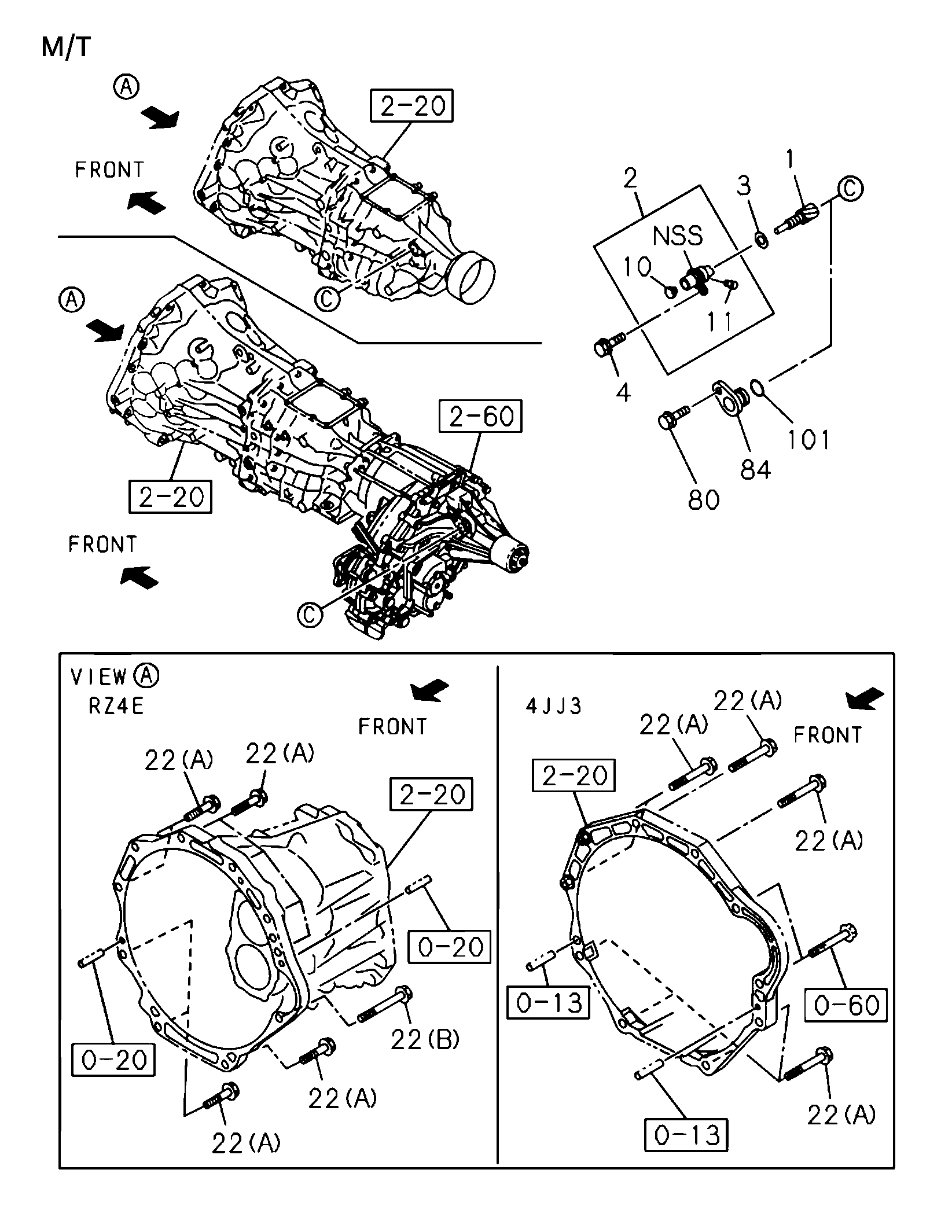

2-25 | 2-25 - SPEEDOMETER DRIVEN GEAR
DMAX
D-MAX 2022
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|

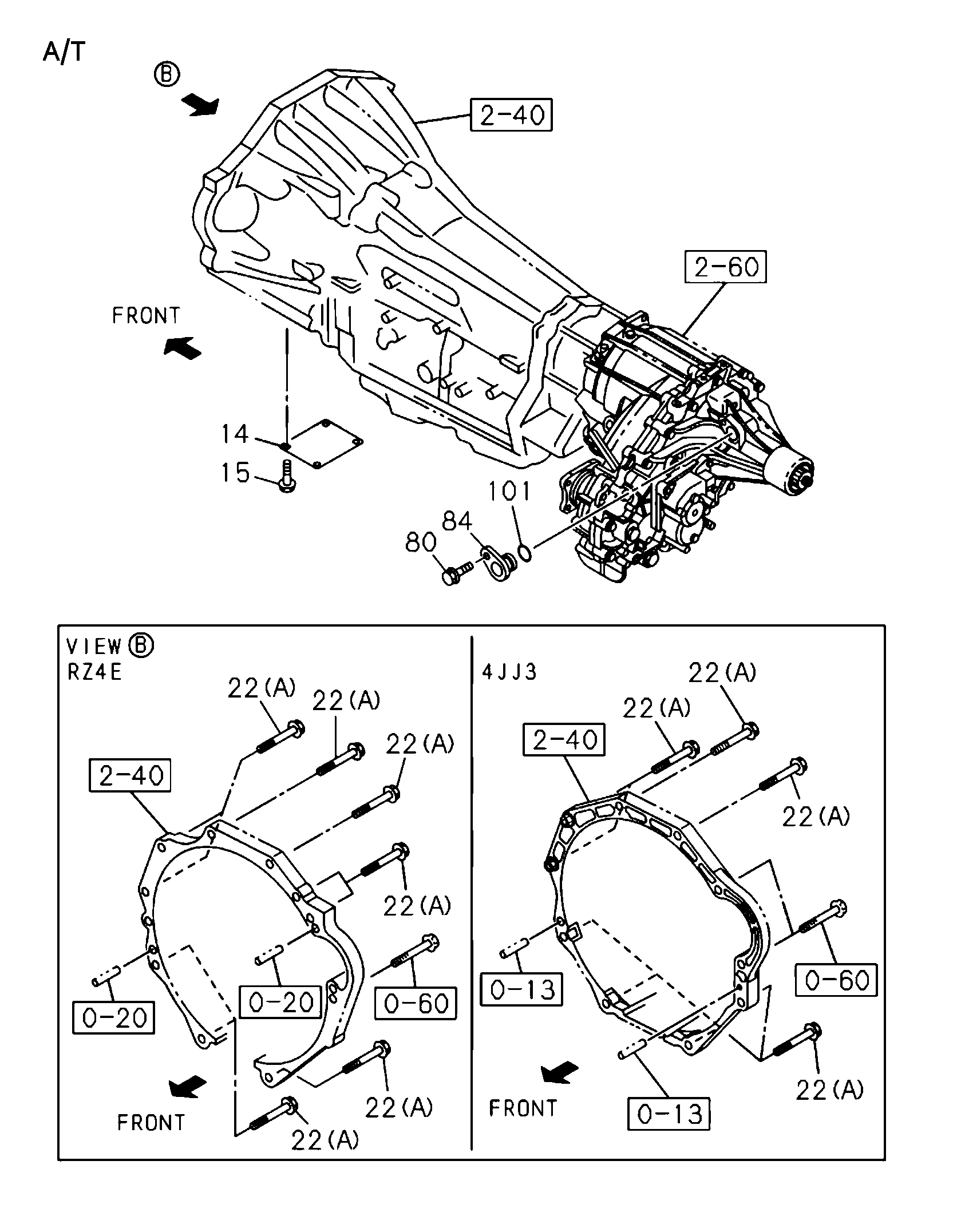

| 14 | I8-98278 957-0 | COVER; UNDERJRANS | 1 | 2110- | A B C D E | A/T 6 SPEED-AISIN(Y6A) | ||
| 22 | I0-28051 250-0 | BOLT; TRANS CASE TO ENG | 9 | 2110- | C E | RZ4E-TC ENG(RDZ) (A) M12X50 FLANGE | ||
| 22 | I0-28051 200-0 | BOLT; TRANS CASE TO ENG | 1 | 2110- | B D F | RZ4E-TCX HI-POWER ENG(LNC),RZ4E-TC ENG(RDZ) M/T MVL 6 SPEED 6Y(Y6P),M/T MVL 6 SPEED 6S(Y6S) (B) M12X100 FLANGE | ||
| 101 | I9-09921 100-0 | GASKET; CAP | 1 | 2110- | D E F | 4 WHEEL ANTI LOCK BRAKE<JE5>D=21.7 OD=28.7 | ||
| 15 | I0-28650 616-0 | BOLT; UNDER COVER TO TRANS | 4 | 2110- | A BC D E F | A/T 6 SPEED-AISIN(Y6A) M6X16 FLANGE | ||
| 22 | I0-28051 250-0 | BOLT; TRANS CASE TO ENG | 8 | 2110- | A B C D E | 4JJ3 ENG(LNG) (A) M12X50 FLANGE | ||
| 80 | I0-28050 820-0 | BOLT; SPD SENSOR | 1 | 2110- | D E F | 4 WHEEL ANTI LOCK BRAKE<JE5> M8X20 FLANGE | ||
| 4 | I0-28050 820-0 | BOLT; RET,DRIVEN GEAR | 1 | 2110- | B C D E F | EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> M8X20 FLANGE | ||
| 3 | I9-09921 100-0 | GASKET; BUSHING | 1 | 2110- | BC D E F | EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>D=21.7 OD=28.7 | ||
| 22 | I0-28051 200-0 | BOLT; TRANS CASE TO ENG | 1 | 2110- | C E | M/T MVL 6 SPEED 6Y(Y6P) (B) M12X100 FLANGE | ||
| 22 | I0-28051 250-0 | BOLT; TRANS CASE TO ENG | 9 | 2110- | AB D F | RZ4E-TCX HI-POWER ENG(LNC),RZ4E-TC ENG(RDZ) (A) M12X50 FLANGE | ||
| 84 | I8-98103 318-0 | CAP; BUSHING,SPEEDOMETER GEAR | 1 | 2110- | D E F | 4 WHEEL ANTI LOCK BRAKE<JE5> |
