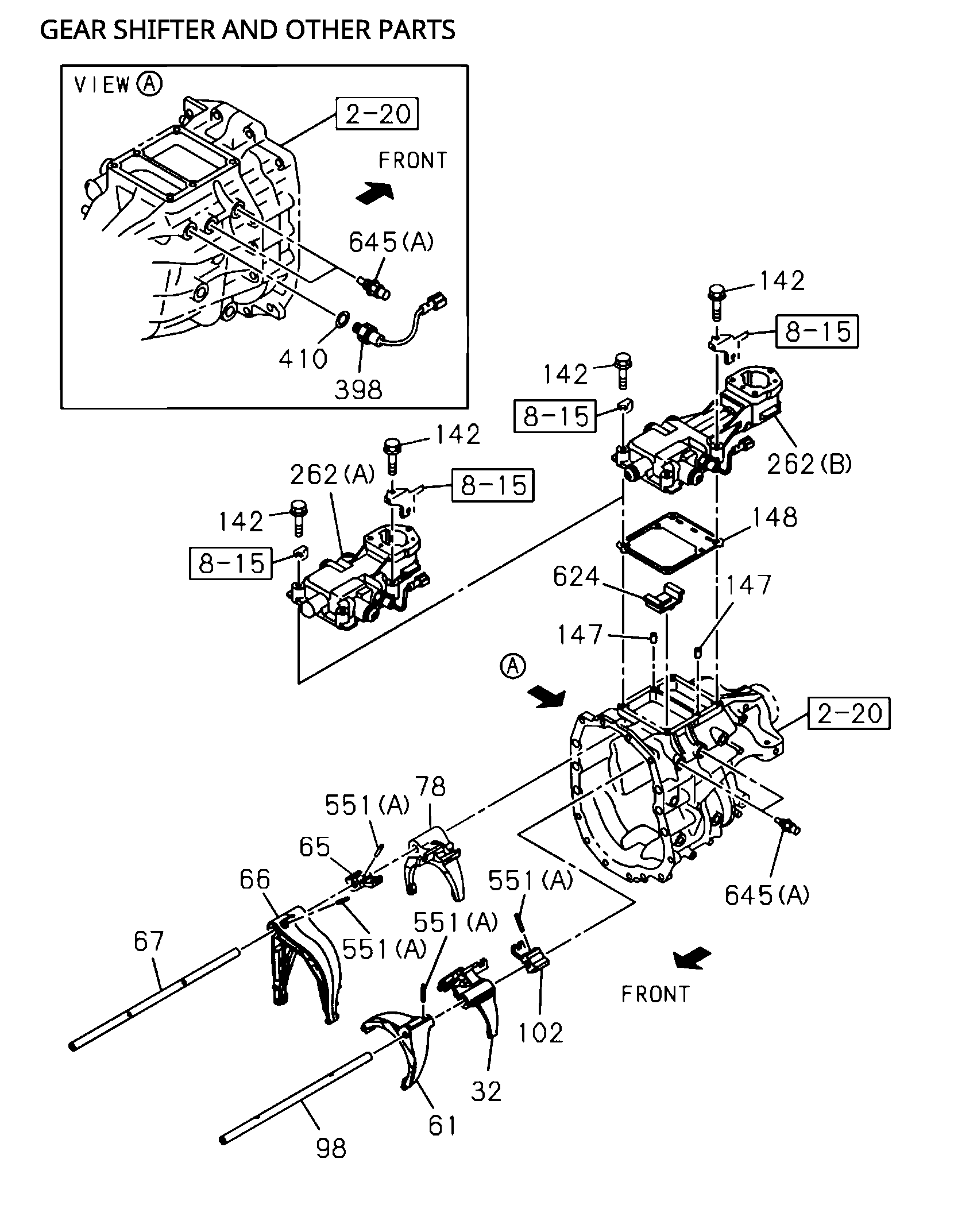

2-30 | 2-30 - GEAR SHIFTER AND QUADRANT BOX
DMAX
D-MAX 2022
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 78 | I8-97494 015-1 | ARM; SHIFT,REV | 1 | 2110- | A | |||
| 66 | I8-98275 456-1 | ARM; SHIFT.5TH & 6TH | 1 | 2110- | AB | |||
| 624 | I8-98275 459-0 | PLATE;NTER LOCK | 1 | 2110- | AB | |||
| 32 | I8-97494 015-1 | ARM; SHIFT.1ST & 2ND | 1 | 2110- | A | |||
| 102 | I8-97494 016-1 | BLOCK; SHIFT,3RD &4TH | 1 | 2110- | AB | |||
| 551 | I8-97507 700-0 | PIN; SPRING | 2 | 2110- | A B | (B) | ||
| 635 | I8-97507 671-0 | PLUG; DETENT | 3 | 2110- | B | |||
| 635 | I8-97507 671-0 | PLUG; DETENT | 3 | 2110- | A | RZ4E-TCX HI-POWER ENG(LNC) | ||
| 61 | I8-98275 455-0 | ARM; SHIFT.3RD&4TH | 1 | 2110- | A B | |||
| 551 | I8-97011 596-2 | PIN; SPRING | 4 | 2110- | A B | (A) L=32 | ||
| 396 | I8-97671 709-0 | PLUNGER; SHIFT ROD | 1 | 2110- | A B | |||
| 645 | I8-97499 106-0 | DETENT ASM | 2 | 2110- | AB | (B) | ||
| 535 | I8-97543 731-0 | SPRING; LEVER | 1 | 2110- | A B | (B)NNER | ||
| 148 | I8-97525 188-0 | GASKET; QUAD BOX | 1 | 2110- | A B | |||
| 142 | I8-98275 946-0 | BOLT; QUAD BOX | 4 | 2110- | AB | M8X45 FLANGE | ||
| 535 | I8-97543 730-0 | SPRING; LEVER | 1 | 2110- | AB | (A) OUTER | ||
| 645 | I8-98019 536-0 | DETENT ASM | 4 | 2110- | A B | (A) | ||
| 65 | I8-97494 016-1 | BLOCK ASM; SHIFT,5TH & 6TH | 1 | 2110- | AB | |||
| 98 | I8-98303 002-0 | ROD; SHIFT,TOP & 3RD | 1 | 2110- | B | EXC. MADEN JAPAN TRANSMISSION<8QP> | ||
| 67 | I8-98303 003-0 | ROD; SHIFT,5TH & 6TH | 1 | 2110- | A | |||
| 147 | I9-08160 612-0 | PIN; KNOCK | 2 | 2110- | A B | OD=6 L=12 | ||

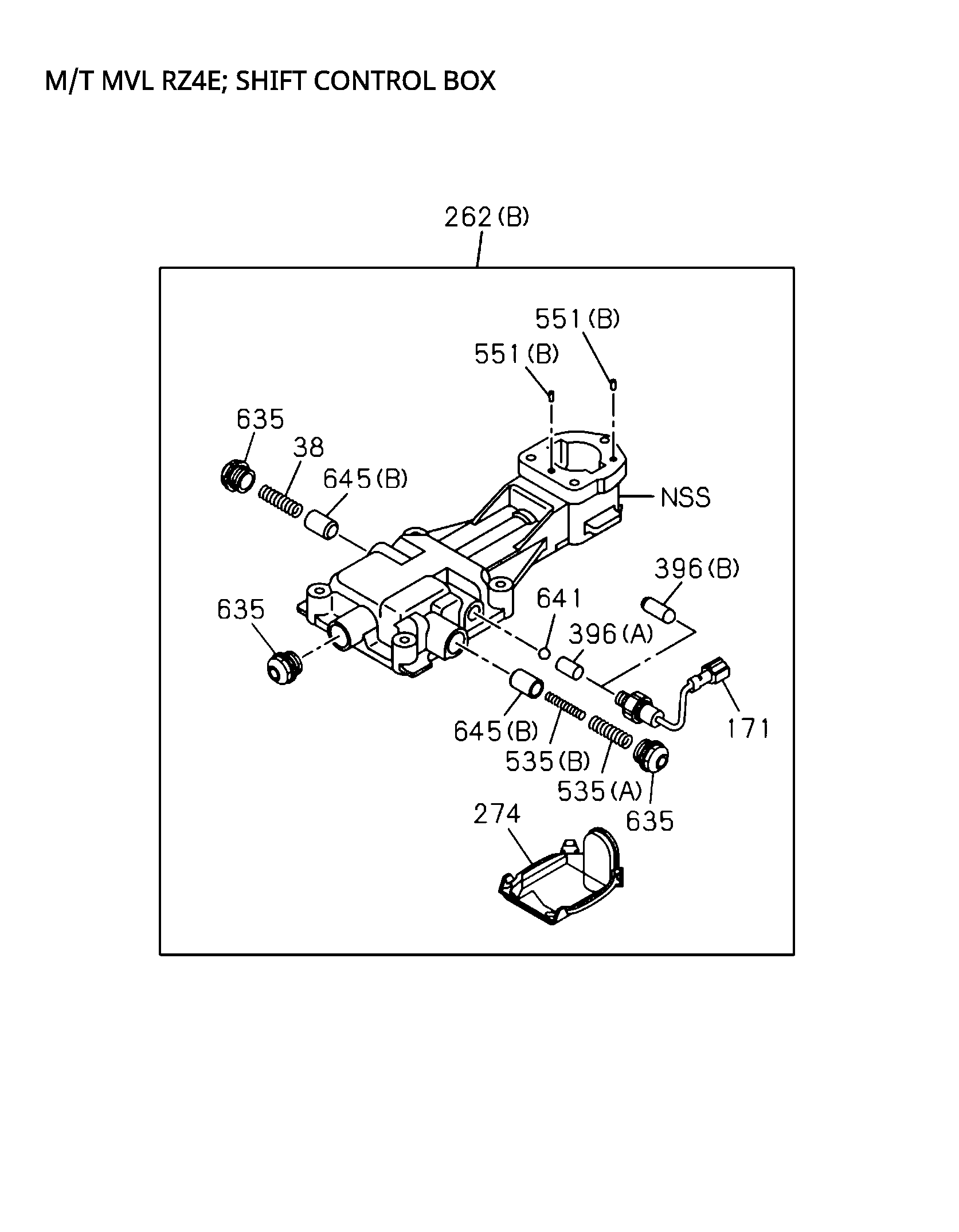

| 262 | I8-97660 735-0 | BOX ASM; SHIFT CONT | 1 | 2110- | A | RZ4E-TCX HI-POWER ENG(LNC) (B) | ||
| 274 | I8-97507 674-0 | COVER; SHAFT.QUAD BOX | 1 | 2110- | B | |||
| 410 | I9-09571 414-0 | GASKET; REV SW | 1 | 2110- | AB | ID=14.2 OD=20 | ||
| 635 | I8-97507 671-0 | PLUG; DETENT | 2 | 2110- | A | 4JJ3 ENG(LNG) | ||
| 78 | I8-97494 015-1 | ARM; SHIFT,REV | 1 | 2110- | B | EXC. MADEN JAPAN TRANSMISSION<8QP> | ||
| 98 | I8-98303 002-0 | ROD; SHIFT,TOP & 3RD | 1 | 2110- | A | |||
| 262 | I8-97660 735-0 | BOX ASM; SHIFT CONT | 1 | 2110- | B | (B) | ||
| 398 | I8-98180 974-0 | SWITCH; REV LAMP | 1 | 2110- | A B | |||
| 38 | I8-97507 673-0 | SPRING; DETENT | 1 | 2110- | A B | |||
| 171 | I8-97499 567-0 | SWITCH; NEUTRAL | 1 | 2110- | A B | |||
| 32 | I8-97494 015-1 | ARM; SHIFT.1ST & 2ND | 1 | 2110- | B | EXC. MADEN JAPAN TRANSMISSION<8QP> | ||
| 274 | I8-97507 674-0 | COVER; SHAFT.QUAD BOX | 1 | 2110- | A | RZ4E-TCX HI-POWER ENG(LNC) | ||
| 67 | I8-98303 003-0 | ROD; SHIFT,5TH & 6TH | 1 | 2110- | B | EXC. MADEN JAPAN TRANSMISSION<8QP> |
