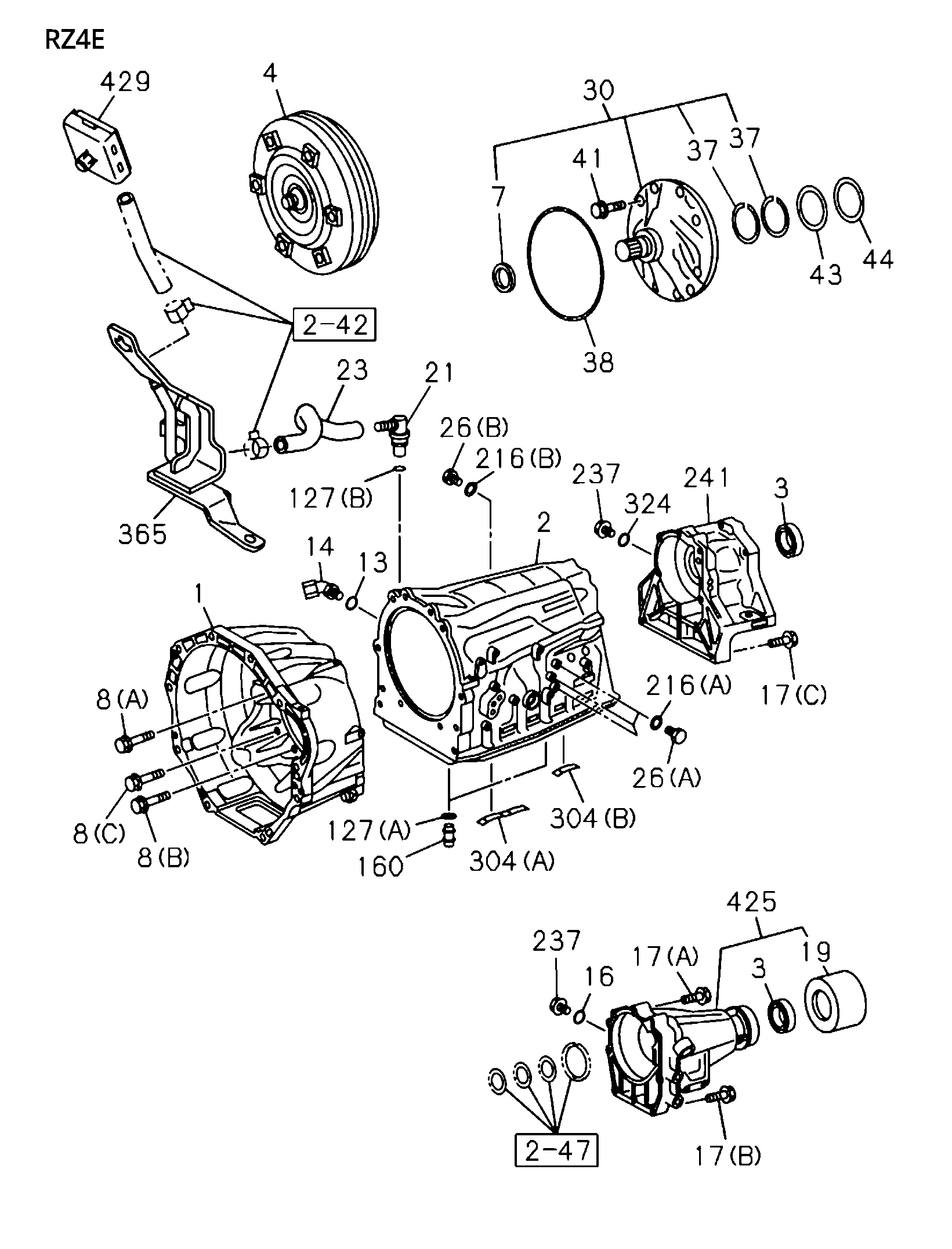

2-41 | 2-41 - AUTO TRANS CASE,CONVERTER AND OIL PUMP
DMAX
D-MAX 2022
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 30 | I8-97550 325-0 | PUMP ASM; OIL,A/T | 1 | 2110- | c | RZ4E-TCX HI-POWER ENG(LNC),RZ4E-TC ENG(RDZ) MADE IN JAPAN TRANSMISSION<8QP> | ||
| 429 | I8-98161 881-0 | CLIP; BREATHER HOSE | 1 | 2110- | C | |||
| 160 | I8-98341 911-0 | GASKET; BRK DRUM.A/T | 2 | 2110- | C | MADE IN JAPAN TRANSMISSION<8QP> | ||
| 2 | I8-98341 907-0 | CASE ASM; A/T | 1 | 2110- | C | MADE IN JAPAN TRANSMISSION<8QP> | ||
| 17 | I8-94479 935-0 | BOLT; REAR COVER TO CASE | 10 | 2110- | C | 4X4(TFS***) (C) M10X50 | ||
| 8 | I8-94257 082-0 | BOLT; HSG TO CASE | 8 | 2110- | C | (A) M10X35 | ||
| 13 | I8-94479 724-0 | GASKET; OIL COOLER PIPE | 2 | 2110- | c | MADE IN JAPAN TRANSMISSION<8QP> ID=11.7 | ||
| 7 | I8-98341 992-0 | SEAL; OIL,LIP,A/T | 1 | 2110- | C | |||
| 1 | I8-97550 319-0 | HOUSING; CONVfA/T | 1 | 2110- | C | RZ4E-TCX HI-POWER ENG(LNC),RZ4E-TC ENG(RDZ) MADE IN JAPAN TRANSMISSION<8QP> | ||
| 8 | I8-98189 487-0 | BOLT; HSG TO CASE | 2 | 2110- | c | (C) M12X38 | ||
| 4 | I8-97550 318-0 | CONVERTER ASM; TORQUE,A/T | 1 | 2110- | C | RZ4E-TCX HI-POWER ENG(LNC),RZ4E-TC ENG(RDZ) | ||
| 3 | I8-98336 875-0 | SEAL; OIL,RR COVER,A/T | 1 | 2110- | C | |||
| 216 | I5-34119 001-0 | GASKET; SOLENOID OUTER | 6 | 2110- | C | MADE IN JAPAN TRANSMISSION<8QP> (A) ID=6 | ||
| 21 | I8-98341 990-0 | PLUG; BREATHER,A/T | 1 | 2110- | C | MADE IN JAPAN TRANSMISSION<8QP> | ||
| 8 | I8-98189 486-0 | BOLT; HSG TO CASE | 2 | 2110- | C | (B) M10X35 | ||
| 38 | I8-98329 780-0 | GASKET; OIL PUMP,A/T | 1 | 2110- | c | |||
| 324 | I8-98189 759-0 | GASKET; PLUG,REAR COVER | 1 | 2110- | C | 4X4(TFS***) MADE IN JAPAN TRANSMISSION<8QP> ID=15.4 | ||
| 127 | I8-98341 730-0 | GASKET; CASE TO COVER | 1 | 2110- | C | MADE IN JAPAN TRANSMISSION<8QP> (B) | ||
| 241 | I8-98342 209-0 | ADAPTER; A/T | 1 | 2110- | C | 4X4(TFS***) MADE IN JAPAN TRANSMISSION<8QP> | ||
| 16 | I8-98189 759-0 | GASKET; EXT HSG | 1 | 2110- | c | 4X2(TFB***) MADE IN JAPAN TRANSMISSION<8QP> ID=15.4 | ||
| 304 | I8-98342 001-0 | SPRING; LEAF,A/T | 1 | 2110- | C | (A) | ||
| 41 | I8-94479 749-0 | BOLT; OIL PUMP HSG,A/T | 10 | 2110- | c | M8X35 | ||
| 127 | I8-98189 488-0 | GASKET; CASE TO COVER | 2 | 2110- | c | (A) ID=10 | ||
| 216 | I8-94479 724-0 | GASKET; SOLENOID OUTER | 1 | 2110- | C | MADE IN JAPAN TRANSMISSION<8QP> (B) ID=11.7 | ||
| 26 | I5-34119 002-0 | PLUG; TRANS CASE | 6 | 2110- | c | (A) | ||
| 304 | I8-98342 002-0 | SPRING; LEAF,A/T | 1 | 2110- | C | (B) | ||
| 37 | I8-98189 492-0 | RING; SEAL.OIL PUMP.A/T | 2 | 2110- | c | ID=63 | ||
| 365 | I8-98393 846-1 | BRACKET; BREATHER HOSE,A/T | 1 | 2110- | C | RZ4E-TCX HI-POWER ENG(LNC),RZ4E-TC ENG(RDZ) | ||
| 23 | I0-02857 300-0 | HOSE; BREATHER,A/T | 1 | 2110- | C | RZ4E-TCX HI-POWER ENG(LNC),RZ4E-TC ENG(RDZ) EXC. MADE IN JAPAN TRANSMISSION<8QP> SERVICED BY L=3000 | ||
| 23 | I0-02857 300-0 | HOSE; BREATHER,A/T | 1 | 2110- | C | RZ4E-TCX HI-POWER ENG(LNC),RZ4E-TC ENG(RDZ) MADE IN JAPAN TRANSMISSION<8QP> L=220 SERVICED BY L=3000 | ||
| 14 | I8-97550 324-0 | UNION; OIL COOLER RETURN PIPE | 2 | 2110- | c | |||
| 237 | I8-98189 760-0 | PLUG; COVER | 1 | 2110- | C | |||
| 43 | I8-98341 720-0 | RACE; THRUST BRG,OIL PUMP,A/T | 1 | 2110- | c | |||
| 44 | I8-98341 744-0 | BEARING; THRUST.OIL PUMP.A/T | 1 | 2110- | c | |||
| 26 | I8-98189 490-0 | PLUG; TRANS CASE | 1 | 2110- | c | (B) M14X12 |
