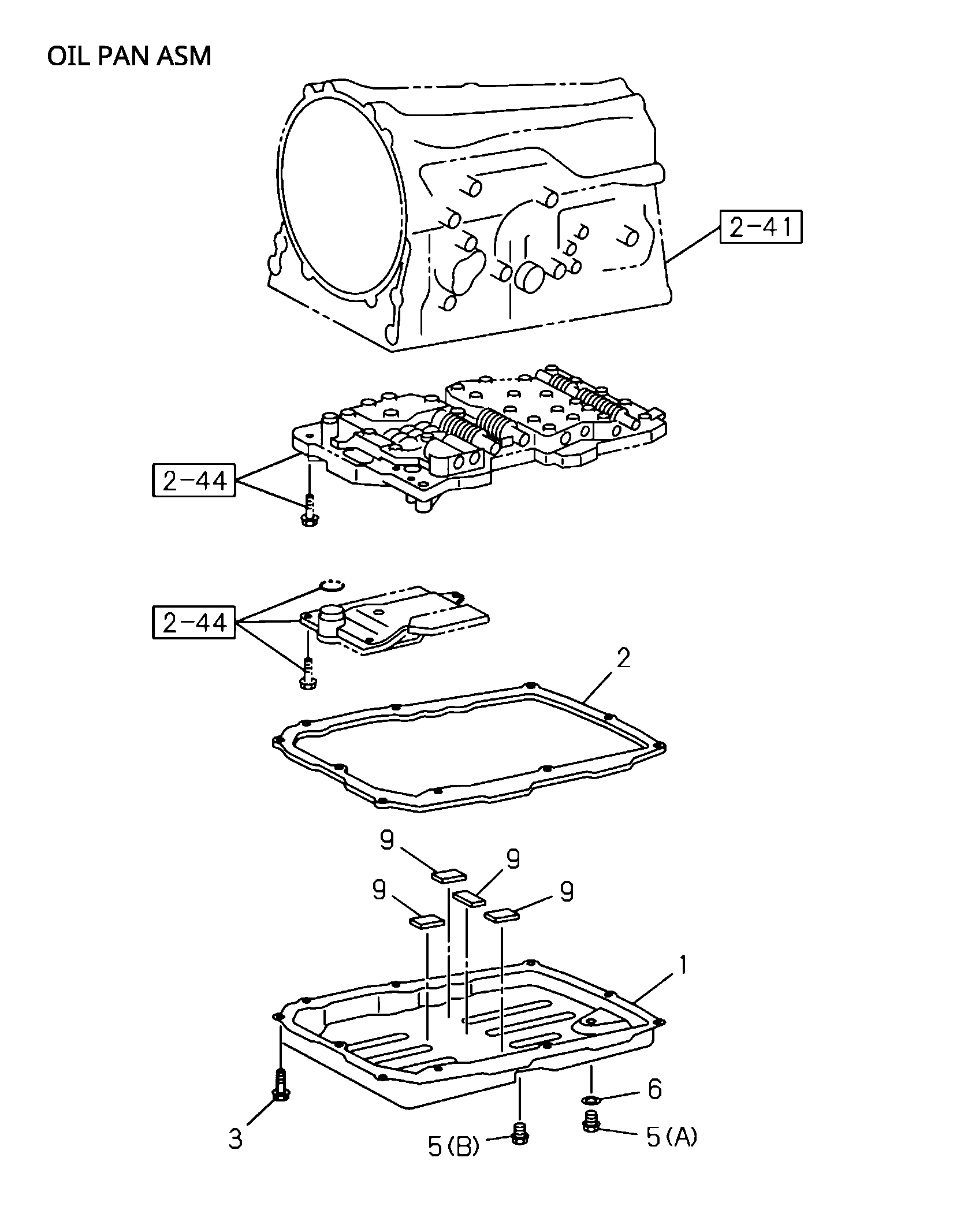

2-42 | 2-42 - AUTO TRANS OIL PAN AND OIL CONTROL
DMAX
D-MAX 2022
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 5 | I8-98189 752-0 | PLUG; OIL PAN | 1 | 2110- | C | (B) M10X9 | ||

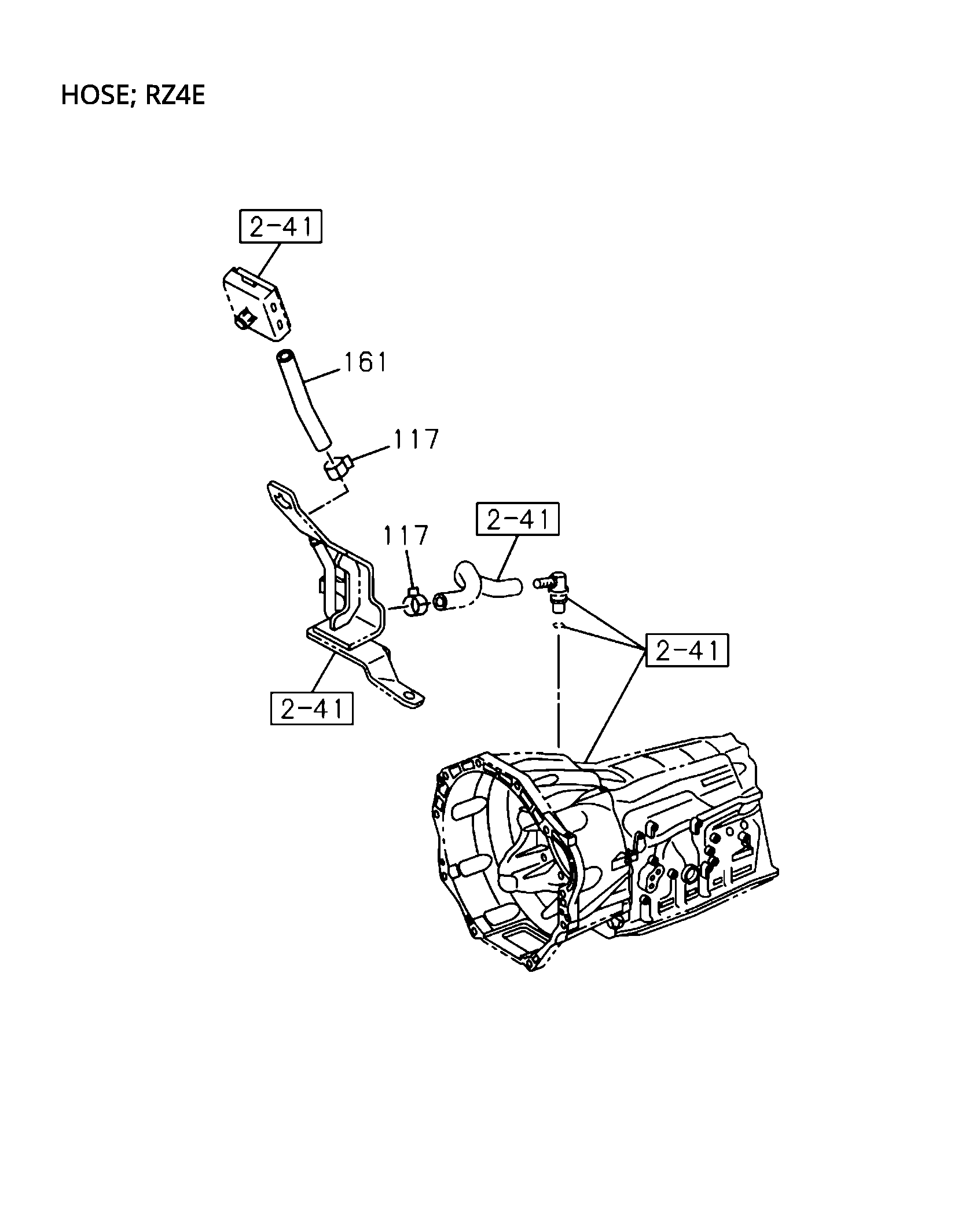

| 161 | I0-02857 300-0 | HOSE | 1 | 2110- | C | L=90 SERVICED BY L=3000 | ||
| 1 | I8-98342 028-0 | PAN ASM; OIL.A/T | 1 | 2110- | C | MADE IN JAPAN TRANSMISSION<8QP> | ||
| 5 | I8-97367 573-0 | PLUG; OIL PAN | 1 | 2110- | C | (A) M10X9 | ||
| 9 | I5-34138 004-0 | MAGNET; OIL PAN | 4 | 2110- I | C | |||
| 3 | I8-98342 007-0 | BOLT; OIL PAN TO CASE | 10 | 2110- I | C | |||
| 117 | I8-97947 824-0 | CLIP | 2 | 2110- I | C | ID=12 WO/PVC COATING | ||
| 2 | I8-98341 914-0 | GASKET; OIL PAN,A/T | 1 | 2110- | C | MADE IN JAPAN TRANSMISSION<8QP> | ||
| 6 | I5-34132 002-0 | GASKET; OIL PAN TO PLUG | 2 | 2110- I | C | ID=12 |
