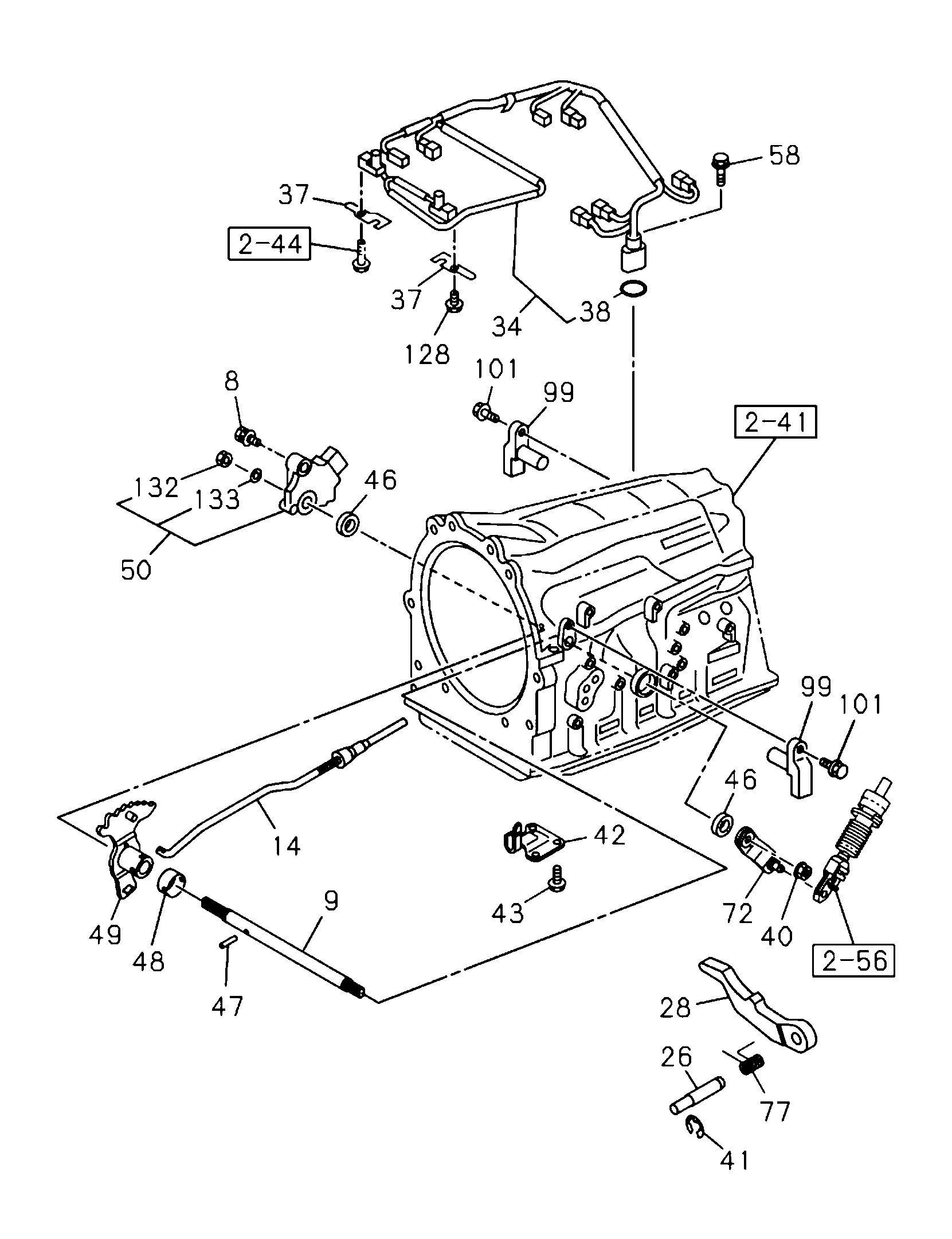

2-49 | 2-49 - AUTO TRANS INHIBITOR SWITCH
DMAX
D-MAX 2022
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 28 | I8-98341 923-0 | PAWL; PARKING,A/T | 1 | 2110- | C | |||
| 50 | I8-98189 469-0 | SWITCH; NEUTRAL.A/T | 1 | 2110- | C I | |||
| 48 | I8-97362 483-0 | COVER; SLEEVE | 1 | 2110- | c I | |||
| 58 | I8-94479 978-0 | BOLT; SOLENOID TO A/T | 1 | 2110- | CM6X14 | |||
| 99 | I8-98342 063-0 | SENSOR; SPD | 2 | 2110- | C I | |||
| 42 | I8-98342 009-0 | BRACKET; PARKING LOCK | 1 | 2110- | C | |||
| 9 | I8-98189 472-0 | SHAFT; MANUAL.A/T | 1 | 2110- | C | |||
| 8 | I8-97130 929-0 | BOLT; NEUTRAL START SW.A/T | 1 | 2110- | C | M8X30 | ||
| 40 | I0-91180 108-0 | NUT; LEVER TO SHAFT | 1 | 2110- | C | M8 FLANGE | ||
| 46 | I8-94479 740-0 | SEAL; OIL | 2 | 2110- | c | MADE IN JAPAN TRANSMISSION<8QP> OD=22 | ||
| 14 | I8-98341 899-0 | ROD ASM; PARKING.A/T | 1 | 2110- | C | |||
| 47 | I8-94257 081-0 | PIN; ROLL SHAFT | 1 | 2110- | c | D=4 | ||
| 26 | I8-98189 505-0 | SHAFT; PARKING PAWL,A/T | 1 | 2110- | C | |||
| 41 | I5-34488 002-0 | RETAINER; SPR,SHAFT | 1 | 2110- | C | |||
| 77 | I8-98189 506-0 | SPRING; TORSION,PARKING BRK LK,A/T | 1 | 2110- | C I | |||
| 49 | I8-98341 900-0 | LEVER ASM; CAM | 1 | 2110- | c I | |||
| 133 | I8-97354 889-0 | WASHER; SWITCH | 1 | 2110- | C IID=16 | |||
| 72 | I8-98393 845-0 | LEVER; SELECT CONT | 1 | 2110- | C I | |||
| 128 | I8-98189 500-0 | BOLT; CLAMP | 1 | 2110- | C I M6X14 | |||
| 38 | I8-98341 733-0 | GASKET; SOLENOID INNER | 1 | 2110- | C | |||
| 101 | I8-94479 978-0 | BOLT; SPD SENSOR | 2 | 2110- | c I M6X14 | |||
| 37 | I8-98341 908-0 | CLAMP; SOLENOID,A/T | 2 | 2110- | C | MADE IN JAPAN TRANSMISSION<8QP> | ||
| 132 | I8-97354 883-0 | NUT; SWITCH | 1 | 2110- | C I M16 | |||
| 34 | I8-98357 313-0 | SOLENOID ASM; A/T | 1 | 2110- | C | MADE IN JAPAN TRANSMISSION<8QP> EXC. IDLE STOP SYSTEM VAR2<8BM> | ||
| 43 | I8-98341 689-0 | BOLT; BRKT | 3 | 2110- | C | MADE IN JAPAN TRANSMISSION<8QP> |
