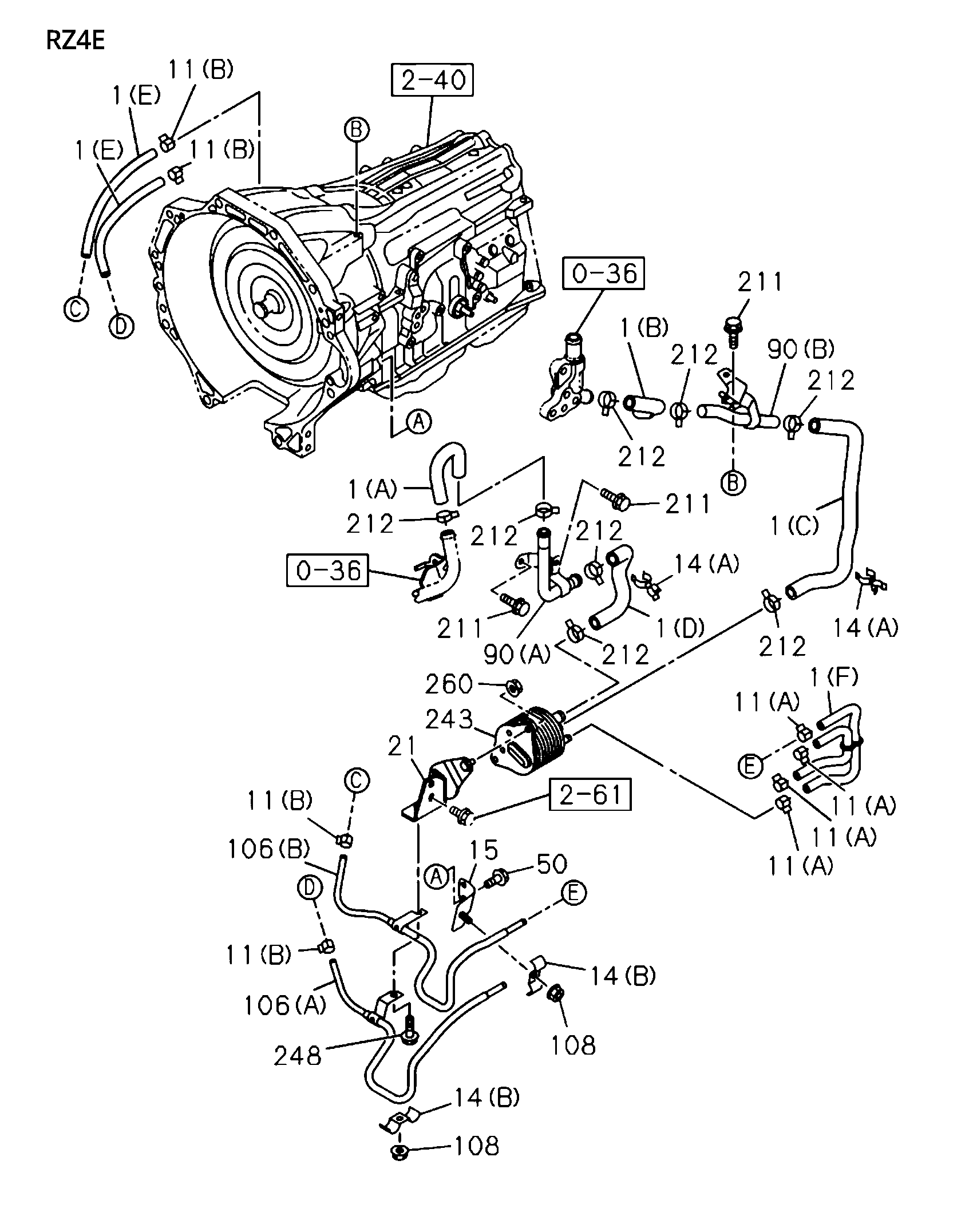

2-53 | 2-53 - TRANSMISSION OIL COOLER SYSTEM
DMAX
D-MAX 2022
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 90 | I8-98393 864-0 | PIPE ASM; ATF | 1 | 2110- | C | RZ4E-TCX HI-POWER ENG(LNC),RZ4E-TC ENG(RDZ) (A) | ||
| 243 | I8-98393 882-0 | COOLER ASM; A/T SECONDARY | 1 | 2110- | c | |||
| 14 | I8-97179 650-0 | CLIP; PIPE TO ENG SIDE | 2 | 2110- | c | (A) ID=13 & 21 | ||
| 106 | I8-98393 851-1 | PIPE ASM; OIL.COOLERTO UNION | 1 | 2110- | C | RZ4E-TCX HI-POWER ENG(LNC),RZ4E-TC ENG(RDZ) (A) INLET | ||
| 1 | I8-98393 859-0 | HOSE; ATF | 1 | 2110- | C | RZ4E-TC ENG(RDZ) EUROO SPECIFICATI0N(K75),EUR02 SPECIFICATI0N(NT2),EUR04 SPECIFICATION(NT4) (B) | ||
| 50 | I0-28050 820-0 | BOLT; CLIP | 2 | 2110- | C | M8X20 FLANGE | ||
| 248 | I0-28050 820-0 | BOLT; RETAINER | 1 | 2110- | c | M8X20 FLANGE | ||
| 11 | I8-98008 165-0 | CLIP; PIPE | 4 | 2110- | c | (A) ID=13 | ||
| 212 | I8-97944 127-0 | CLIP; ATF HOSE | 8 | 2110- | c | ID=20.8 | ||
| 15 | I8-98393 848-0 | BRACKET; ATF PIPE | 1 | 2110- | c | |||
| 14 | I8-98232 374-0 | CLIP; PIPE TO ENG SIDE | 2 | 2110- | c | (B) | ||
| 90 | I8-98393 865-0 | PIPE ASM; ATF | 1 | 2110- | C | RZ4E-TCX HI-POWER ENG(LNC),RZ4E-TC ENG(RDZ) (B) | ||
| 11 | I8-98030 682-0 | CLIP; PIPE | 4 | 2110- | c | (B) ID=16 | ||
| 21 | I8-98395 586-0 | BRACKET; COOLER | 1 | 2110- | C | RZ4E-TCX HI-POWER ENG(LNC),RZ4E-TC ENG(RDZ) | ||
| 106 | I8-98393 852-1 | PIPE ASM; OIL.COOLERTO UNION | 1 | 2110- | C | RZ4E-TCX HI-POWER ENG(LNC),RZ4E-TC ENG(RDZ) (B) RETURN | ||
| 1 | I8-98393 858-0 | HOSE; ATF | 1 | 2110- | C | RZ4E-TCX HI-POWER ENG(LNC),RZ4E-TC ENG(RDZ) (A) | ||
| 260 | I0-91180 108-0 | NUT | 2 | 2110- | c | M8 FLANGE | ||
| 1 | I8-98393 870-0 | HOSE; ATF | 1 | 2110- | C | RZ4E-TCX HI-POWER ENG(LNC),RZ4E-TC ENG(RDZ) (D) | ||
| 1 | I8-98393 849-0 | HOSE; ATF | 1 | 2110- | C | RZ4E-TCX HI-POWER ENG(LNC),RZ4E-TC ENG(RDZ) (F) | ||
| 1 | I8-97538 580-0 | HOSE; ATF | 2 | 2110- | C | (E) | ||
| 108 | I0-91180 108-0 | NUT; PIPE CLIP | 2 | 2110- | c | M8 FLANGE | ||
| 1 | I8-98393 869-1 | HOSE; ATF | 1 | 2110- | C | RZ4E-TCX HI-POWER ENG(LNC),RZ4E-TC ENG(RDZ) (C) | ||
| 211 | I0-28050 820-0 | BOLT; ATF PIPE | 3 | 2110- | c | M8X20 FLANGE |
