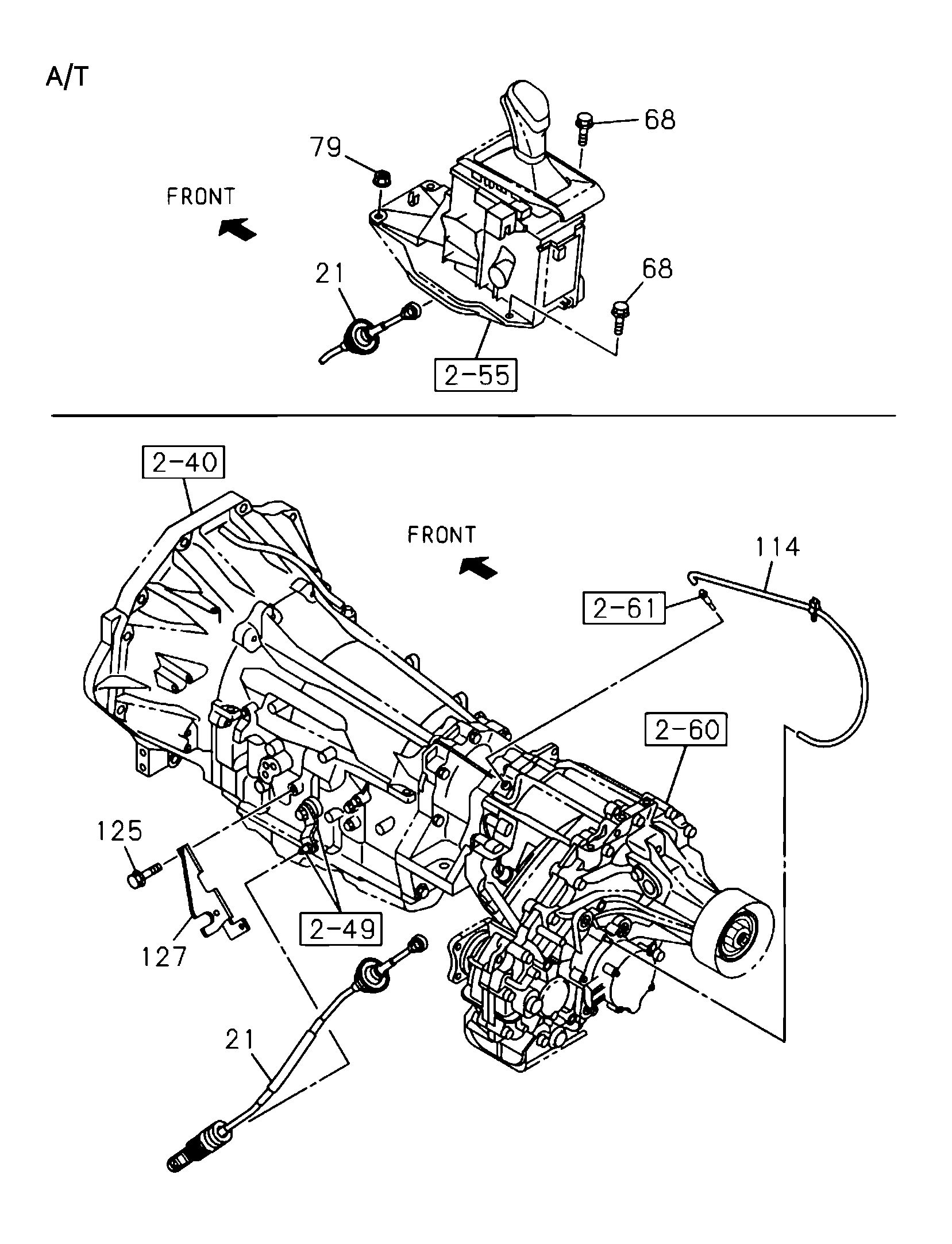

2-56 | 2-56 - AUTO TRANS CONTROL LINK
DMAX
D-MAX 2022
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 125 | I0-28650 620-0 | BOLT; BRKT | 2 | 2110- | C | M6X20 FLANGE | ||
| 21 | I8-98375 321-1 | CABLE; A/T | 1 | 2110- | C | RZ4E-TCX HI-POWER ENG(LNC),RZ4E-TC ENG(RDZ) | ||
| 79 | I8-98055 704-0 | NUT; CONT CABLE | 2 | 2110- | C | M6 FLANGE | ||

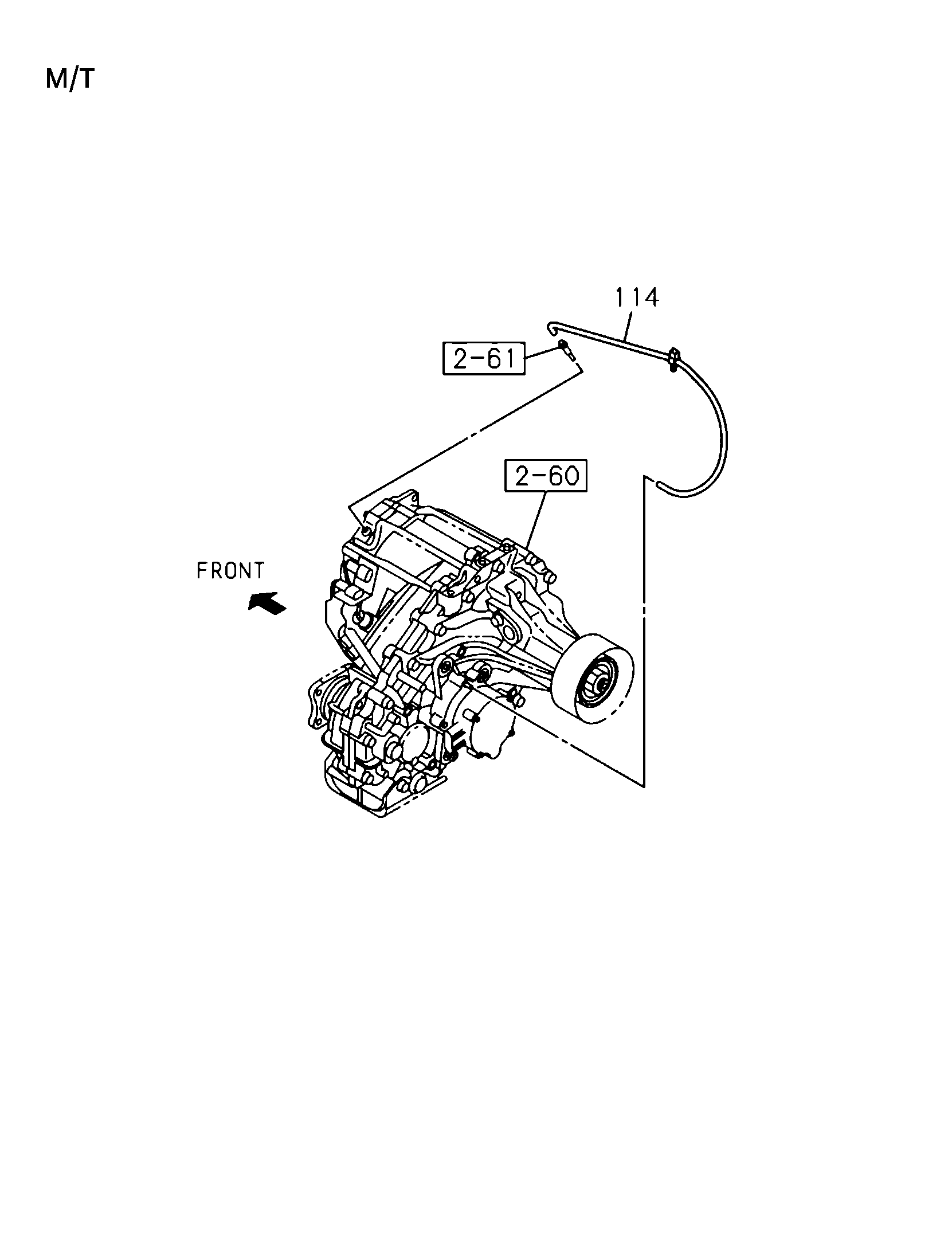

| 114 | I8-98183 634-0 | HOSE; BREATHER | 1 | 2110- | ABC | 4X4(TFS***) L=527 | ||
| 68 | I0-28650 620-0 | BOLT; A/T CONT CABLE | 2 | 2110- | C | M6X20 FLANGE | ||
| 127 | I8-98375 322-1 | BRACKET; A/T CONT CABLE | 1 | 2110- | C |
