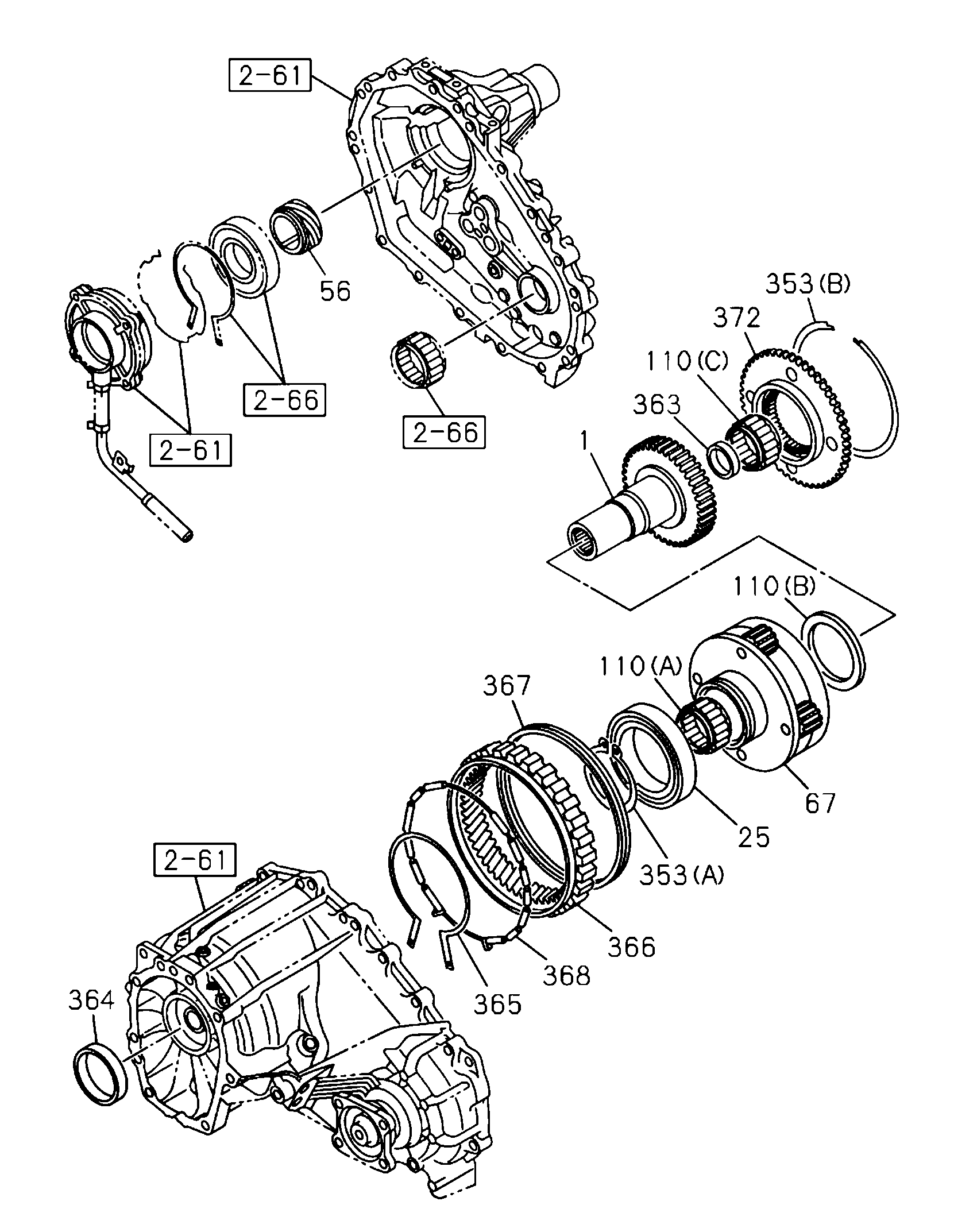

2-65 | 2-65 - MANUAL TRANSFER GEAR; INPUT AND IDLE
DMAX
D-MAX 2022
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 363 | I8-97238 725-0 | CAP; SEAL.INPUT SHAFT | 1 | 2110- | D E F | A/T 6 SPEED-AISIN(Y6A) NOK | ||
| 353 | I8-97305 403-0 | RING; SNAPfCARRIER | 1 | 2110- | D E F | (A) ID=65.5 | ||
| 56 | I8-97499 658-0 | GEAR; SPD DRIVE,TRANSFER | 1 | 2110- | D E F | Z=6 | ||
| 367 | I8-97247 459-0 | RING; RETAINING.SPIRAL TYPE | 1 | 2110- | D E F | ID=162 OD=176 | ||
| 110 | I8-97234 743-0 | BEARING; NEEDLE | 1 | 2110- | D E F | (C) ID=32 | ||
| 1 | I8-97513 526-0 | SHAFT; GEAR,INPUT | 1 | 2110- | D E F | M/T MVL 6 SPEED 6Y(Y6P),M/T MVL 6 SPEED 6S(Y6S) | ||
| 110 | I8-97234 739-0 | BEARING; NEEDLE | 1 | 2110- | D E F | (A) ID=50 | ||
| 67 | I8-98158 116-0 | CARRIER; TRANSFER | 1 | 2110- | D E F | |||
| 363 | I8-98156 632-0 | CAP; SEAL.INPUT SHAFT | 1 | 2110- | D E F | M/T MVL 6 SPEED 6Y(Y6P),M/T MVL 6 SPEED 6S(Y6S) | ||
| 364 | I8-97238 999-0 | SEAL; OIL,COVER,INPUT | 1 | 2110- | D E F | NOK | ||
| 110 | I6-97234 739-0 | BEARING; NEEDLE | 1 | 2110- | D E F | (IADG) (A) ID=50 | ||
| 365 | I8-97305 010-1 | RING; RETAINING.OUTER INPUT | 1 | 2110- | D E F | ID=97 | ||
| 110 | I8-97234 741-0 | BEARING; NEEDLE | 1 | 2110- | D E F | (B) ID=56 | ||
| 372 | I8-97358 244-0 | TEETH; DOG,PLANETARY | 1 | 2110- | D E F | Z=56 | ||
| 366 | I8-97231 831-2 | GEAR; INTERNAL.HIGH-LOW | 1 | 2110- | D E F | Z=27 | ||
| 25 | I8-97234 735-0 | BEARING; BALL.INPUT SHAFT | 1 | 2110- | D E F | NSK | ||
| 1 | I8-98118 924-1 | SHAFT; GEAR,INPUT | 1 | 2110- | D E F | A/T 6 SPEED-AISIN(Y6A) | ||
| 353 | I8-97305 406-0 | RING; SNAPfCARRIER | 1 | 2110- | D E F | (B) ID=137 |
