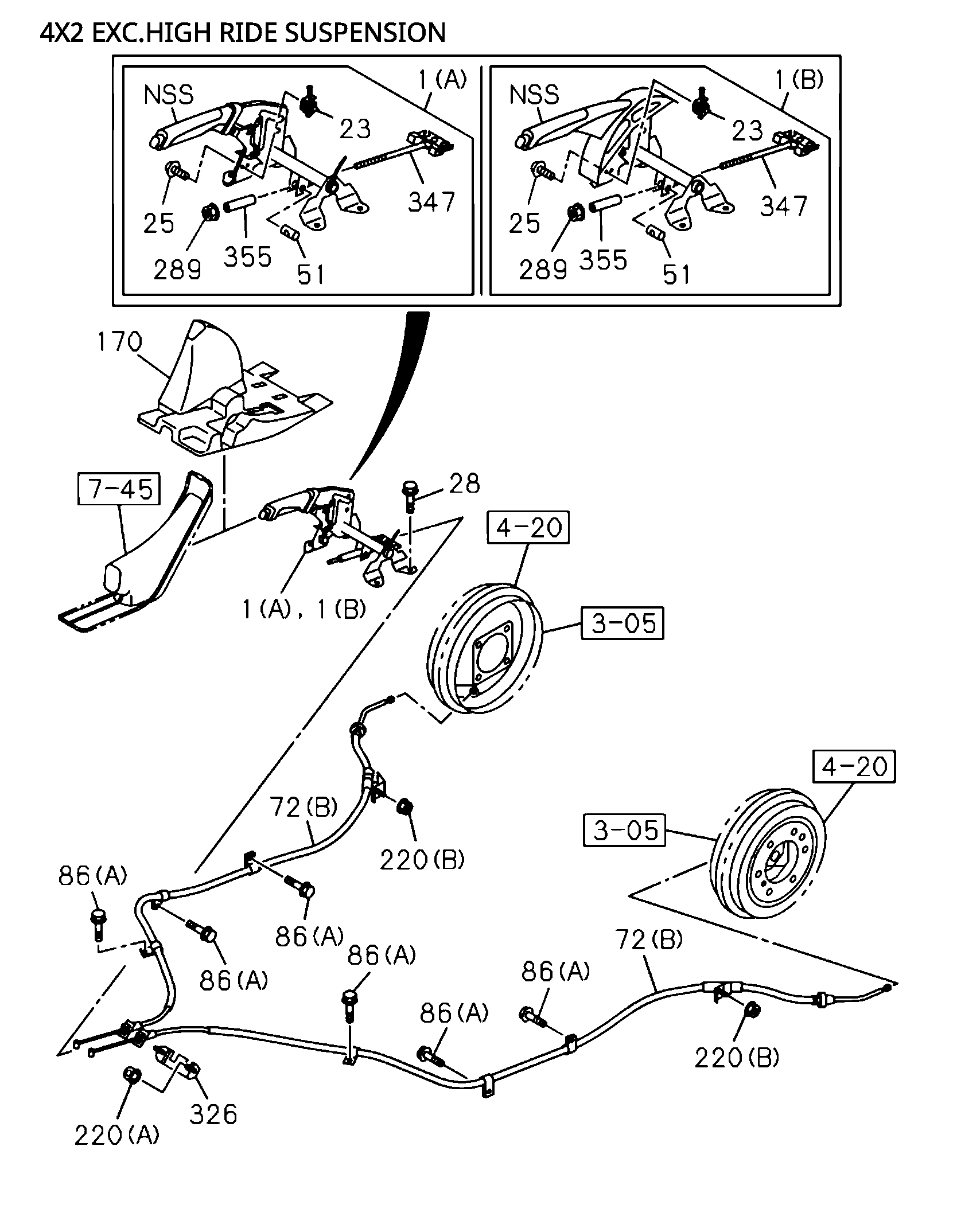

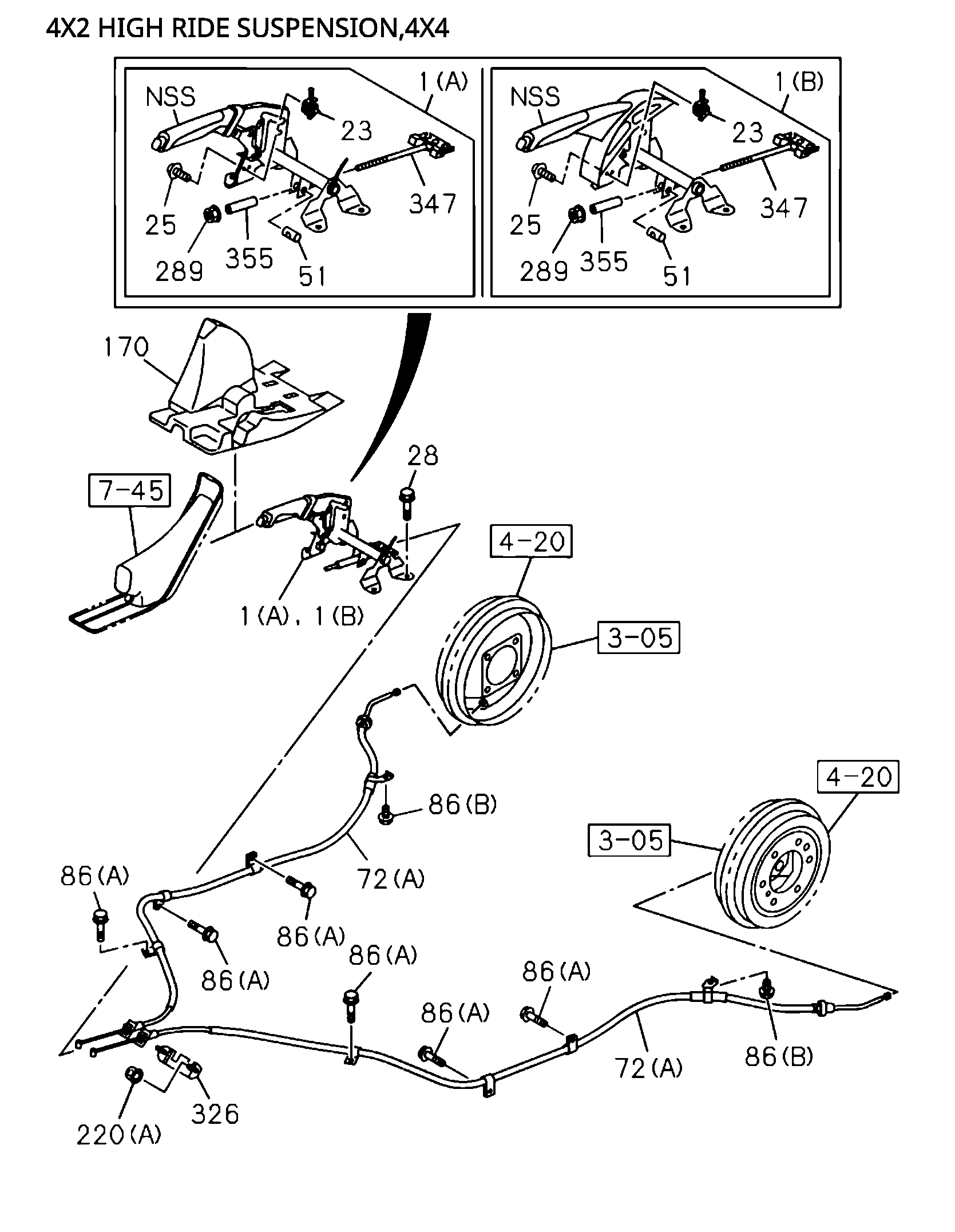

3-11 | 3-11 - PARKING BRAKE CONTROL
DMAX
D-MAX 2022
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 72 | I8-98481 585-1 | CABLE; PARKING BRK | 1 | 2110- | A D E F | EXC. REAR SPRING HEAVY DUTY(G50) (B) | ||
| 28 | I0-28650 820-0 | BOLT; HAND BRK LEVER | 4 | 2110- | ABCDE F | M8X20 FLANGE | ||
| 355 | I8-97947 497-0 | SPACER; HAND BRK LEVER | 1 | 2110- | A BC D E F | |||
| 326 | I8-98134 214-1 | RETAINER; PARK CABLE | 1 | 2110- | ABCDE F | |||
| 72 | I8-98481 584-1 | CABLE; PARKING BRK | 1 | 2110- | A D E F | EXC. REAR SPRING HEAVY DUTY(G50) (B) | ||
| 1 | I8-97552 341-1 | STEM ASM; PARKING BRK | 1 | 2110- | BCDE F | GRADE BASIC(RBA),GRADE DELUXE(RBB),GRADE LUXURY(RBC) EXC. FLOOR CONSOLE WO/LID<D54> (A) | ||
| 86 | I0-28050 812-A | BOLT | 2 | 2110- | BC | HIGH RIDE SUSPENSION(7YC) (B) M8X12 FLANGE | ||
| 72 | I8-98481 584-1 | CABLE; PARKING BRK | 1 | 2110- | BC | HIGH RIDE SUSPENSION(7YC) EXC. REAR SPRING HEAVY DUTY(G50) (B) | ||
| 170 | I8-98376 794-0 | COVER; PARKING BRK LEVER | 1 | 2110- | BC E F | GRADE BASIC(RBA),GRADE DELUXE(RBB),GRADE LUXURY(RBC) EXC. FLOOR CONSOLE WO/LID<D54> | ||
| 72 | I8-98481 585-1 | CABLE; PARKING BRK | 1 | 2110- | BC | HIGH RIDE SUSPENSION(7YC) EXC. REAR SPRING HEAVY DUTY(G50) (B) | ||
| 23 | I8-97947 494-0 | SWITCH; PARKING BRK | 1 | 2110- | ABCDE F | |||
| 51 | I8-97947 496-0 | PIN; JOINT.RELAY LEVER | 1 | 2110- | ABCDE F | |||
| 86 | I0-28650 620-0 | BOLT | 6 | 2110- | ABCDE F | (A) M6X20 FLANGE | ||
| 220 | I0-91180 108-0 | NUT; CLIP,PARKING CONT CABLE | 2 | 2110- | ABCDE F | (A) M8 FLANGE | ||
| 1 | I8-97552 341-1 | STEM ASM; PARKING BRK | 1 | 2110- | A | (A) | ||
| 25 | I8-97103 556-0 | SCREW; SW,PARKING BRK | 1 | 2110- | ABCDE F | |||
| 86 | I0-28050 812-A | BOLT | 2 | 2110- | A D E F | (B) M8X12 FLANGE | ||
| 1 | I8-97552 345-1 | STEM ASM; PARKING BRK | 1 | 2110- | BCDE F | FLOOR CONSOLE WO/LID<D54> (B) | ||
| 220 | I0-91180 106-0 | NUT; CLIP,PARKING CONT CABLE | 2 | 2110- | BC | EXC. HIGH RIDE SUSPENSION(7YC) (B) M6 FLANGE | ||
| 347 | I8-97947 495-0 | EQUALIZER; HAND BRK | 1 | 2110- | A BC D E F | |||
| 289 | I8-97355 929-0 | NUT; PARKING BRK | 1 | 2110- | ABCDE F | |||
| 1 | I8-97552 343-1 | STEM ASM; PARKING BRK | 1 | 2110- | CD F | GRADE CUSTOM(RBD),GRADE ROYAL(RBE) EXC. FLOOR CONSOLE WO/LID<D54> (A) |
