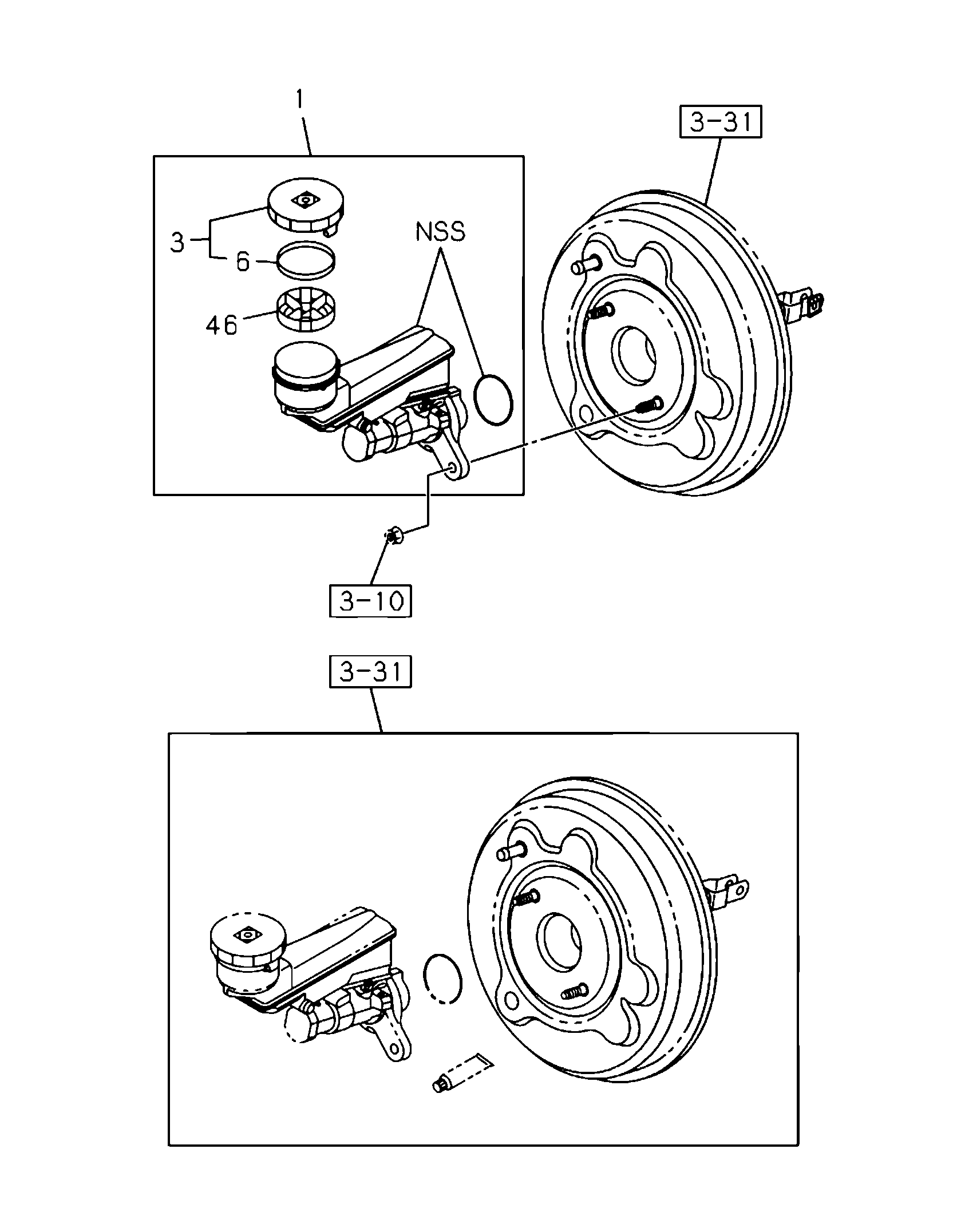

3-30 | 3-30 - BRAKE MASTER CYLINDER
DMAX
D-MAX 2022
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 1 | I8-97504 348-0 | CYLINDER ASM; BRK MASTER | 1 | 2110- | C E | M/T MVL 6 SPEED 6Y(Y6P),M/T MVL 6 SPEED 6S(Y6S) EXC. ELECTRONIC TRACTION CONTROL<NW9> | ||
| 6 | I8-98047 706-0 | DIAPHRAGM; BRK M/CYL | 1 | 2110- | ABCDE F | |||
| 1 | I8-97504 346-0 | CYLINDER ASM; BRK MASTER | 1 | 2110- | BCDE F | M/T MVL 6 SPEED 6Y(Y6P),M/T MVL 6 SPEED 6S(Y6S) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> | ||
| 1 | I8-97504 347-0 | CYLINDER ASM; BRK MASTER | 1 | 2110- | BCDE F | A/T 6 SPEED-AI5IN(Y6A) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> | ||
| 3 | I8-98047 704-0 | CAP; OIL TANK | 1 | 2110- | ABCDE F | |||
| 1 | I8-97504 347-0 | CYLINDER ASM; BRK MASTER | 1 | 2110- | A | |||
| 46 | I8-98047 702-0 | FILTER; OIL TANK,M/CYL | 1 | 2110- | ABCDE F | |||
| 1 | I8-97504 348-0 | CYLINDER ASM; BRK MASTER | 1 | 2110- | B D F | M/T MVL 6 SPEED 6Y(Y6P),M/T MVL 6 SPEED 6S(Y6S) EXC. ELECTRONIC TRACTION CONTROL<NW9>,IDLE STOP SYSTEM VAR2<8BM> |
