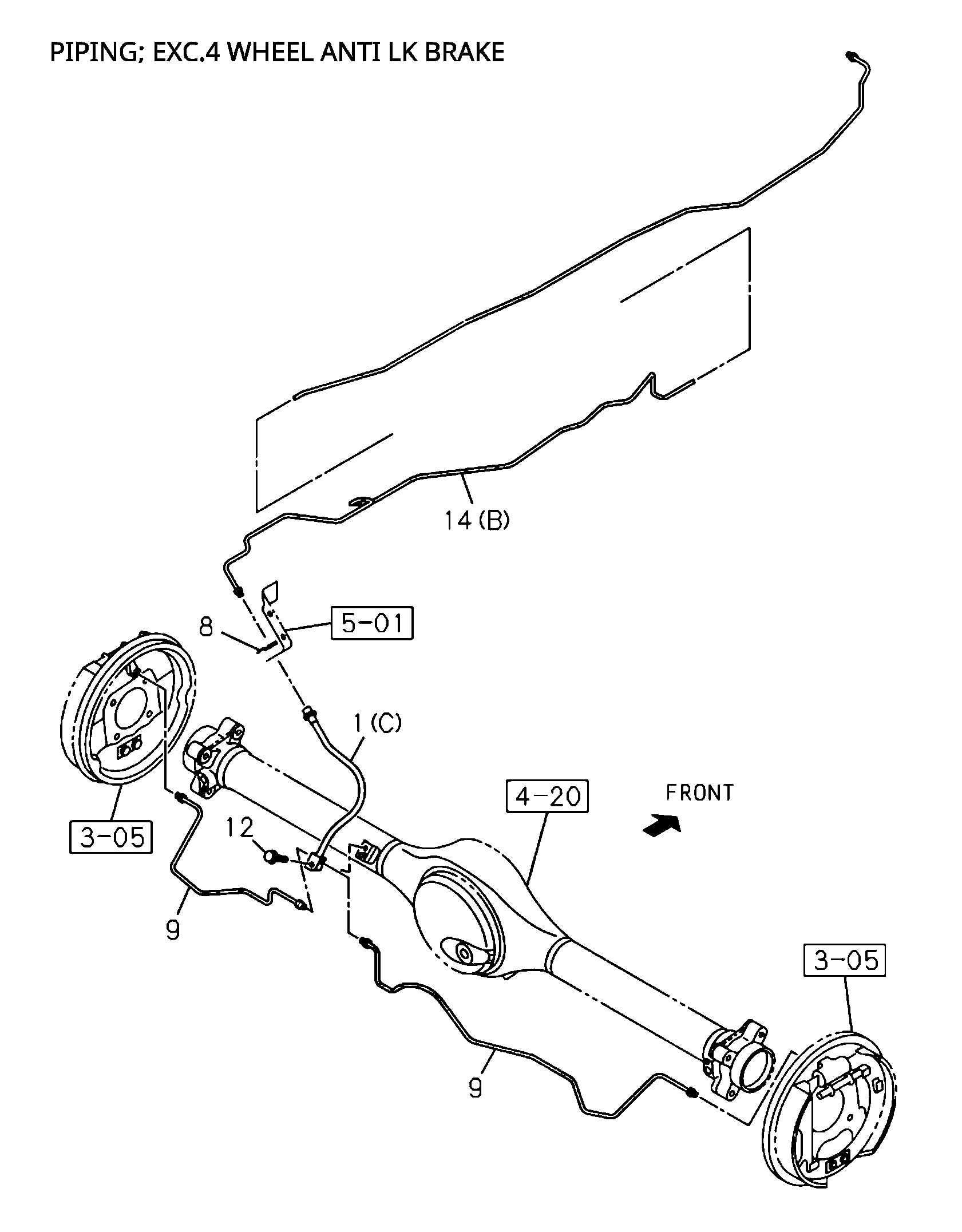

3-55 | 3-55 - BRAKE PIPING; OIL,REAR
DMAX
D-MAX 2022
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 8 | I8-97360 054-0 | CLIP; RR BRK | 1 | 2110- | BC D E F | EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> | ||
| 14 | I8-98484 276-1 | PIPE; BRK,FLEX HOSE TO WHEEL CYL | 1 | 2110- | A | (B) | ||
| 9 | I8-98103 456-1 | PIPE; BRK,RR AXLE | 1 | 2110- | A | |||
| 1 | I8-98067 085-1 | HOSE; F L EX, RR BRK | 1 | 2110- | A | (C) L=427 | ||
| 25 | I8-98395 367-0 | CONNECTOR | 1 | 2110- | A | (B) | ||

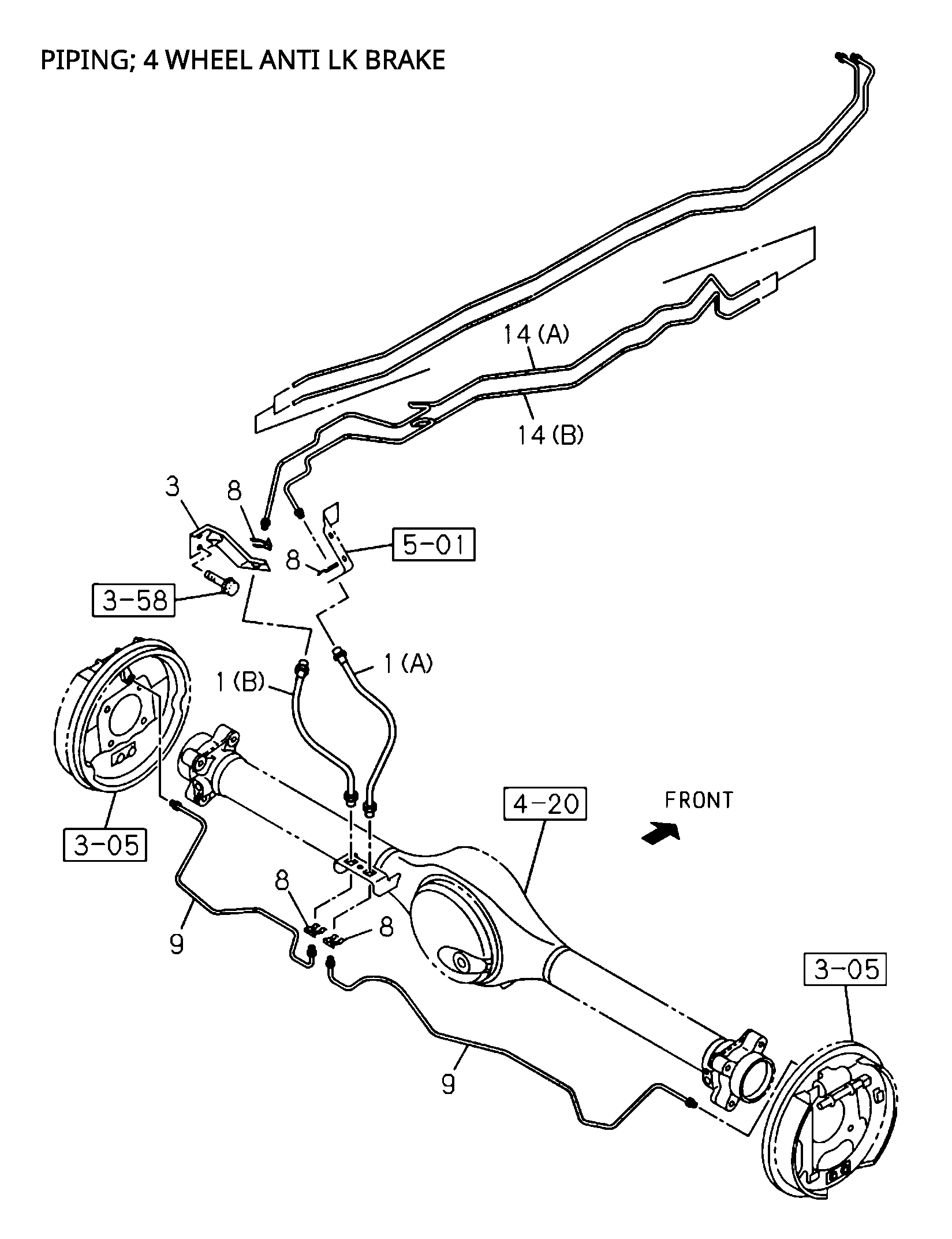

| 9 | I8-98103 455-1 | PIPE; BRK,RR AXLE | 1 | 2110- | D E F | 4 WHEEL ANTI LOCK BRAKE<JE5> | ||
| 14 | I8-98484 274-1 | PIPE; BRK,FLEX HOSE TO WHEEL CYL | 1 | 2110- | BC | 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (C) | ||
| 9 | I8-98103 456-1 | PIPE; BRK,RR AXLE | 1 | 2110- | D E F | 4 WHEEL ANTI LOCK BRAKE<JE5> | ||
| 9 | I8-98103 455-1 | PIPE; BRK,RR AXLE | 1 | 2110- | A | |||
| 1 | I8-98395 200-0 | HOSE; F L EX, RR BRK | 1 | 2110- | A | (B) L=434 | ||
| 24 | I0-28650 820-0 | BOLT; UNION | 1 | 2110- | ABCDE F | M8X20 FLANGE | ||
| 3 | I8-98102 358-1 | BRACKET; FLEX HOSE.RR BRK | 1 | 2110- | BC D E F | 4 WHEEL ANTI LOCK BRAKE<JE5> | ||
| 25 | I8-98395 367-0 | CONNECTOR | 1 | 2110- | BCDE F | 4 WHEEL ANTI LOCK BRAKE<JE5> (B) | ||
| 9 | I8-98103 456-1 | PIPE; BRK,RR AXLE | 1 | 2110- | BC | 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) | ||
| 1 | I8-98395 200-0 | HOSE; F L EX, RR BRK | 1 | 2110- | B C D E F | 4 WHEEL ANTI LOCK BRAKE<JE5> (B) L=434 | ||
| 1 | I8-98067 085-1 | HOSE; F L EX, RR BRK | 1 | 2110- | BC D E F | 4 WHEEL ANTI LOCK BRAKE<JE5> (C) L=427 | ||
| 9 | I8-98103 455-1 | PIPE; BRK,RR AXLE | 1 | 2110- | BC | 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) | ||
| 8 | I8-97360 054-0 | CLIP; RR BRK | 4 | 2110- | A | |||
| 14 | I8-98484 274-1 | PIPE; BRK,FLEX HOSE TO WHEEL CYL | 1 | 2110- | BC | HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9> (C) | ||
| 8 | I8-97360 054-0 | CLIP; RR BRK | 4 | 2110- | B C D E F | 4 WHEEL ANTI LOCK BRAKE<JE5> | ||
| 14 | I8-98484 276-1 | PIPE; BRK,FLEX HOSE TO WHEEL CYL | 1 | 2110- | BC D E F | 4 WHEEL ANTI LOCK BRAKE<JE5> (B) | ||
| 12 | I0-28650 830-0 | BOLT; FLEX HOSE TO RR AXLE | 1 | 2110- | BCDE F | EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> M8X30 FLANGE | ||
| 3 | I8-98102 358-1 | BRACKET; FLEX HOSE.RR BRK | 1 | 2110- | A | |||
| 14 | I8-98484 274-1 | PIPE; BRK,FLEX HOSE TO WHEEL CYL | 1 | 2110- | A D E F | (C) |
