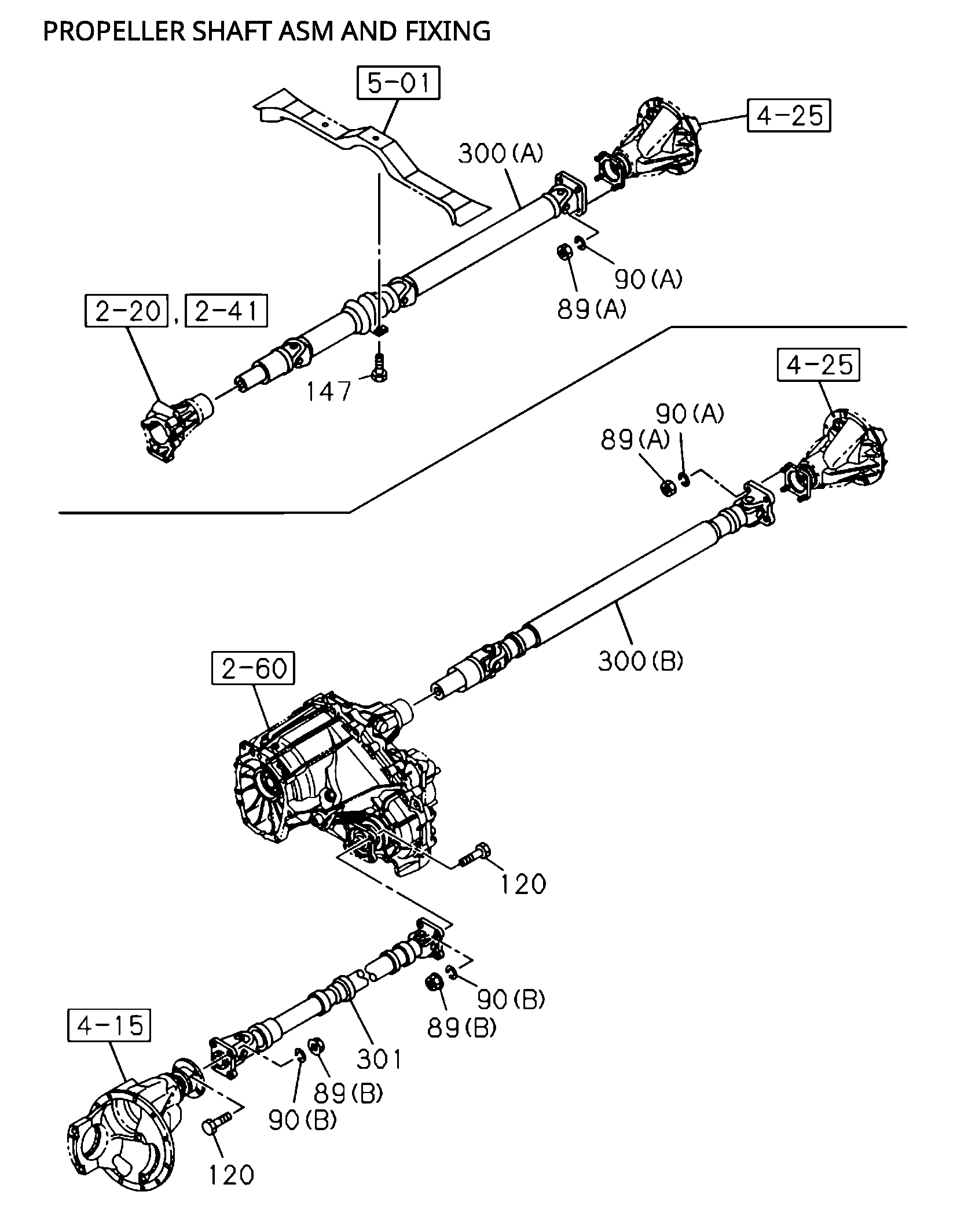

4-01 | 4-01 - PROPELLER SHAFT
DMAX
D-MAX 2022
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 106 | I0-90301 406-0 | NIPPLE; G RE AS E, YO KE, P RO P SHAFT | 1 | 2110- | D E F | M6 STRAIGHT | ||
| 125 | I8-97493 754-0 | YOKE ASM; SPLINED,PROP SHAFT | 1 | 2110- | D E F | M/T MVL 6 SPEED 6Y(Y6P),M/T MVL 6 SPEED 6S(Y6S) (C) | ||
| 103 | I8-97943 053-0 | BOOT; PROP SHAFT | 1 | 2110- | D E F | (B) | ||
| 103 | I8-97493 756-0 | BOOT; PROP SHAFT | 1 | 2110- | D E F | (C) | ||
| 120 | I8-98354 948-0 | BOLT; YOKE TO RR AXLE | 8 | 2110- | D E F | M10X29 | ||

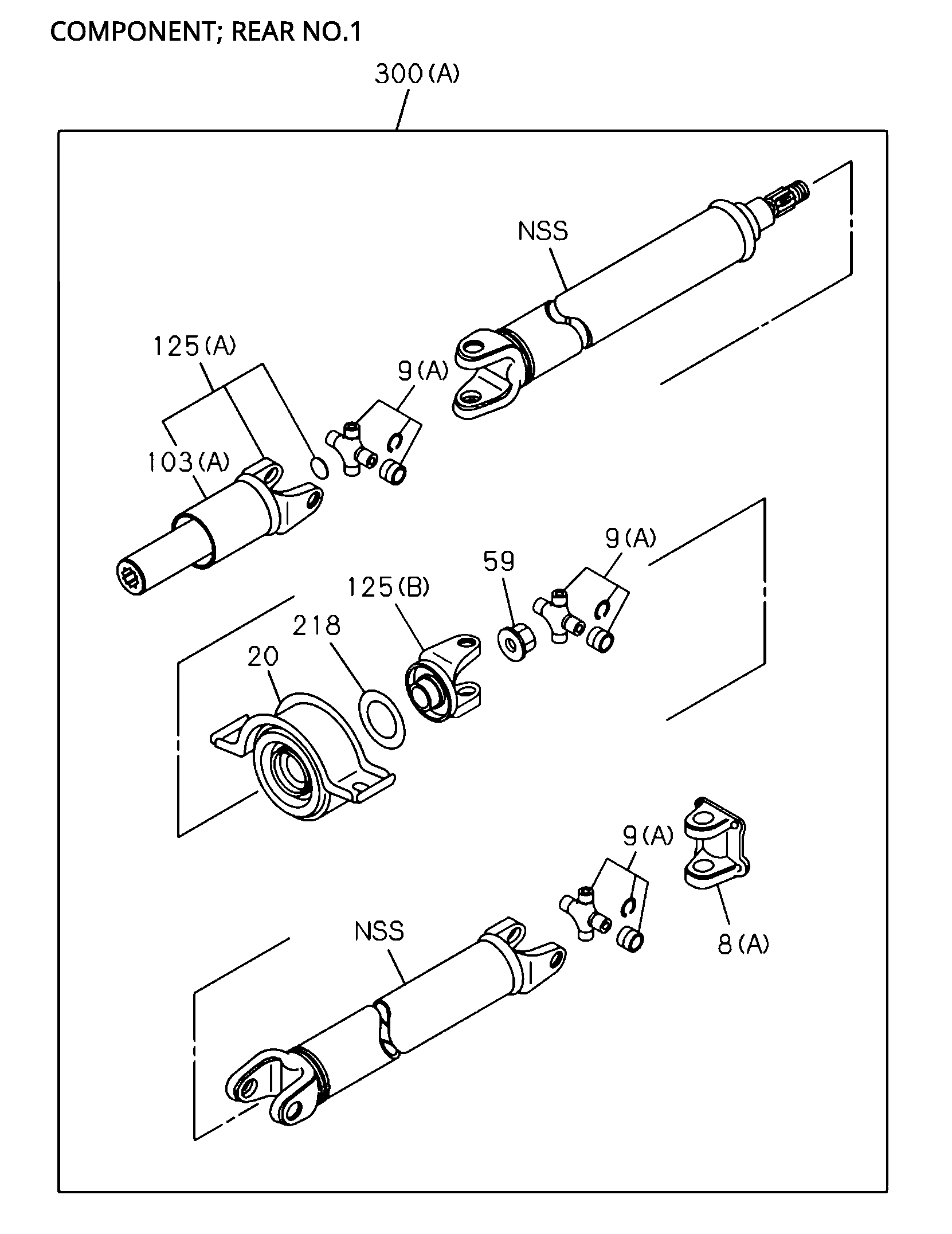

| 300 | I8-97533 757-1 | SHAFT ASM; PROP.RR | 1 | 2110- | D E F | RZ4E-TCX HI-POWER ENG(LNC),RZ4E-TC ENG(RDZ) M/T MVL 6 SPEED 6Y(Y6P),M/T MVL 6 SPEED 6S(Y6S) (B) L=1577 | ||
| 9 | I6-97947 582-0 | JOURNAL ASM; PROP SHAFT | 2 | 2110- | D E F | (IADG) (B) | ||

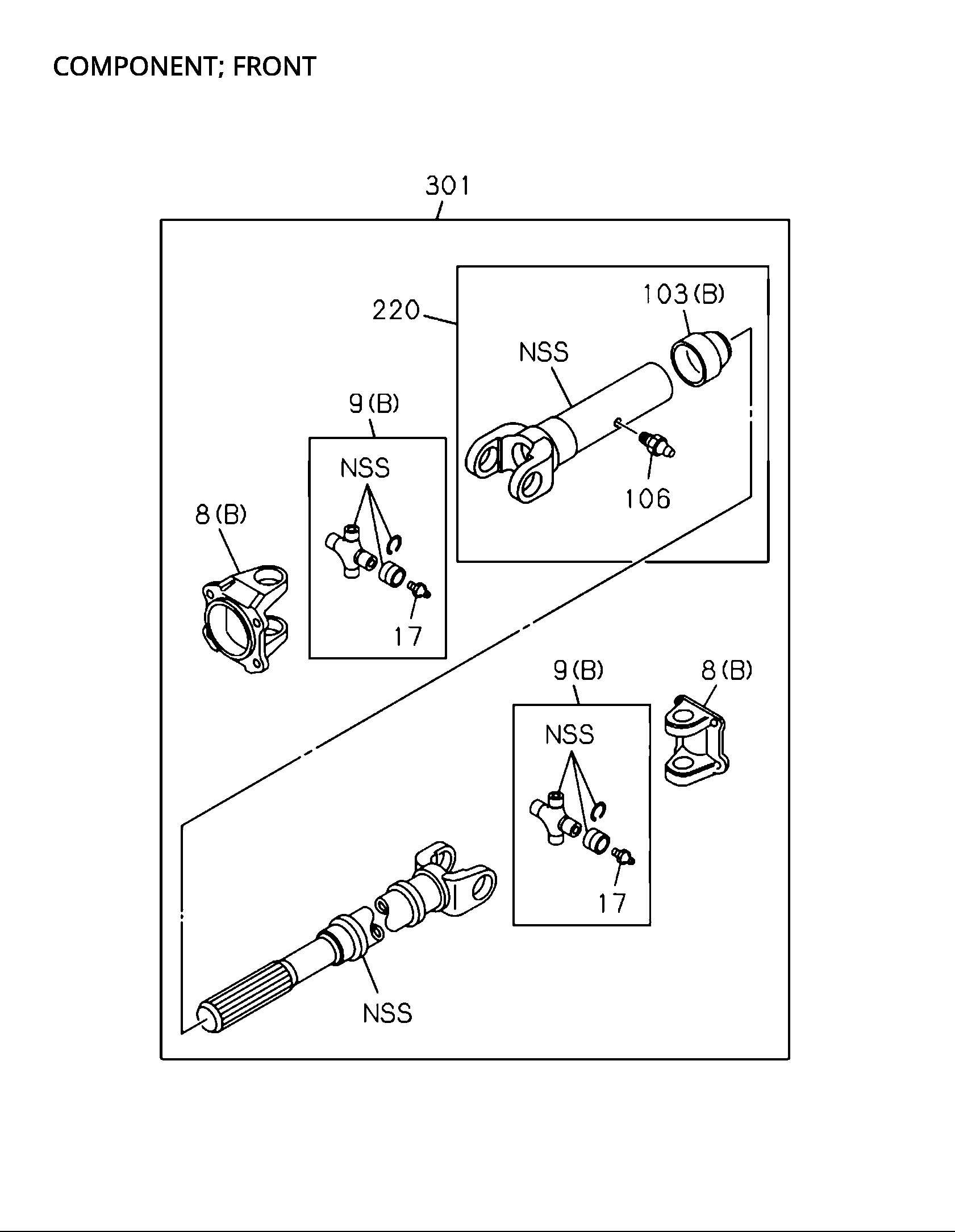

| 301 | I8-97948 759-0 | SHAFT ASM; PROP.FRT | 1 | 2110- | D E F | RZ4E-TCX HI-POWER ENG(LNC),RZ4E-TC ENG(RDZ) M/T MVL 6 SPEED 6Y(Y6P),M/T MVL 6 SPEED 6S(Y6S) L=651 | ||
| 90 | I8-97246 901-0 | WASHER; LK,YOKE TO RR AXLE | 8 | 2110- | D E F | (B) ID=10.1 | ||
| 89 | I8-97246 900-0 | NUT; YOKE TO RR AXLE | 8 | 2110- | D E F | (B) M10 FLANGE | ||
| 9 | I8-97947 582-0 | JOURNAL ASM; PROP SHAFT | 2 | 2110- | D E F | (B) | ||
| 89 | I8-97365 450-1 | NUT; YOKE TO RR AXLE | 4 | 2110- | ABCDE F | (A) M12 | ||
| 90 | I0-91510 812-0 | WASHER; LK,YOKE TO RR AXLE | 4 | 2110- | ABCDE F | (A) ID=12.2 | ||
| 301 | I8-98395 176-0 | SHAFT ASM; PROP.FRT | 1 | 2110- | D E F | RZ4E-TCX HI-POWER ENG(LNC),RZ4E-TC ENG(RDZ) A/T 6 SPEED-AISIN(Y6A) L=718 | ||
| 8 | I8-97948 772-0 | YOKE; FLANGE, PROP SHAFT | 2 | 2110- | D E F | (B) | ||
| 17 | I0-90301 406-0 | NIPPLE; GREASE,PROP SHAFT | 4 | 2110- | D E F | M6 STRAIGHT | ||

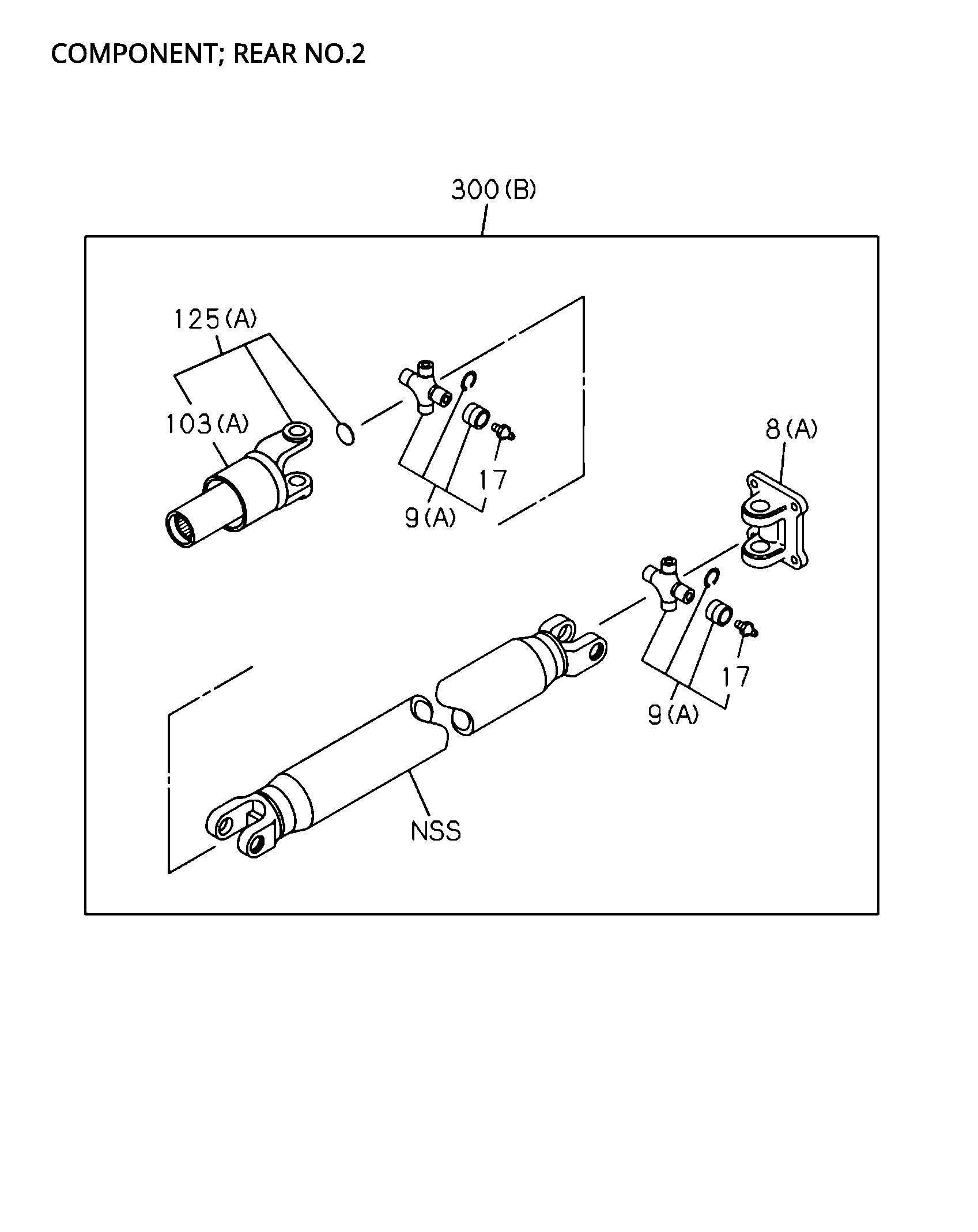

| 300 | I8-97533 753-1 | SHAFT ASM; PROP.RR | 1 | 2110- | D E F | RZ4E-TCX HI-POWER ENG(LNC),RZ4E-TC ENG(RDZ) A/T 6 SPEED-AISIN(Y6A) (B) L=1541 | ||
| 8 | I8-97493 716-0 | YOKE; FLANGE, PROP SHAFT | 1 | 2110- | A BC D E F | (A) | ||
| 125 | I8-97541 995-0 | YOKE ASM; SPLINED,PROP SHAFT | 1 | 2110- | D E F | A/T 6 SPEED-AISIN(Y6A) (C) | ||
| 9 | I8-97493 742-0 | JOURNAL ASM; PROP SHAFT | 2 | 2110- | D E F | (C) | ||
| 220 | I8-97945 105-0 | YOKE; SPLINED | 1 | 2110- | D E F |
