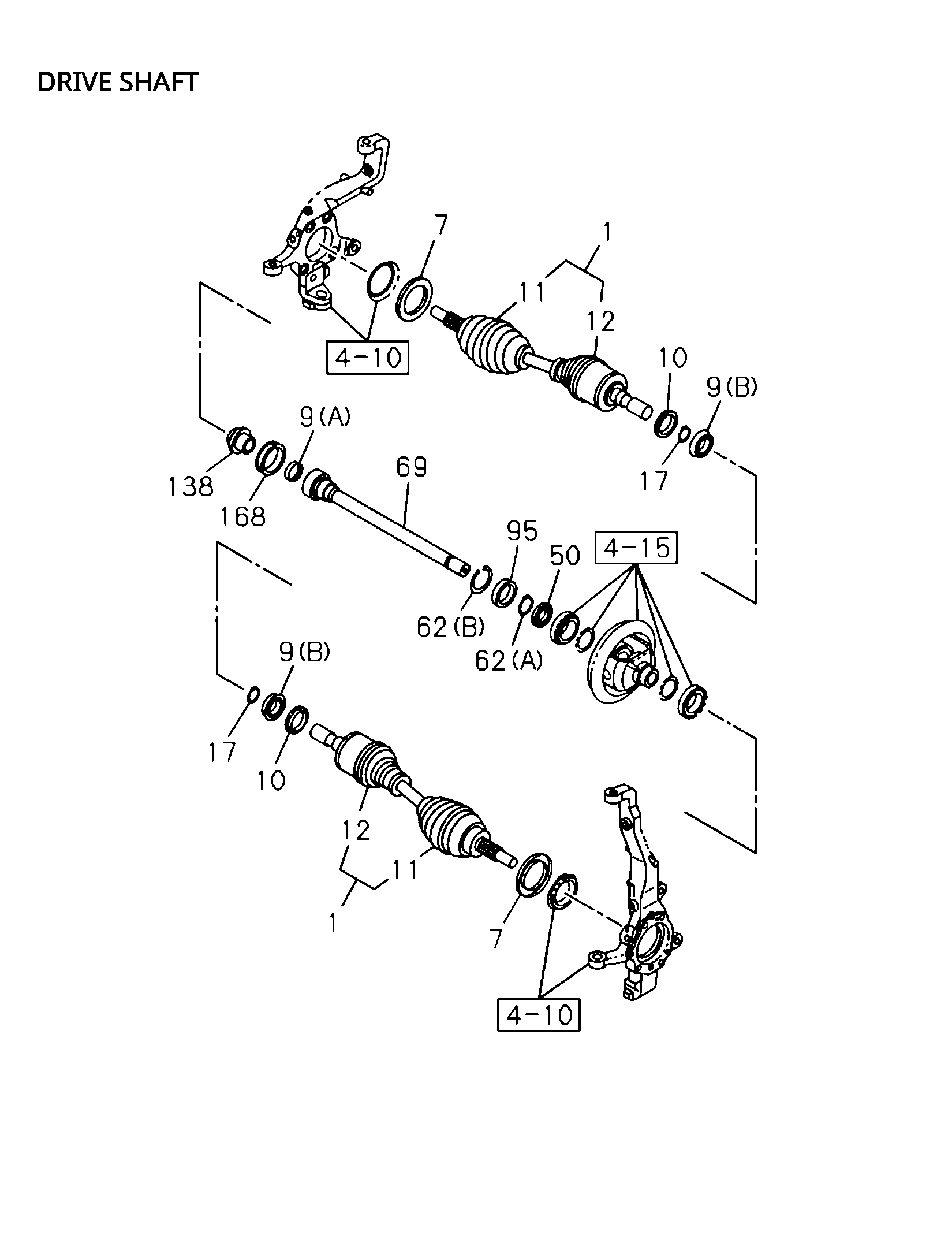

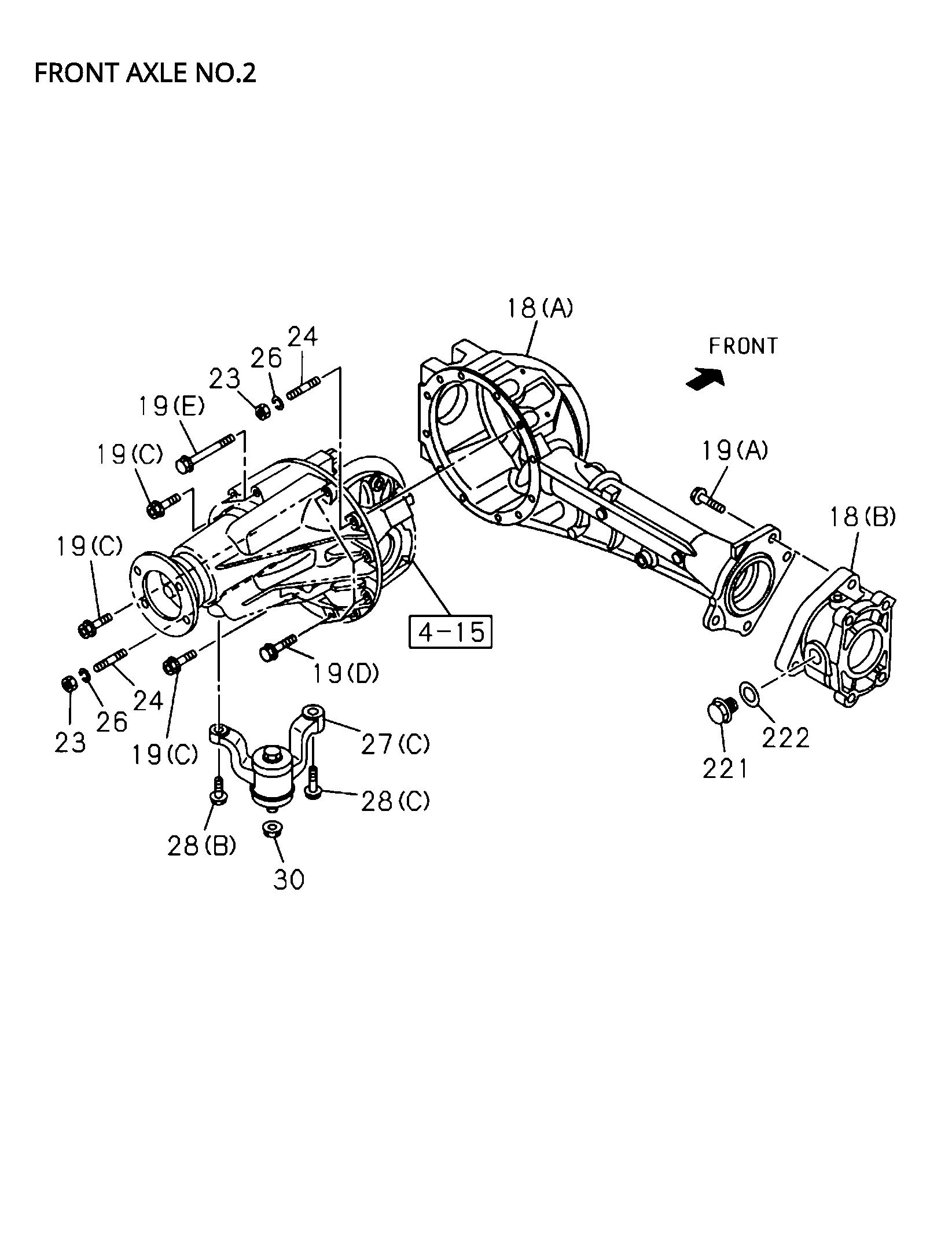

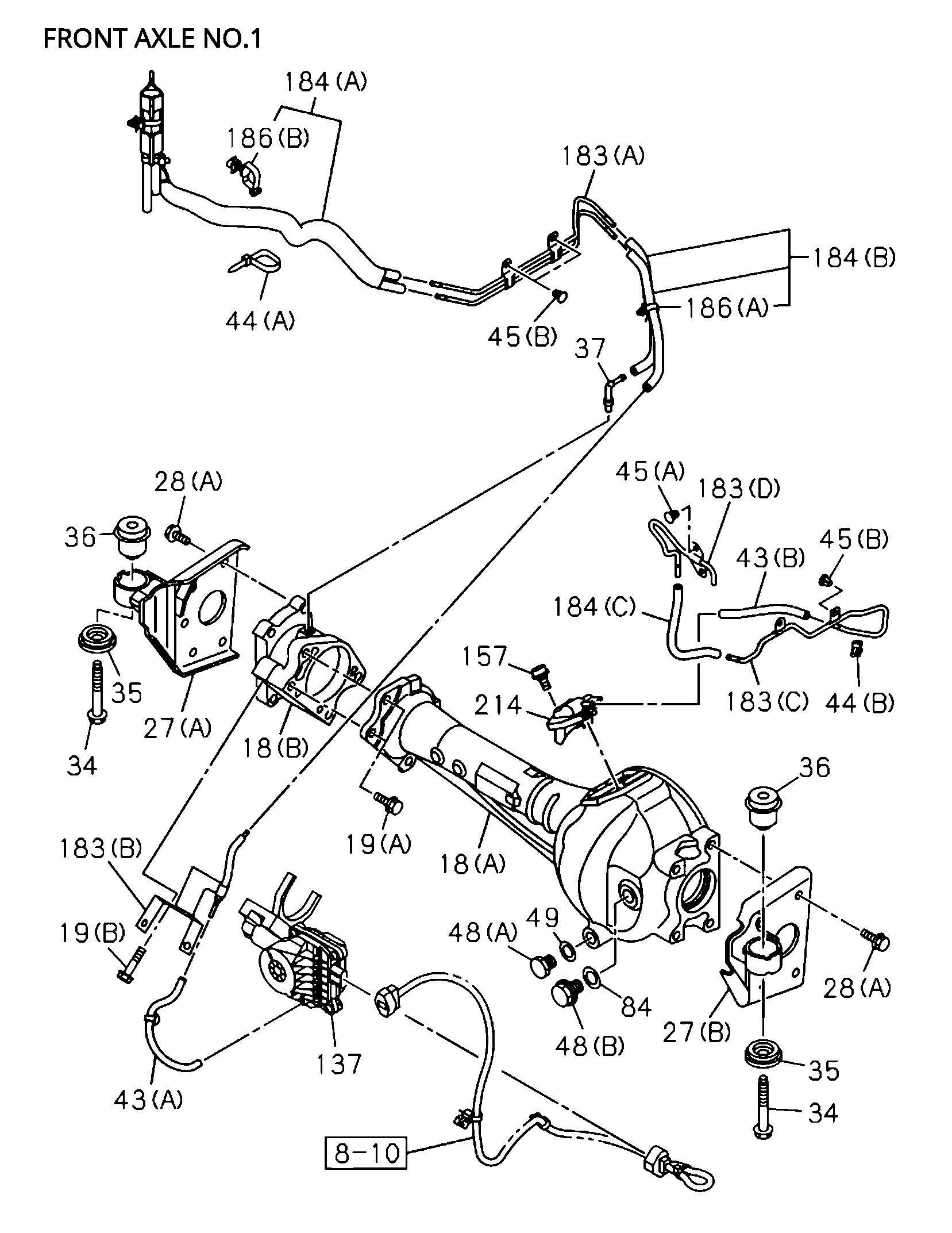

4-12 | 4-12 - FRONT DRIVE SHAFT
DMAX
D-MAX 2022
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 19 | I0-28650 840-0 | BOLT; FRT AXLE | 4 | 2110- | D E F | (B) M8X40 FLANGE | ||
| 4 | I8-97508 101-0 | BAND; "C",FRT DRIVE SHAFT | 2 | 2110- | D E F | (B) | ||
| 36 | I8-97364 319-0 | BUSHING; RUBBER,FRT AXLE MTG | 1 | 2110- | D E F | |||
| 48 | I8-97307 060-0 | PLUG; DRAIN,AXLE CASE | 1 | 2110- | D E F | (A) M16X12.5 | ||
| 183 | I8-98392 997-0 | PIPE; BREATHER | 1 | 2110- | D E F | (C) | ||
| 5 | I8-97131 402-0 | RING; RET,FRT DRIVE SHAFT | 2 | 2110- | D E F | |||
| 45 | I5-09709 108-0 | CLIP | 4 | 2110- | D E F | (B) OD=14 HOLE ID=6 | ||
| 214 | I8-97509 233-0 | COVER; BREATHER | 1 | 2110- | D E F | |||
| 183 | I8-98392 998-0 | PIPE; BREATHER | 1 | 2110- | D E F | (D) | ||

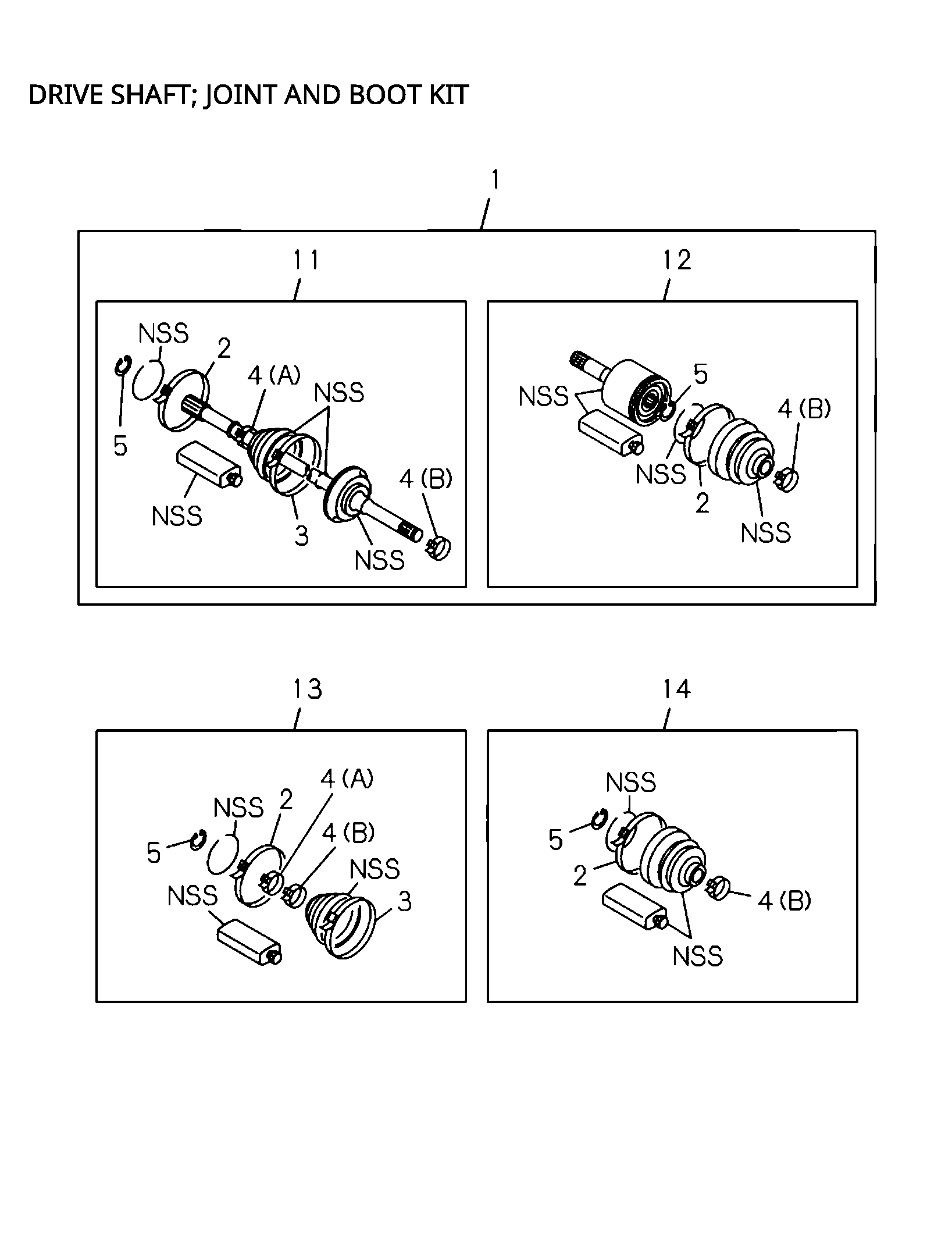

| 13 | I8-97528 979-0 | BOOT KIT; OUTSIDE,FRT DRIVE SHAFT | 2 | 2110- | D E F | |||
| 19 | I8-97947 579-0 | BOLT; FRT AXLE | 3 | 2110- | D E F | (C) M8X28.5W/SP WASHER | ||
| 19 | I0-28051 230-0 | BOLT; FRT AXLE | 4 | 2110- | D E F | (A) M12X30 FLANGE | ||
| 27 | I8-98392 981-3 | BRACKET; AXLE CASE | 1 | 2110- | D E F | (C) | ||
| 28 | I0-28061 230-0 | BOLT; BRKT TO AXLE CASE | 1 | 2110- | D E F | (B) M12X30 FLANGE | ||
| 43 | I8-97503 261-0 | HOSE; RUBBER,AIR BREATHER | 1 | 2110- | D E F | (A) | ||
| 11 | I8-97528 981-0 | JOINT ASM; OUTSIDE.FRT DRIVE SHAFT | 2 | 2110- | D E F | |||
| 36 | I8-97364 323-0 | BUSHING; RUBBER,FRT AXLE MTG | 1 | 2110- | D E F | |||
| 186 | I8-98393 636-0 | CLIP; HOSE.BREATHER | 1 | 2110- | D E F | (B) L=181.2 | ||
| 1 | I8-98392 965-0 | SHAFT ASM; FRT DRIVE | 2 | 2110- | D E F | |||
| 48 | I8-98009 333-0 | PLUG; DRAIN,AXLE CASE | 1 | 2110- | D E F | (B) M20X10.5 | ||
| 28 | I8-98270 578-0 | BOLT; BRKT TO AXLE CASE | 8 | 2110- | D E F | (A) M12X22 FLANGE | ||
| 45 | I5-09709 108-0 | CLIP | 2 | 2110- | D E F | (A) OD=14 HOLE ID=6.5 | ||
| 24 | I0-40210 825-0 | STUD; CASE,FRT AXLE | 2 | 2110- | D E F | M8X25 L=41 | ||
| 18 | I8-98486 069-1 | CASE; FRT AXLE | 1 | 2110- | D E F | (B) | ||
| 95 | I8-97103 392-A | BEARING; AXLE SHAFT.FRT | 1 | 2110- | D E F | (IADG) | ||
| 35 | I8-98008 020-0 | WASHER; FRT AXLE MTG | 2 | 2110- | D E F | ID=14.2 OD=50 | ||
| 30 | I0-91180 214-0 | NUT; FRT AXLE MTG | 1 | 2110- | D E F | M14FLANGE | ||
| 168 | I8-97130 567-1 | SLEEVE; FRT AXLE | 1 | 2110- | D E F | Z=27 | ||
| 12 | I8-97528 980-0 | JOINT ASM | 2 | 2110- | D E F | |||
| 23 | I0-91110 508-0 | NUT; FRT AXLE | 2 | 2110- | D E F | M8 | ||
| 9 | I8-98392 974-0 | BEARING; AXLE SHAFT,INNER | 2 | 2110- | D E F | (B) | ||
| 7 | I8-98392 966-0 | SEAL; DUST.DRIVE SHAFT | 2 | 2110- | D E F | |||
| 221 | I8-98009 333-0 | PLUG; FILLER | 1 | 2110- | D E F | M20X10.5 | ||
| 0 | I8-98392 994-0 | 8-98392-994-0 | 1 | 2110- | D E F | (A) | ||
| 17 | I8-97508 171-0 | RING; SNAP,DRIVE SHAFT TO TRANS AXLE | 2 | 2110- | D E F | |||
| 4 | I8-97508 099-0 | BAND; "C",FRT DRIVE SHAFT | 2 | 2110- | D E F | (A) | ||
| 27 | I8-98486 702-1 | BRACKET; AXLE CASE | 1 | 2110- | D E F | (A) | ||
| 9 | I8-97101 878-0 | BEARING; AXLE SHAFT,INNER | 1 | 2110- | D E F | (A) | ||
| 37 | I8-94226 943-0 | BREATHER; FRT AXLE CASE | 1 | 2110- | D E F | |||
| 43 | I8-98393 115-0 | HOSE; RUBBER,AIR BREATHER | 1 | 2110- | D E F | (B) | ||
| 3 | I8-97508 102-0 | BAND; "B",FRT DRIVE SHAFT | 2 | 2110- | D E F | |||
| 62 | I9-09180 040-0 | RING; SNAP,AXLE SHAFT | 1 | 2110- | D E F | (A) ID=37.0 | ||
| 137 | I8-97481 449-2 | ACTUATOR; AXLE | 1 | 2110- | D E F | |||
| 62 | I9-09180 162-0 | RING; SNAP,AXLE SHAFT | 1 | 2110- | D E F | (B) ID=57.9 | ||
| 26 | I0-91510 808-0 | WASHER; LK,CASE,FRT | 2 | 2110- | D E F | ID=8.2 | ||
| 69 | I8-98393 021-0 | SHAFT; AXLE,FRT INNER | 1 | 2110- | D E F | |||
| 34 | I8-97259 306-0 | BOLT; FRT AXLE MTG | 2 | 2110- | D E F | M14X85 FLANGE | ||
| 222 | I8-94462 734-0 | GASKET; FILLER PLUG | 1 | 2110- | D E F | ID=20 OD=30 | ||
| 184 | I8-98393 000-0 | HOSE; BREATHER | 1 | 2110- | D E F | (B) | ||
| 44 | I8-97509 461-0 | CLIP; AIR BREATHER HOSE | 1 | 2110- | D E F | (B) ID=6.4 | ||
| 183 | I8-98392 996-0 | PIPE; BREATHER | 1 | 2110- | D E F | (B) | ||
| 95 | I8-97103 392-0 | BEARING; AXLE SHAFT.FRT | 1 | 2110- | D E F | |||
| 184 | I8-98392 990-0 | HOSE; BREATHER | 1 | 2110- | D E F | (A) | ||
| 186 | I8-98116 079-0 | CLIP; HOSE.BREATHER | 1 | 2110- | D E F | (A) L=145 | ||
| 184 | I8-98393 001-0 | HOSE; BREATHER | 1 | 2110- | D E F | (C) | ||
| 27 | I8-98486 703-1 | BRACKET; AXLE CASE | 1 | 2110- | D E F | (B) | ||
| 44 | I8-94368 493-0 | CLIP; AIR BREATHER HOSE | 1 | 2110- | D E F | (A) L=129.5 | ||
| 49 | I9-09571 416-0 | GASKET; DRAIN PLUG | 1 | 2110- | D E F | ID=16.2 OD=24 | ||
| 28 | I0-28061 240-0 | BOLT; BRKT TO AXLE CASE | 1 | 2110- | D E F | (C) M12X40 FLANGE | ||
| 50 | I8-97084 507-0 | SEAL; OIL,SHAFT,FRT AXLE | 1 | 2110- | D E F | |||
| 14 | I8-97528 978-0 | BOOT KIT; IN SIDE,FRT DRIVE SHAFT | 2 | 2110- | D E F | |||
| 10 | I8-98392 977-0 | SEAL; OIL.AXLE SHAFT,INNER | 2 | 2110- | D E F | |||
| 19 | I8-97947 581-0 | BOLT; FRT AXLE | 2 | 2110- | D E F | (E) M8X95 W/SP WASHER | ||
| 19 | I8-97947 580-0 | BOLT; FRT AXLE | 5 | 2110- | D E F | (d) M8X40 W/SP WASHER | ||
| 138 | I8-98393 022-0 | GEAR; CLUTCH | 1 | 2110- | D E F | Z=27 | ||
| 84 | I8-94462 734-0 | GASKET; PLUG,OIL FILLER | 1 | 2110- | D E F | ID=20 OD=30 | ||
| 157 | I8-97509 337-0 | BOLT; COVER | 2 | 2110- | D E F | M6X12 HEX SOCKET | ||
| 2 | I8-97508 100-0 | BAND; "A"fFRT DRIVE SHAFT | 2 | 2110- | D E F | |||
| 18 | I8-98393 017-0 | CASE; FRT AXLE | 1 | 2110- | D E F | (A) |
