| 73 |
I8-94435 350-0 |
|
SHIM; DIFF SIDE BRG |
AR |
2110- |
|
ABC |
T=0.18 |
| 229 |
I8-98398 067-1 |
|
CONNECTOR |
1 |
2110- |
|
D E F |
REAR AXLE DIFF LOCK<8CL> (a) |
| 51 |
I8-97503 513-0 |
|
SHIM; PINION,FINAL DRIVE |
ar |
2110- |
|
D E F |
EXC. REAR AXLE DIFF LOCK<8CL> T=2.30 |
| 24 |
I8-97200 285-1 |
|
GEAR; PINION,DIFF |
4 |
2110- |
|
D E F |
LIMITED SLIP DIFF<G80> EXC. REAR AXLE DIFF LOCK<8CL> |
| 39 |
I8-97503 276-0 |
|
BEARING; FINAL PINION |
1 |
2110- |
|
ABC |
|
| 79 |
I8-94453 936-0 |
|
PLATE; FRICTION |
4 |
2110- |
|
D E F |
LIMITED SLIP DIFF<G80> EXC. REAR AXLE DIFF LOCK<8CL> T=1.75 |
| 73 |
I8-94435 350-0 |
|
SHIM; DIFF SIDE BRG |
AR |
2110- |
|
D E F |
EXC. REAR AXLE DIFF LOCK<8CL> T=0.18 |
| 60 |
I8-98398 105-0 |
|
GEAR SET; FINAL DRIVE,RR |
1 |
2110- |
|
D F |
FINAL GEAR RATIO 41/10(GT5) EXC. LIMITED SLIP DIFF<G80>,REAR AXLE DIFF LOCK<8CL> 41/10 |
| 298 |
I8-97556 398-0 |
|
GEAR KIT; DIFF,RR AXLE |
1 |
2110- |
|
D E F |
REAR AXLE DIFF LOCK<8CL> |
| 432 |
I8-97556 412-0 |
|
SCREW |
3 |
2110- |
|
D E F |
REAR AXLE DIFF LOCK<8CL> |
| 73 |
I8-94435 353-0 |
|
SHIM; DIFF SIDE BRG |
AR |
2110- |
|
ABC |
T=0.50 |
| 73 |
I8-94435 348-0 |
|
SHIM; DIFF SIDE BRG |
AR |
2110- |
|
ABC |
T=0.12 |
| 76 |
I8-97096 209-0 |
|
DISC; BEVEL |
4 |
2110- |
|
D E F |
LIMITED SLIP DIFF<G80> EXC. REAR AXLE DIFF LOCK<8CL> |
| 51 |
I8-97503 504-0 |
|
SHIM; PINION,FINAL DRIVE |
AR |
2110- |
|
D E F |
EXC. REAR AXLE DIFF LOCK<8CL> T=2.12 |
| 51 |
I8-97503 975-0 |
|
SHIM; PINION,FINAL DRIVE |
AR |
2110- |
|
D E F |
REAR AXLE DIFF LOCK<8CL> T=2.32 |
| 505 |
I8-97556 416-0 |
|
WASHER; PLAIN,DIFF LOCK,SOLENOID |
1 |
2110- |
|
D E F |
REAR AXLE DIFF LOCK<8CL> |
| 51 |
I8-97503 511-0 |
|
SHIM; PINION,FINAL DRIVE |
ar |
2110- |
|
ABC |
T=2.26 |
| 60 |
I8-98398 105-0 |
|
GEAR SET; FINAL DRIVE,RR |
1 |
2110- |
|
A |
FINAL GEAR RATIO 41/10(GT5) 41/10 |
| 60 |
I8-98398 108-0 |
|
GEAR SET; FINAL DRIVE,RR |
1 |
2110- |
|
B |
FINAL GEAR RATIO 41/10(GT5) DISC WHEEL 16X6.5-33 STEEL(QB5) EXC. LIMITED SLIP DIFF<G80> 41/10 |
| 82 |
I8-94453 932-0 |
|
SPIDER; DIFF PINION |
1 |
2110- |
|
D E F |
LIMITED SLIP DIFF<G80> EXC. REAR AXLE DIFF LOCK<8CL> |
| 100 |
I8-97503 949-0 |
|
SEAL; OIL,FINAL PINION |
1 |
2110- |
|
D E F |
REAR AXLE DIFF LOCK<8CL> |
| 84 |
I8-97503 355-0 |
|
BOLT; FINAL DRIVE GEAR |
12 |
2110- |
|
ABC |
|
| 51 |
I8-97503 497-0 |
|
SHIM; PINION,FINAL DRIVE |
AR |
2110- |
|
ABC |
T=1.98 |
| 24 |
I8-98186 829-0 |
|
GEAR; PINION,DIFF |
2 |
2110- |
|
BC |
RZ4E-TC ENG(RDZ) EXC. LIMITED SLIP DIFF<G80> Z=10 |
| 21 |
I8-98186 828-1 |
|
GEAR; SIDE,DIFF |
2 |
2110- |
|
BC |
RZ4E-TC ENG(RDZ) EXC. LIMITED SLIP DIFF<G80> Z=18 |
| 56 |
I8-97503 454-0 |
|
BOLT; BRG CAP |
4 |
2110- |
|
ABCDE F |
M12X75 FLANGE |
| 60 |
I8-98398 105-0 |
|
GEAR SET; FINAL DRIVE,RR |
1 |
2110- |
|
B |
FINAL GEAR RATIO 41/10(GT5) DISC WHEEL 17X7 ALUMI SILVER PAINT AGGRESSIVE(CXP),DISC WHEEL 17X7.0 STEEL(FPH),DISC WHEEL 15X6-41 STEEL(PGl) EXC. LIMITED SLIP DIFF<G80> 41/10 |
| 51 |
I8-97503 498-0 |
|
SHIM; PINION,FINAL DRIVE |
AR |
2110- |
|
D E F |
EXC. REAR AXLE DIFF LOCK<8CL> T=2.00 |
| 37 |
I8-94376 261-1 |
|
NUT; DRIVING PINION |
1 |
2110- |
|
D E F |
EXC. REAR AXLE DIFF LOCK<8CL> M24 FLANGE |
| 51 |
I8-97503 973-0 |
|
SHIM; PINION,FINAL DRIVE |
AR |
2110- |
|
D E F |
REAR AXLE DIFF LOCK<8CL> T=2.28 |
| 504 |
I8-97556 409-0 |
|
PLUNGERASM |
1 |
2110- |
|
D E F |
REAR AXLE DIFF LOCK<8CL> |
| 74 |
I9-09878 096-0 |
|
PIN; LK,CROSS PIN |
1 |
2110- |
|
BC |
EXC. LIMITED SLIP DIFF<G80> OD=5 L=35 |
| 51 |
I8-97503 977-0 |
|
SHIM; PINION,FINAL DRIVE |
AR |
2110- |
|
D E F |
REAR AXLE DIFF LOCK<8CL> T=2.36 |
| 51 |
I8-97503 959-0 |
|
SHIM; PINION,FINAL DRIVE |
AR |
2110- |
|
D E F |
REAR AXLE DIFF LOCK<8CL> T=2.00 |
| 1 |
I8-94365 188-0 |
|
DRIVE ASM; FINAL,RR |
2 |
2110- |
|
BC |
LIMITED SLIP DIFF<G80> T=1.70 |
| 73 |
I8-97947 966-0 |
|
SHIM; DIFF SIDE BRG |
AR |
2110- |
|
D E F |
REAR AXLE DIFF LOCK<8CL> T=0.15 |
| 60 |
I8-98398 108-0 |
|
GEAR SET; FINAL DRIVE,RR |
1 |
2110- |
|
BC |
FINAL GEAR RATIO 41/10(GT5) LIMITED SLIP DIFF<G80> 41/10 |
| 21 |
I8-98186 828-1 |
|
GEAR; SIDE,DIFF |
2 |
2110- |
|
A |
RZ4E-TC ENG(RDZ) Z=18 |
| 22 |
I8-94435 308-1 |
|
SPIDER; DIFF PINION |
1 |
2110- |
|
D E F |
EXC. LIMITED SLIP DIFF<G80>,REAR AXLE DIFF LOCK<8CL> (a) |
| 21 |
I8-97200 286-0 |
|
GEAR; SIDE,DIFF |
2 |
2110- |
|
BC |
LIMITED SLIP DIFF<G80> |
| 51 |
I8-97503 499-0 |
|
SHIM; PINION,FINAL DRIVE |
AR |
2110- |
|
ABC |
T=2.02 |
| 51 |
I8-97503 971-0 |
|
SHIM; PINION,FINAL DRIVE |
AR |
2110- |
|
D E F |
REAR AXLE DIFF LOCK<8CL> T=2.24 |
| 1 |
I8-94453 935-0 |
|
DRIVE ASM; FINAL,RR |
2 |
2110- |
|
D E F |
LIMITED SLIP DIFF<G80> EXC. REAR AXLE DIFF LOCK<8CL> T=1.50 |
| 73 |
I8-94435 348-0 |
|
SHIM; DIFF SIDE BRG |
AR |
2110- |
|
D E F |
EXC. REAR AXLE DIFF LOCK<8CL> T=0.12 |
| 25 |
I8-97556 402-0 |
|
WASHER; THRUST,PINION |
4 |
2110- | |
|
D E F |
REAR AXLE DIFF LOCK<8CL> |
| 72 |
I8-97499 732-0 |
|
CAGE; DIFF |
1 |
2110- |
|
BC |
RZ4E-TC ENG(RDZ) EXC. LIMITED SLIP DIFF<G80> |
| 1 |
I8-97066 412-0 |
|
DRIVE ASM; FINAL,RR |
2 |
2110- |
|
BC |
LIMITED SLIP DIFF<G80> T=1.80 |
| 55 |
I8-97499 726-0 |
|
CARRIER; DIFF |
1 |
2110- |
|
D E F |
EXC. REAR AXLE DIFF LOCK<8CL> |
| 51 |
I8-97503 967-0 |
|
SHIM; PINION,FINAL DRIVE |
AR |
2110- |
|
D E F |
REAR AXLE DIFF LOCK<8CL> T=2.16 |
| 51 |
I8-97503 965-0 |
|
SHIM; PINION,FINAL DRIVE |
AR |
2110- |
|
D E F |
REAR AXLE DIFF LOCK<8CL> T=2.12 |
| 73 |
I8-94435 352-0 |
|
SHIM; DIFF SIDE BRG |
AR |
2110- |
|
ABC |
T=0.30 |
| 71 |
I8-98398 087-0 |
|
CAGE ASM; DIFF,FINAL DRIVE |
1 |
2110- |
|
BC |
LIMITED SLIP DIFF<G80> |
| 80 |
I8-94453 931-0 |
|
RING; PRESSURE |
2 |
2110- |
|
D E F |
LIMITED SLIP DIFF<G80> EXC. REAR AXLE DIFF LOCK<8CL> |
| 70 |
I8-94435 355-A |
|
BEARING; DIFF CAGE |
2 |
2110- |
|
ABC |
JTEKT |
| 51 |
I8-97503 504-0 |
|
SHIM; PINION,FINAL DRIVE |
AR |
2110- |
|
ABC |
T=2.12 |
| 51 |
I8-97503 506-0 |
|
SHIM; PINION,FINAL DRIVE |
ar |
2110- |
|
ABC |
T=2.16 |
| 1 |
I8-98395 239-0 |
|
DRIVE ASM; FINAL,RR |
1 |
2110- |
|
E |
FINAL GEAR RATIO 43/ll(GWl) REAR AXLE DIFF LOCK<8CL> EXC. LIMITED SLIP DIFF<G80> (C) 43/11 |
| 70 |
I8-94435 355-A |
|
BEARING; DIFF CAGE |
2 |
2110- |
|
D E F |
EXC. REAR AXLE DIFF LOCK<8CL> NSK |
| 22 |
I8-94435 308-1 |
|
SPIDER; DIFF PINION |
1 |
2110- |
|
BC |
EXC. LIMITED SLIP DIFF<G80> (a) |
| 51 |
I8-97503 503-0 |
|
SHIM; PINION,FINAL DRIVE |
AR |
2110- |
|
D E F |
EXC. REAR AXLE DIFF LOCK<8CL> T=2.10 |
| 51 |
I8-97503 964-0 |
|
SHIM; PINION,FINAL DRIVE |
AR |
2110- |
|
D E F |
REAR AXLE DIFF LOCK<8CL> T=2.10 |
| 39 |
I8-97503 276-0 |
|
BEARING; FINAL PINION |
1 |
2110- |
|
D E F |
EXC. REAR AXLE DIFF LOCK<8CL> |
| 51 |
I8-97503 507-0 |
|
SHIM; PINION,FINAL DRIVE |
ar |
2110- |
|
ABC |
T=2.18 |
| 51 |
I8-97503 505-0 |
|
SHIM; PINION,FINAL DRIVE |
ar |
2110- |
|
D E F |
EXC. REAR AXLE DIFF LOCK<8CL> T=2.14 |
| 51 |
I8-97503 509-0 |
|
SHIM; PINION,FINAL DRIVE |
ar |
2110- |
|
D E F |
EXC. REAR AXLE DIFF LOCK<8CL> T=2.22 |
| 84 |
I8-97503 355-0 |
|
BOLT; FINAL DRIVE GEAR |
12 |
2110- |
|
D E F |
EXC. REAR AXLE DIFF LOCK<8CL> |
| 73 |
I8-94435 351-0 |
|
SHIM; DIFF SIDE BRG |
AR |
2110- |
|
D E F |
EXC. REAR AXLE DIFF LOCK<8CL> T=0.25 |
| 1 |
I8-98395 214-0 |
|
DRIVE ASM; FINAL,RR |
1 |
2110- |
|
C |
FINAL GEAR RATIO 41/10(GT5) DISC WHEEL 15X6.5-41 STEEL(BSY),DISC WHEEL 17X7 ALUMI SILVER PAINT AGGRESSIVE(CXP),DISC WHEEL 17X7.0 STEEL(FPH),DISC WHEEL 18X7.5 ALUMI(FPJ),DISC WHEEL 18X7.5 ALUMI MACHINING(FRG),DISC WHEEL 15X6-41 STEEL(PGl) EXC. LIMITED SLIP DIFF<G80> (a) 41/10 |
| 24 |
I8-97200 285-1 |
|
GEAR; PINION,DIFF |
4 |
2110- |
|
BC |
LIMITED SLIP DIFF<G80> |
| 80 |
I8-97556 401-0 |
|
RING; PRESSURE |
1 |
2110- |
|
D E F |
REAR AXLE DIFF LOCK<8CL> |
| 51 |
I8-97503 503-0 |
|
SHIM; PINION,FINAL DRIVE |
AR |
2110- |
|
ABC |
T=2.10 |
| 51 |
I8-97503 957-0 |
|
SHIM; PINION,FINAL DRIVE |
ar |
2110- |
|
D E F |
REAR AXLE DIFF LOCK<8CL> T=1.98 |
| 51 |
I8-97503 508-0 |
|
SHIM; PINION,FINAL DRIVE |
ar |
2110- |
|
D E F |
EXC. REAR AXLE DIFF LOCK<8CL> T=2.20 |
| 21 |
I8-97200 286-0 |
|
GEAR; SIDE,DIFF |
2 |
2110- |
|
D E F |
LIMITED SLIP DIFF<G80> EXC. REAR AXLE DIFF LOCK<8CL> |
| 60 |
I8-98398 108-0 |
|
GEAR SET; FINAL DRIVE,RR |
1 |
2110- |
|
C |
FINAL GEAR RATIO 41/10(GT5) DISC WHEEL 16X6.5 ALUMI MACHINING(FRE),DISC WHEEL 16X6.5 ALUMI<PY0> EXC. LIMITED SLIP DIFF<G80> 41/10 |
| 70 |
I8-94435 355-A |
|
BEARING; DIFF CAGE |
2 |
2110- |
|
ABC |
NSK |
| 73 |
I8-97947 965-0 |
|
SHIM; DIFF SIDE BRG |
AR |
2110- |
|
D E F |
REAR AXLE DIFF LOCK<8CL> T=0.12 |
| 1 |
I8-98395 238-0 |
|
DRIVE ASM; FINAL,RR |
1 |
2110- |
|
D E F |
FINAL GEAR RATIO 41/10(GT5) REAR AXLE DIFF LOCK<8CL> EXC. LIMITED SLIP DIFF<G80> (C) 41/10 |
| 60 |
I8-98398 114-0 |
|
GEAR SET; FINAL DRIVE,RR |
1 |
2110- |
|
E |
FINAL GEAR RATIO 43/ll(GWl) REAR AXLE DIFF LOCK<8CL> EXC. LIMITED SLIP DIFF<G80> 43/11 |
| 50 |
I8-97503 277-0 |
|
BEARING; FINAL PINION |
1 |
2110- |
|
ABC |
|
| 73 |
I8-97947 967-0 |
|
SHIM; DIFF SIDE BRG |
AR |
2110- |
|
D E F |
REAR AXLE DIFF LOCK<8CL> T=0.18 |
| 392 |
I8-97556 413-0 |
|
WASHER KIT; THRUST,DIFF |
1 |
2110- |
|
D E F |
REAR AXLE DIFF LOCK<8CL> (a) |
| 46 |
I0-28050 612-0 |
|
BOLT |
2 |
2110- |
|
D E F |
REAR AXLE DIFF LOCK<8CL> (a) M6X12 FLANGE |
| 76 |
I8-97096 209-0 |
|
DISC; BEVEL |
4 |
2110- |
|
BC |
LIMITED SLIP DIFF<G80> |
| 51 |
I8-97503 966-0 |
|
SHIM; PINION,FINAL DRIVE |
AR |
2110- |
|
D E F |
REAR AXLE DIFF LOCK<8CL> T=2.14 |
| 51 |
I8-97503 516-0 |
|
SHIM; PINION,FINAL DRIVE |
ar |
2110- |
|
ABC |
T=2.36 |
| 51 |
I8-97503 507-0 |
|
SHIM; PINION,FINAL DRIVE |
ar |
2110- |
|
D E F |
EXC. REAR AXLE DIFF LOCK<8CL> T=2.18 |
| 1 |
I8-94365 188-0 |
|
DRIVE ASM; FINAL,RR |
2 |
2110- |
|
D E F |
LIMITED SLIP DIFF<G80> EXC. REAR AXLE DIFF LOCK<8CL> T=1.70 |
| 39 |
I8-97503 950-0 |
|
BEARING; FINAL PINION |
1 |
2110- |
|
D E F |
REAR AXLE DIFF LOCK<8CL> |
| 60 |
I8-98398 114-0 |
|
GEAR SET; FINAL DRIVE,RR |
1 |
2110- |
|
E |
FINAL GEAR RATIO 43/ll(GWl) LIMITED SLIP DIFF<G80> EXC. REAR AXLE DIFF LOCK<8CL> 43/11 |
| 74 |
I9-09878 096-0 |
|
PIN; LK,CROSS PIN |
1 |
2110- |
|
D E F |
EXC. LIMITED SLIP DIFF<G80>,REAR AXLE DIFF LOCK<8CL> OD=5 L=35 |
| 51 |
I8-97503 506-0 |
|
SHIM; PINION,FINAL DRIVE |
ar |
2110- |
|
D E F |
EXC. REAR AXLE DIFF LOCK<8CL> T=2.16 |
| 392 |
I8-97556 414-0 |
|
WASHER KIT; THRUST,DIFF |
1 |
2110- |
|
D E F |
REAR AXLE DIFF LOCK<8CL> (B) |
| 72 |
I8-97499 732-0 |
|
CAGE; DIFF |
1 |
2110- |
|
A |
RZ4E-TC ENG(RDZ) |
| 70 |
I8-97947 476-0 |
|
BEARING; DIFF CAGE |
2 |
2110- |
|
D E F |
REAR AXLE DIFF LOCK<8CL> NSK |
| 51 |
I8-97503 495-0 |
|
SHIM; PINION,FINAL DRIVE |
AR |
2110- |
|
ABC |
T=1.94 |
| 51 |
I8-97503 960-0 |
|
SHIM; PINION,FINAL DRIVE |
AR |
2110- |
|
D E F |
REAR AXLE DIFF LOCK<8CL> T=2.02 |
| 51 |
I8-97503 976-0 |
|
SHIM; PINION,FINAL DRIVE |
AR |
2110- |
|
D E F |
REAR AXLE DIFF LOCK<8CL> T=2.34 |
| 51 |
I8-97503 516-0 |
|
SHIM; PINION,FINAL DRIVE |
ar |
2110- |
|
D E F |
EXC. REAR AXLE DIFF LOCK<8CL> T=2.36 |
| 51 |
I8-97503 505-0 |
|
SHIM; PINION,FINAL DRIVE |
AR |
2110- |
|
ABC |
T=2.14 |
| 51 |
I8-97503 510-0 |
|
SHIM; PINION,FINAL DRIVE |
ar |
2110- |
|
ABC |
T=2.24 |
| 51 |
I8-97503 962-0 |
|
SHIM; PINION,FINAL DRIVE |
AR |
2110- |
|
D E F |
REAR AXLE DIFF LOCK<8CL> T=2.06 |
| 1 |
I8-98395 214-0 |
|
DRIVE ASM; FINAL,RR |
1 |
2110- |
|
E |
FINAL GEAR RATIO 41/10(GT5) DISC WHEEL 17X7 ALUMI SILVER PAINT AGGRESSIVE(CXP),DISC WHEEL 17X7.0 STEEL(FPH) EXC. LIMITED SLIP DIFF<G80>,REAR AXLE DIFF LOCK<8CL> (a) 41/10 |
| 71 |
I8-98398 086-1 |
|
CAGE ASM; DIFF,FINAL DRIVE |
1 |
2110- |
|
D E F |
REAR AXLE DIFF LOCK<8CL> |
| 51 |
I8-97503 500-0 |
|
SHIM; PINION,FINAL DRIVE |
AR |
2110- |
|
D E F |
EXC. REAR AXLE DIFF LOCK<8CL> T=2.04 |
| 51 |
I8-97503 500-0 |
|
SHIM; PINION,FINAL DRIVE |
AR |
2110- |
|
ABC |
T=2.04 |
| 71 |
I8-98398 087-0 |
|
CAGE ASM; DIFF,FINAL DRIVE |
1 |
2110- |
|
D E F |
LIMITED SLIP DIFF<G80> EXC. REAR AXLE DIFF LOCK<8CL> |
| 126 |
I8-97499 896-0 |
|
COUPLING; DRIVING PINION |
1 |
2110- |
|
ABC |
|
| 439 |
I8-97556 410-0 |
|
SPRING; RETUN,DIFF LK |
1 |
2110- |
|
D E F |
REAR AXLE DIFF LOCK<8CL> |
| 22 |
I8-94435 308-1 |
|
SPIDER; DIFF PINION |
1 |
2110- |
|
A |
(a) |
| 51 |
I8-97503 515-0 |
|
SHIM; PINION,FINAL DRIVE |
ar |
2110- |
|
D E F |
EXC. REAR AXLE DIFF LOCK<8CL> T=2.34 |
| 60 |
I8-98398 108-0 |
|
GEAR SET; FINAL DRIVE,RR |
1 |
2110- |
|
D E F |
FINAL GEAR RATIO 41/10(GT5) REAR AXLE DIFF LOCK<8CL> EXC. LIMITED SLIP DIFF<G80> 41/10 |
| 78 |
I8-94453 937-0 |
|
DISC; FRICTION |
4 |
2110- |
|
D E F |
LIMITED SLIP DIFF<G80> EXC. REAR AXLE DIFF LOCK<8CL> |
| 126 |
I8-98398 075-0 |
|
COUPLING; DRIVING PINION |
1 |
2110- |
|
D E F |
REAR AXLE DIFF LOCK<8CL> |
| 55 |
I8-97499 726-0 |
|
CARRIER; DIFF |
1 |
2110- |
|
ABC |
|
| 503 |
I8-97556 408-0 |
|
COIL; DIFF LOCK |
1 |
2110- |
|
D E F |
REAR AXLE DIFF LOCK<8CL> |
| 60 |
I8-98398 108-0 |
|
GEAR SET; FINAL DRIVE,RR |
1 |
2110- |
|
E |
FINAL GEAR RATIO 41/10(GT5) DISC WHEEL 16X6.5-33 STEEL(QB5) EXC. LIMITED SLIP DIFF<G80>,REAR AXLE DIFF LOCK<8CL> 41/10 |
| 51 |
I8-97503 501-0 |
|
SHIM; PINION,FINAL DRIVE |
AR |
2110- |
|
D E F |
EXC. REAR AXLE DIFF LOCK<8CL> T=2.06 |
| 21 |
I8-98186 828-1 |
|
GEAR; SIDE,DIFF |
2 |
2110- |
|
D E F |
RZ4E-TC ENG(RDZ) EXC. LIMITED SLIP DIFF<G80>,REAR AXLE DIFF LOCK<8CL> Z=18 |
| 51 |
I8-97503 968-0 |
|
SHIM; PINION,FINAL DRIVE |
AR |
2110- |
|
D E F |
REAR AXLE DIFF LOCK<8CL> T=2.18 |
| 51 |
I8-97503 509-0 |
|
SHIM; PINION,FINAL DRIVE |
ar |
2110- |
|
ABC |
T=2.22 |
| 22 |
I8-97556 399-0 |
|
SPIDER; DIFF PINION |
1 |
2110- |
|
D E F |
REAR AXLE DIFF LOCK<8CL> (b) |
| 60 |
I8-98398 105-0 |
|
GEAR SET; FINAL DRIVE,RR |
1 |
2110- |
|
E |
FINAL GEAR RATIO 41/10(GT5) DISC WHEEL 17X7 ALUMI SILVER PAINT AGGRESSIVE(CXP),DISC WHEEL 17X7.0 STEEL(FPH) EXC. LIMITED SLIP DIFF<G80>,REAR AXLE DIFF LOCK<8CL> 41/10 |
| 502 |
I8-97556 403-0 |
|
PLATE POSITION |
1 |
2110- |
|
D E F |
REAR AXLE DIFF LOCK<8CL> |
| 51 |
I8-97503 515-0 |
|
SHIM; PINION,FINAL DRIVE |
ar |
2110- |
|
ABC |
T=2.34 |
| 51 |
I8-97503 510-0 |
|
SHIM; PINION,FINAL DRIVE |
ar |
2110- |
|
D E F |
EXC. REAR AXLE DIFF LOCK<8CL> T=2.24 |
| 1 |
I8-98395 214-0 |
|
DRIVE ASM; FINAL,RR |
1 |
2110- |
|
D F |
FINAL GEAR RATIO 41/10(GT5) EXC. LIMITED SLIP DIFF<G80>,REAR AXLE DIFF LOCK<8CL> (a) 41/10 |
| 84 |
I8-97503 947-0 |
|
BOLT; FINAL DRIVE GEAR |
12 |
2110- |
|
D E F |
REAR AXLE DIFF LOCK<8CL> |
| 51 |
I8-97503 508-0 |
|
SHIM; PINION,FINAL DRIVE |
ar |
2110- |
|
ABC |
T=2.20 |
| 51 |
I8-97503 955-0 |
|
SHIM; PINION,FINAL DRIVE |
ar |
2110- |
|
D E F |
REAR AXLE DIFF LOCK<8CL> T=1.94 |
| 42 |
I8-98398 083-0 |
|
COLLAR; DIST,COLLAPSIBLE |
1 |
2110- | |
|
ABCDE F |
|
| 73 |
I8-97947 970-0 |
|
SHIM; DIFF SIDE BRG |
AR |
2110- |
|
D E F |
REAR AXLE DIFF LOCK<8CL> T=0.50 |
| 51 |
I8-97503 972-0 |
|
SHIM; PINION,FINAL DRIVE |
AR |
2110- |
|
D E F |
REAR AXLE DIFF LOCK<8CL> T=2.26 |
| 60 |
I8-98398 105-0 |
|
GEAR SET; FINAL DRIVE,RR |
1 |
2110- |
|
C |
FINAL GEAR RATIO 41/10(GT5) DISC WHEEL 15X6.5-41 STEEL(BSY),DISC WHEEL 17X7 ALUMI SILVER PAINT AGGRESSIVE(CXP),DISC WHEEL 17X7.0 STEEL(FPH),DISC WHEEL 18X7.5 ALUMI(FPJ),DISC WHEEL 18X7.5 ALUMI MACHINING(FRG),DISC WHEEL 15X6-41 STEEL(PGl) EXC. LIMITED SLIP DIFF<G80> 41/10 |
| 51 |
I8-97503 513-0 |
|
SHIM; PINION,FINAL DRIVE |
ar |
2110- |
|
ABC |
T=2.30 |
| 51 |
I8-97503 963-0 |
|
SHIM; PINION,FINAL DRIVE |
AR |
2110- |
|
D E F |
REAR AXLE DIFF LOCK<8CL> T=2.08 |
| 1 |
I8-94453 935-0 |
|
DRIVE ASM; FINAL,RR |
2 |
2110- |
|
BC |
LIMITED SLIP DIFF<G80> T=1.50 |
| 24 |
I8-98186 829-0 |
|
GEAR; PINION,DIFF |
2 |
2110- |
|
A |
RZ4E-TC ENG(RDZ) Z=10 |
| 82 |
I8-94453 932-0 |
|
SPIDER; DIFF PINION |
1 |
2110- |
|
BC |
LIMITED SLIP DIFF<G80> |
| 51 |
I8-97503 970-0 |
|
SHIM; PINION,FINAL DRIVE |
AR |
2110- |
|
D E F |
REAR AXLE DIFF LOCK<8CL> T=2.22 |
| 60 |
I8-98398 108-0 |
|
GEAR SET; FINAL DRIVE,RR |
1 |
2110- |
|
D E F |
FINAL GEAR RATIO 41/10(GT5) LIMITED SLIP DIFF<G80> EXC. REAR AXLE DIFF LOCK<8CL> 41/10 |
| 51 |
I8-97503 498-0 |
|
SHIM; PINION,FINAL DRIVE |
AR |
2110- |
|
ABC |
T=2.00 |
| 51 |
I8-97503 502-0 |
|
SHIM; PINION,FINAL DRIVE |
AR |
2110- |
|
D E F |
EXC. REAR AXLE DIFF LOCK<8CL> T=2.08 |
| 51 |
I8-97503 511-0 |
|
SHIM; PINION,FINAL DRIVE |
ar |
2110- |
|
D E F |
EXC. REAR AXLE DIFF LOCK<8CL> T=2.26 |
| 22 |
I8-97556 400-0 |
|
SPIDER; DIFF PINION |
2 |
2110- |
|
D E F |
REAR AXLE DIFF LOCK<8CL> (c) |
| 100 |
I8-97502 956-0 |
|
SEAL; OIL,FINAL PINION |
1 |
2110- |
|
D E F |
EXC. REAR AXLE DIFF LOCK<8CL> |
| 51 |
I8-97503 499-0 |
|
SHIM; PINION,FINAL DRIVE |
AR |
2110- |
|
D E F |
EXC. REAR AXLE DIFF LOCK<8CL> T=2.02 |
| 24 |
I8-98186 829-0 |
|
GEAR; PINION,DIFF |
2 |
2110- |
|
D E F |
RZ4E-TC ENG(RDZ) EXC. LIMITED SLIP DIFF<G80>,REAR AXLE DIFF LOCK<8CL> Z=10 |
| 37 |
I8-94376 261-1 |
|
NUT; DRIVING PINION |
1 |
2110- |
|
ABC |
M24 FLANGE |
| 51 |
I8-97503 514-0 |
|
SHIM; PINION,FINAL DRIVE |
ar |
2110- |
|
ABC |
T=2.32 |
| 51 |
I8-97503 497-0 |
|
SHIM; PINION,FINAL DRIVE |
AR |
2110- |
|
D E F |
EXC. REAR AXLE DIFF LOCK<8CL> T=1.98 |
| 51 |
I8-97503 512-0 |
|
SHIM; PINION,FINAL DRIVE |
ar |
2110- |
|
D E F |
EXC. REAR AXLE DIFF LOCK<8CL> T=2.28 |
| 50 |
I8-97503 951-0 |
|
BEARING; FINAL PINION |
1 |
2110- |
|
D E F |
REAR AXLE DIFF LOCK<8CL> |
| 73 |
I8-94435 349-0 |
|
SHIM; DIFF SIDE BRG |
AR |
2110- |
|
D E F |
EXC. REAR AXLE DIFF LOCK<8CL> T=0.15 |
| 100 |
I8-97502 956-0 |
|
SEAL; OIL,FINAL PINION |
1 |
2110- |
|
ABC |
|
| 46 |
I8-97556 430-0 |
|
BOLT |
4 |
2110- |
|
D E F |
REAR AXLE DIFF LOCK<8CL> (b) |
| 79 |
I8-94453 936-0 |
|
PLATE; FRICTION |
4 |
2110- |
|
BC |
LIMITED SLIP DIFF<G80> T=1.75 |
| 1 |
I8-98395 214-0 |
|
DRIVE ASM; FINAL,RR |
1 |
2110- |
|
A |
FINAL GEAR RATIO 41/10(GT5) (a) 41/10 |
| 37 |
I8-97948 984-0 |
|
NUT; DRIVING PINION |
1 |
2110- |
|
D E F |
REAR AXLE DIFF LOCK<8CL> M24 FLANGE |
| 51 |
I8-97503 495-0 |
|
SHIM; PINION,FINAL DRIVE |
AR |
2110- |
|
D E F |
EXC. REAR AXLE DIFF LOCK<8CL> T=1.94 |
| 74 |
I8-97556 411-0 |
|
PIN; LK,CROSS PIN |
2 |
2110- |
|
D E F |
REAR AXLE DIFF LOCK<8CL> |
| 51 |
I8-97503 496-0 |
|
SHIM; PINION,FINAL DRIVE |
AR |
2110- |
|
ABC |
T=1.96 |
| 73 |
I8-94435 353-0 |
|
SHIM; DIFF SIDE BRG |
AR |
2110- |
|
D E F |
EXC. REAR AXLE DIFF LOCK<8CL> T=0.50 |
| 51 |
I8-97503 961-0 |
|
SHIM; PINION,FINAL DRIVE |
AR |
2110- |
|
D E F |
REAR AXLE DIFF LOCK<8CL> T=2.04 |
| 78 |
I8-94453 937-0 |
|
DISC; FRICTION |
4 |
2110- |
|
BC |
LIMITED SLIP DIFF<G80> |
| 1 |
I8-98395 214-0 |
|
DRIVE ASM; FINAL,RR |
1 |
2110- |
|
B |
FINAL GEAR RATIO 41/10(GT5) DISC WHEEL 17X7 ALUMI SILVER PAINT AGGRESSIVE(CXP),DISC WHEEL 17X7.0 STEEL(FPH),DISC WHEEL 15X6-41 STEEL(PGl) EXC. LIMITED SLIP DIFF<G80> (a) 41/10 |
| 79 |
I8-94365 189-0 |
|
PLATE; FRICTION |
4 |
2110- |
|
D E F |
LIMITED SLIP DIFF<G80> EXC. REAR AXLE DIFF LOCK<8CL> T=1.85 |
| 73 |
I8-97947 968-0 |
|
SHIM; DIFF SIDE BRG |
AR |
2110- |
|
D E F |
REAR AXLE DIFF LOCK<8CL> T=0.25 |
| 51 |
I8-97503 501-0 |
|
SHIM; PINION,FINAL DRIVE |
AR |
2110- |
|
ABC |
T=2.06 |
| 74 |
I9-09878 096-0 |
|
PIN; LK,CROSS PIN |
1 |
2110- |
|
A |
OD=5 L=35 |
| 72 |
I8-97499 732-0 |
|
CAGE; DIFF |
1 |
2110- |
|
D E F |
RZ4E-TC ENG(RDZ) EXC. LIMITED SLIP DIFF<G80>,REAR AXLE DIFF LOCK<8CL> |
| 79 |
I8-94365 189-0 |
|
PLATE; FRICTION |
4 |
2110- |
|
BC |
LIMITED SLIP DIFF<G80> T=1.85 |
| 126 |
I8-97499 896-0 |
|
COUPLING; DRIVING PINION |
1 |
2110- |
|
D E F |
EXC. REAR AXLE DIFF LOCK<8CL> |
| 73 |
I8-94435 351-0 |
|
SHIM; DIFF SIDE BRG |
AR |
2110- |
|
ABC |
T=0.25 |
| 1 |
I8-97066 412-0 |
|
DRIVE ASM; FINAL,RR |
2 |
2110- |
|
D E F |
LIMITED SLIP DIFF<G80> EXC. REAR AXLE DIFF LOCK<8CL> T=1.80 |
| 51 |
I8-97503 974-0 |
|
SHIM; PINION,FINAL DRIVE |
AR |
2110- |
|
D E F |
REAR AXLE DIFF LOCK<8CL> T=2.30 |
| 70 |
I8-94435 355-A |
|
BEARING; DIFF CAGE |
2 |
2110- |
|
D E F |
EXC. REAR AXLE DIFF LOCK<8CL> JTEKT |
| 51 |
I8-97503 512-0 |
|
SHIM; PINION,FINAL DRIVE |
ar |
2110- |
|
ABC |
T=2.28 |
| 73 |
I8-94435 352-0 |
|
SHIM; DIFF SIDE BRG |
AR |
2110- |
|
D E F |
EXC. REAR AXLE DIFF LOCK<8CL> T=0.30 |
| 51 |
I8-97503 969-0 |
|
SHIM; PINION,FINAL DRIVE |
AR |
2110- |
|
D E F |
REAR AXLE DIFF LOCK<8CL> T=2.20 |
| 51 |
I8-97503 502-0 |
|
SHIM; PINION,FINAL DRIVE |
AR |
2110- |
|
ABC |
T=2.08 |
| 73 |
I8-94435 349-0 |
|
SHIM; DIFF SIDE BRG |
AR |
2110- |
|
ABC |
T=0.15 |
| 55 |
I8-97839 631-0 |
|
CARRIER; DIFF |
1 |
2112- |
|
D E F |
REAR AXLE DIFF LOCK<8CL> FINAL GEAR RATIO 43/12(GM0),FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/ll(GWl),FINAL GEAR RATIO 43/10(GY2) EXC. LIMITED SLIP DIFF<G80> |
| 229 |
I8-98398 069-0 |
|
CONNECTOR |
1 |
2110- |
|
D E F |
REAR AXLE DIFF LOCK<8CL> (B) |
| 51 |
I8-97503 496-0 |
|
SHIM; PINION,FINAL DRIVE |
AR |
2110- |
|
D E F |
EXC. REAR AXLE DIFF LOCK<8CL> T=1.96 |
| 51 |
I8-97503 514-0 |
|
SHIM; PINION,FINAL DRIVE |
ar |
2110- |
|
D E F |

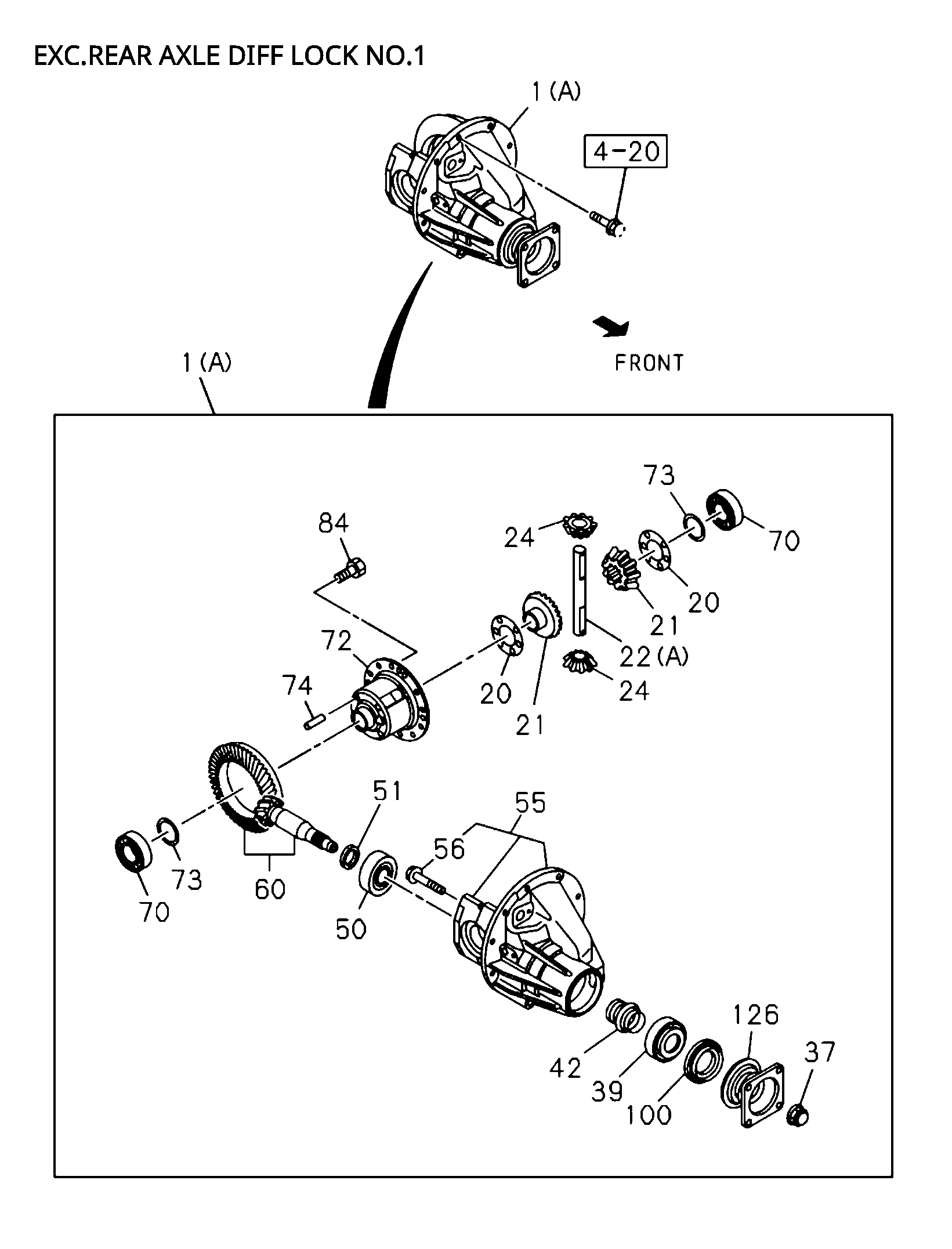

EXC. REAR AXLE DIFF LOCK<8CL> T=2.32 |
| 51 |
I8-97503 956-0 |
|
SHIM; PINION,FINAL DRIVE |
ar |
2110- |
|
D E F |

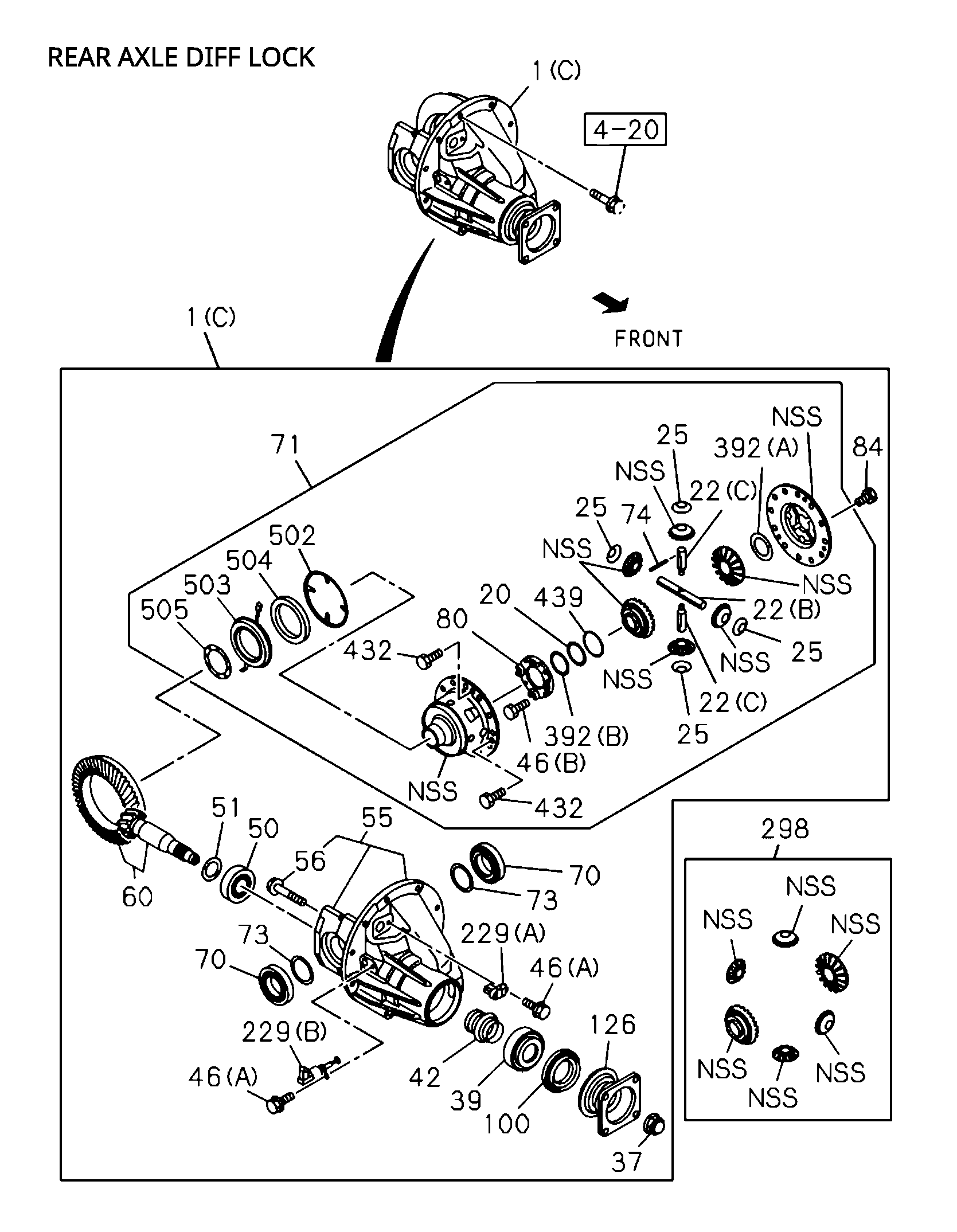

REAR AXLE DIFF LOCK<8CL> T=1.96 |
| 50 |
I8-97503 277-0 |
|
BEARING; FINAL PINION |
1 |
2110- |
|
D E F |
EXC. REAR AXLE DIFF LOCK<8CL> |
| 80 |
I8-94453 931-0 |
|
RING; PRESSURE |
2 |
2110- |
|
BC |
LIMITED SLIP DIFF<G80> |
| 73 |
I8-97947 969-0 |
|
SHIM; DIFF SIDE BRG |
AR |
2110- |
|
D E F |
REAR AXLE DIFF LOCK<8CL> T=0.30 |
